One-Story Mountain Craftsman House Plan with Angled 5-Car Garage - 4140 Sq Ft

Plan 24407TW

  • 4,140

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 5

    Cars

  • This attractive, one-story house plan includes elegant details to highlight the craftsman-style design. Arched windows, stone accents, and a dormer window contribute to the front elevation's curb appeal.
  • The great room, dining room, and kitchen combine to create a center for everyday living. A fireplace on the screened porch allows for outdoor living during all seasons.
  • A large, walk-in pantry and spacious island provides ample storage and workspace in the kitchen.
  • The first-floor, master bedroom is privately situated on one side of the home, and features french doors to a secluded deck, an elegant double-tray ceiling, roomy walk-in closet with a stacked washer/dryer, and bathroom with dual sinks and a commode room.
  • The walk-out basement makes this home perfect for a sloped lot. The lower level includes 12' ceilings, a large recreation room, two bedrooms with full bathrooms, a flex/exercise room and an office.
  • Architectural Designs curates and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify this house plan (and any you see on our site). Learn more about modifications.
  • Related Plans: Get a 3-car garage with house plans 24392TW and 24302TW.

The plans include the following:

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

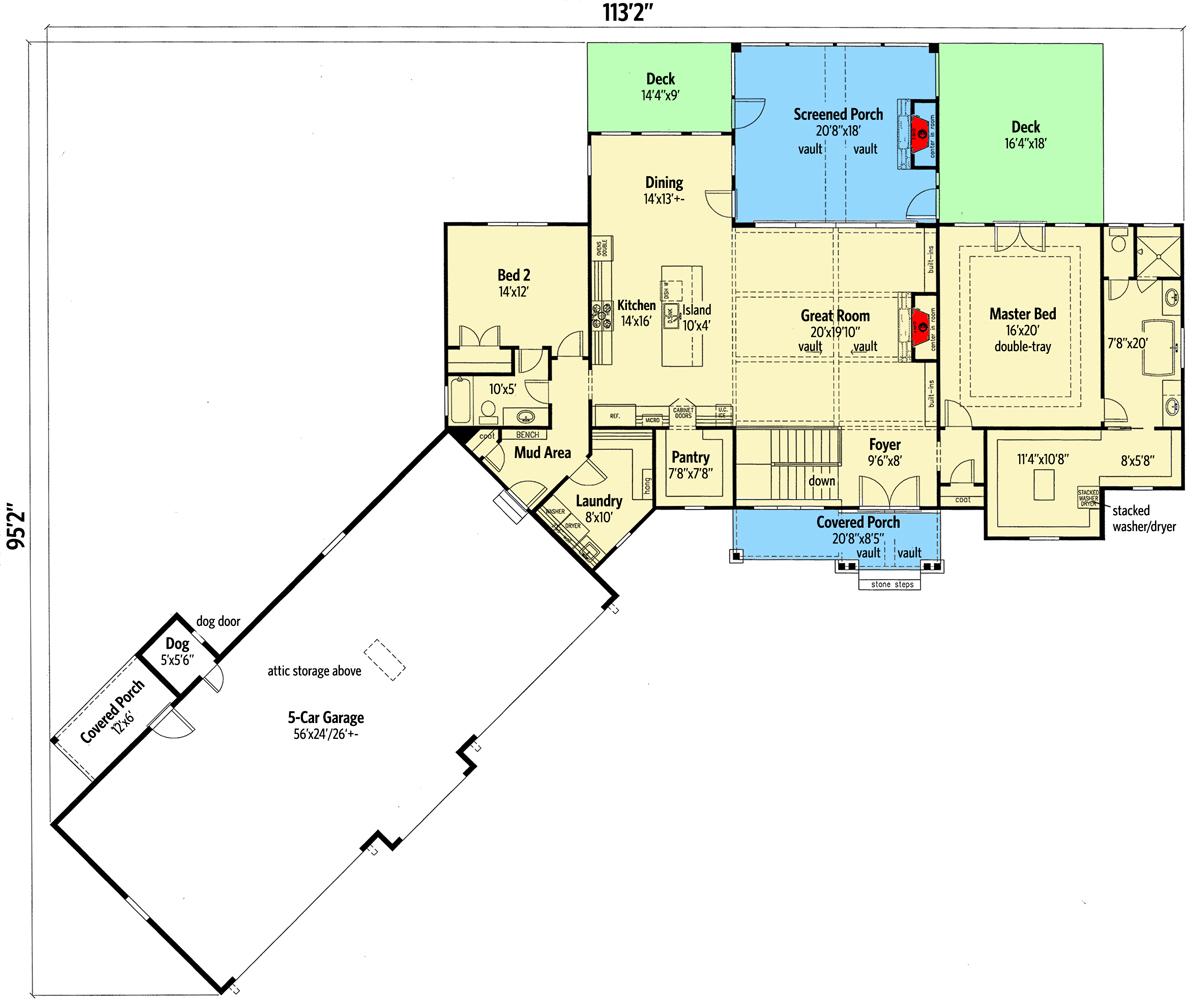

One-Story Mountain Craftsman House Plan with Angled 5-Car Garage - 4140 Sq Ft - 24407TW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

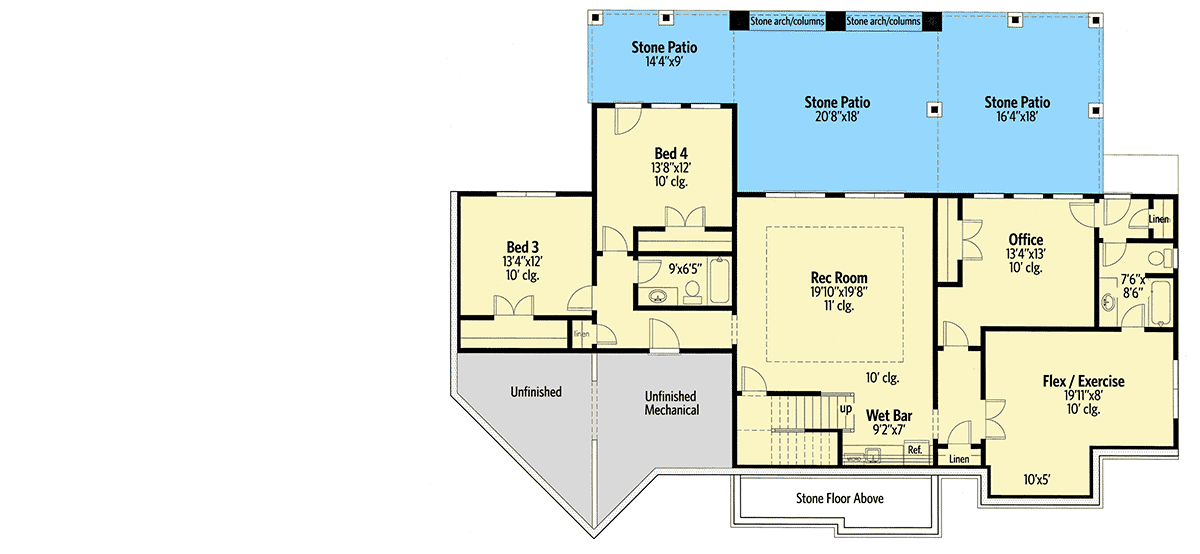

One-Story Mountain Craftsman House Plan with Angled 5-Car Garage - 4140 Sq Ft - 24407TW floor plan - Lower Level

One-Story Mountain Craftsman House Plan with Angled 5-Car Garage - 4140 Sq Ft

  • 4,140

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 5

    Car garage

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,140 sq. ft.
  • Lower Level: 1,866 sq. ft.
  • 1st Floor: 2,274 sq. ft.

Dimensions

  • Width: 113' 2"
  • Depth: 95' 2"
  • Max ridge height: 25' 1"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 1402 sq. ft.
  • Count: 5 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: Lower Level / 12' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
