One-Story Transitional-Style Ranch Home Plan with 3 Beds Under 2000 Square Feet

Plan 22666DR

  • 1,947

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This exquisite one-story transitional-style home plan boasting 3 bedrooms, 2.5 bath and a convenient side-load 2-car garage.
  • As you enter through the sheltered front porch, you're greeted by a remarkable and spacious entrance.
  • Inside, the living room, adorned with a cathedral ceiling, offers a cozy fireplace and seamless connections to the dining room and well-appointed kitchen with an island and pantry.
  • A versatile office awaits near the front entrance.
  • This residence features a split floor plan, with the master suite on one side and the other bedrooms on the other. The master suite comes with a private ensuite featuring a separate bath, shower, two sinks, and a roomy walk-in closet.
  • Two secondary bedrooms share a convenient bathroom.
  • Step outside to the rear sheltered terrace, providing ample space for relaxation and entertainment.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

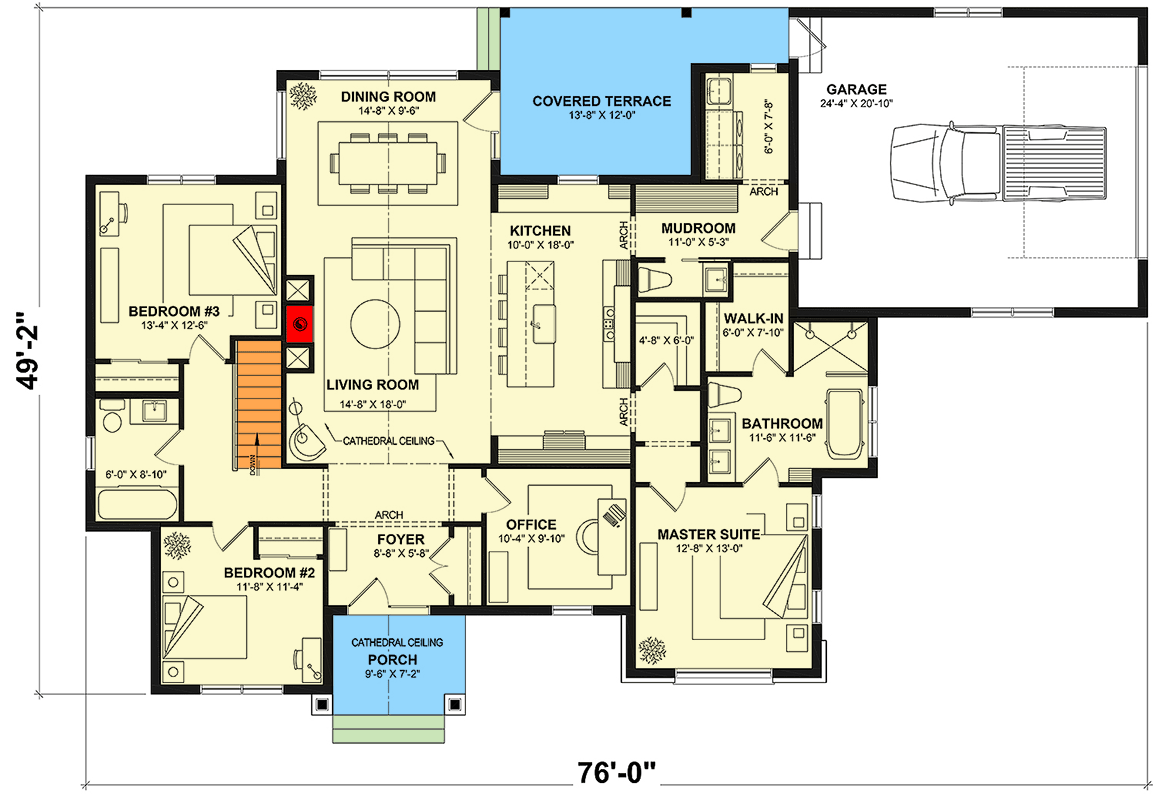

One-Story Transitional-Style Ranch Home Plan with 3 Beds Under 2000 Square Feet - 22666DR floor plan - Main Level

One-Story Transitional-Style Ranch Home Plan with 3 Beds Under 2000 Square Feet

  • 1,947

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,947 sq. ft.
  • 1st Floor: 1,947 sq. ft.

Dimensions

  • Width: 74' 4"
  • Depth: 49' 2"
  • Max ridge height: 18' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 569 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Monolithic Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
