Open Concept 3 Bed, 2 Bath House Plan with 2-Car Garage and Bonus Room

Plan 51844HZ

  • 2,199

    Heated s.f.

  • 3

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • A tidy brick exterior exterior, a covered entry and a 2-car garage welcome you to this 3-bed house plan. Inside, an open floor plan gives you great livability.
  • From the foyer, your view extends through the great room with fireplace to the porch in back. An opening on your left takes you to the dining room which has access to the kitchen through a walk-through pantry (and there is a walk-in pantry as well with a pocket door that closes it off.
  • A large island in the kitchen (4' by 6'6") gives you work space and seating. Standing behind it, you can see the fireplace in the great room as well as the rear porch through the windows by the sink and the ones lining the back wall of the great room.
  • The bedrooms are in a split layout with the primary one on the left. It has a tray ceiling going from 9' to 10' and has direct access to the porch. The bathroom has a walk-in shower, two vanities, a private toilet and two walk-in closets. Across the home, two bedrooms - each with walk-in closets, share a bath. A handy linen closet is located in the hall.
  • A roomy laundry room is located by the family entry where there are lockers to help manage clutter. The stairs go to the bonus room over the garage which comes with its own full bathroom. This space be used as a fourth bedroom, a game or play room or even as a home office.
  • The garage is large enough for two full size vehicles and offers a storage closet.

This house plan has 12 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed first floor and bonus floor plans (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

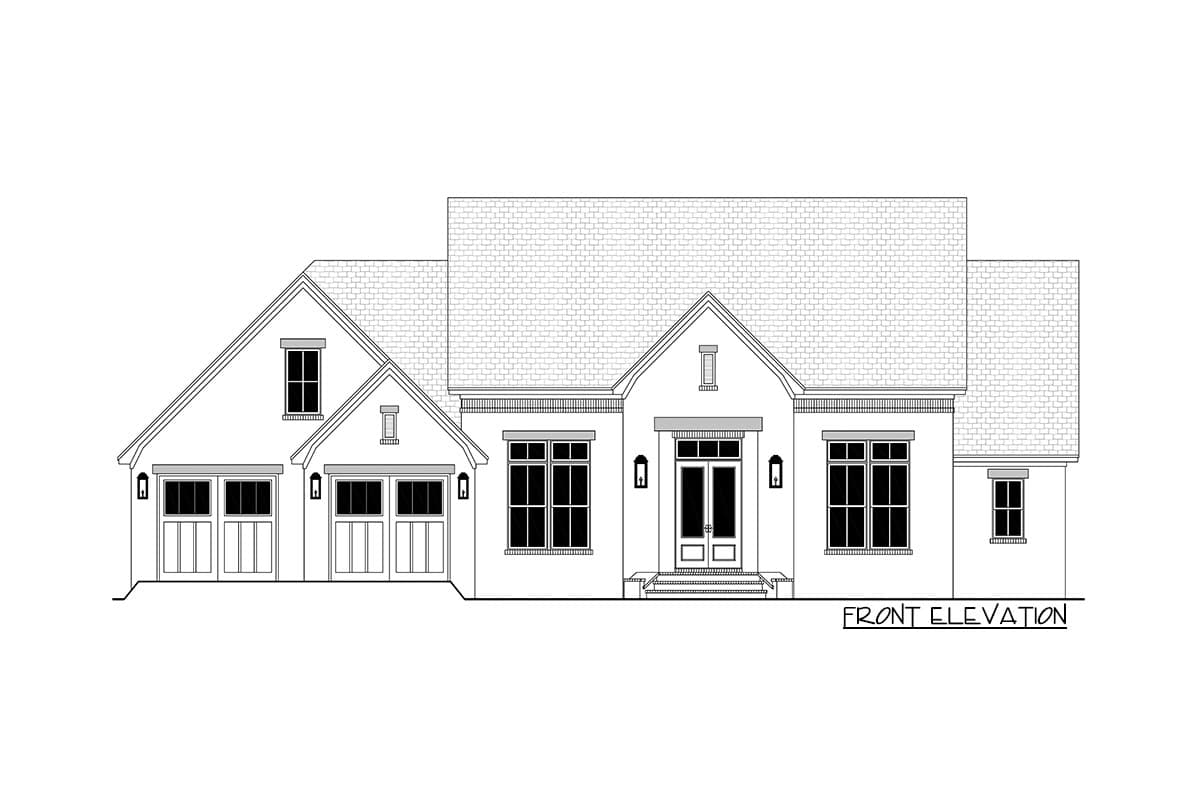

Page 4  Front and rear exterior views with additional details

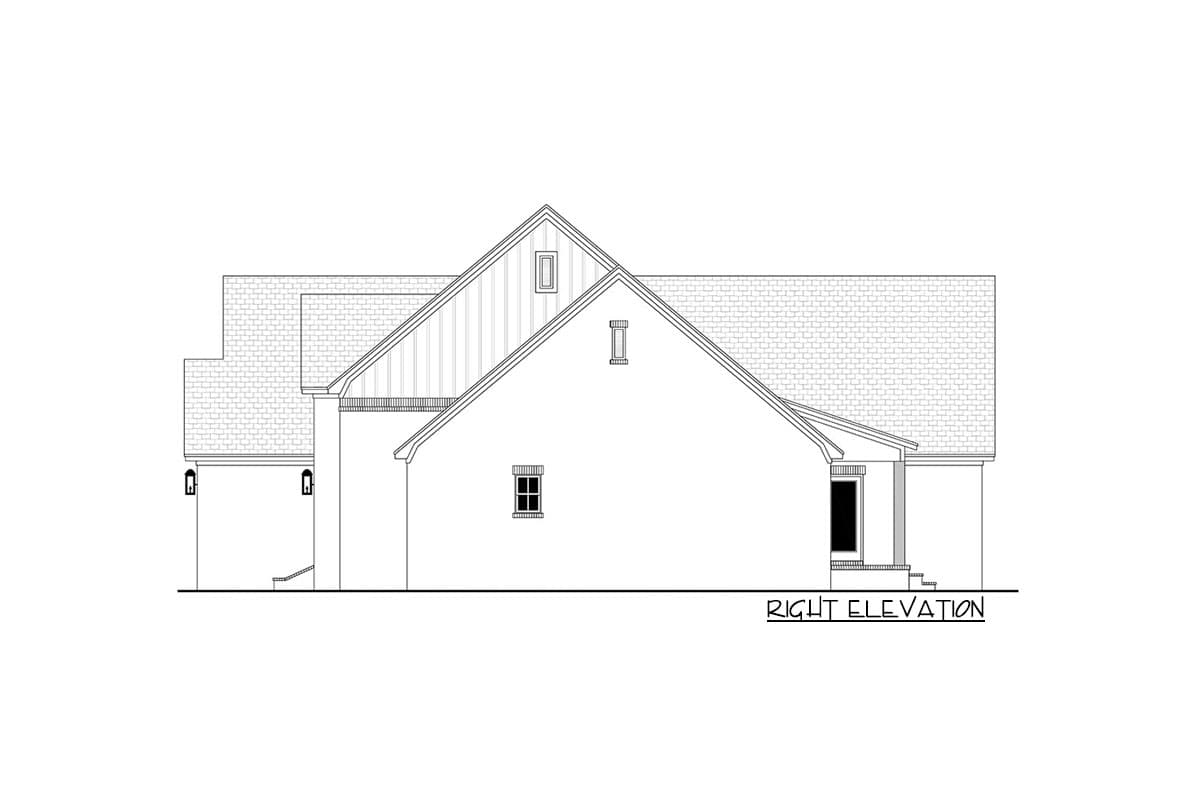

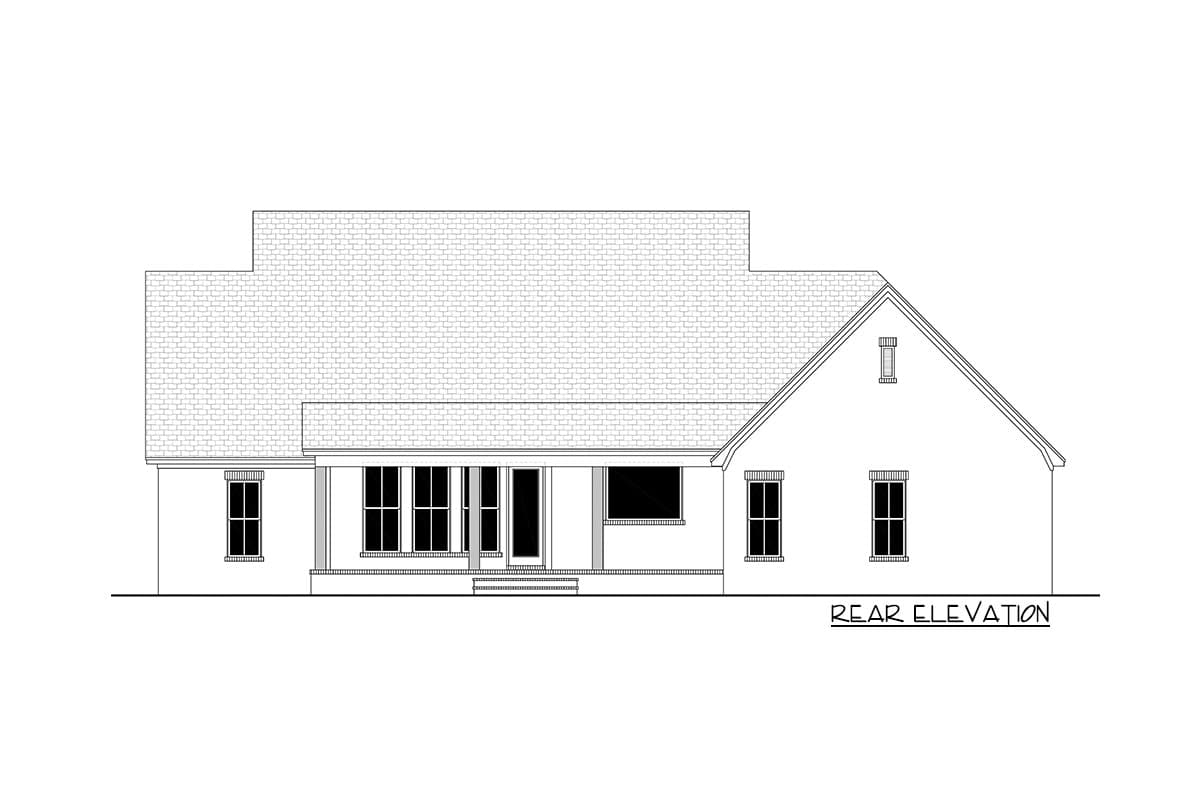

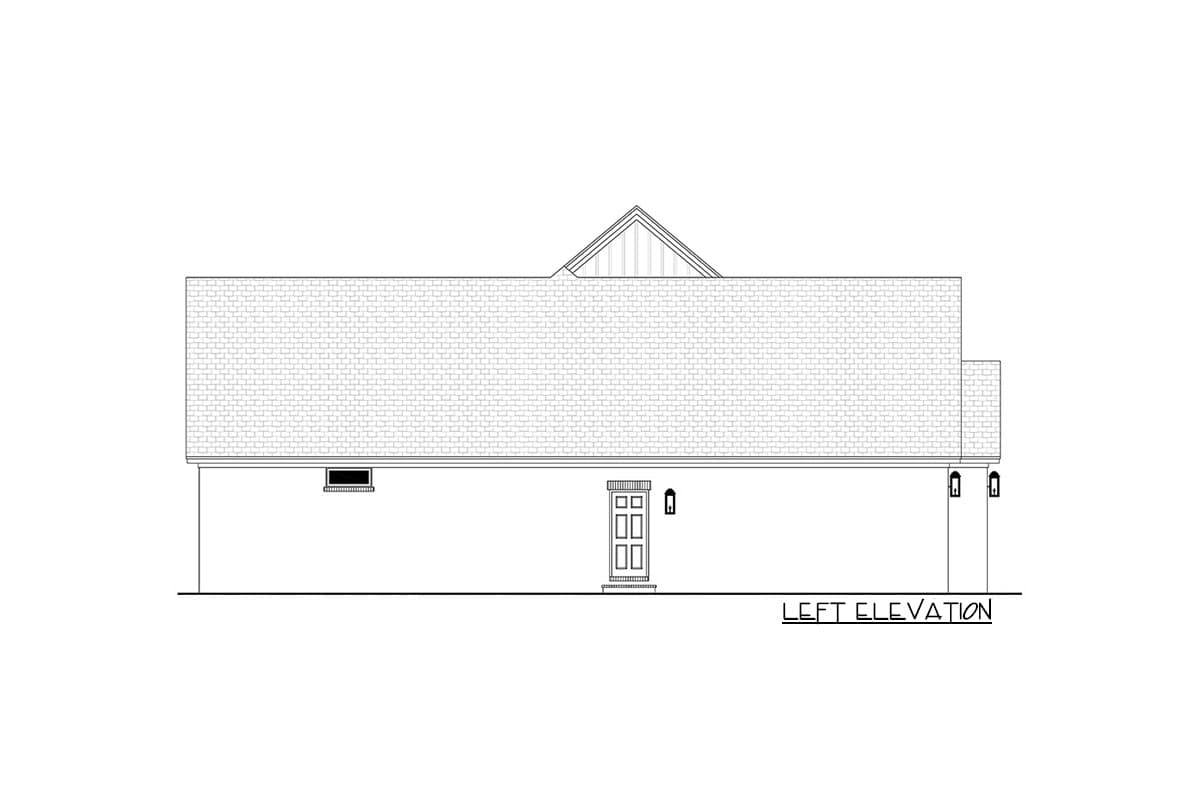

Page 5  Right and left exterior views with additional details
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan and span charts with additional details
Page 8  Electrical plans & notes/ legend
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

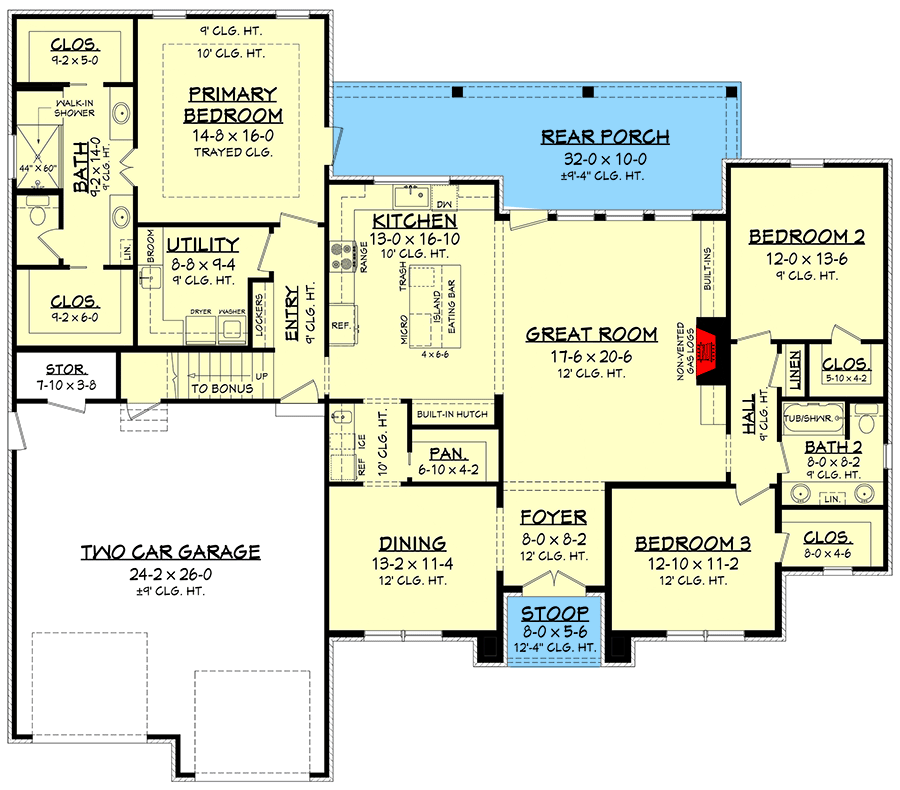

Open Concept 3 Bed, 2 Bath House Plan with 2-Car Garage and Bonus Room - 51844HZ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

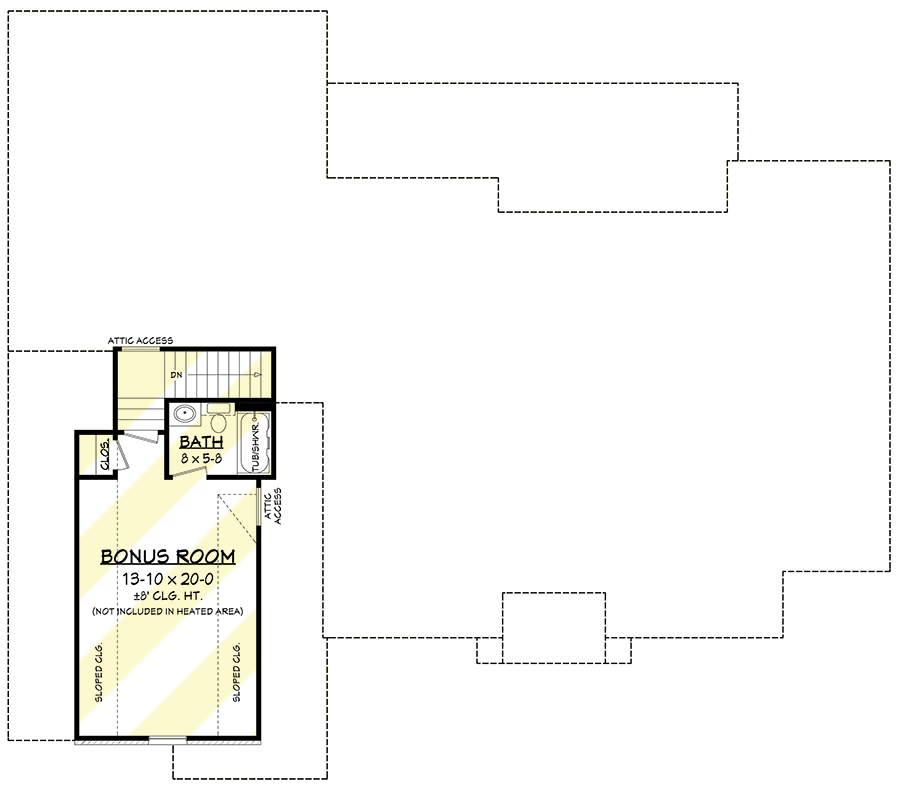

Open Concept 3 Bed, 2 Bath House Plan with 2-Car Garage and Bonus Room - 51844HZ floor plan - Bonus Level

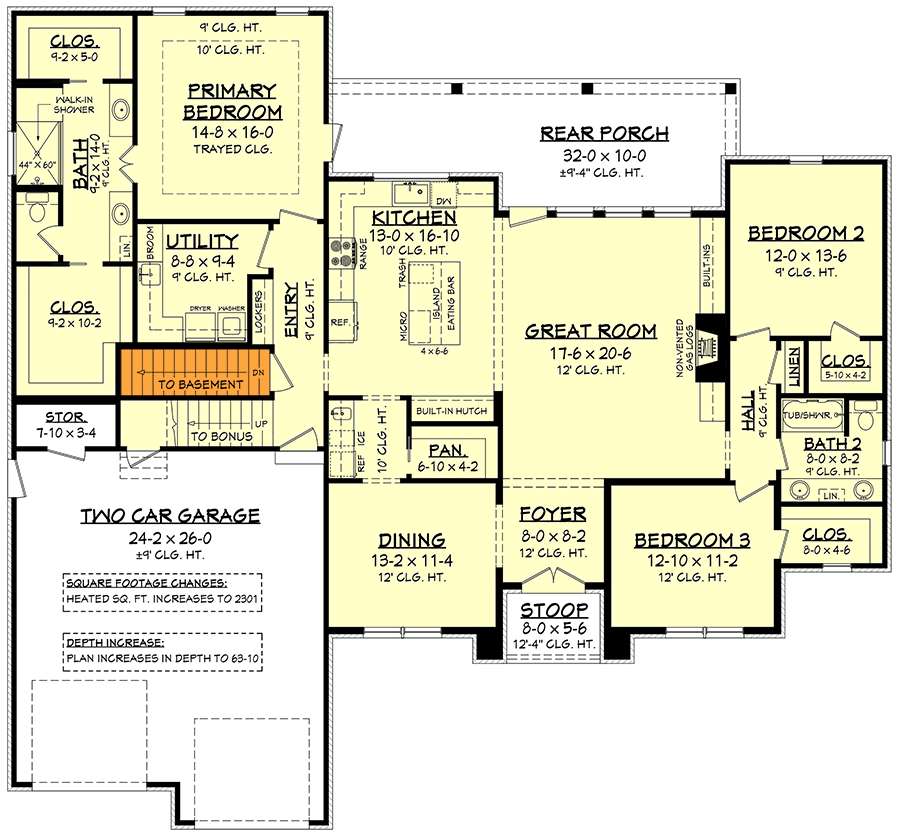

Basement Stairs Location - Main Floor

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Open Concept 3 Bed, 2 Bath House Plan with 2-Car Garage and Bonus Room - 51844HZ floor plan - Basement Stairs Location - Main Floor

Open Concept 3 Bed, 2 Bath House Plan with 2-Car Garage and Bonus Room

  • 2,199

    Heated s.f.

  • 3

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus Level

  • Basement Stairs Location - Main Floor

Plan Details

Square Footage Breakdown

  • Total: 2,199 sq. ft.
  • 1st Floor: 2,199 sq. ft.

Dimensions

  • Width: 68' 8"
  • Depth: 59' 10"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3

Garage

  • Type: Attached
  • Area: 684 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
