Open Concept 4-Bed Craftsman Home Plan

Plan 890088AH

  • 3,485

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • This craftsman style has some featured amenities like a second floor loft and laundry room.
  • On the main floor when you enter the house there is a large great room perfect for a family get together.
  • The master bedroom is located left of the great room and has its own hallway and section of the house to keep it secluded.
  • Located at the rear of the house there is a large covered porch perfect for the summer.
  • Three additional bedrooms are located upstairs with all of them having a spacious walk-in closet.
  • To complete this design, a full loaded garage is on the side to allow it to be hidden.
  • Related Plan: Get a finished walkout basement with a fifth bedroom and more with house plan 890128AH.

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

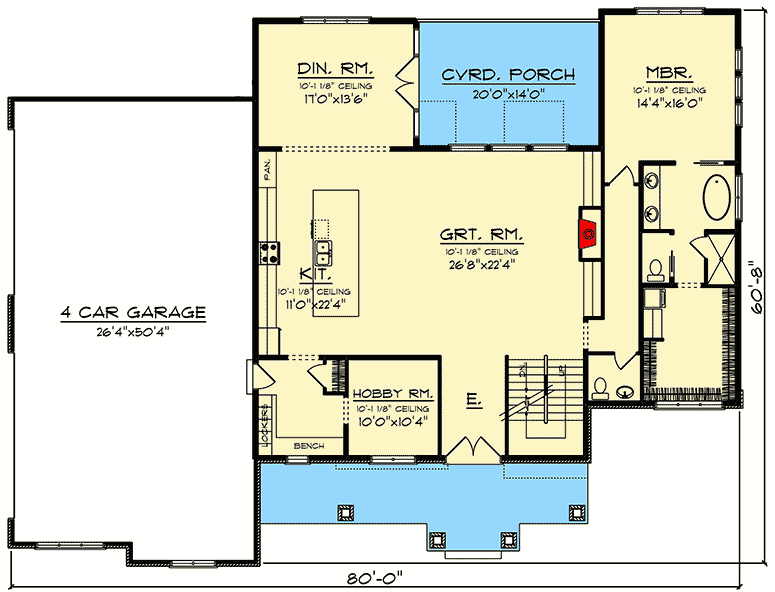

Open Concept 4-Bed Craftsman Home Plan  - 890088AH floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

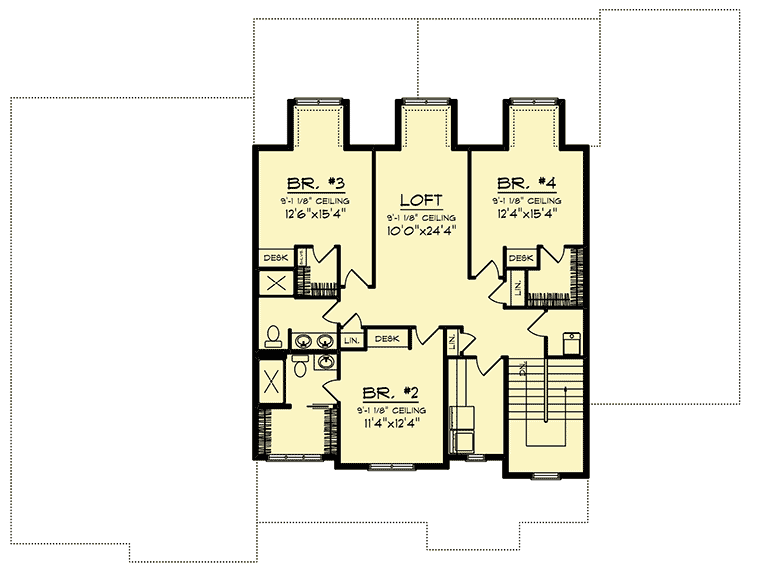

Open Concept 4-Bed Craftsman Home Plan  - 890088AH floor plan - 2nd Floor

Open Concept 4-Bed Craftsman Home Plan

  • 3,485

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,485 sq. ft.
  • 1st Floor: 2,213 sq. ft.
  • 2nd Floor: 1,272 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 60' 8"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1337 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
