Plan 21036DR
Open Floor Plan with Optional Version
Heated S.F.
1,053
Beds
3
Baths
1
Stories
1-2
What's Included
Plan Details
  • A coat closet off the covered entry reduces clutter in this cozy three-bedroom house plan.
  • A clever island in the kitchen has seating for three attached as well as a pantry for storage.
  • The living room and dining room are open and a door leads out to the back where you might want to put a patio or deck.
  • Three bedrooms and laundry space are on the main floor.
  • Expand in the basement or use it for storage. Alternate foundations are available.
  • Related Plans: Get more room with house plan 22332DR (1,315 sq. ft.).
  • For an alternate version in reverse layout, see house plan 21786DR.
What's Included
Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Open Floor Plan with Optional Version

  • 1,053

    Heated s.f.

  • 3

    Beds

  • 1

    Baths

  • 1-2

    Floors

Floor Plan

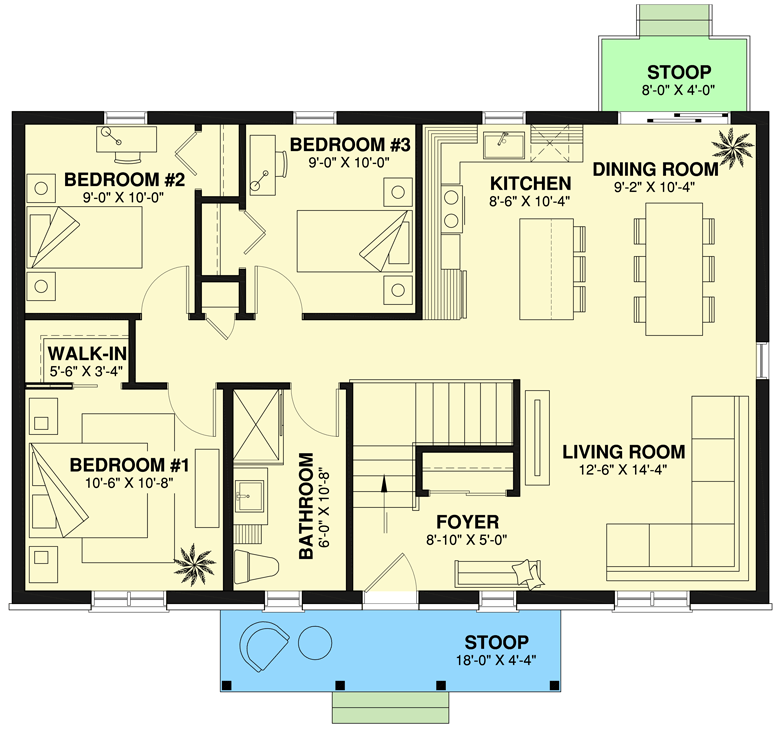

  • Main Level

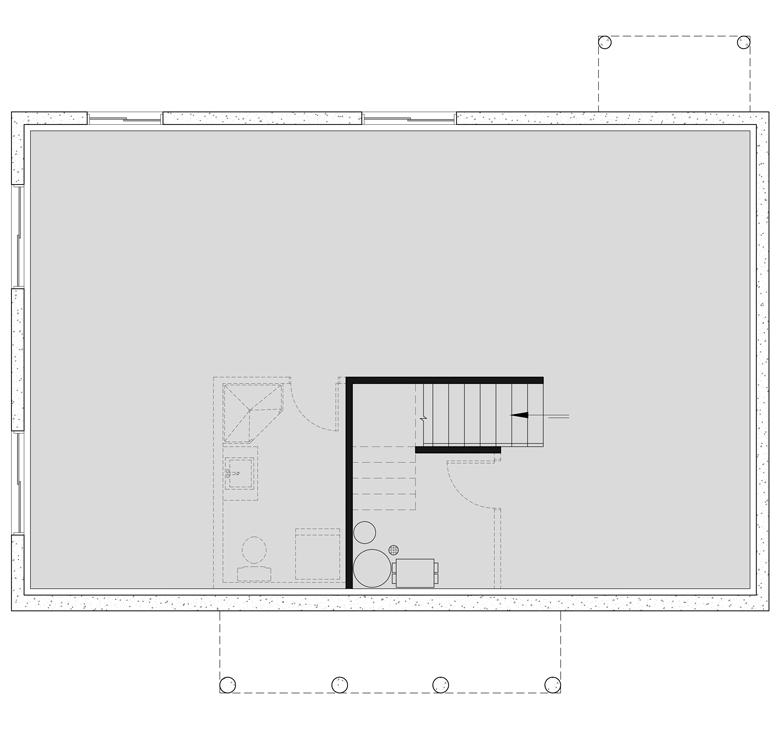

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 1,053 sq. ft.
  • 1st Floor: 1,053 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 26' 4"
  • Max ridge height: 19' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
