Plan 90137PD

Open Floor Plan with Options

Heated S.F.
1,837
Beds
3
Baths
1.5
Stories
2
Cars
1

Floor Plan

Plan 90137PD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 90137PD

M-F 9am-5pm EST |

1-203-761-8500

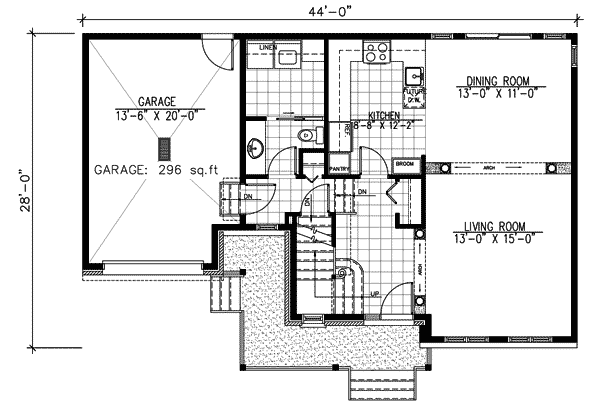

Main Level

Plan 90137PD: Open Floor Plan with Options - Floor Plan - Main Level - Country, Traditional

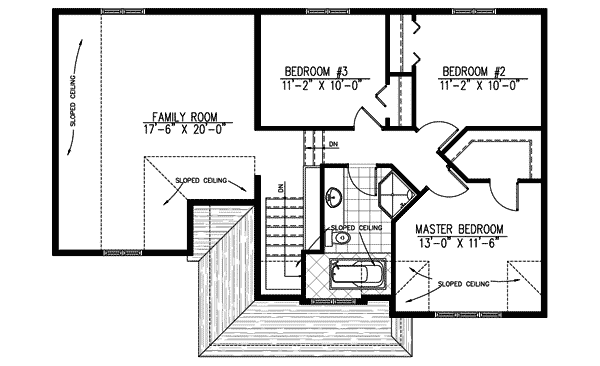

2nd Floor

Plan 90137PD: Open Floor Plan with Options - Floor Plan - 2nd Floor - Country, Traditional

Plan Details

  • An attractive facade graces this house plan. It comes in multiple versions to suit many tastes.
  • Off the L-shaped covered porch step inside and note the open floor plan. Views extend straight through to the kitchen in the back and step through an arch and see how the dining and living rooms connect.
  • A laundry room and powder room are located just off the garage.
  • Upstairs you'll find a cluster of 3 bedrooms. The master has a large walk-in closet.
  • Related Plans: Eliminate the room over the garage with house plan 90132PD.
  • Eliminate the garage with house plan 90136PD.

What's Included

Please note this plan is designed to the National Building Code of Canada.

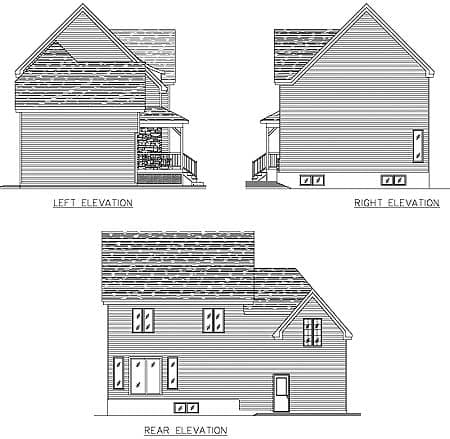

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,837 sq. ft.

1st Floor

776 sq. ft.

2nd Floor

1,061 sq. ft.

Basement Unfinished

776 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

28' 0"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

296 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Traditional

Special Features

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric
