Optional Family Room a Plus

Plan 90175PD

This plan plants 3 trees

1,348
Heated s.f.
3
Beds
1
Baths
1-2
Stories
1
Cars

Classic quoins and eyebrow dormers combine for great curbside appeal. A flexible design, this home plan can be built with or without the garage.
The main floor is wide open and made for entertaining. An optional fireplace is a nice touch.
Upstairs you'll find the bedrooms. And at the landing level enjoy the optional family room.
Related Plans: Get an alternate version with house plan 9084PD (1,226 sq. ft.) and 90011PD (1,520 sq. ft.).

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

Elevations
Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
Main floor plan w/ structure for the roof above, electrical layout
Building section
Construction details

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Optional Family Room a Plus - 90175PD floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

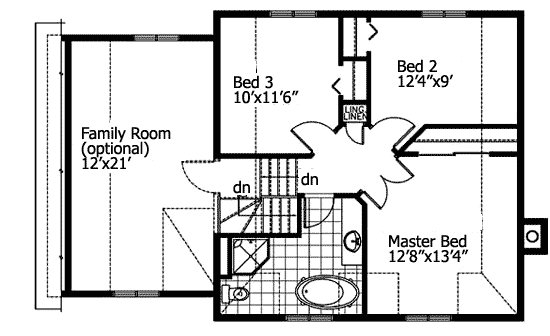

Optional Family Room a Plus - 90175PD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,348 sq. ft.
1st Floor: 672 sq. ft.
2nd Floor: 676 sq. ft.

Basement Unfinished: 672 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 1

Foundation Type

Standard Foundations: Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 26' 0"
Depth: 26' 0"
Max ridge height: 32' 10"

Garage

Type: Attached
Area: 308 sq. ft.
Count: 1 Cars
Entry Location: Front

Roof Details

Framing Type: Truss

Architectural Style

Special features

Plan Collections
