Plan 90260PD
Optional Family Room and Garage
Heated S.F.
1,480
Beds
3
Baths
1.5
Stories
2
Cars
1
What's Included
Plan Details
  • Compact in size, the open layout of this Modern house plan makes the house feel even larger.
  • The island in the kitchen has seating for five people. From here you can see into the dining room and living room for an easy flow from room to room.
  • Three steps up and you have a large landing on the way to the second floor. The three bedrooms share a large bathroom with both a shower and a tub.
  • Add the optional one car garage and gain a family room.
What's Included
Please note this plan is designed to the National Building Code of Canada.

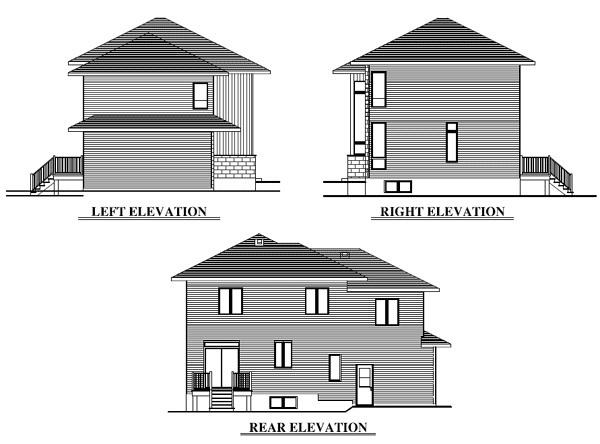

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Optional Family Room and Garage

  • 1,480

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

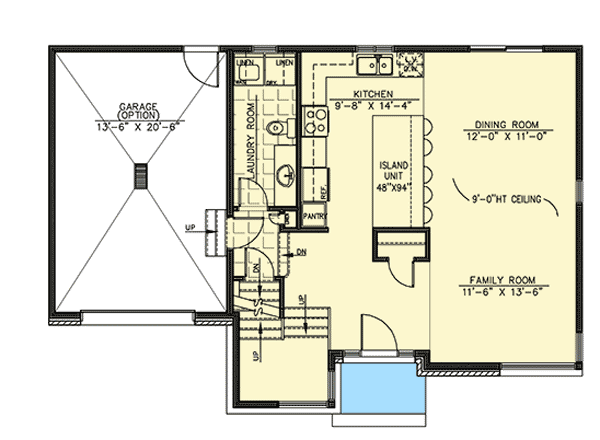

  • Main Level

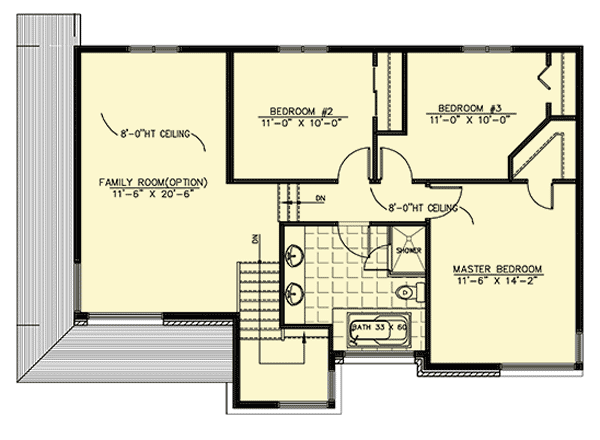

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,480 sq. ft.
  • 1st Floor: 740 sq. ft.
  • 2nd Floor: 740 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 29' 0"
  • Max ridge height: 29' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 277 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
