Plan 66348WE

Opulent Mediterranean House Plan - 4948 Sq Ft

Name: Plan 66348WE: Opulent Mediterranean House Plan - 4948 Sq Ft
Brand: Architectural Designs
SKU: 66348WE
Price: 3000.0 USD
Availability: InStock

Heated S.F.

4,948

Beds

Baths

4.5

Stories

Cars

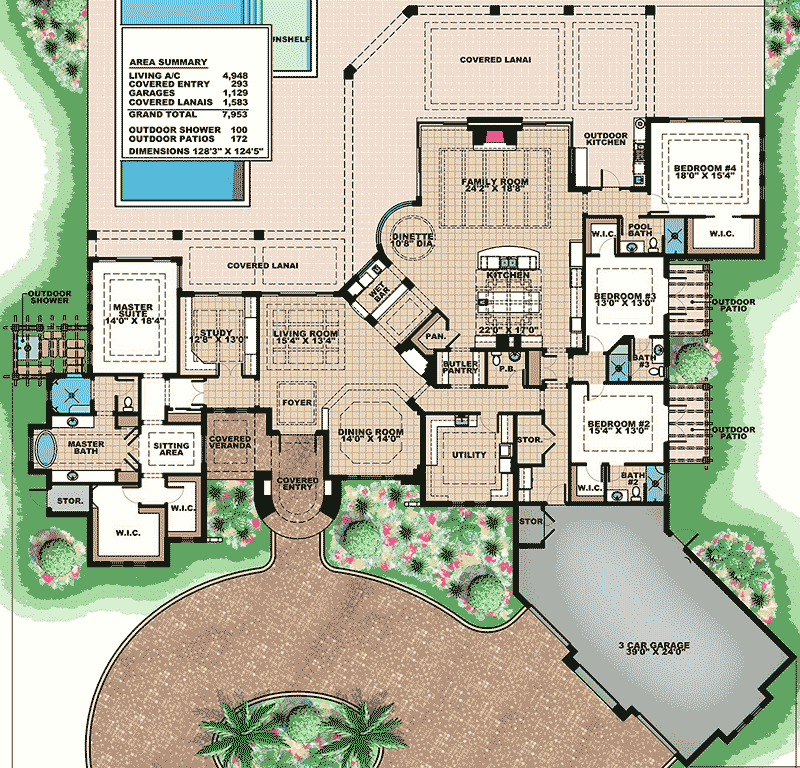

Floor Plan

Main Level

Plan Details

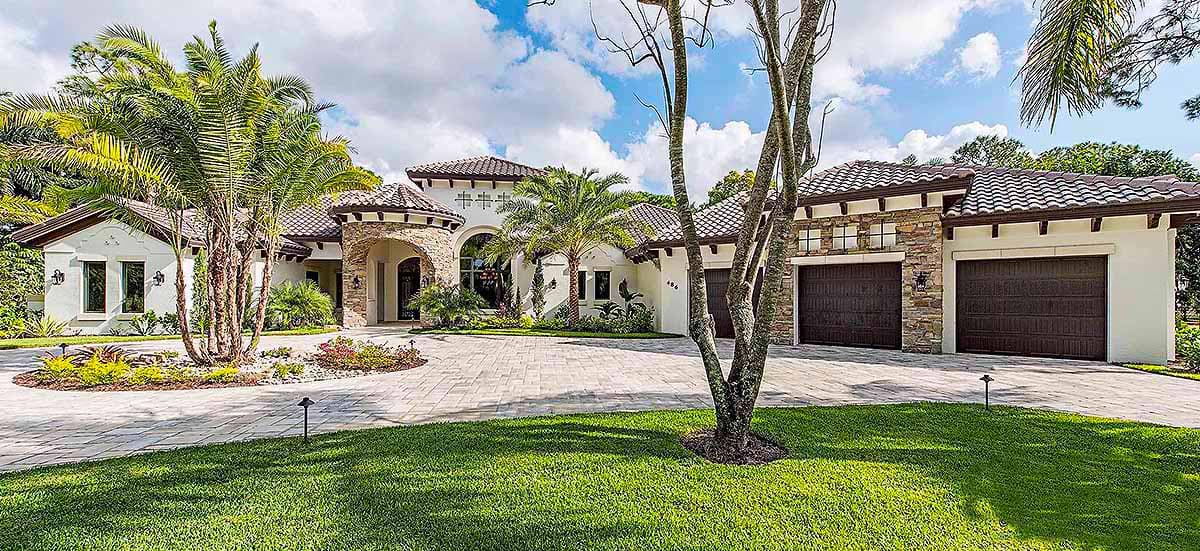

This opulent Mediterranean house plan has a wealth of luxurious amenities to give you a high-end life style.
Gorgeous ceiling treatments can be found throughout the home, even the utility room!
The open floor plan offers beautiful sightlines that flow from room to room.
Perfectly positioned, the large wet bar serves both the formal and informal living areas of the home.

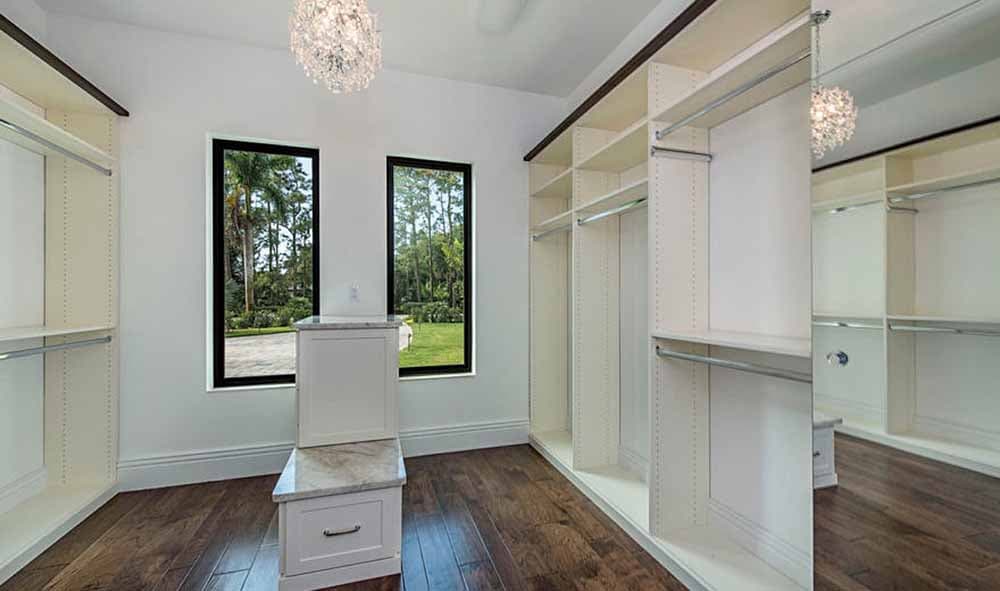

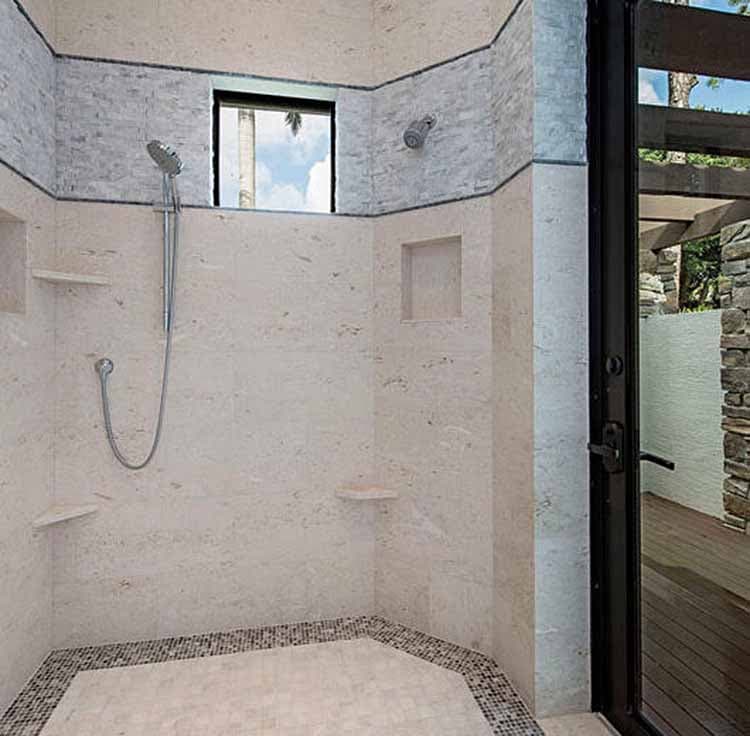

The amazing master bedroom suite takes up the whole left wing of the home and features an outdoor shower covered by a trellis, a sitting area and two huge walk-in closets.

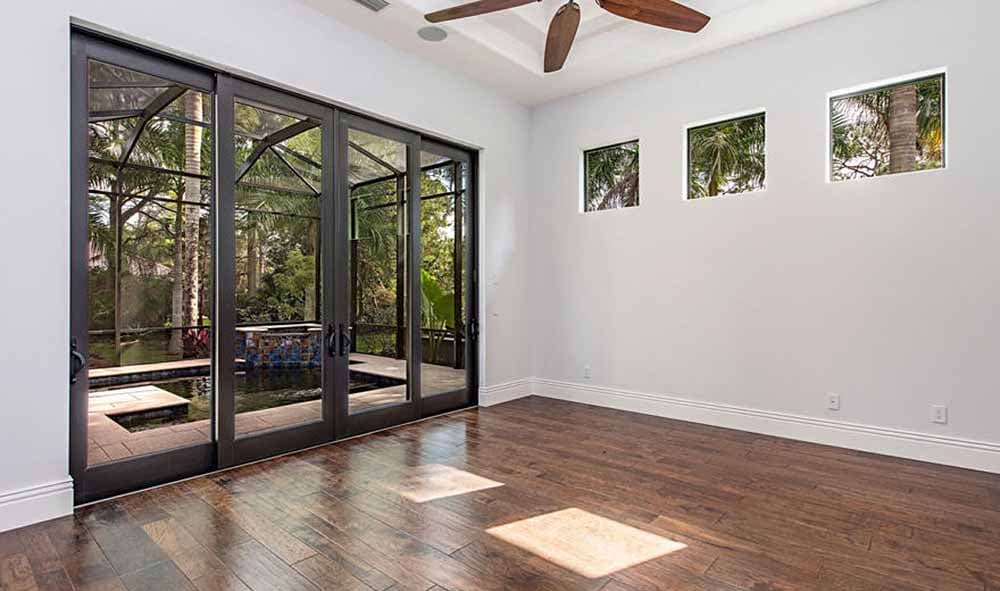

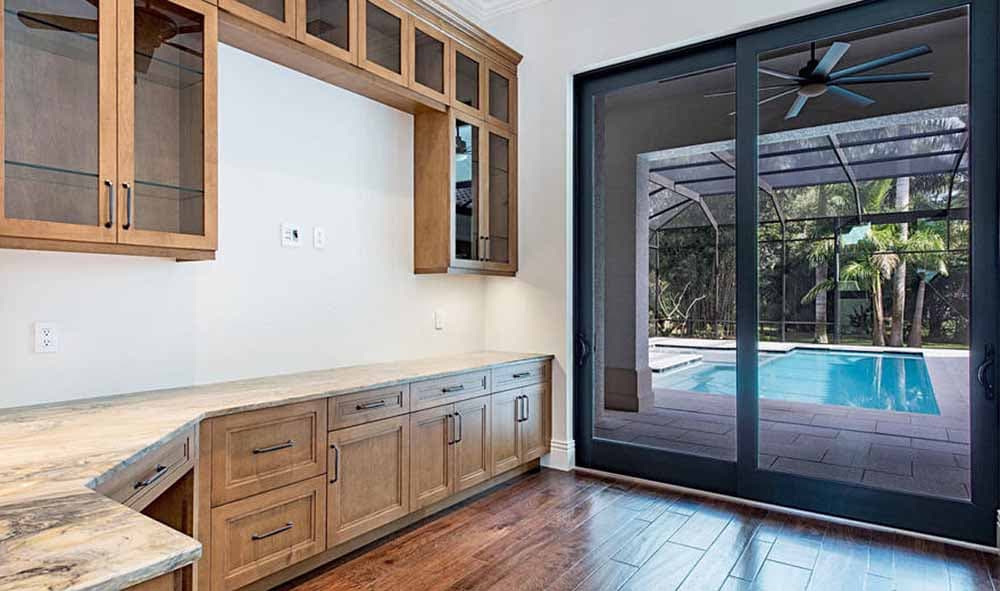

Built-ins and sliding glass doors enhance the study.

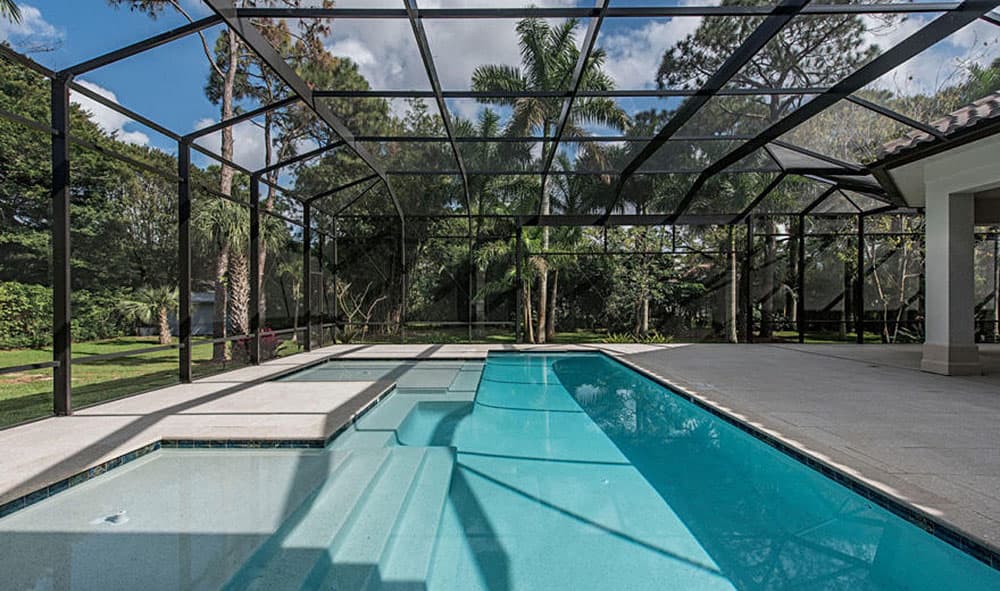

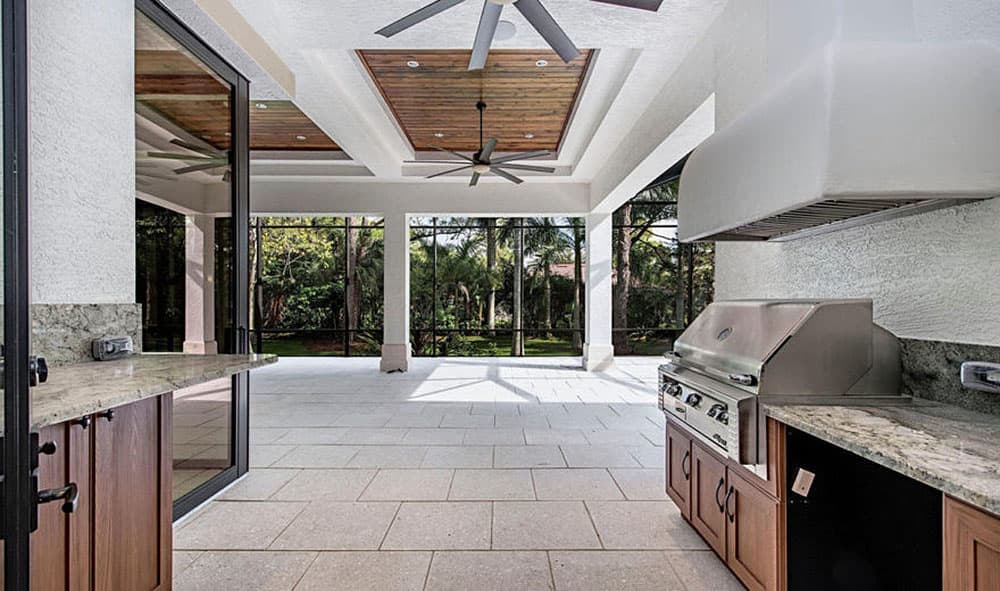

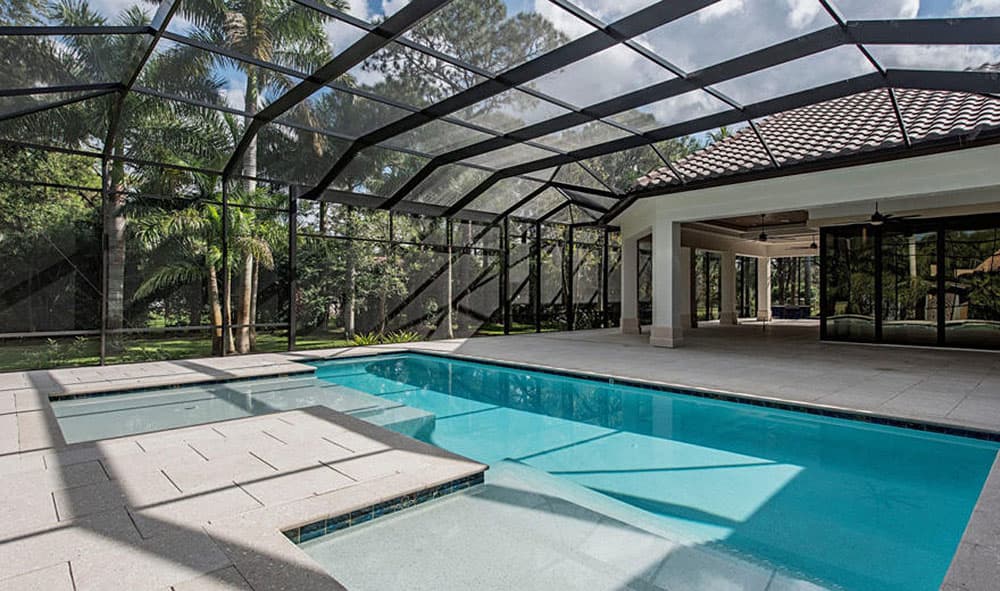

The outdoor living space wraps around almost the entire back of the house, with an outdoor kitchen at one end.
Three spacious bedrooms lie on the opposite side of the home from the master.
Bedrooms 2 and 3 also get outdoor patios covered by trellises.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
