Plan 81663AB

Over-Sized Mountain House Plan

Over-Sized Mountain House Plan

Plan 81663AB

  • 4,591

    Heated s.f.

  • 5-7

    Beds

  • 4.5+

    Baths

  • 1-2

    Stories

  • 4

    Cars

  • Five bedrooms on the main floor plus the option of two more if you finish the lower level make this a fabulous house plan for a large family who want to entertain royally.
  • The informal layout of the main living area has that popular open feel, yet you get a quiet den and a second floor library when you want to be alone.
  • The covered rear porch is flanked by two open decks on either side.
  • Two jack and jill bathrooms serve the four family bedrooms on the main level with the luxurious master suite close by.
  • You'll have the whole second floor to yourself and a cozy fireplace for reading in the library.
  • Finish the lower level to add 3,145 square feet of amazing living space.
  • All the bells and whistles will include a craft room, home theater, a dedicated exercise room and both a games room and family room plus two bedroom suites for overnight guests.
  • There's even a huge four car garage so everyone gets a bay.

Plans include the following:

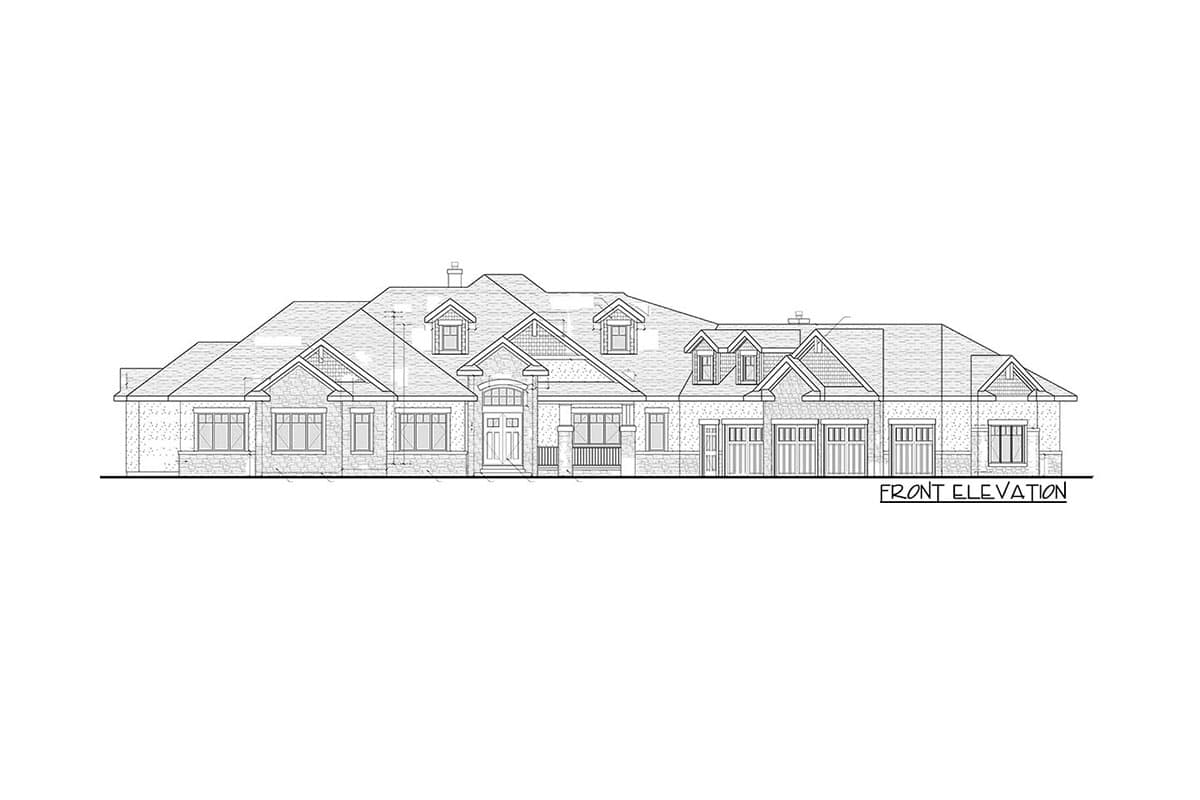

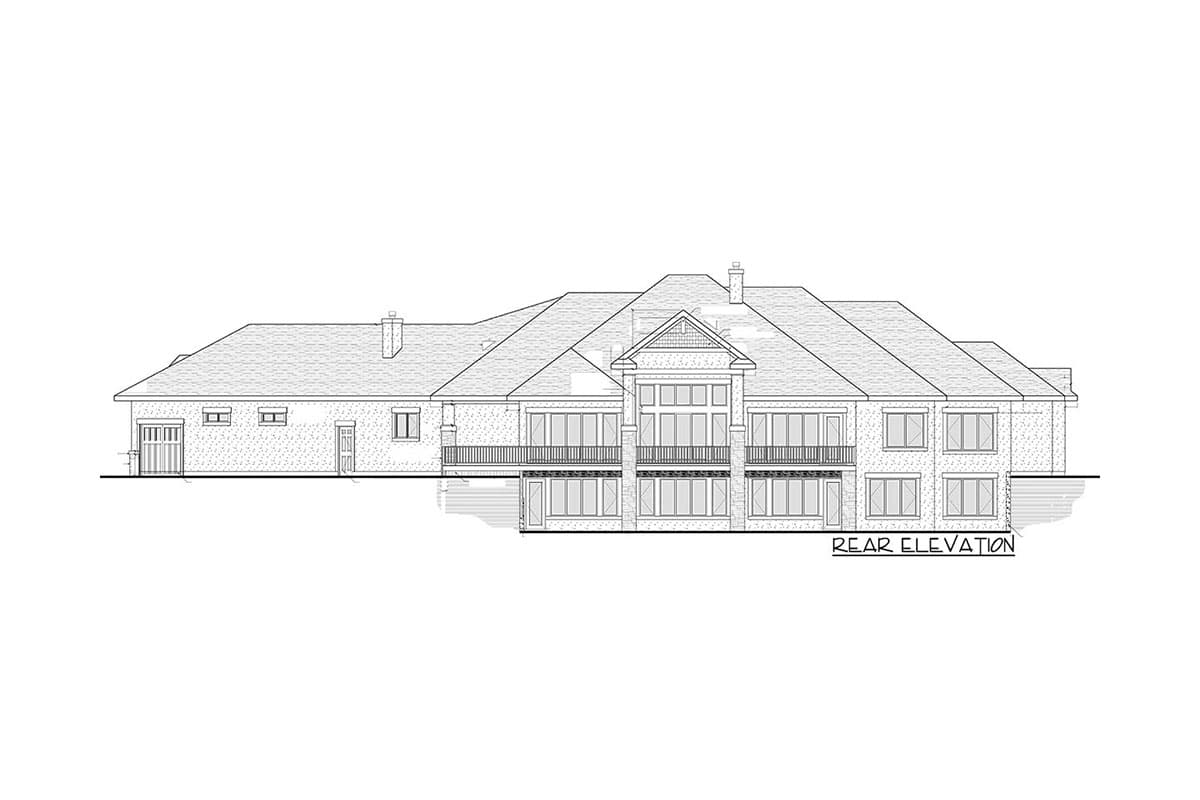

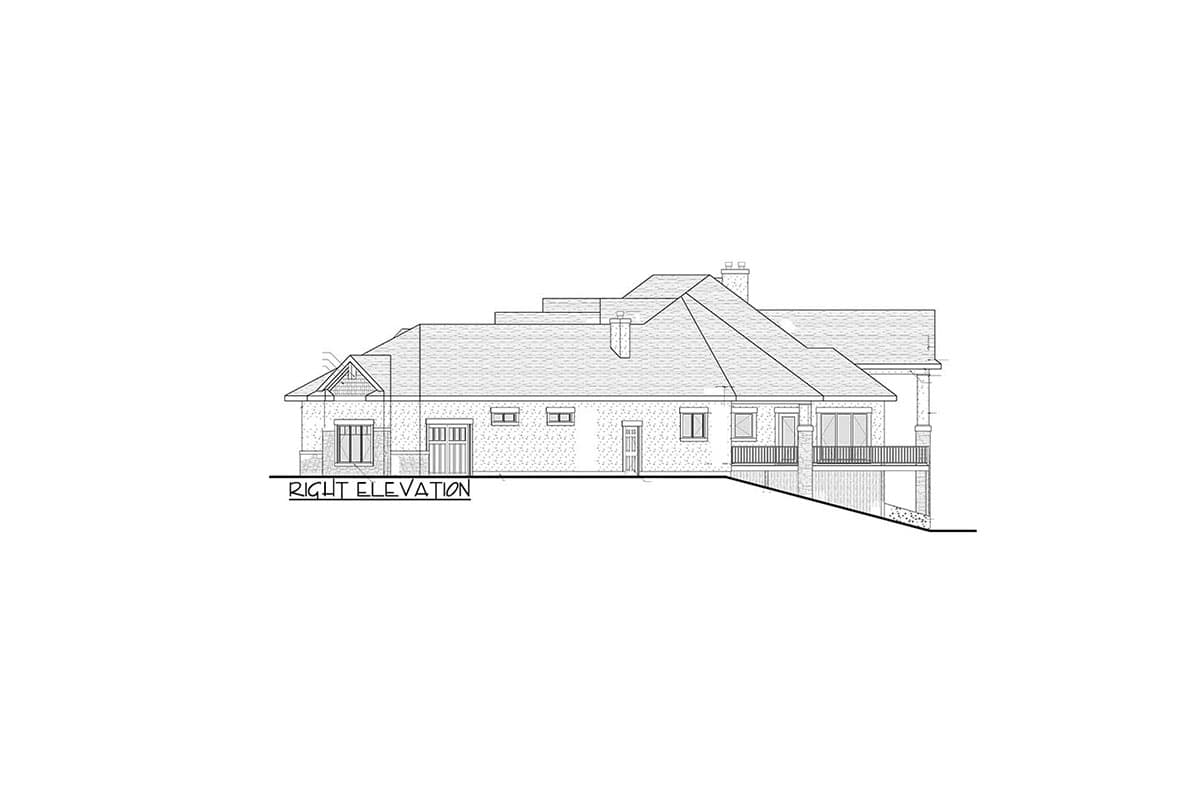

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

 We also include a list of building specifications, and notes for each page, with any important info the builder may need.

 What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations



Plan details



Over-Sized Mountain House Plan

  • 4,591

    Heated s.f.

  • 5 - 7

    Beds

  • 6

    Baths

  • 1-2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - single-use $1,815
  • CAD $2,725
  • View all purchase option online

About This Plan

  • Five bedrooms on the main floor plus the option of two more if you finish the lower level make this a fabulous house plan for a large family who want to entertain royally.
  • The informal layout of the main living area has that popular open feel, yet you get a quiet den and a second floor library when you want to be alone.
  • The covered rear porch is flanked by two open decks on either side.
  • Two jack and jill bathrooms serve the four family bedrooms on the main level with the luxurious master suite close by.
  • You'll have the whole second floor to yourself and a cozy fireplace for reading in the library.
  • Finish the lower level to add 3,145 square feet of amazing living space.
  • All the bells and whistles will include a craft room, home theater, a dedicated exercise room and both a games room and family room plus two bedroom suites for overnight guests.
  • There's even a huge four car garage so everyone gets a bay.

Floor Plans

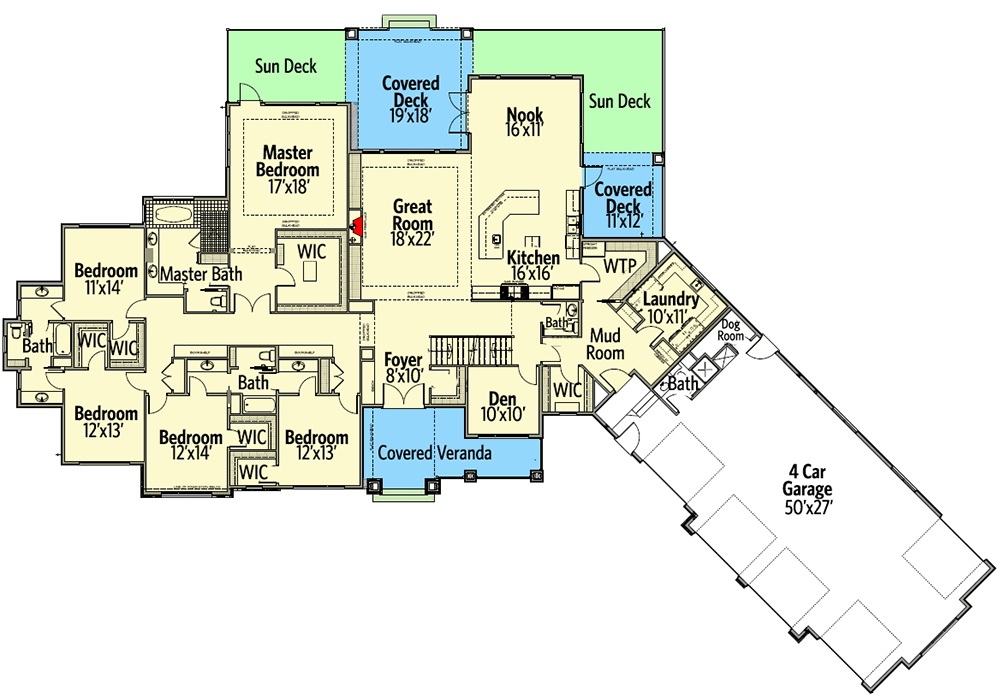

  • Main Level

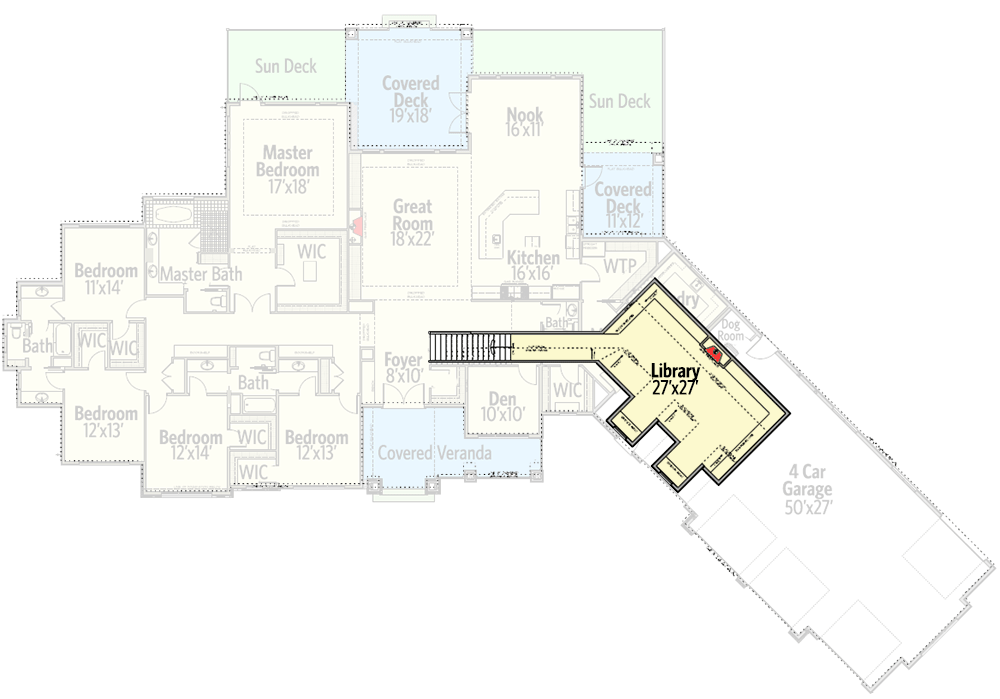

  • 2nd Floor

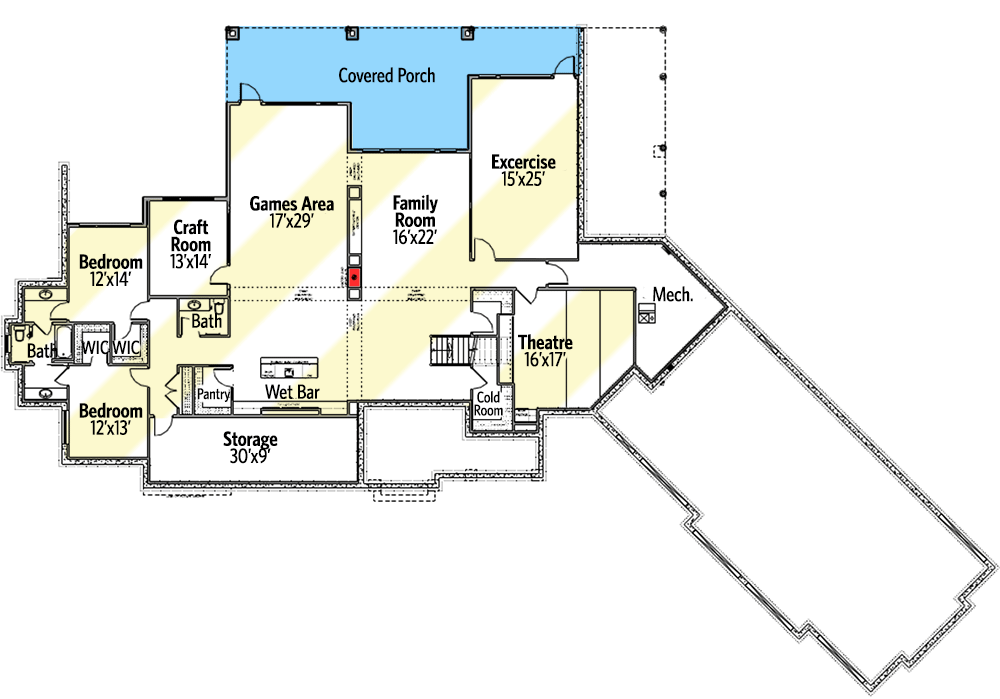

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,591 sq. ft.
  • 1st Floor: 4,100 sq. ft.
  • 2nd Floor: 491 sq. ft.
  • Deck: 1,242 sq. ft.
  • Bonus: 1,599 sq. ft.
  • Optional Lower Level: 3,145 sq. ft.

Beds/Baths

  • Bedrooms: 5, 6, & 7
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 147' 0"
  • Depth: 92' 0"
  • Max ridge height: 31' 7"

Garage

  • Type: Attached
  • Area: 1515 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
