Perfect for a Narrow Lot

Plan 23013JD

  • 2,127

    HEATED S.F.

  • 3

    BEDS

  • 3

    BATHS

  • 2

    FLOORS

  • 2

    CAR GARAGE

About this Plan

  • Its slim footprint and front-entry garage make this house plan with several Craftsman touches ideal for a narrow corner lot.

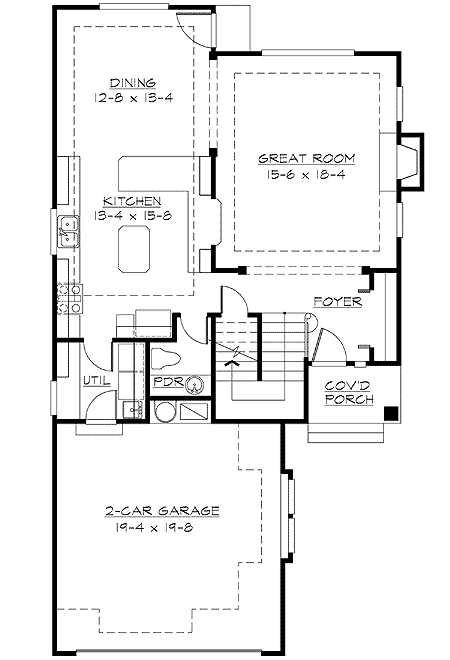

  • The kitchen, dining room and living room flow together nicely, imparting an open feeling to the first floor.
  • Note the fireplace and tray ceiling in the living room and the peninsula counter and island in the kitchen. A powder room and utility room complete the floor.

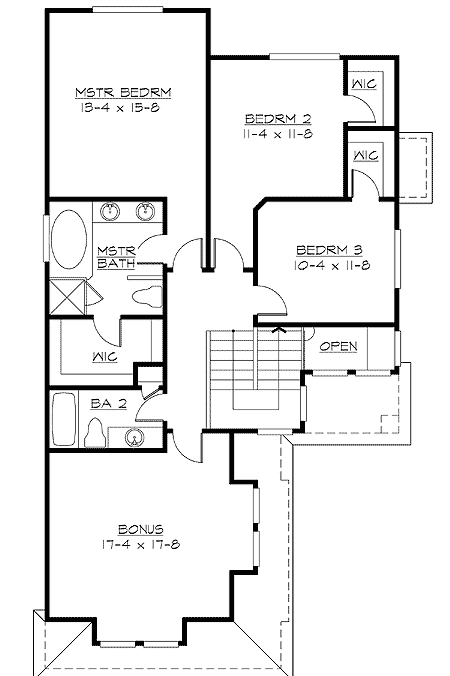

  • Upstairs, the master suite includes a bath with a garden tub, separate shower and walk-in closet. Two family bedrooms have walk-in closets and share a hall bath.
  • Related Plans: Need a side-entry garage? See house plan 2300JD.NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

See What's Included in this Plan...

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,127 sq. ft.
  • 1st Floor: 965 sq. ft.
  • 2nd Floor: 1,162 sq. ft.
  • Porch, Front: 40 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Dimensions

  • Width: 30' 0"
  • Depth: 56' 0"
  • Max ridge height: 24' 11"

Garage

  • Type: Attached
  • Area: 411 sq. ft.
  • Details: 2 Cars
  • Location: Front

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
