Plan 270052AF Pool House with a Contemporary Vibe and a Fireplace

103 0 0.5 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Pool House with a Contemporary Vibe and a Fireplace

Plan 270052AF

  • 103

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 1

    Stories

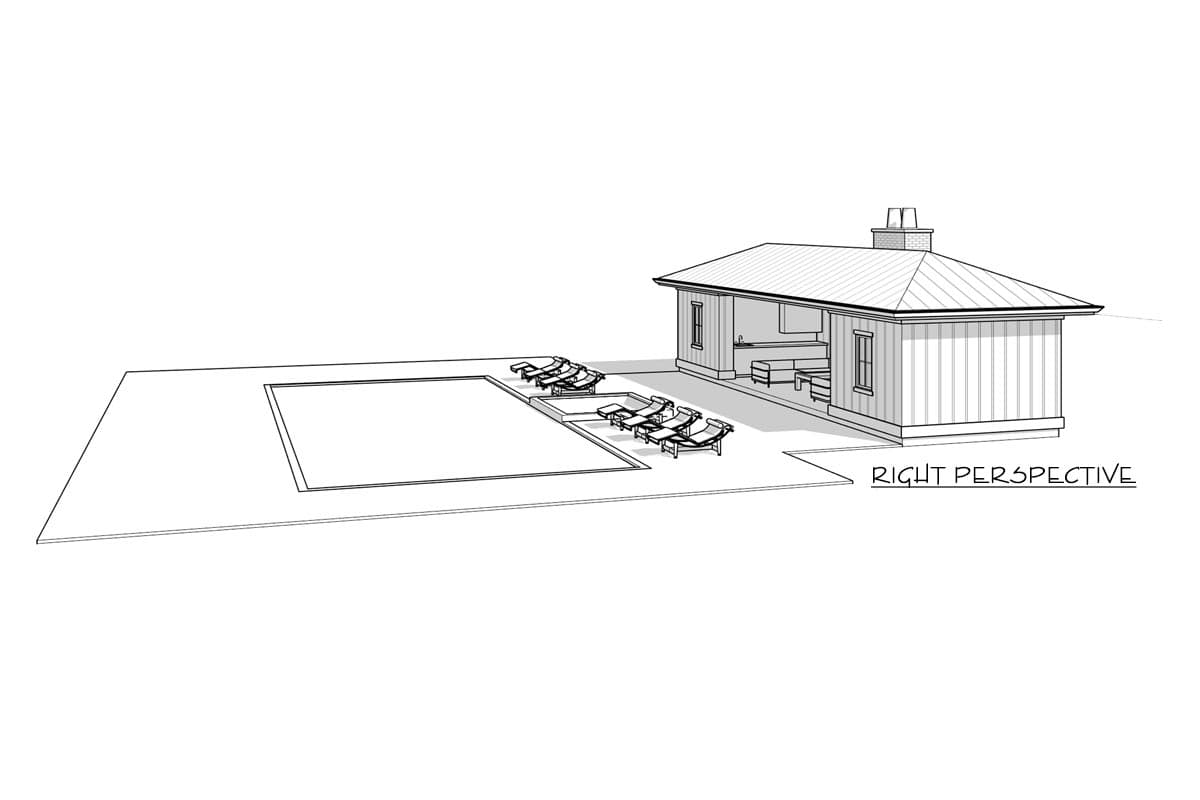

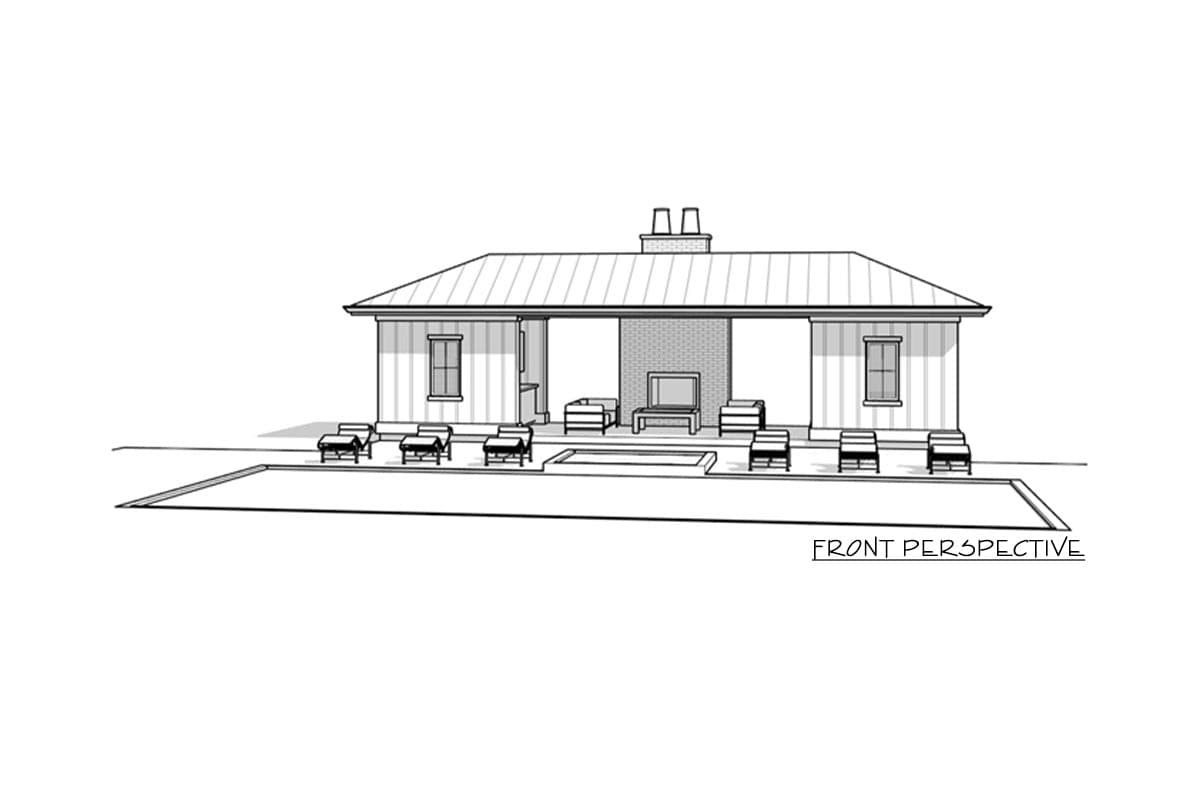

  • This pool house has a contemporary vibe and has two enclosed sections, one on each side of the open area with a fireplace.
  • The sizable lounge area is enhanced by a built-in bar with a sink; perfect for entertaining.
  • A changing room with a built-in bench and hooks neighbors a powder bath.
  • Discover the pool's mechanical room attached to the left side of the structure.

This plan set includes the following:

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

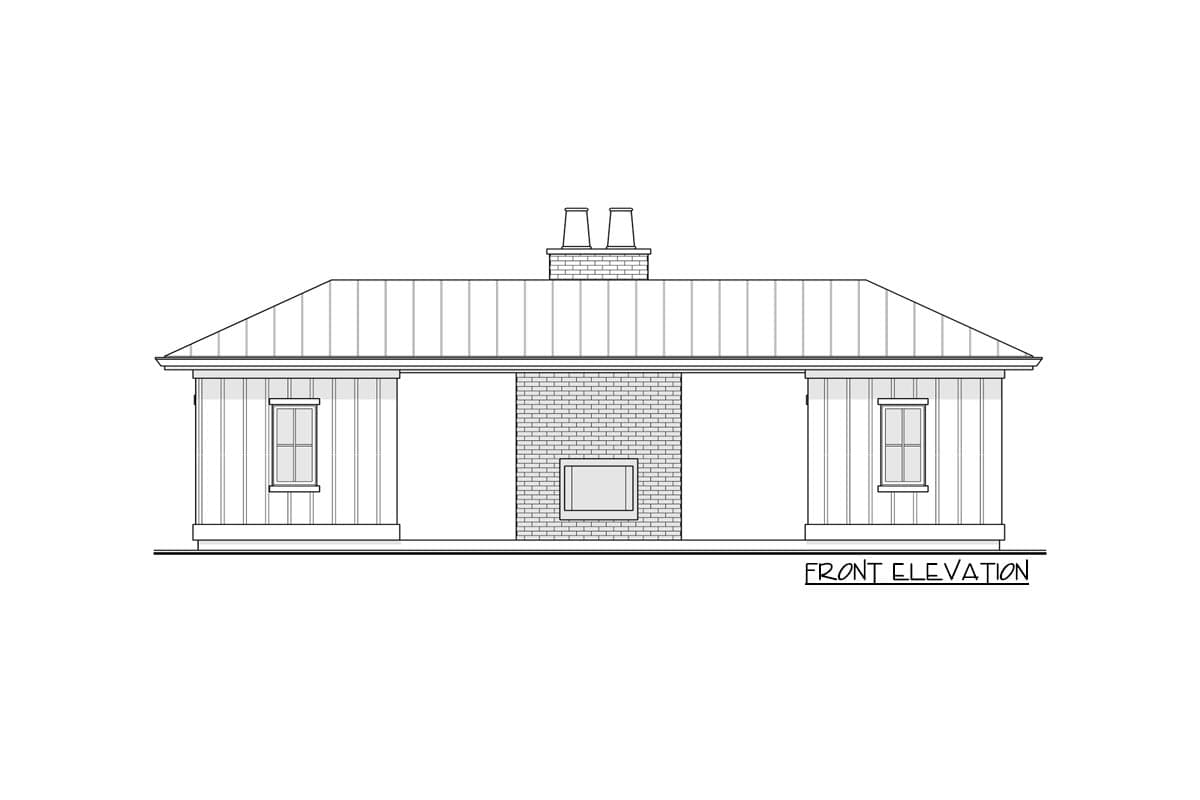

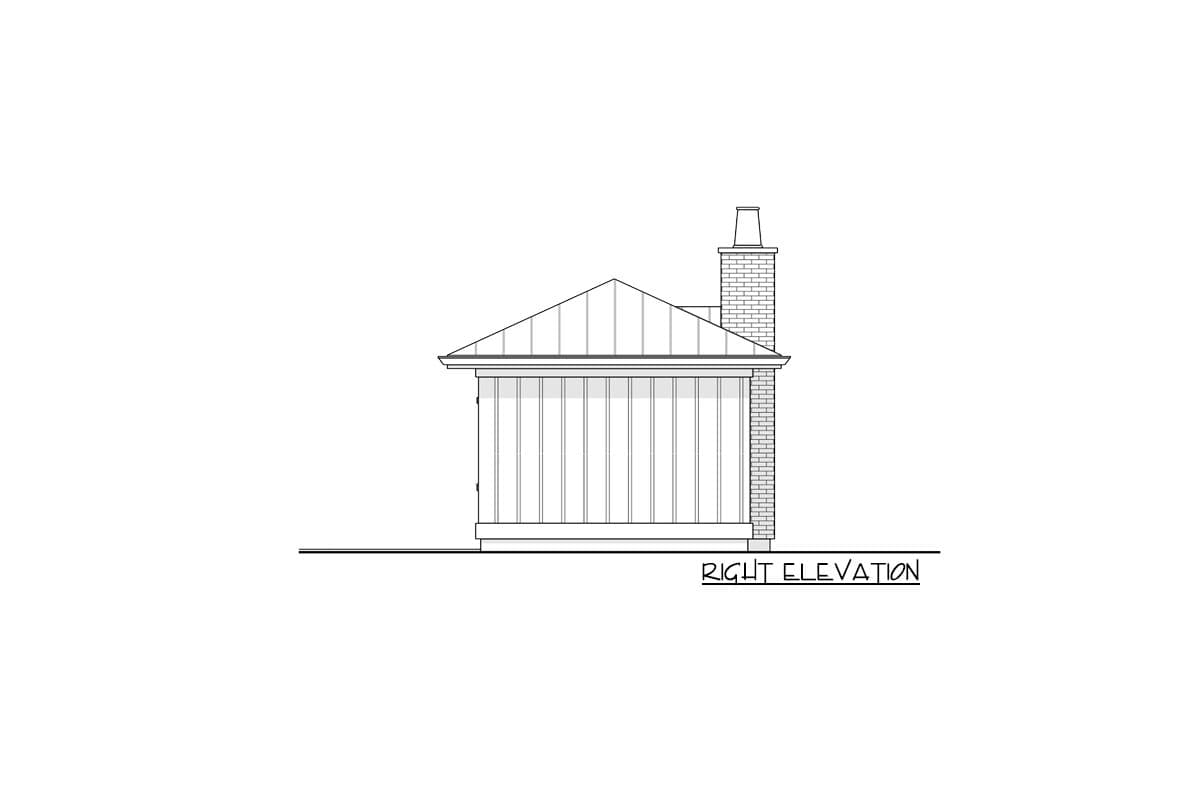

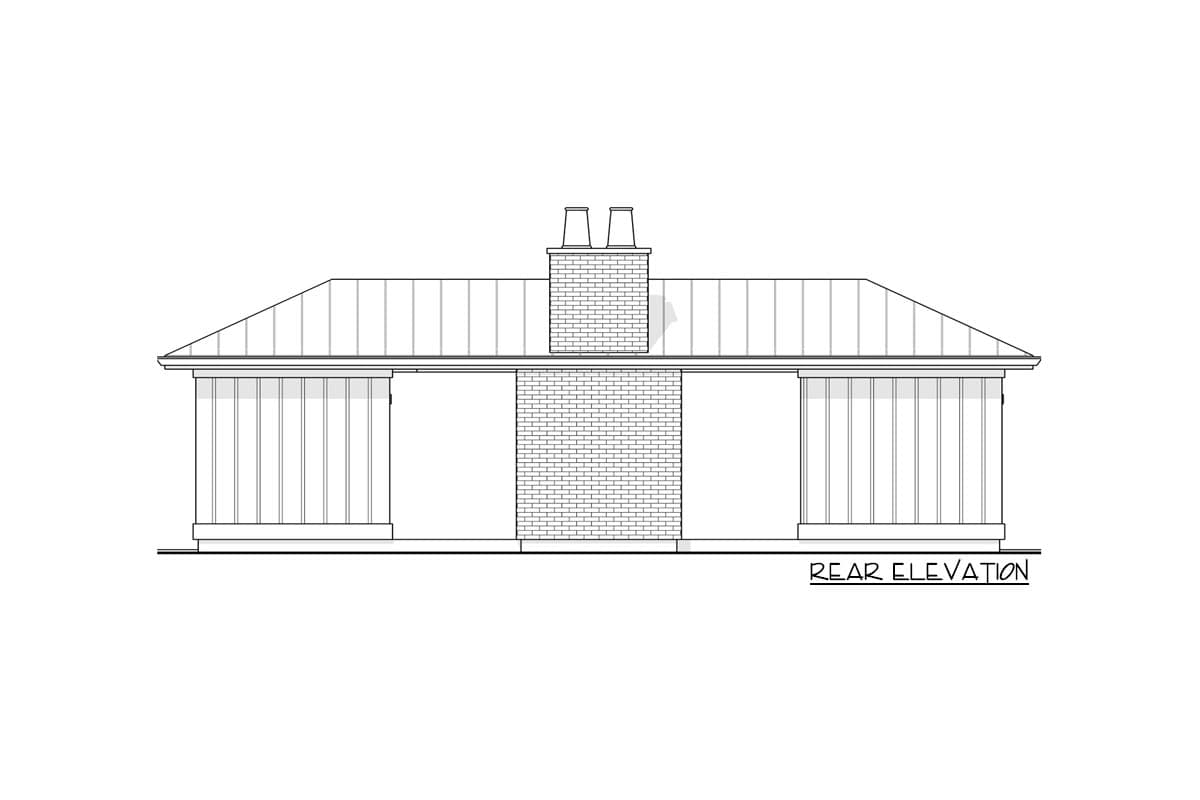

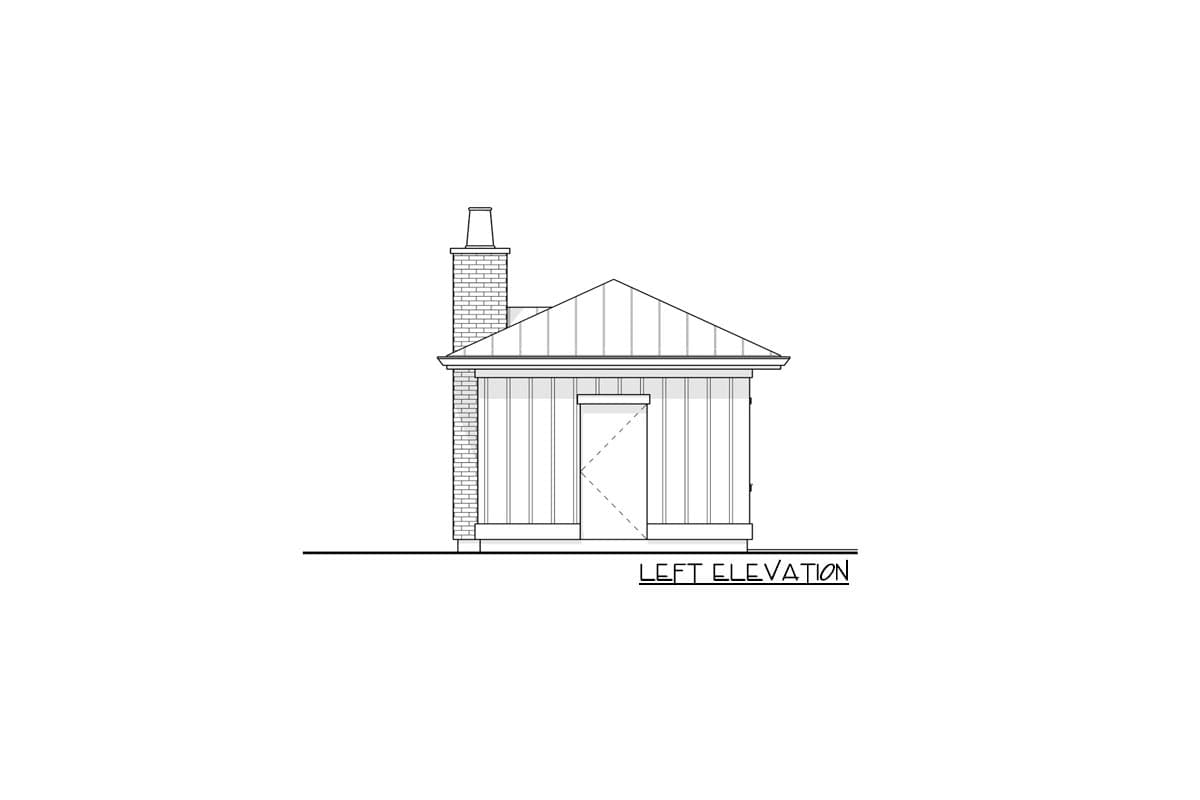

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.
What is NOT included in the plans:

  •           Architectural or Engineering Stamp - handled locally if required
  •           Site Plan - handled locally when required
  •           Electrical plan
  •           Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  •           Framing layouts with beam sizes and locations
  •           Material lists
  •           Energy calculations - handled locally when required
  •   Renderings, photography, or marketing imagery

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

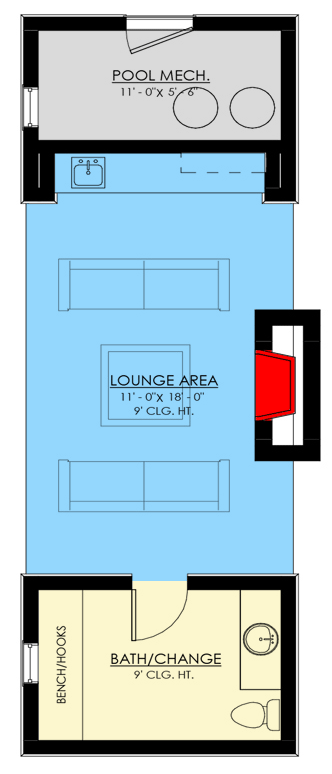

Pool House with a Contemporary Vibe and a Fireplace - 270052AF floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 103 sq. ft.
  • 1st Floor: 103 sq. ft.
  • Lanai: 251 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 13' 0"
  • Max ridge height: 13' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Pool House with a Contemporary Vibe and a Fireplace

  • 103

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $575
  • CAD Unlimited + PDF $1,575
  • View all purchase option online

About This Plan

  • This pool house has a contemporary vibe and has two enclosed sections, one on each side of the open area with a fireplace.
  • The sizable lounge area is enhanced by a built-in bar with a sink; perfect for entertaining.
  • A changing room with a built-in bench and hooks neighbors a powder bath.
  • Discover the pool's mechanical room attached to the left side of the structure.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 103 sq. ft.
  • 1st Floor: 103 sq. ft.
  • Lanai: 251 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 13' 0"
  • Max ridge height: 13' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
