Plan 270051AF

Pool House with Covered Lounge Area and Bath

Heated S.F.
242
Beds
0
Baths
0.5
Stories
1

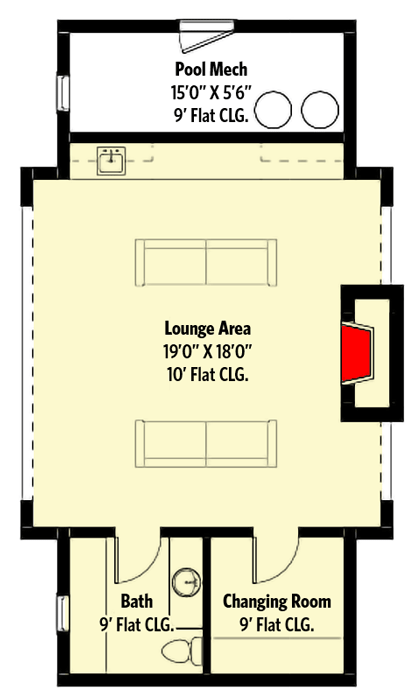

Floor Plan

Plan 270051AF

Main Level
Main Level

Plan 270051AF

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 270051AF: Pool House with Covered Lounge Area and Bath - Floor Plan - Main Level - Acadian, Contemporary, Cottage, Country, European, French Country, Southern

Plan Details

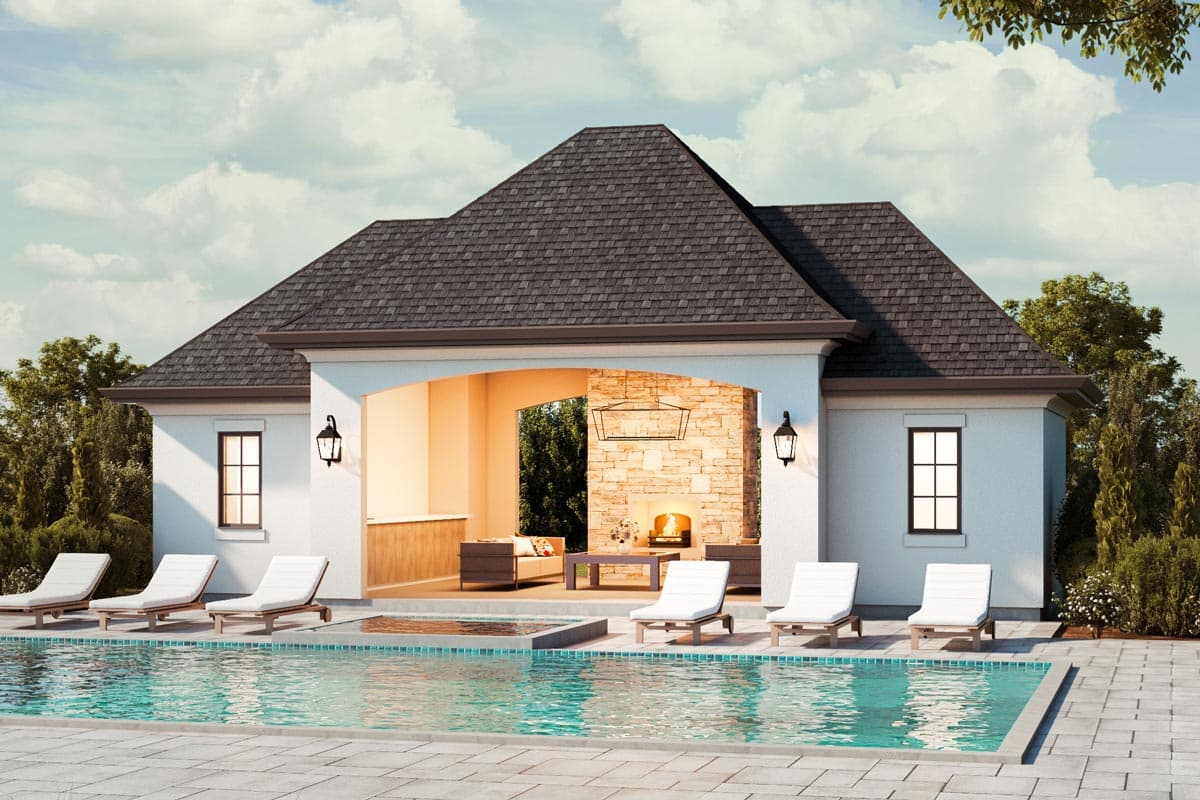

  • The stone fireplace serves as a focal point for this stucco-clad pool house.
  • The sizable lounge area is enhanced by a built-in bar with a sink; perfect for entertaining.
  • A changing room with a built-in bench and hooks neighbors a powder bath.
  • Discover the pool's mechanical room attached to the left side of the structure.

What's Included

  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges

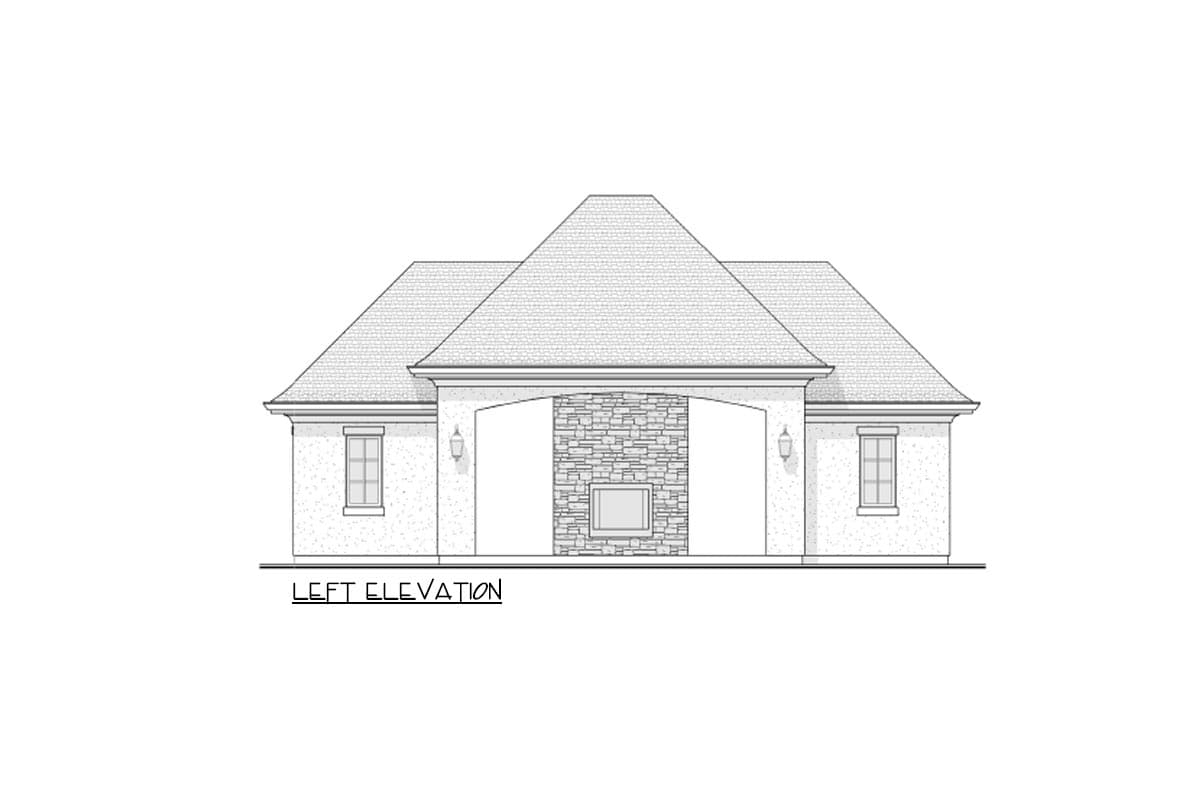

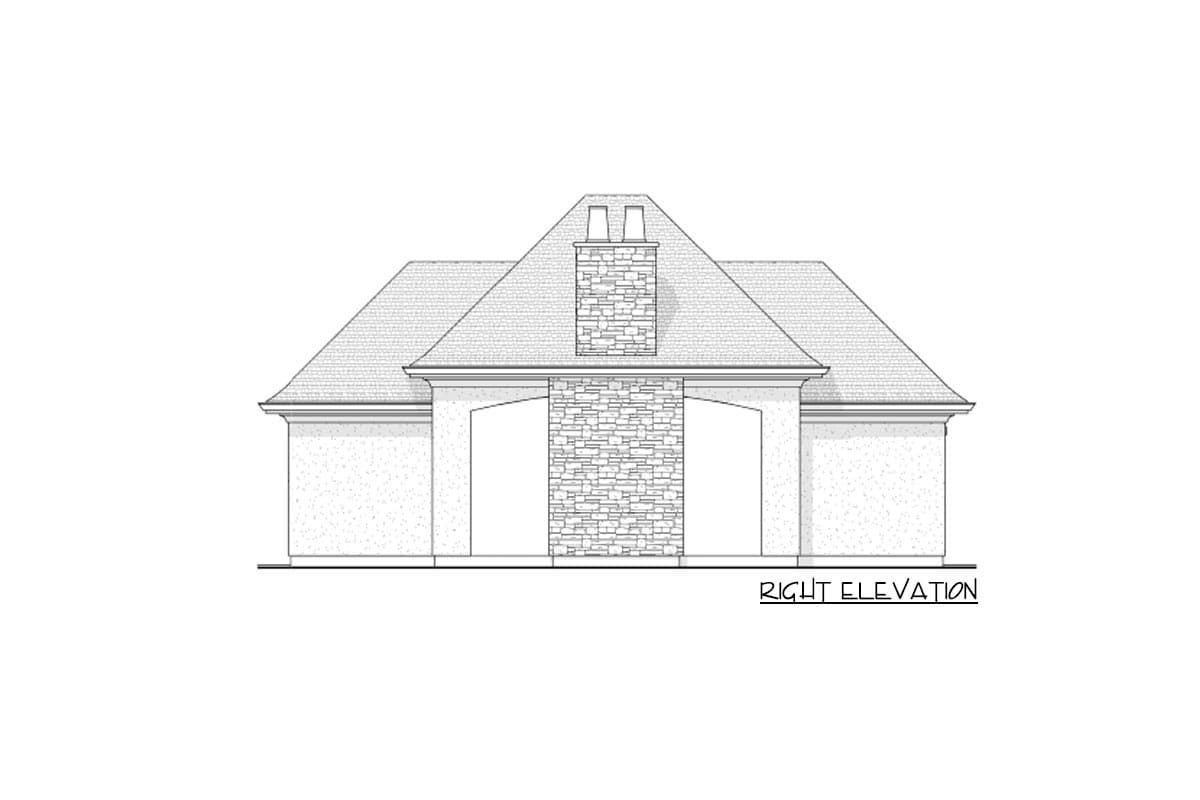

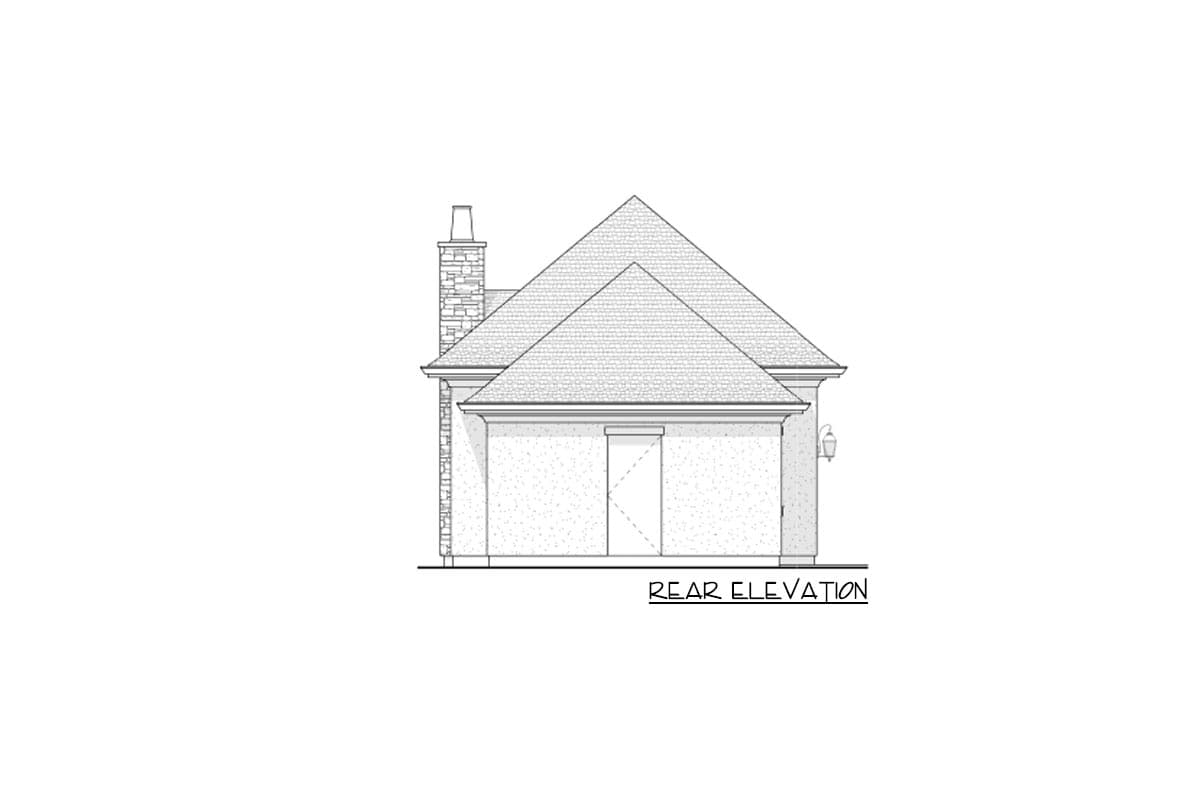

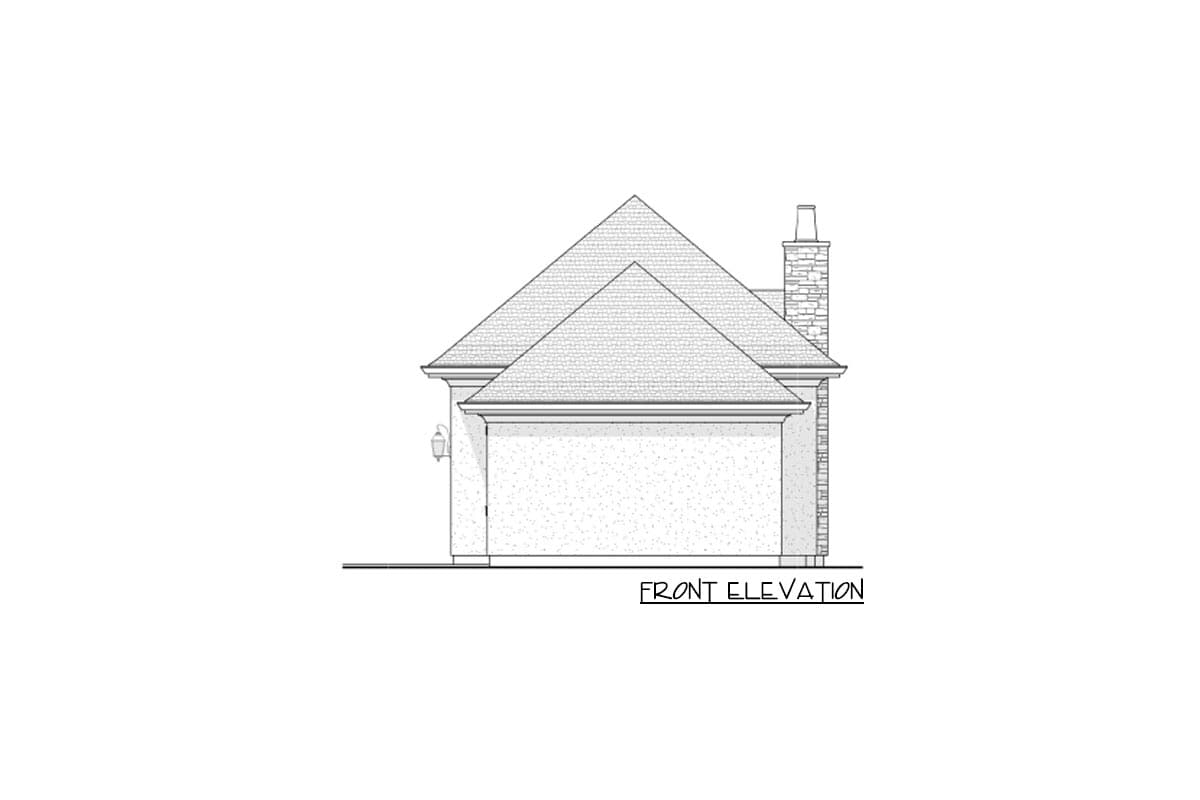

  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Framing - layouts with beam sizes and locations
  • Electrical plan
  • Plumbing Details
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Energy calculations - handled locally when required
  • Renderings, photography, or marketing imagery

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

242 sq. ft.

Lanai

418 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

20' 6"

Max Ridge Height

20' 7"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Acadian

Contemporary

Cottage

Country

European

French Country

Southern

Special Features

Game/Rec Room

Outdoor Fireplace

Wet Bar

Plan Collections

Canadian House Plans

Pool House

Square Footage Breakdown

Total Heated Area

242 sq. ft.

Lanai

418 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

20' 6"

Max Ridge Height

20' 7"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Acadian

Contemporary

Cottage

Country

European

French Country

Southern

Special Features

Game/Rec Room

Outdoor Fireplace

Wet Bar

Plan Collections

Canadian House Plans

Pool House
