Plan 80912PM

Prairie Style Triplex with Full Floor 2 Bed 1 Bath 1185 Sq Ft Units

Heated S.F.
3,555
Units
3
Width
Depth

Floor Plan

Plan 80912PM

Main Level
Main Level
Second Level
Second Level
Lower Level
Lower Level

Plan 80912PM

M-F 9am-5pm EST |

1-203-761-8500

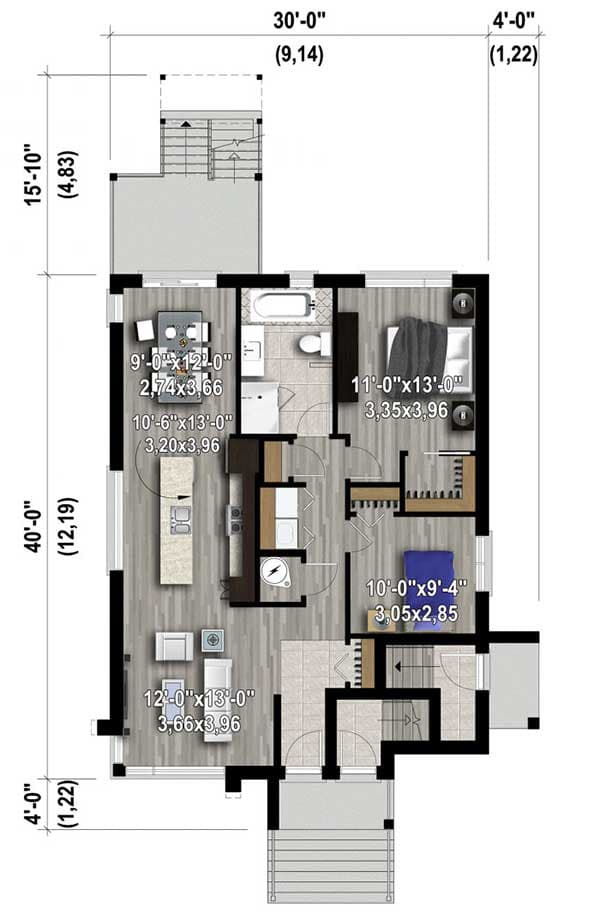

Main Level

Plan 80912PM: Prairie Style Triplex with Full Floor 2 Bed 1 Bath 1185 Sq Ft Units - Floor Plan - Main Level - Contemporary, Northwest, Prairie

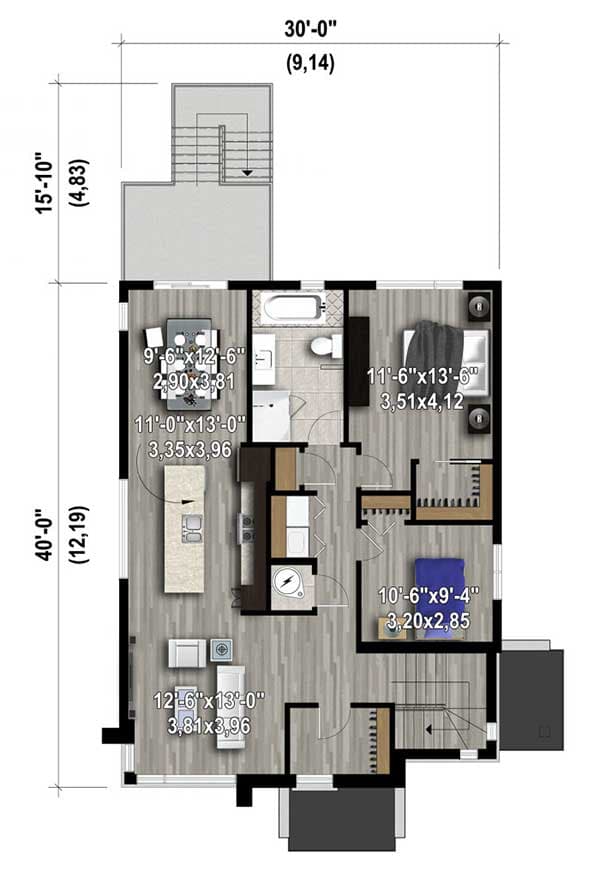

Second Level

Plan 80912PM: Prairie Style Triplex with Full Floor 2 Bed 1 Bath 1185 Sq Ft Units - Floor Plan - Second Level - Contemporary, Northwest, Prairie

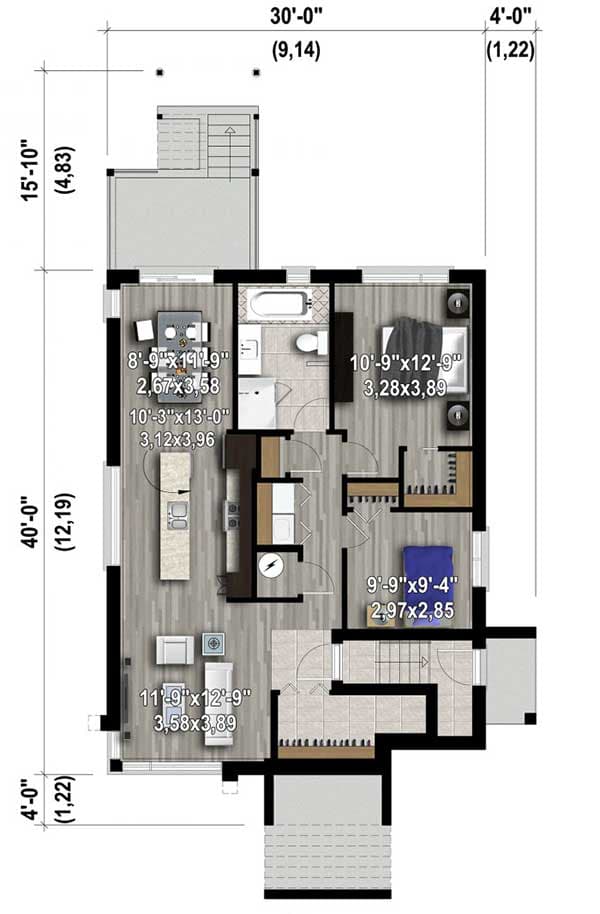

Lower Level

Plan 80912PM: Prairie Style Triplex with Full Floor 2 Bed 1 Bath 1185 Sq Ft Units - Floor Plan - Lower Level - Contemporary, Northwest, Prairie

Plan Details

  • A wide front staircase leads up to two front doors in this Prairie style triplex house plan.
  • Each 2 bed, 1 bath unit gives you full-floor living and 1,185 square feet of heated living.
  • The lower and upstairs units get a big walk-in coat closet at the top or bottom of the stairs.
  • A washer/dryer laundry closet is a handy feature for all units and outdoor space comes with each unit.
Unit A
Heated Area
1,185Sq. Ft.
1185 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Dimensions
30'width
40'depth
29'height
Unit B
Heated Area
1,185Sq. Ft.
1185 Sq. Ft. 2nd
Beds
2Beds
Baths
1Full Bath
Dimensions
30'width
40'depth
29'height
Unit C
Heated Area
1,185Sq. Ft.
1185 Sq. Ft. LL
Beds
2Beds
Baths
1Full Bath
Dimensions
30'width
40'depth
29'height

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,555 sq. ft.

Lower Level

1,185 sq. ft.

1st Floor

1,185 sq. ft.

2nd Floor

1,185 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

40' 0"

Max Ridge Height

29' 0"

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Prairie

Special Features

Bedrooms - Clustered

Laundry - Lower Level

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Lower Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

3,555 sq. ft.

Lower Level

1,185 sq. ft.

1st Floor

1,185 sq. ft.

2nd Floor

1,185 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

40' 0"

Max Ridge Height

29' 0"

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Northwest

Prairie

Special Features

Bedrooms - Clustered

Laundry - Lower Level

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Master Suite - Lower Level

Master Suite - Upstairs

Plan Collections

Canadian House Plans
