Plan 66221WE Premium Features

4,735 4 5.5 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Premium Features

Plan 66221WE

  • 4,735

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 4

    Cars

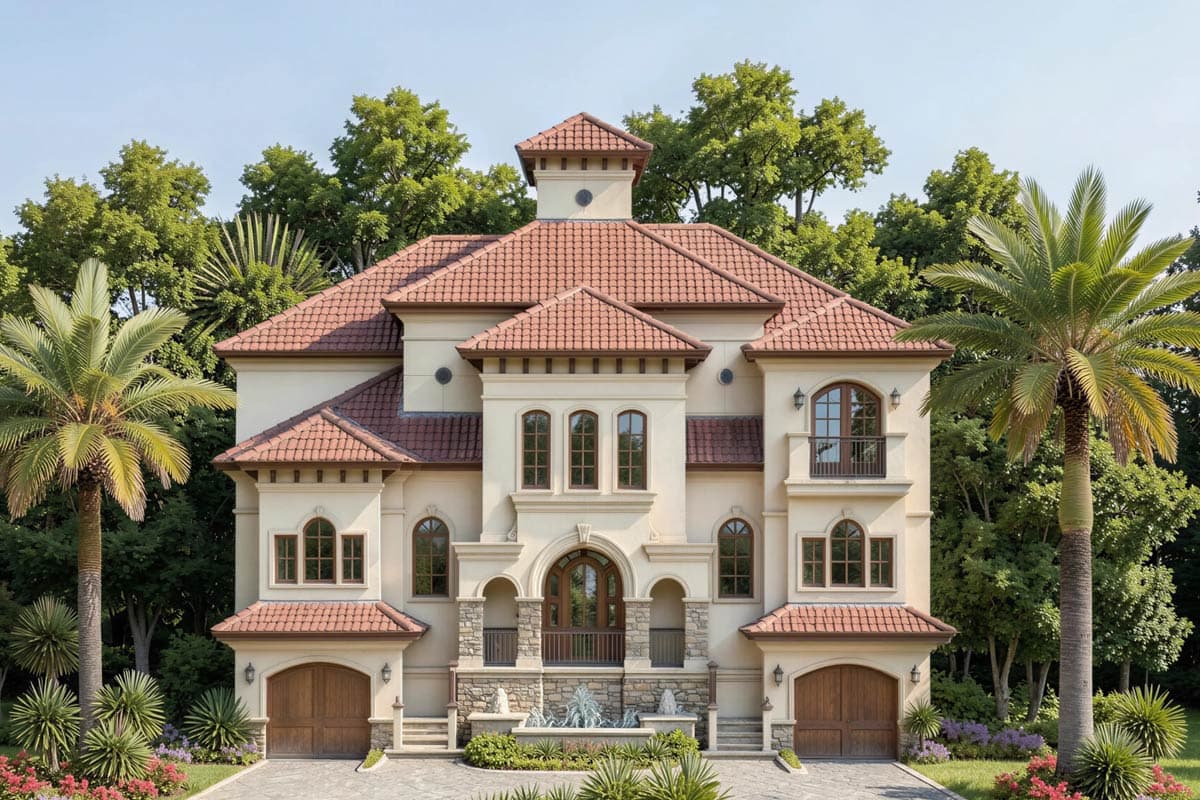

  • The wonderful detailing on the exterior of this luxurious Mediterranean home is only matched by the premium features inside.
  • Built-ins, a residential elevator and special ceiling treatments all give a custom feel to this home.
  • Enter the home either from the ground level foyer or use the double staircase in front.
  • The main foyer has four steps to the grand living area that is all open concept.
  • The magnificent two-story living room has sliding glass doors that take you to the covered lanai with its summer kitchen.
  • Two walls of sliding glass doors in the family room let you step out onto the lanai.
  • A pass-through in the kitchen makes serving to the dining room easy.
  • The gorgeous master suite has a bayed sitting nook with five windows to bring in light.
  • Bedroom 4 above it has the same bay and wonderful views of the backyard.
  • Give the kids their own playroom in the second floor loft with a huge upper balcony for everyone to enjoy.

Elevations

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Material Labels
  Floor-to-Floor Heights
  Roof Slope Indicators


Floor Plans

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  Door and Window Sizes
  Completely Dimensioned Floor Plan
  Room Labels and Interior Room Sizes


Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching


*Slab Plan

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)



Roof Design Plan

Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers


Building Sections

Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated


Typical Wall Sections

Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness


Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)



*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.


These items are NOT included:


Architectural or Engineering Stamp - handled locally if required

Site Plan - handled locally when required

Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

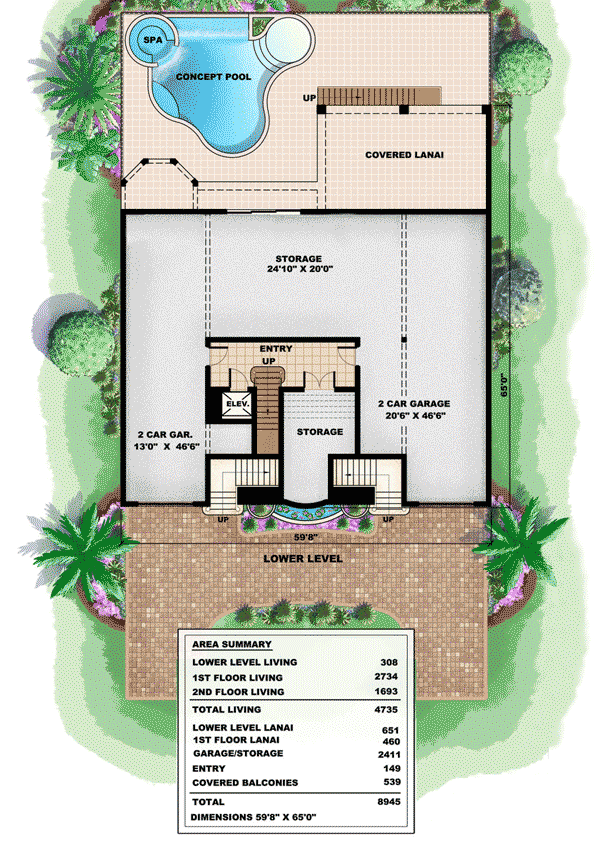

Premium Features - 66221WE floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

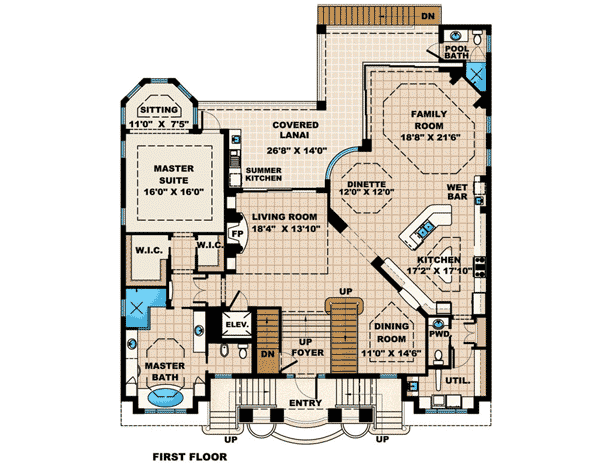

Premium Features - 66221WE floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

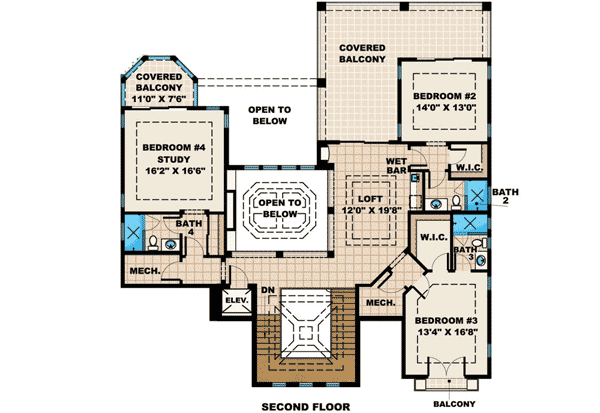

Premium Features - 66221WE floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,735 sq. ft.
  • Lower Level: 308 sq. ft.
  • 1st Floor: 2,734 sq. ft.
  • 2nd Floor: 1,693 sq. ft.
  • Lanai: 1,111 sq. ft.
  • Entry: 149 sq. ft.
  • Deck: 539 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Piling

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 8"
  • Depth: 65' 0"
  • Max ridge height: 45' 3"

Garage

  • Type: Drive Under
  • Area: 2411 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Premium Features

  • 4,735

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • 5 Sets $2,790
  • 8 Sets $2,945
  • Reproducible Set $3,100
  • PDF - Single-Build $3,100
  • CAD - Single-Build $3,100
  • View all purchase option online

About This Plan

  • The wonderful detailing on the exterior of this luxurious Mediterranean home is only matched by the premium features inside.
  • Built-ins, a residential elevator and special ceiling treatments all give a custom feel to this home.
  • Enter the home either from the ground level foyer or use the double staircase in front.
  • The main foyer has four steps to the grand living area that is all open concept.
  • The magnificent two-story living room has sliding glass doors that take you to the covered lanai with its summer kitchen.
  • Two walls of sliding glass doors in the family room let you step out onto the lanai.
  • A pass-through in the kitchen makes serving to the dining room easy.
  • The gorgeous master suite has a bayed sitting nook with five windows to bring in light.
  • Bedroom 4 above it has the same bay and wonderful views of the backyard.
  • Give the kids their own playroom in the second floor loft with a huge upper balcony for everyone to enjoy.

Floor Plans

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,735 sq. ft.
  • Lower Level: 308 sq. ft.
  • 1st Floor: 2,734 sq. ft.
  • 2nd Floor: 1,693 sq. ft.
  • Lanai: 1,111 sq. ft.
  • Entry: 149 sq. ft.
  • Deck: 539 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Piling

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 8"
  • Depth: 65' 0"
  • Max ridge height: 45' 3"

Garage

  • Type: Drive Under
  • Area: 2411 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 66221WE
View this and more for this plan by visiting www.architechtecturaldesigns.com/66221WE
|
Need Help? 800-854-7852
|
