Plan 623211DJ
Quadplex Modern Farmhouse with 1711 Square Foot 3-Bed Units
Heated S.F.
6,844
Units
4
Width
101' 4"
Depth
43'
Cars
4
Plan Details

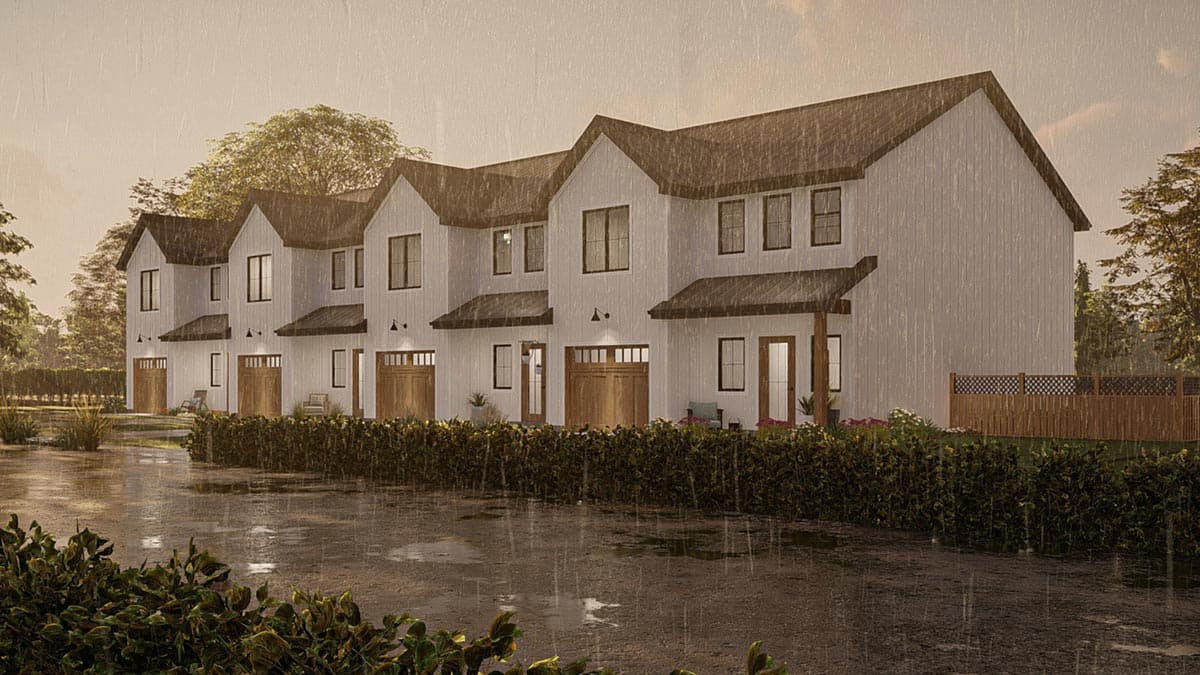

  • This quadplex house plan is the 4-family version of house plan 623204DJ. It is a gorgeous modern farmhouse plan with match 3 bed, 3 bath units with  1,711 square feet (744 sq. ft. on the main floor and 967 sq. ft. on the second floor). The exterior of this home with board and batten siding, wood accents, metal roofing, and dark windows gives this plan a traditional modern farmhouse feel with uniqueness still throughout.
  • Walking in through the front door just under the covered patio walks you straight into a gorgeous entryway, met with a lovely staircase on the right or office space with a built-in desk on the left. A mudroom with access to the 1-car (247 sq. ft.) garage can also be found here, also including a built-in bench with hooks for coats and bags.
  • Continuing throughout the house is when you will find a powder bath, just before stepping into a spacious open concept room, containing the great room with built-in shelving and a fireplace, a dining room, and a kitchen with a walk-in pantry and large kitchen island.
  • Heading upstairs is where all of the bedrooms can be found. The master is complete with a 9’ ceiling, walk-in closet, private Hollywood bath with a double vanity, and access to the laundry room. Bedrooms 2 and 3 can also be found here, which share a hallway bath.
  • Related Plan: Get a duplex version with house plan 623204DJ, or get the single-family townhouse version with plan 623181DJ
Unit A
1,711 Sq. Ft.
744 Sq. Ft. 1st Floor
967 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
247 Sq. Ft.
25' w 43' d 28' h
Unit B
1,711 Sq. Ft.
744 Sq. Ft. 1st Floor
967 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
247 Sq. Ft.
25' w 43' d 28' h
Unit C
1,711 Sq. Ft.
744 Sq. Ft. 1st Floor
967 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
247 Sq. Ft.
25' w 43' d 28' h
Unit D
1,711 Sq. Ft.
2976 Sq. Ft. 1st Floor
967 Sq. Ft. 2nd Floor
3 Beds
2 Full Baths
1 Half Bath
1 Vehicle
Attached
247 Sq. Ft.
25' w 43' d 28' h
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Quadplex Modern Farmhouse with 1711 Square Foot 3-Bed Units

  • 6,844

    Heated s.f.

  • 4

    Units

  • 101' 4"

    Width

  • 43'

    Depth

Floor Plan

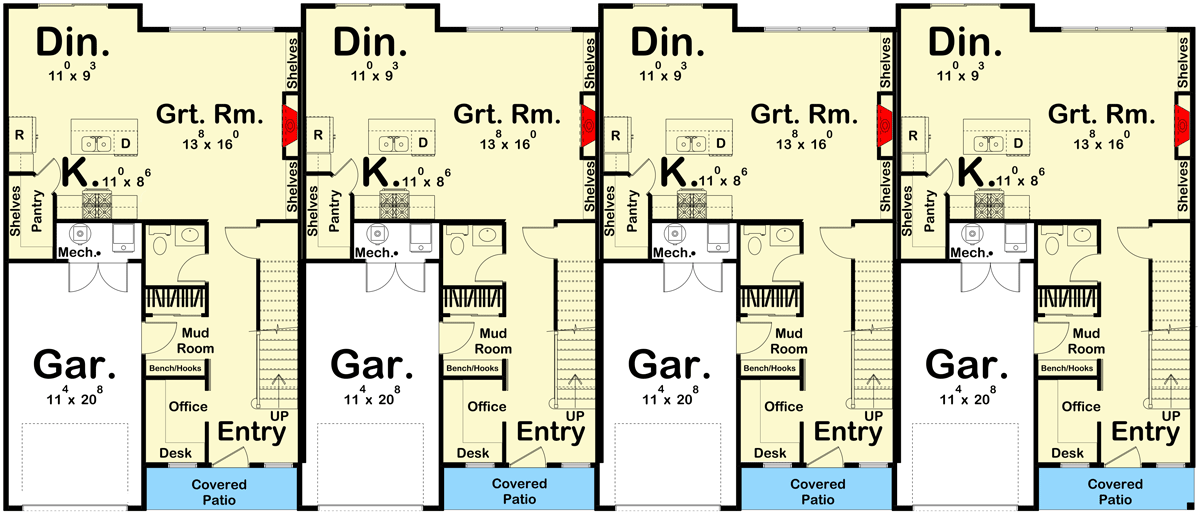

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 6,844 sq. ft.
  • 1st Floor: 2,976 sq. ft.
  • 2nd Floor: 3,686 sq. ft.

Dimensions

  • Width: 101' 4"
  • Depth: 43' 0"
  • Max ridge height: 28' 2"

Beds/Baths

  • Bedrooms: 10
  • Full bathrooms: 8
  • Half bathrooms: 4

Garage

  • Type: Attached
  • Area: 247 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Quadplex Modern Farmhouse with 1711 Square Foot 3-Bed Units

  • 6,844

    Heated s.f.

  • 4

    Units

  • 101' 4"

    Width

  • 43'

    Depth

Quadplex Modern Farmhouse with 1711 Square Foot 3-Bed Units

  • 6,844

    Heated s.f.

  • 4

    Units

  • 101' 4"

    Width

  • 43'

    Depth

Plan Details

Square Footage Breakdown

  • Total: 6,844 sq. ft.
  • 1st Floor: 2,976 sq. ft.
  • 2nd Floor: 3,686 sq. ft.

Dimensions

  • Width: 101' 4"
  • Depth: 43' 0"
  • Max ridge height: 28' 2"

Beds/Baths

  • Bedrooms: 10
  • Full bathrooms: 8
  • Half bathrooms: 4

Garage

  • Type: Attached
  • Area: 247 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12

    Main Level

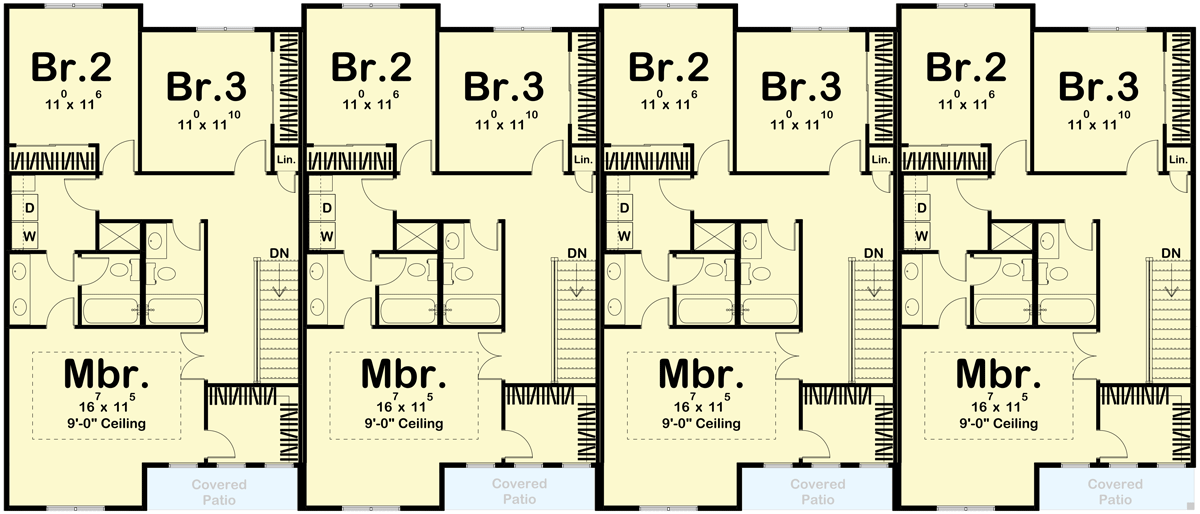

    2nd Floor
