Plan 623204DJ Modern Farmhouse Duplex with 3 Bed Units Just Over 1700 Square Feet Each

3,422 2 50' 8" 43' 0" 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Modern Farmhouse Duplex with 3 Bed Units Just Over 1700 Square Feet Each

Plan 623204DJ

  • 3,422

    Heated s.f.

  • 2

    Units

  • 50' 8"

    Width

  • 43' 0"

    Depth

  • This duplex house plan is the 2-family version of house plan 623181DJ. It is a gorgeous modern farmhouse plan with match 3 bed, 3 bath units with  1,711 square feet (744 sq. ft. on the main floor and 967 sq. ft. on the second floor). The exterior of this home with board and batten siding, wood accents, metal roofing, and dark windows gives this plan a traditional modern farmhouse feel with uniqueness still throughout.
  • Walking in through the front door just under the covered patio walks you straight into a gorgeous entryway, met with a lovely staircase on the right or office space with a built-in desk on the left. A mudroom with access to the 1-car (247 sq. ft.) garage can also be found here, also including a built-in bench with hooks for coats and bags.
  • Continuing throughout the house is when you will find a powder bath, just before stepping into a spacious open concept room, containing the great room with built-in shelving and a fireplace, a dining room, and a kitchen with a walk-in pantry and large kitchen island.
  • Heading upstairs is where all of the bedrooms can be found. The master is complete with a 9’ ceiling, walk-in closet, private Hollywood bath with a double vanity, and access to the laundry room. Bedrooms 2 and 3 can also be found here, which share a hallway bath.
  • Related Plan: Get a quadplex with house plan 623211DJ.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

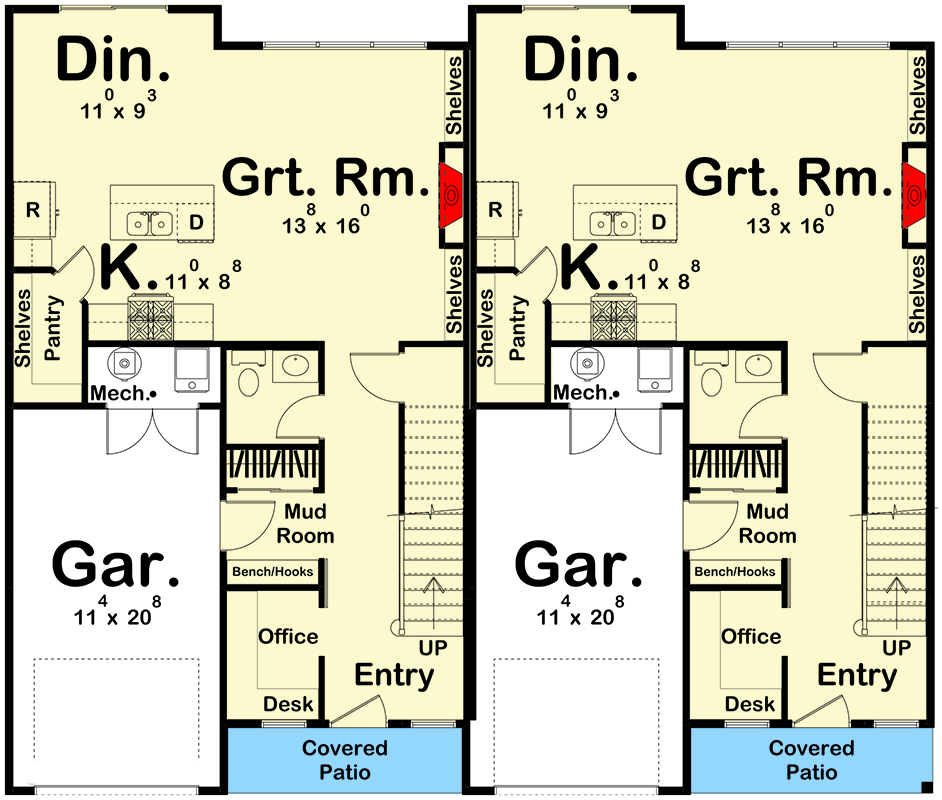

Modern Farmhouse Duplex with 3 Bed Units Just Over 1700 Square Feet Each - 623204DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

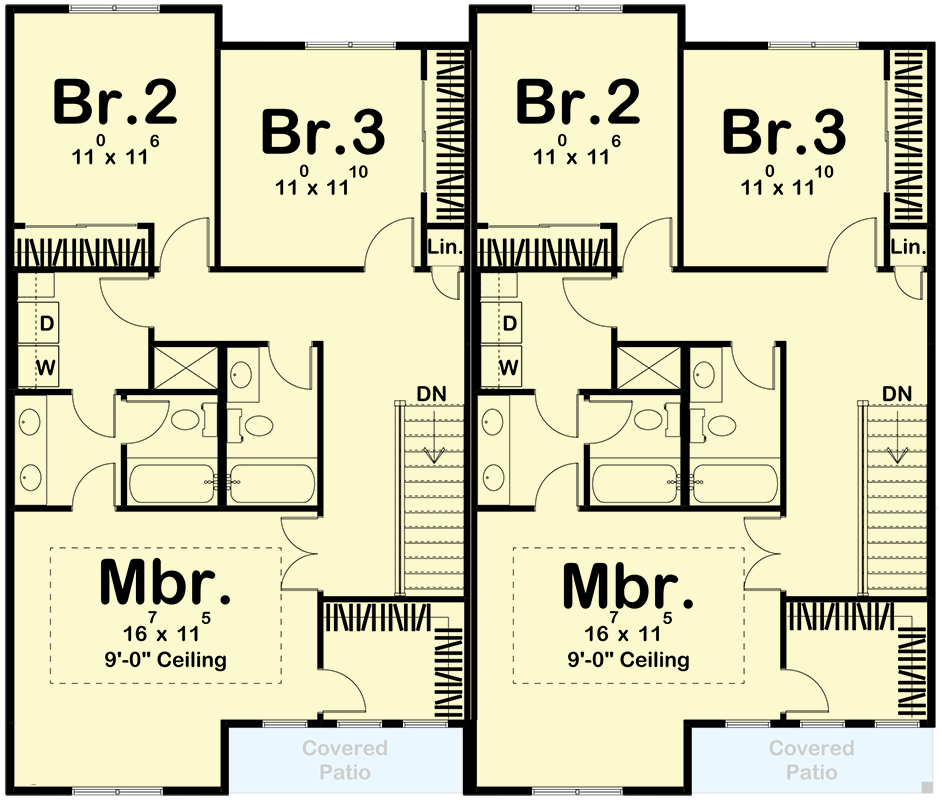

Modern Farmhouse Duplex with 3 Bed Units Just Over 1700 Square Feet Each - 623204DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,422 sq. ft.
  • 1st Floor: 1,488 sq. ft.
  • 2nd Floor: 1,934 sq. ft.
  • Porch, Combined: 98 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 50' 8"
  • Depth: 43' 0"
  • Max ridge height: 28' 2"

Garage

  • Type: Attached
  • Area: 494 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12

Architectural Style

Special features

Plan Collections

Modern Farmhouse Duplex with 3 Bed Units Just Over 1700 Square Feet Each

  • 3,422

    Heated s.f.

  • 2

    Units

  • 50' 8"

    Width

  • 43' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $1,700
  • 5 Sets + PDF $1,950
  • CAD + PDF - Single-Build $2,200
  • PDF - Unlimited Build $2,200
  • CAD Unlimited + PDF $2,700
  • View all purchase option online

About This Plan

  • This duplex house plan is the 2-family version of house plan 623181DJ. It is a gorgeous modern farmhouse plan with match 3 bed, 3 bath units with  1,711 square feet (744 sq. ft. on the main floor and 967 sq. ft. on the second floor). The exterior of this home with board and batten siding, wood accents, metal roofing, and dark windows gives this plan a traditional modern farmhouse feel with uniqueness still throughout.
  • Walking in through the front door just under the covered patio walks you straight into a gorgeous entryway, met with a lovely staircase on the right or office space with a built-in desk on the left. A mudroom with access to the 1-car (247 sq. ft.) garage can also be found here, also including a built-in bench with hooks for coats and bags.
  • Continuing throughout the house is when you will find a powder bath, just before stepping into a spacious open concept room, containing the great room with built-in shelving and a fireplace, a dining room, and a kitchen with a walk-in pantry and large kitchen island.
  • Heading upstairs is where all of the bedrooms can be found. The master is complete with a 9’ ceiling, walk-in closet, private Hollywood bath with a double vanity, and access to the laundry room. Bedrooms 2 and 3 can also be found here, which share a hallway bath.
  • Related Plan: Get a quadplex with house plan 623211DJ.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,422 sq. ft.
  • 1st Floor: 1,488 sq. ft.
  • 2nd Floor: 1,934 sq. ft.
  • Porch, Combined: 98 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 50' 8"
  • Depth: 43' 0"
  • Max ridge height: 28' 2"

Garage

  • Type: Attached
  • Area: 494 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
Plan 623204DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/623204DJ
|
Need Help? 800-854-7852
|
Plan 623204DJ
