Plan 55215BR
Raised Cottage House Plan with Optional Detached Garage
Heated S.F.
1,608
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Floor Plan
PRINT PLANS

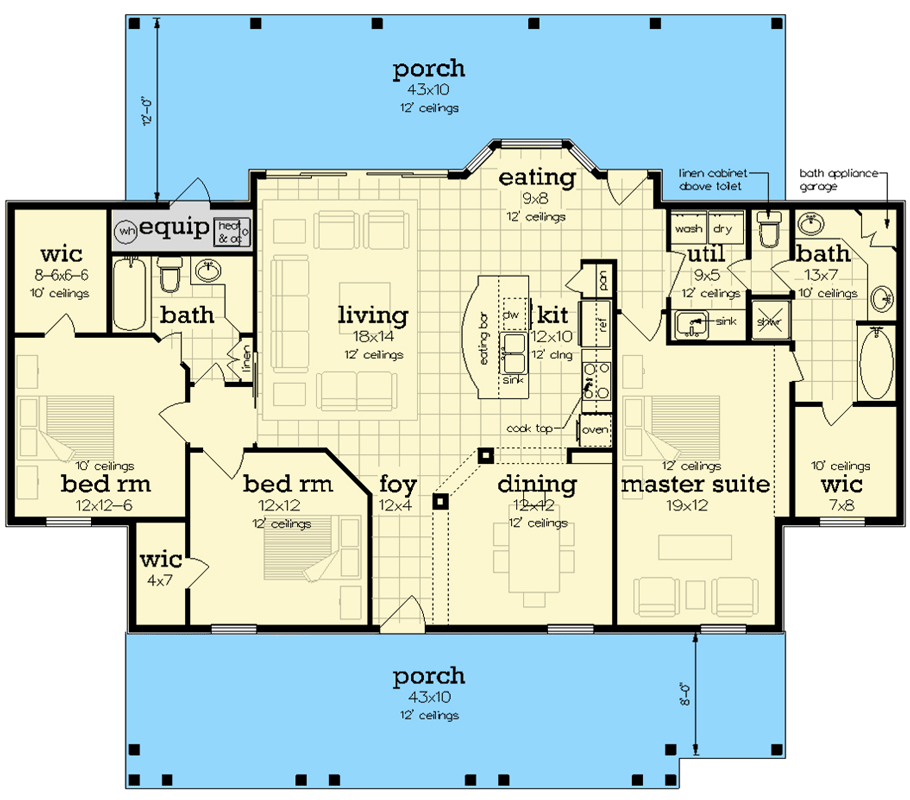

Main Level
Reverse Floor Plan
Raised Cottage House Plan with Optional Detached Garage - 55215BR floor plan - Main Level

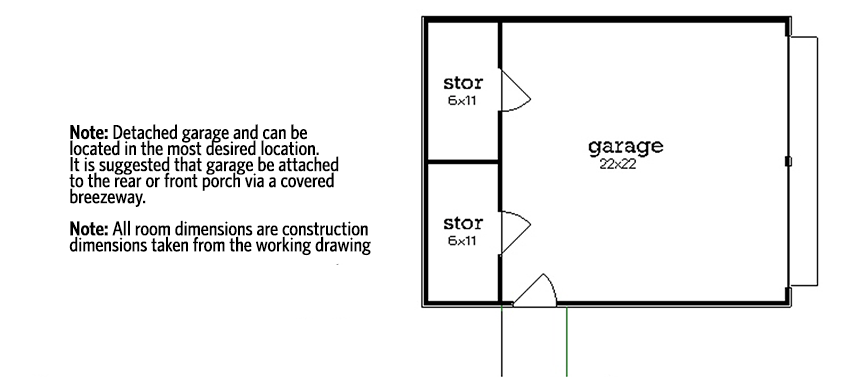

Detached Garage (+$100)
Reverse Floor Plan
Raised Cottage House Plan with Optional Detached Garage - 55215BR floor plan - Detached Garage (+$100)
Plan Details
  • This raised cottage has friendly front and rear porches and comes with an optional detached garage.
  • A compact is open and bright and has an island with counter  seating. Enjoy easy access to the dining room and the bayed eating nook and views to the living room. The primary bedroom has a sitting area and an adjoining bath complete with bathing tub, separate shower, private toilet, twin vanities, a giant walk-in closet and a bath appliance garage.  Two secondary bedrooms have walk-in closets and easy access to the spacious hall bath.
  • The utility is situated between the master suite and the kitchen to save mom countless steps when fulfilling those daily laundry chores. There is even a door from the utility to the bath room so delivering clean towels to the linen cabinet is only two steps away.
  • The optional detached garage (+$100) gives you parking for two cars and has two dedicated storage areas to help minimize clutter.
  • Related Plans: Get more room with house plan 55155BR (1,832 sq. ft.) and downsize with house plan 55141BR (1,516 sq. ft.).
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Raised Cottage House Plan with Optional Detached Garage

  • 1,608

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Detached Garage (+$100)

Plan Details

Square Footage Breakdown

  • Total: 1,608 sq. ft.
  • 1st Floor: 1,608 sq. ft.

Dimensions

  • Width: 59' 0"
  • Depth: 50' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Area: 616 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
