Plan 55155BR

Southern Style 3 Bed Raised Cottage

1,832 3 2.5 1
Pageloader

Southern Style 3 Bed Raised Cottage

Plan 55155BR

  • 1,832

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

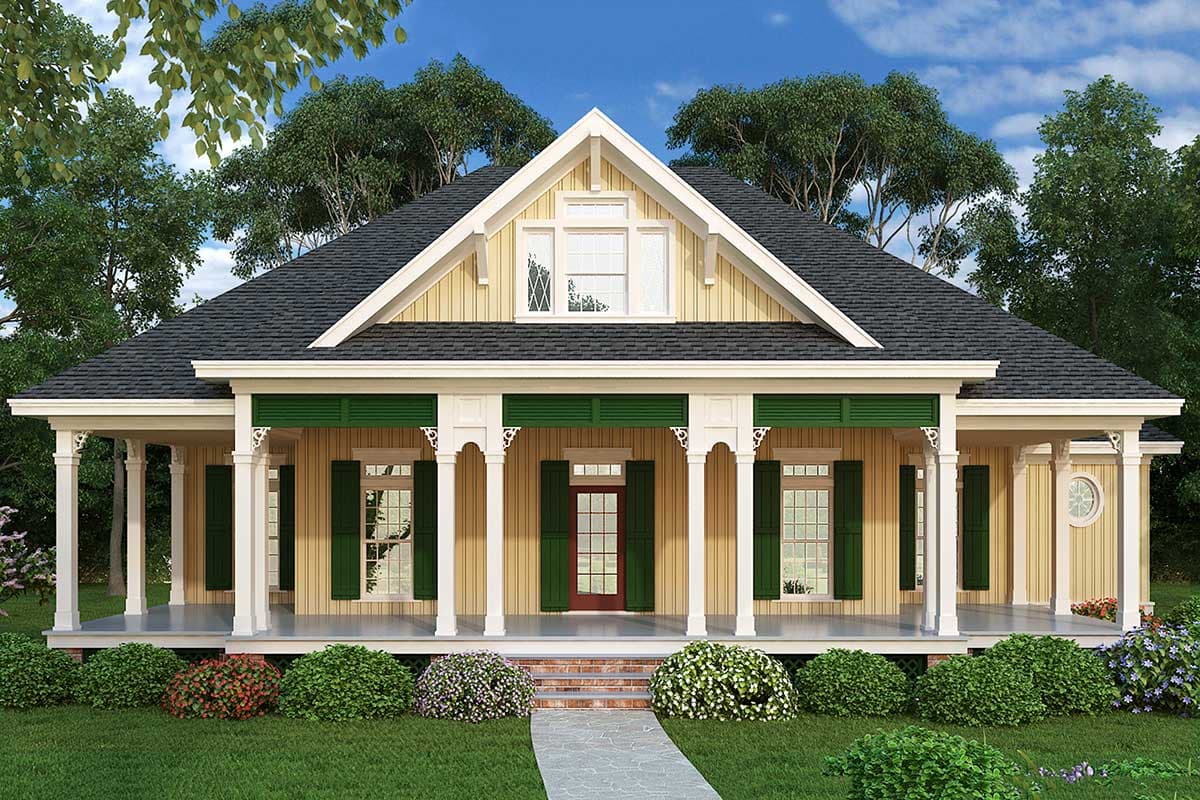

  • This graceful 3 bed raised cotttage delivers Southern style with great porches in front and back. Those porches do more than just provide a wonderful place to leisure, they also protect almost all of the exterior doors and windows helping you save on your energy costs.
  • This design is loaded with features designed to lower the utility cost by half but without adding significant cost. Among these features are 2x6 exterior walls and a modified roof design that allows for a full 12" thick layer of attic insulation to extend to the outer perimeter of the house.
  • The master suite is conveniently located just steps away from the kitchen and utility area and it has a built-in coffee bar, great for preparing that first cup of coffee. The master bath features include his and her vanities, a special appliance garage, shower, spa tub, private toilet and a huge walk-in closet.
  • The kitchen and living area is open, bright and airy and features 12' high coffered ceilings. The open island style kitchen is fully appointed and there is a nearby butler's walk-thru pantry.
  • The living room has a 9' sliding glass door unit that allows you to open up the living room to the outside.
  • Two secondary bedrooms have walk-in closets and share a Jack and Jill bath. A hall bath is accessible from both the house and the rear porch and it has a lot of storage that is ideal for storing outdoor accessories.

This house plan has 9 sheets as follows:

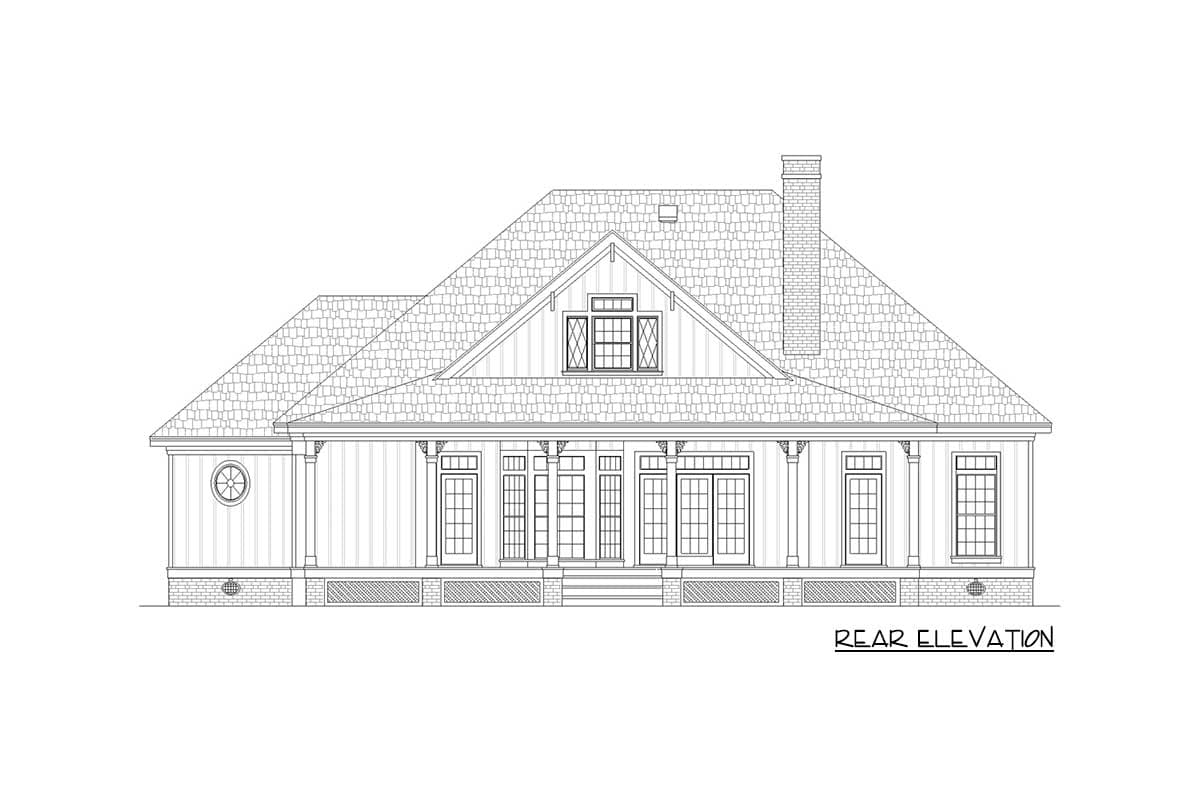

  1. Front and rear elevations
  2. Foundation and floor joist framing plans
  3. Foundation details
  4. Main floor and roof plans, door and window schedules

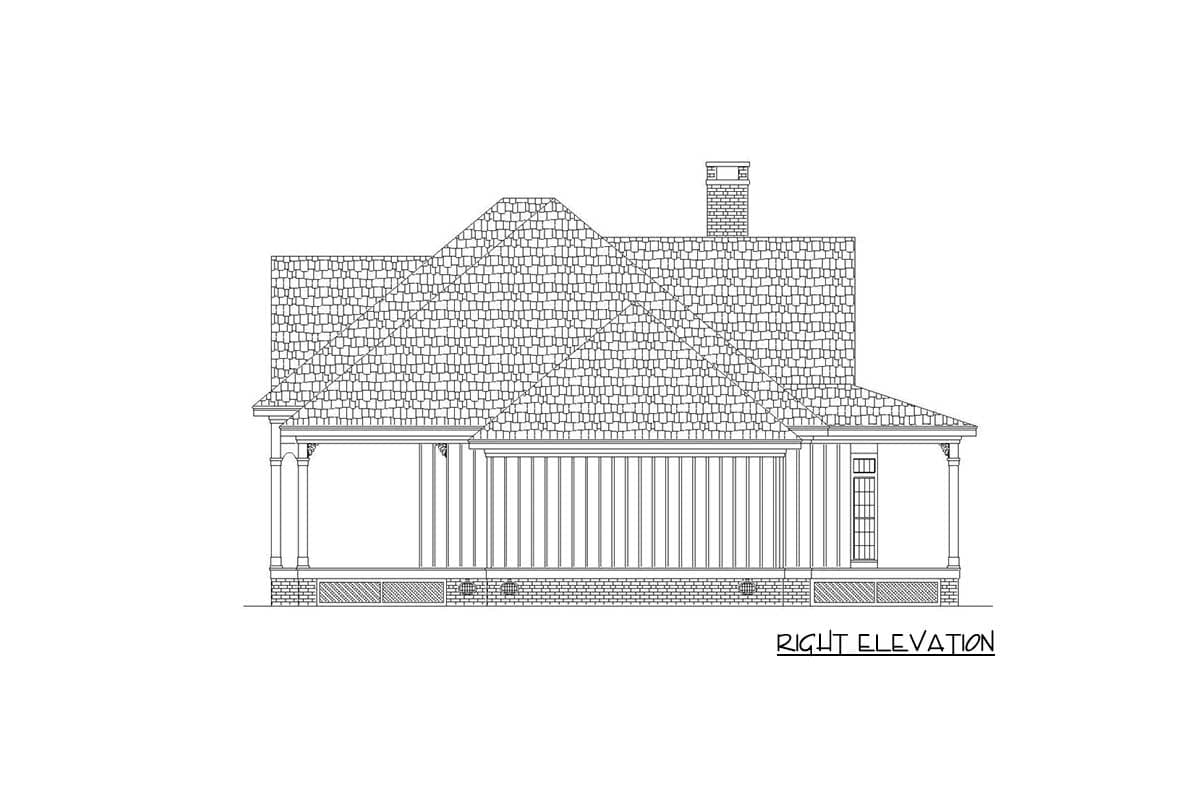

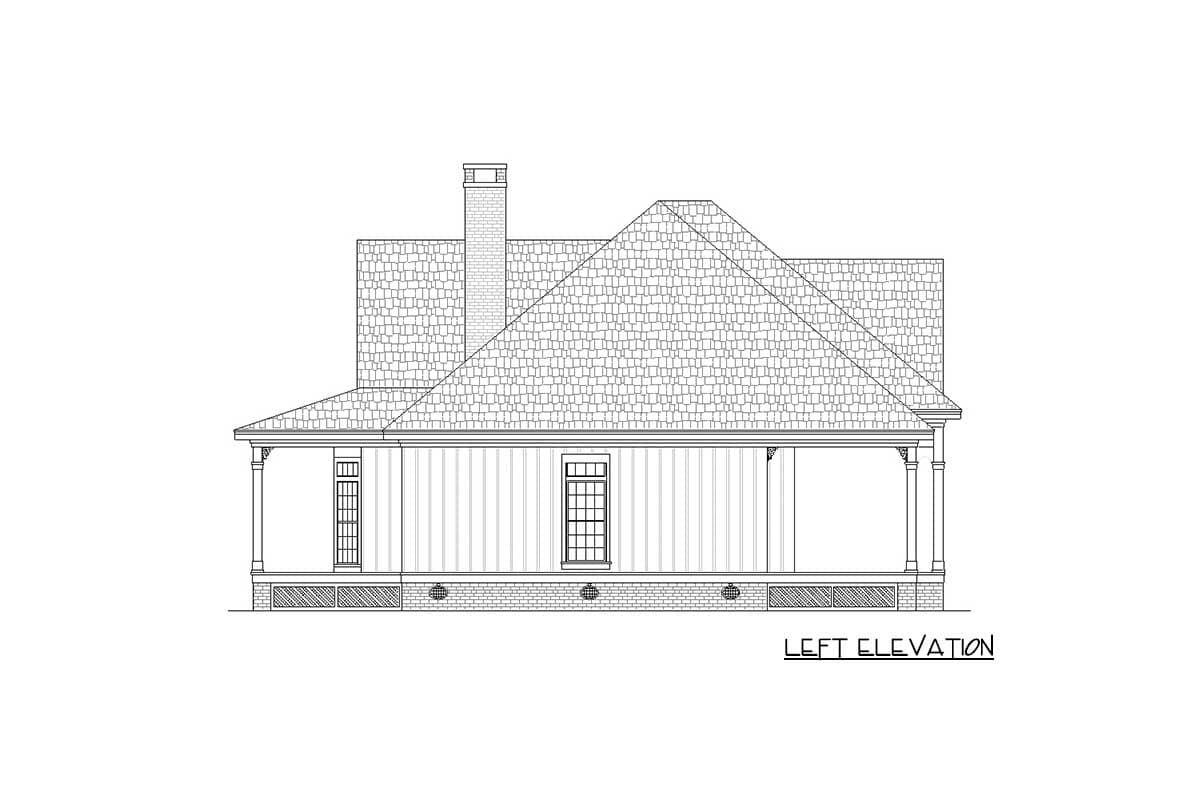

  5. Left and right elevations, ceiling joist framing plan and cornice details (3)
  6. Sections (5)
  7. Cabinet elevations
  8. Electrical schematic and general details
  9. Notes and schedules



Floor Plan

Plan details



Southern Style 3 Bed Raised Cottage

  • 1,832

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - single-use $850
  • 5 Sets $930
  • 8 Sets $990
  • Reproducible Set $1,010
  • View all purchase option online

About This Plan

  • This graceful 3 bed raised cotttage delivers Southern style with great porches in front and back. Those porches do more than just provide a wonderful place to leisure, they also protect almost all of the exterior doors and windows helping you save on your energy costs.
  • This design is loaded with features designed to lower the utility cost by half but without adding significant cost. Among these features are 2x6 exterior walls and a modified roof design that allows for a full 12" thick layer of attic insulation to extend to the outer perimeter of the house.
  • The master suite is conveniently located just steps away from the kitchen and utility area and it has a built-in coffee bar, great for preparing that first cup of coffee. The master bath features include his and her vanities, a special appliance garage, shower, spa tub, private toilet and a huge walk-in closet.
  • The kitchen and living area is open, bright and airy and features 12' high coffered ceilings. The open island style kitchen is fully appointed and there is a nearby butler's walk-thru pantry.
  • The living room has a 9' sliding glass door unit that allows you to open up the living room to the outside.
  • Two secondary bedrooms have walk-in closets and share a Jack and Jill bath. A hall bath is accessible from both the house and the rear porch and it has a lot of storage that is ideal for storing outdoor accessories.

Floor Plans

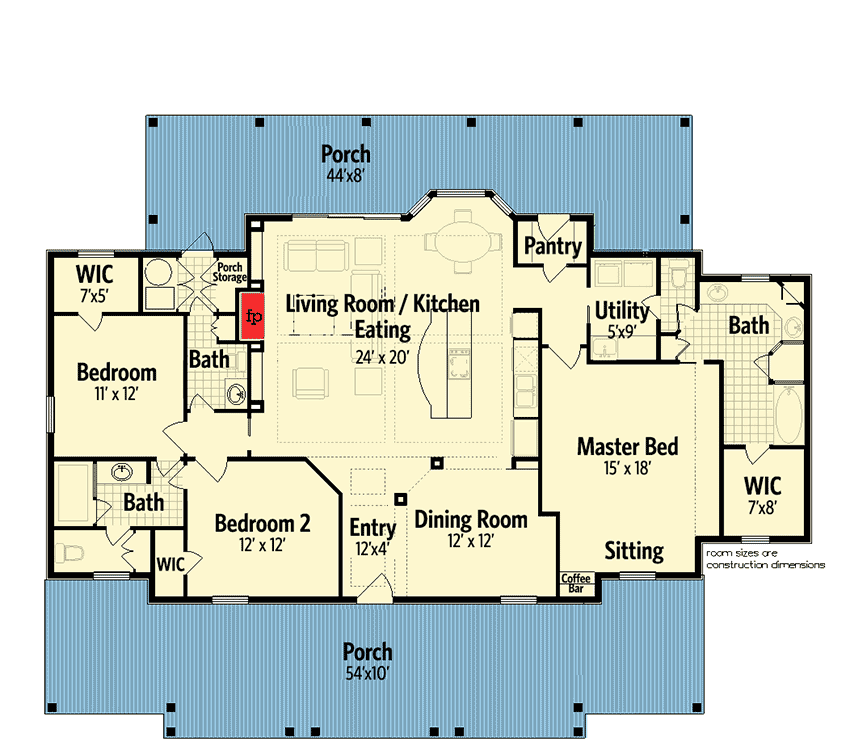

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,832 sq. ft.
  • 1st Floor: 1,832 sq. ft.
  • Porch, Combined: 979 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 63' 0"
  • Depth: 51' 0"
  • Max ridge height: 28' 0"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
