Ranch in Brick or Siding

Plan 39159ST

  • 1,278

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This compact three bedroom one-level home offers a wonderful living space for your family.
  • The great room, dining area and kitchen feature a sloped ceiling that soars to 11' and groups an open living space into a large cohesive unit.
  • A counter with seating anchors the kitchen and provides a delightful gathering place.
  • Sliding doors open to a covered porch that invites outdoor enjoyment.
  • The master suite enjoys a private bath with tub and a pleasant view of the rear yard.
  • Related Plan: Prefer siding? See house plan 39152ST.

  • General notes and specifications

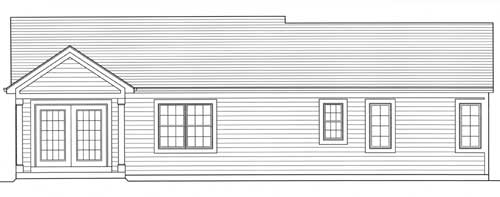

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Ranch in Brick or Siding - 39159ST floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

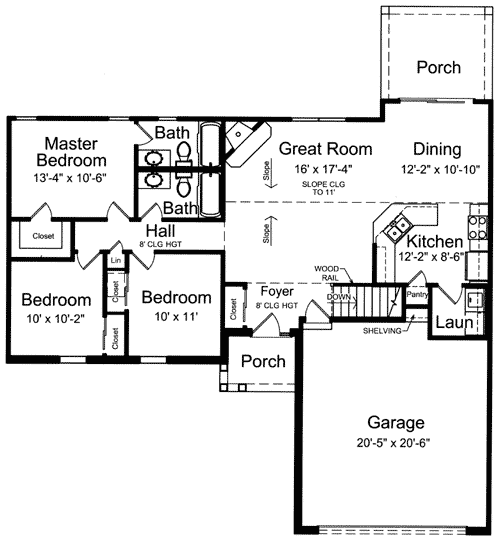

Ranch in Brick or Siding - 39159ST floor plan - Main Level
