Ranch Living with Three-Car Garage

Plan 22006SL

  • 1,568

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Related Plans: This plan is also available in alternate versions, including 22007SL (two dormers), 22009SL (one dormer) and 2292SL.
  • Need more space? See house plan 2293SL (1,902 sq. ft.) in a reverse layout.

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

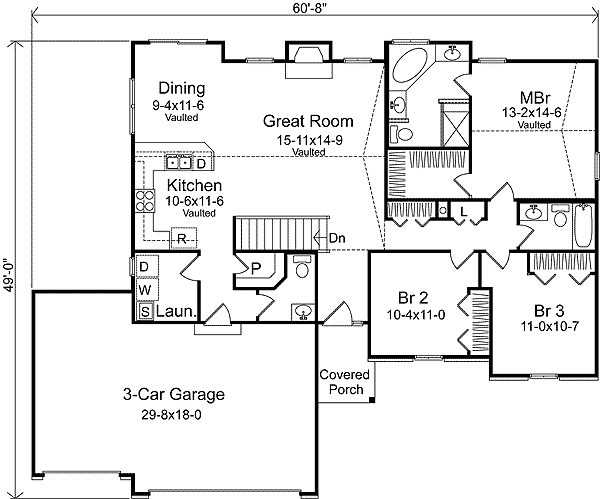

Ranch Living with Three-Car Garage - 22006SL floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,568 sq. ft.
  • 1st Floor: 1,568 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 60' 8"
  • Depth: 49' 0"
  • Max ridge height: 19' 0"

Garage

  • Type: Attached
  • Area: 613 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Ranch Living with Three-Car Garage

  • 1,568

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $615
  • 8 Sets $655
  • PDF - Single-Build $680
  • CAD - Single-Build $780
  • PDF - Unlimited Build $1,880
  • CAD - Unlimited Build $1,980
  • View all purchase option online

About This Plan

  • Related Plans: This plan is also available in alternate versions, including 22007SL (two dormers), 22009SL (one dormer) and 2292SL.
  • Need more space? See house plan 2293SL (1,902 sq. ft.) in a reverse layout.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,568 sq. ft.
  • 1st Floor: 1,568 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 60' 8"
  • Depth: 49' 0"
  • Max ridge height: 19' 0"

Garage

  • Type: Attached
  • Area: 613 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
Plan 22006SL
View this and more for this plan by visiting www.architechtecturaldesigns.com/22006SL
|
