Ranch Living with Three-Car Garage

Plan 2292SL

  • 1,642

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • This ranch home plan is designed for functionality. A vaulted ceiling in the great room lends to a feeling of spaciousness.
  • The convenient kitchen/breakfast area includes a built-in desk, pantry, island and access to the laundry room.
  • The master bedroom enjoys coffered ceilings, a walk-in closet and private bath.
  • Related Plans: This plan is also available in alternate versions, including 22007SL (two dormers), 22009SL (one dormer) and 22006SL.
  • Need more space? See house plan 2293SL (1,902 sq. ft.) in a reverse layout.

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans

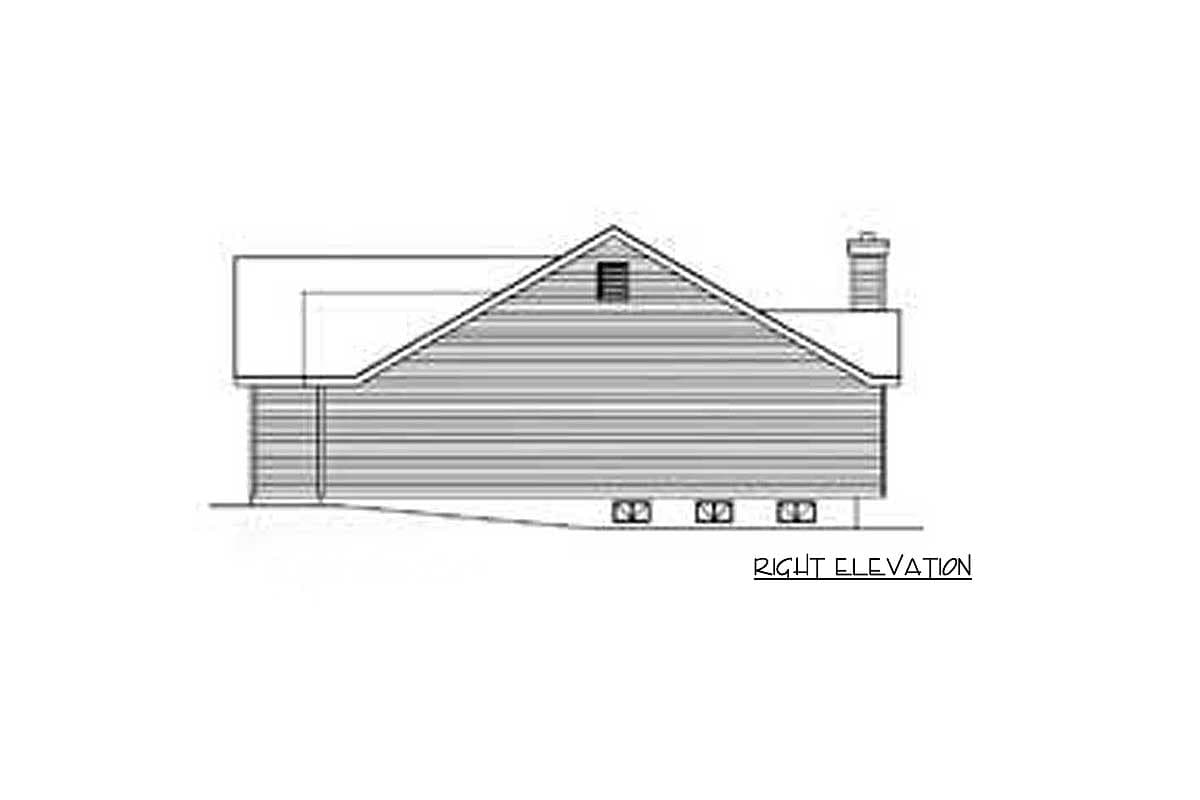

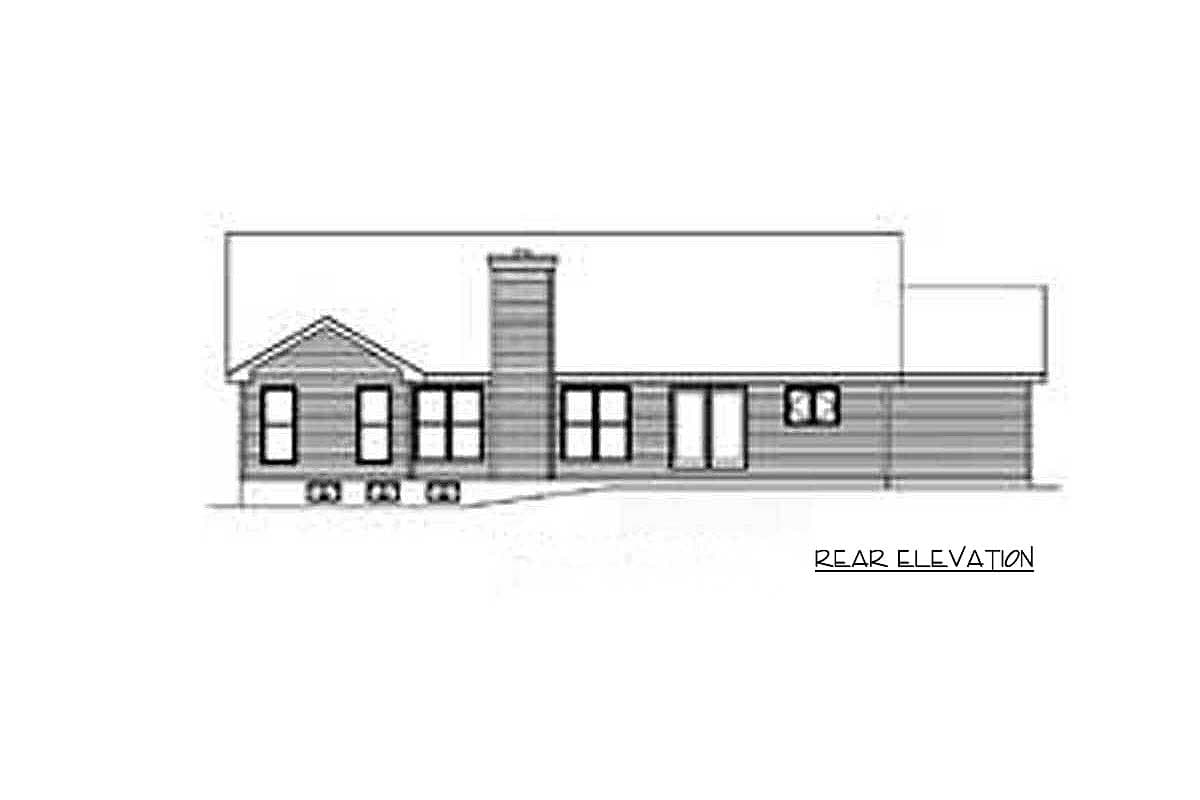

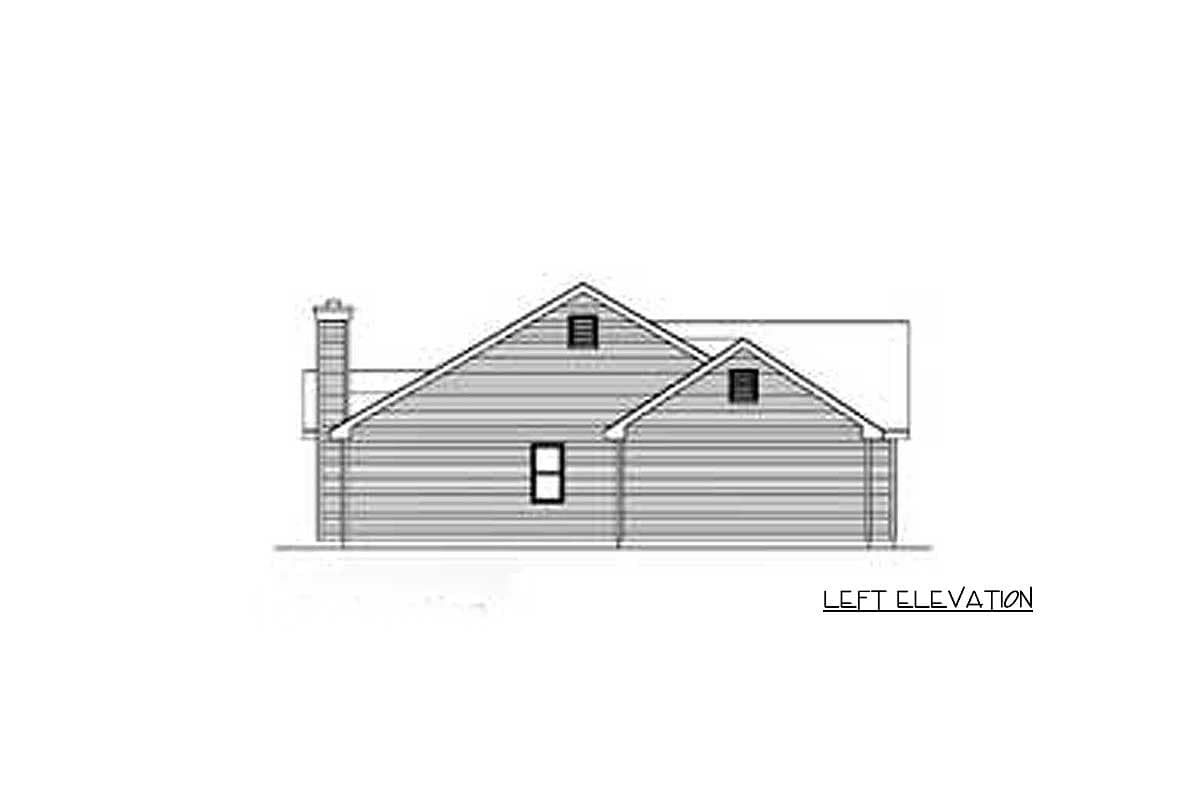

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Ranch Living with Three-Car Garage - 2292SL floor plan - Main Level

Architectural Style

Ranch Living with Three-Car Garage

  • 1,642

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,642 sq. ft.
  • 1st Floor: 1,642 sq. ft.

Dimensions

  • Width: 66' 0"
  • Depth: 44' 0"
  • Max ridge height: 22' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 701 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Truss
