Roomy New American Home Plan with Second-level Game Room

Plan 510114WDY

  • 4,154

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • A cross-gable roof rests atop this roomy, New American home plan, which stirs a sense of comfort and attraction immediately upon seeing the home. Metal roof accents add a modern touch.
  • French doors welcome you inside, where views into the dining and living room are provided. Large windows invite natural light to infiltrate the interior, and a fireplace contributes to the warm ambience.
  • The kitchen boasts an oversized island with a secondary bar sink, and the adjoining breakfast nook provides a cozy space for casual meals. A nearby barn door reveals a walk-in pantry, and the neighboring laundry room offers loads of cabinet space for storage.
  • The master bedroom juts out from the rear of the home, providing the utmost privacy, and features a lavish, 5-fixture bath and walk-in closet. Bedroom 2 resides off the foyer, with a full bath across the hall.
  • Upstairs, a central sitting room leads to three secondary bedrooms, two of which share a Jack-and-Jill bath. The third bedroom shares a full bath with the adjacent game room; a fun space for the whole family to enjoy.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

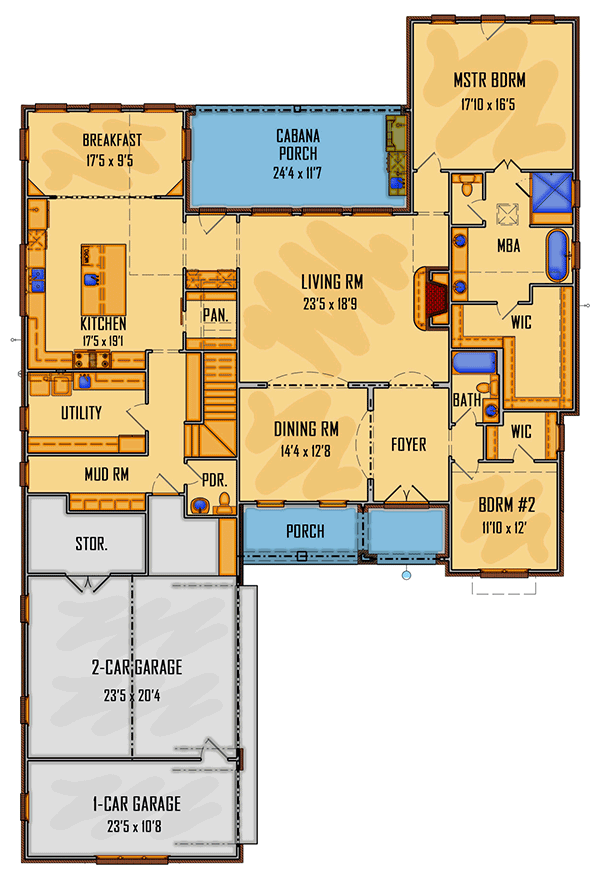

Roomy New American Home Plan with Second-level Game Room - 510114WDY floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

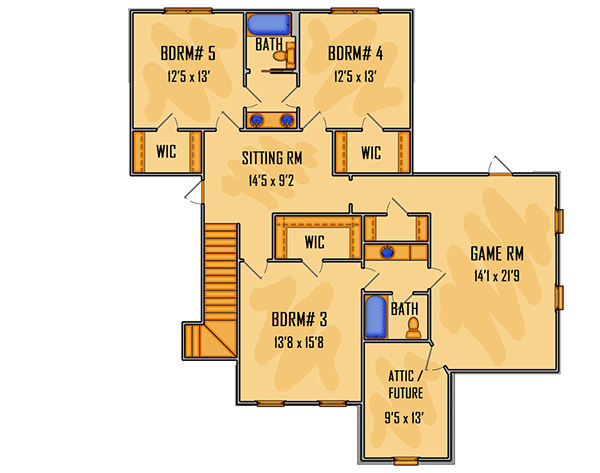

Roomy New American Home Plan with Second-level Game Room - 510114WDY floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,154 sq. ft.
  • 1st Floor: 2,706 sq. ft.
  • 2nd Floor: 1,448 sq. ft.
  • Porch, Combined: 425 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 62' 5"
  • Depth: 94' 9"

Garage

  • Type: Attached
  • Area: 943 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Roomy New American Home Plan with Second-level Game Room

  • 4,154

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,500
  • 8 Sets $1,600
  • PDF - Single-Build $1,850
  • 5 Sets + PDF $2,100
  • CAD + PDF - Unlimited Build $2,850
  • View all purchase option online

About This Plan

  • A cross-gable roof rests atop this roomy, New American home plan, which stirs a sense of comfort and attraction immediately upon seeing the home. Metal roof accents add a modern touch.
  • French doors welcome you inside, where views into the dining and living room are provided. Large windows invite natural light to infiltrate the interior, and a fireplace contributes to the warm ambience.
  • The kitchen boasts an oversized island with a secondary bar sink, and the adjoining breakfast nook provides a cozy space for casual meals. A nearby barn door reveals a walk-in pantry, and the neighboring laundry room offers loads of cabinet space for storage.
  • The master bedroom juts out from the rear of the home, providing the utmost privacy, and features a lavish, 5-fixture bath and walk-in closet. Bedroom 2 resides off the foyer, with a full bath across the hall.
  • Upstairs, a central sitting room leads to three secondary bedrooms, two of which share a Jack-and-Jill bath. The third bedroom shares a full bath with the adjacent game room; a fun space for the whole family to enjoy.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,154 sq. ft.
  • 1st Floor: 2,706 sq. ft.
  • 2nd Floor: 1,448 sq. ft.
  • Porch, Combined: 425 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 62' 5"
  • Depth: 94' 9"

Garage

  • Type: Attached
  • Area: 943 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
Plan 510114WDY
View this and more for this plan by visiting www.architechtecturaldesigns.com/510114WDY
|
Need Help? 800-854-7852
|
