Plan 64571SC

Rustic Barn House Plan Featuring One Bedroom and Massive Six-Car Garage

Name: Plan 64571SC: Rustic Barn House Plan Featuring One Bedroom and Massive Six-Car Garage
Brand: Architectural Designs
SKU: 64571SC
Price: 1007.89 USD
Availability: InStock

Heated S.F.

1,825

Beds

1 - 2

Baths

1.5

Stories

Cars

Floor Plan

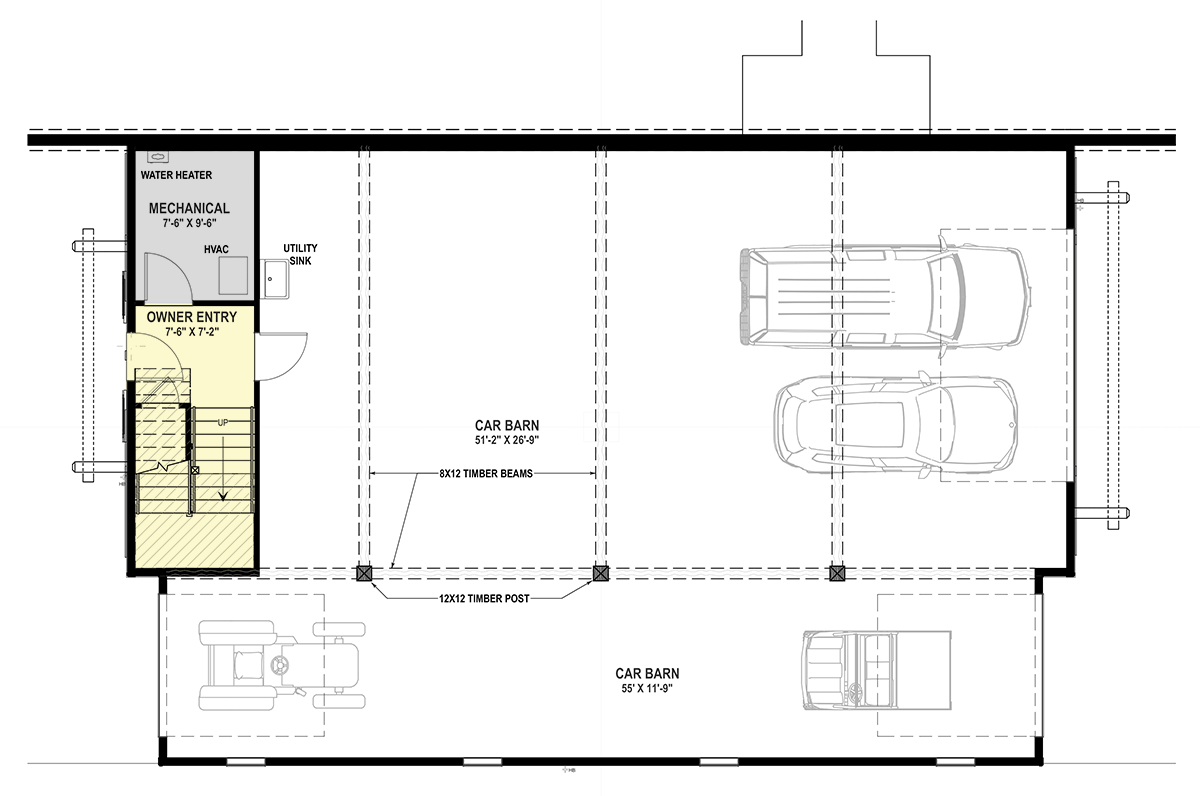

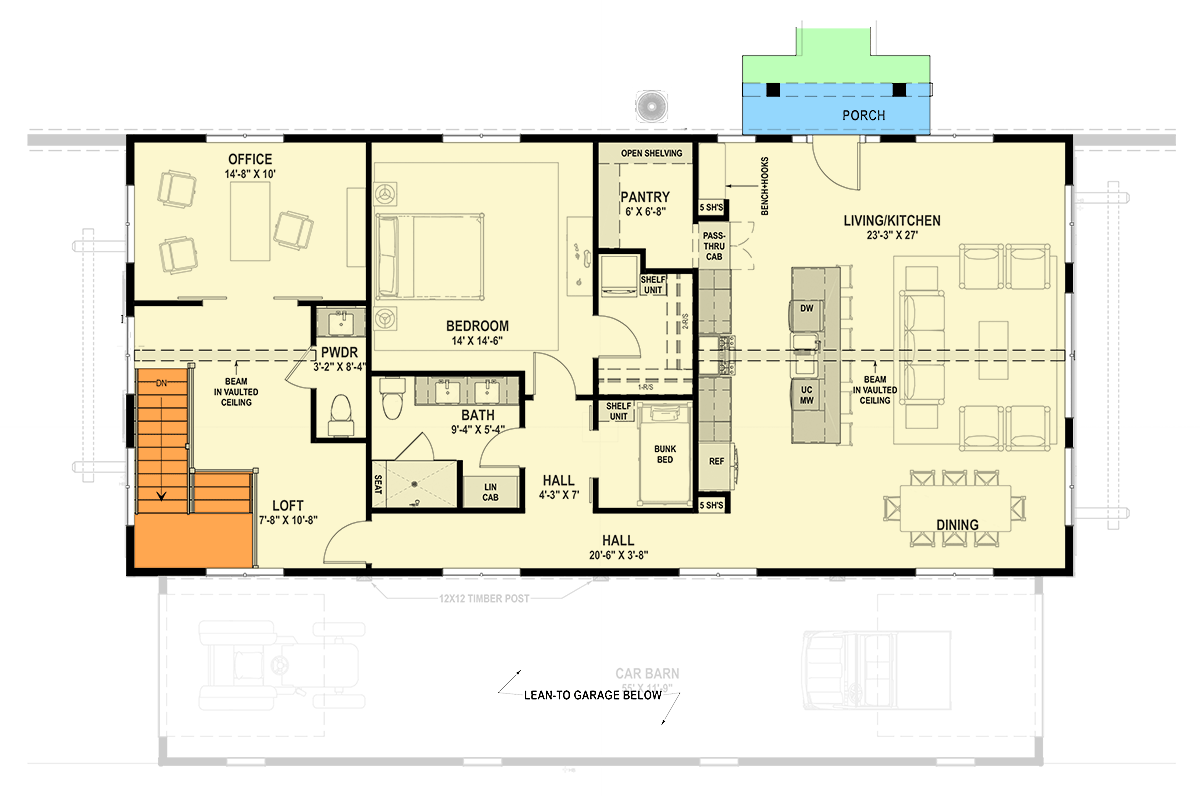

Main Level

Walkout Level

Plan Details

This charming barn offers 1,825 square feet of heated living space, one bedroom, one bunk room, 1.5 baths, and an expansive drive-under six-car garage.
The striking exterior combines natural wood siding and stone accents to create a rugged aesthetic that blends beautifully with a mountain or rural landscape.
Inside, the main floor provides a functional entry and laundry area, while the upper level serves as the primary living quarters with a vaulted ceiling reaching 23 feet.
The open-concept layout includes a spacious living room, a kitchen with a walk-in pantry, and a dedicated breakfast nook for casual morning meals.
A master suite is conveniently located on the main floor, while a secondary bunk room and an additional loft space offer flexibility for guests or a home office near by.
Beyond the living quarters, the design includes a massive drive-under garage with workshop space, providing the ultimate setup for vehicle enthusiasts or hobbyists.

What's Included

Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
Upper Level Plan (if needed) - same information as Main Level.
Roof Plan - layout with pitch markers, dimensions and notes.
Main Level Electrical Plan - electrical outlets, switches and light locations shown.
Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

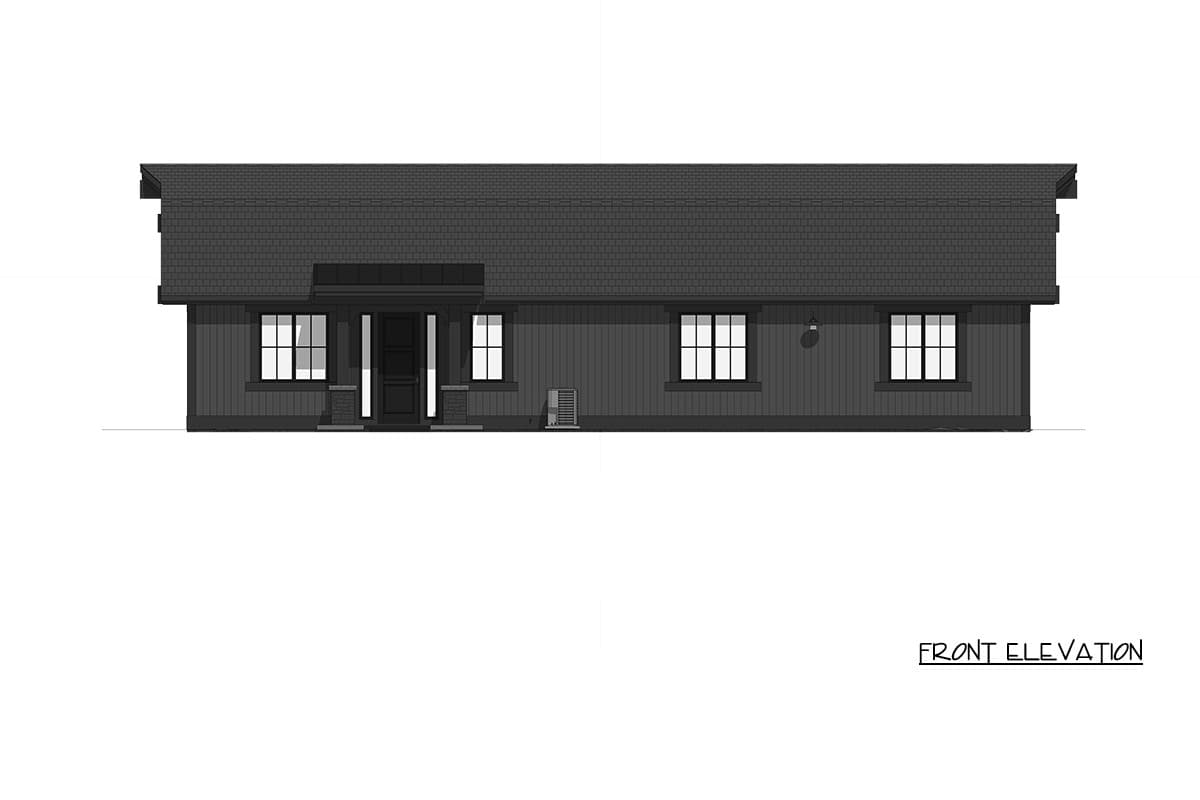

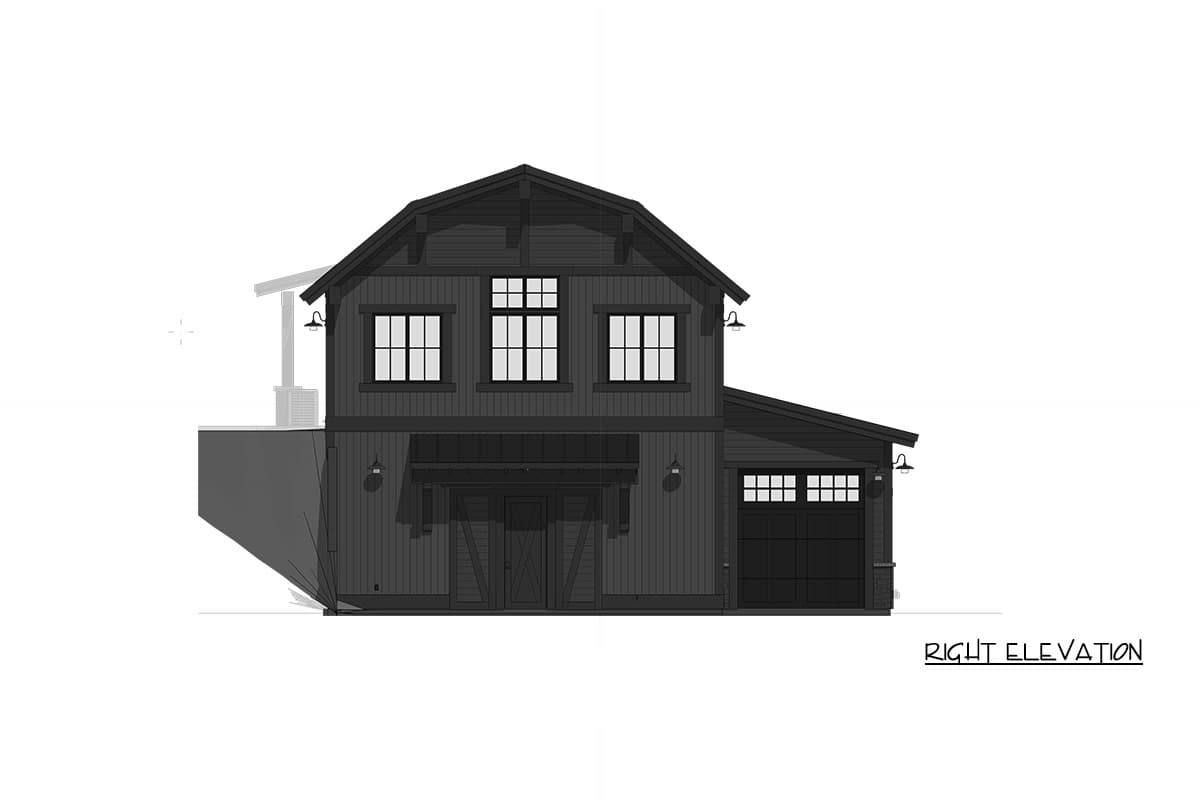

Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

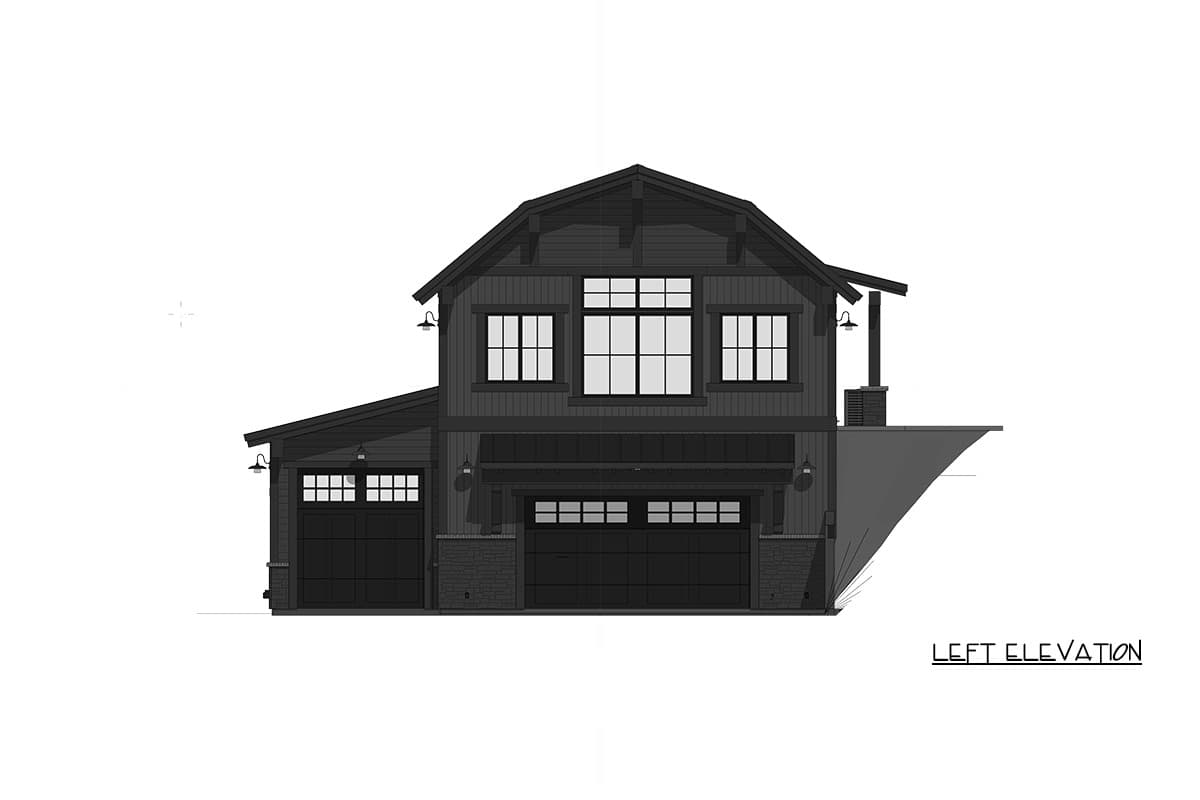

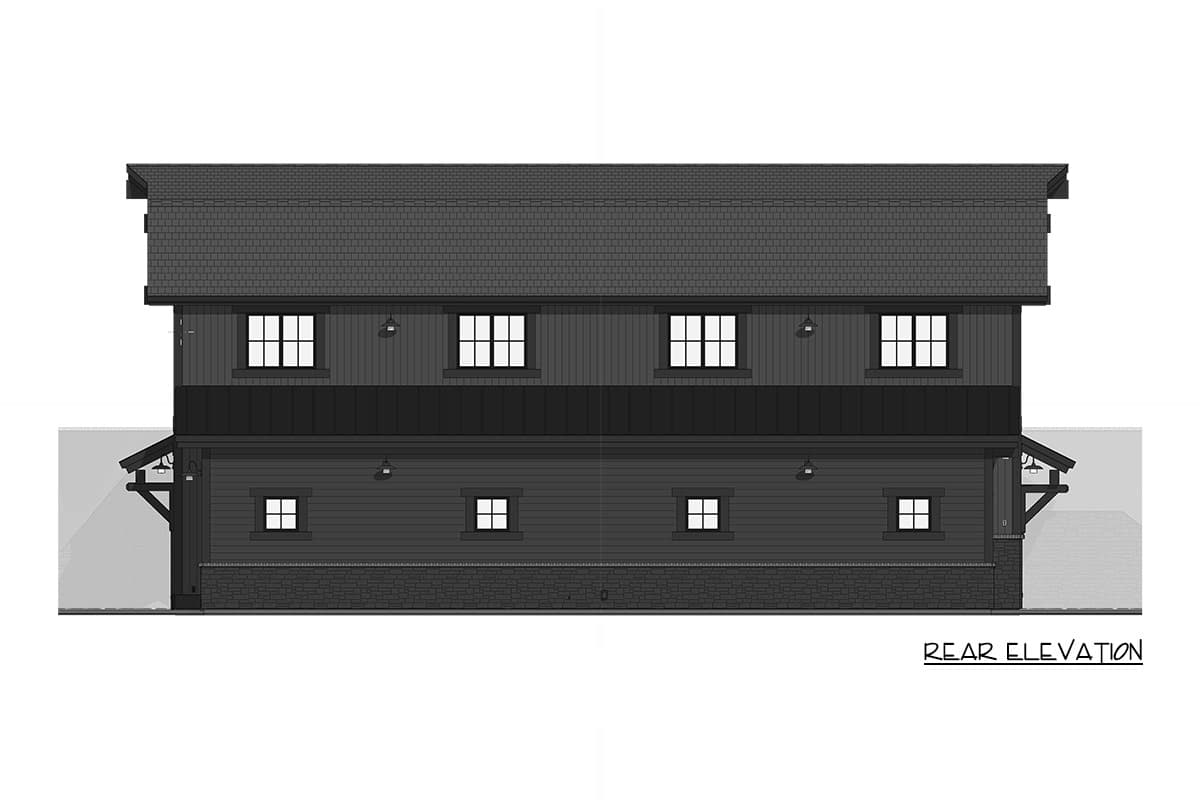

Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
