Plan 80673PM Rustic Modern 1100 Square Foot Lake House Plan

1,108 2 1 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Rustic Modern 1100 Square Foot Lake House Plan

Plan 80673PM

  • 1,108

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

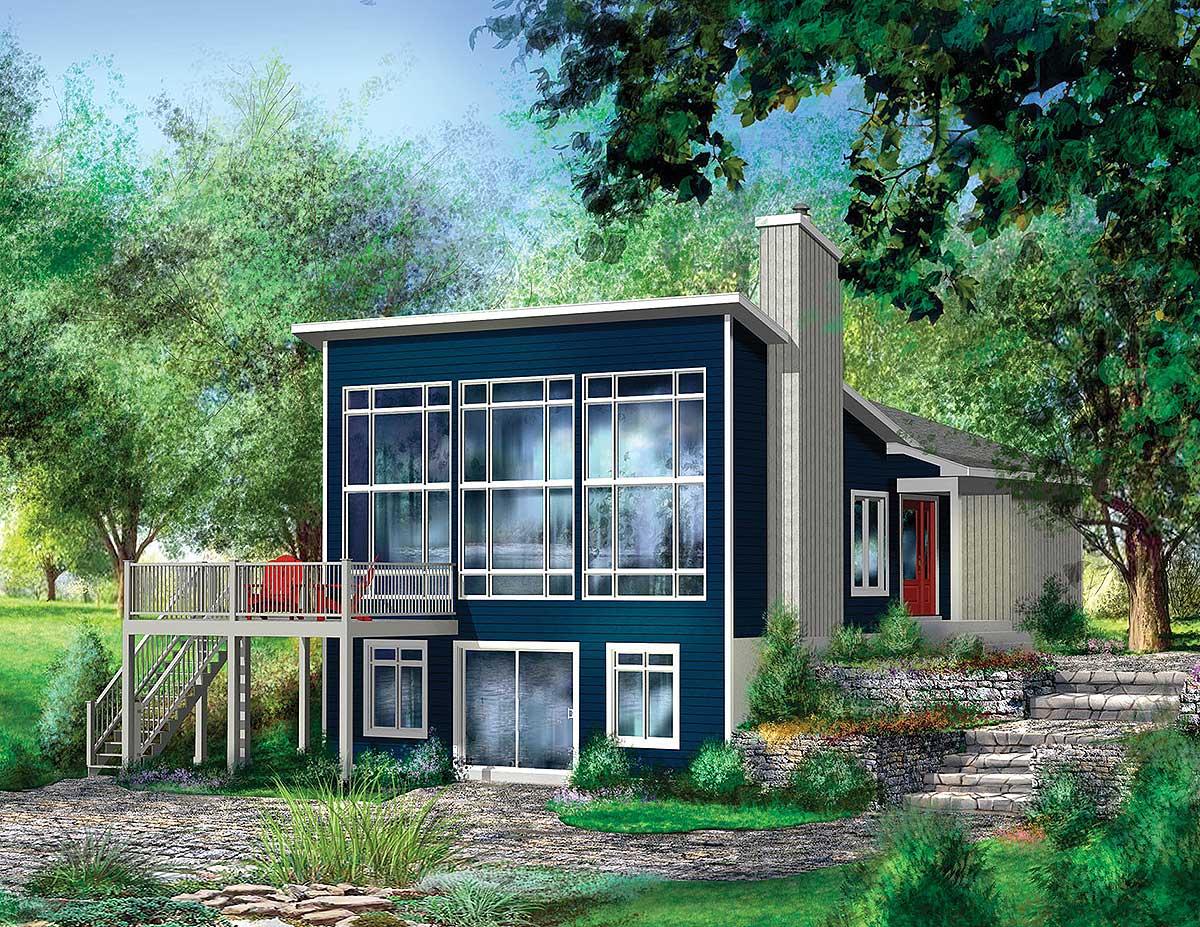

  • This two bedroom modern lake house has a giant wall of windows giving you views of the water or mountains and fills the main living space with natural light.
  • A large island in the kitchen adds counter space and allows views into the great room with fireplace and dining area beyond.
  • The bedrooms are clustered along the back wall with the master enjoying direct access to the laundry.
  • The basement is an unfinished space and gives you expansion and storage.

Plan sets include the following:

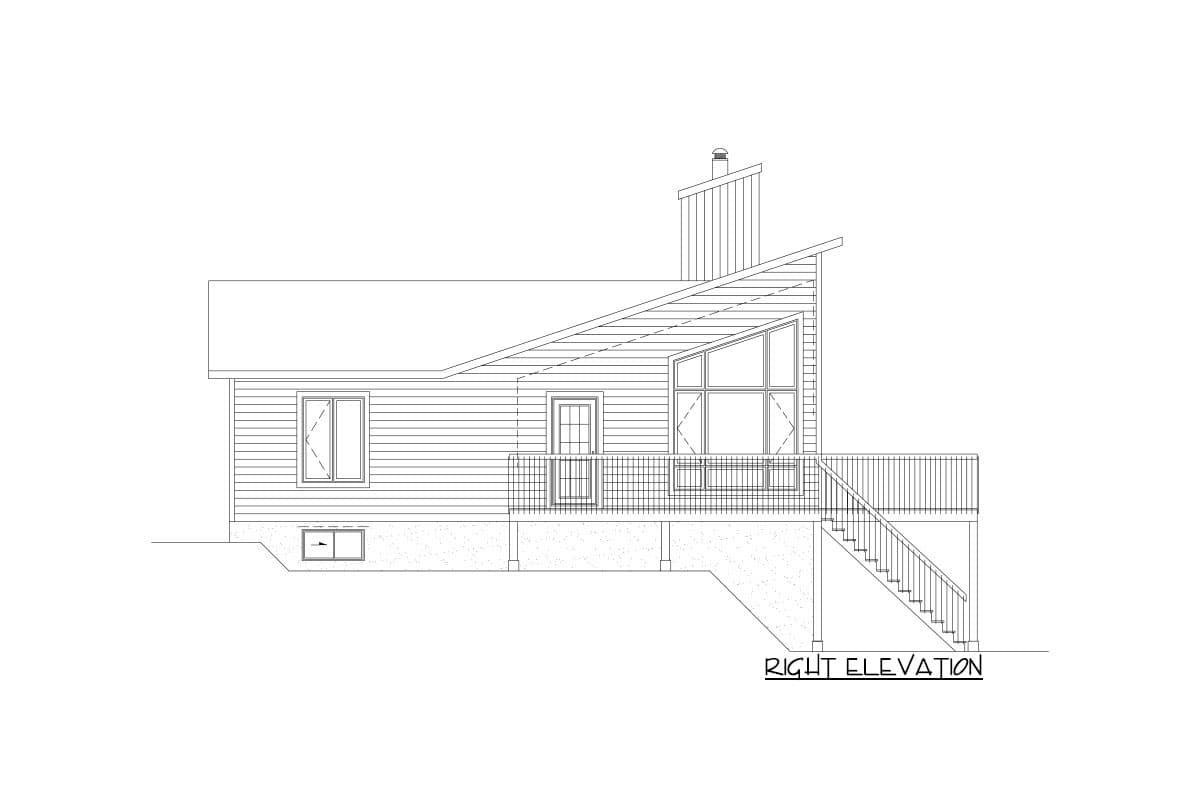

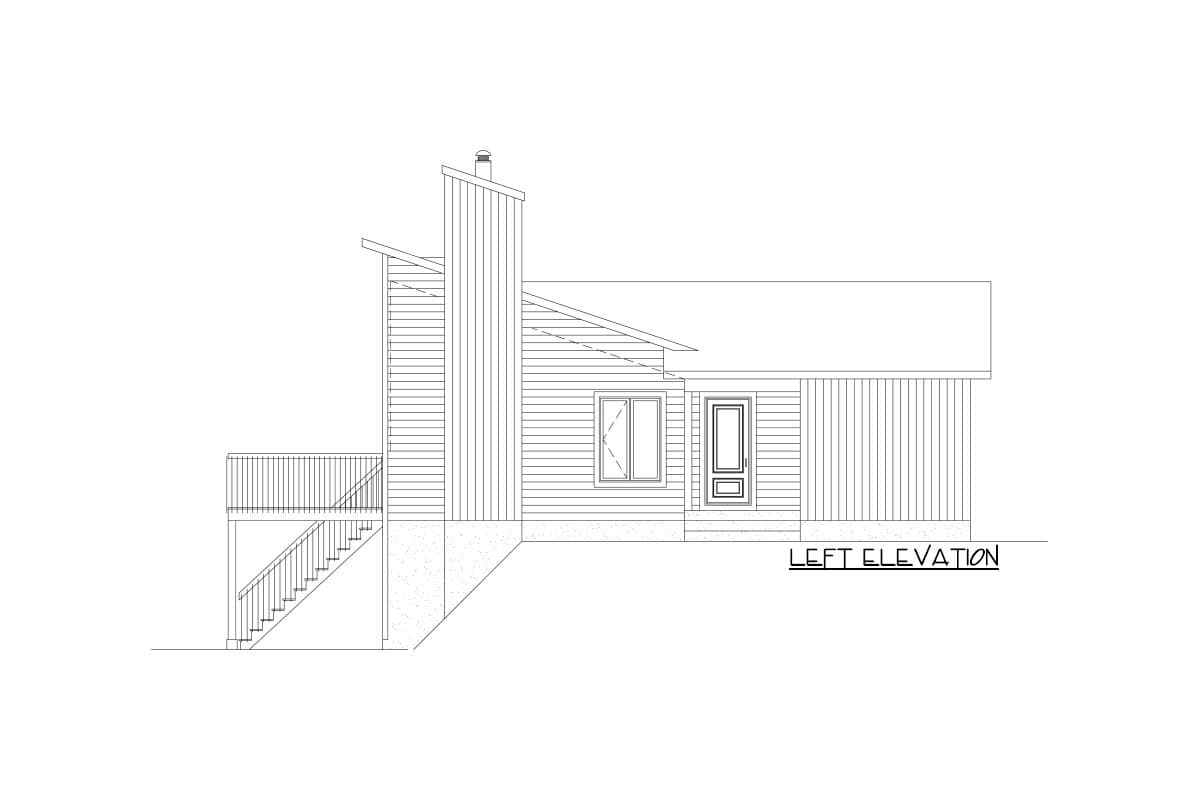

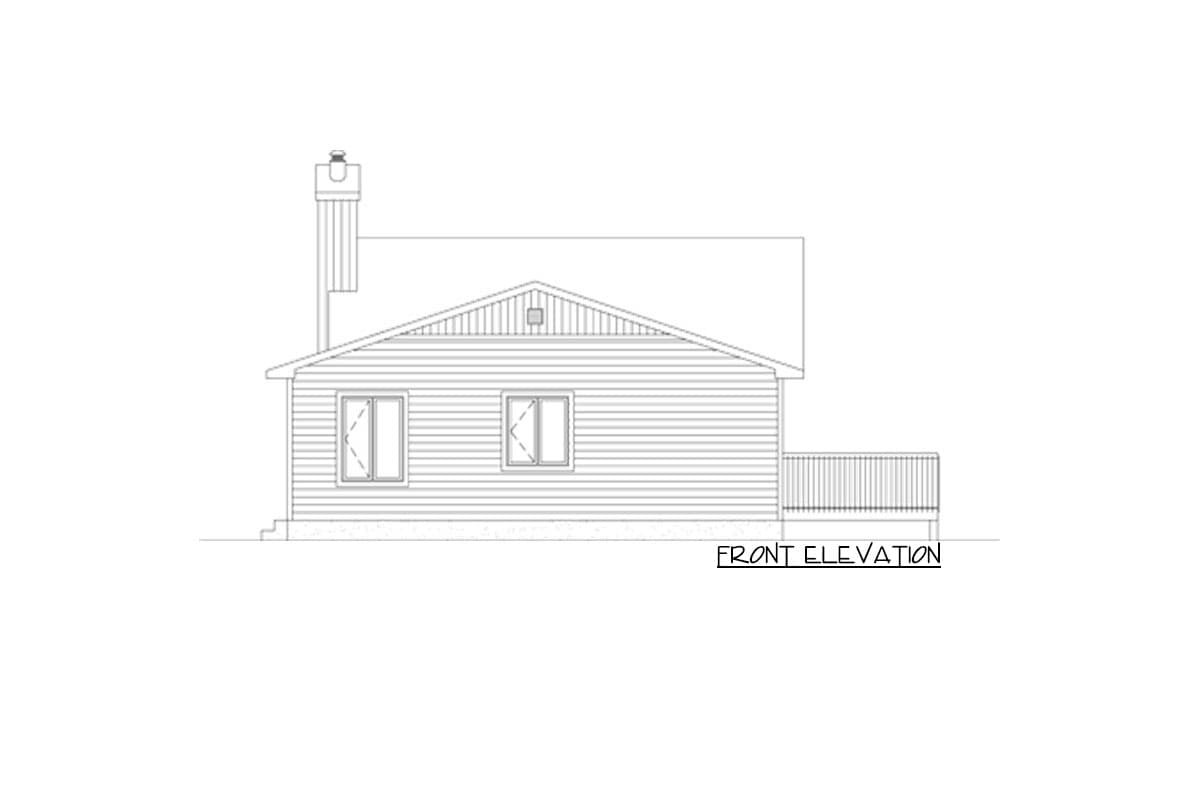

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

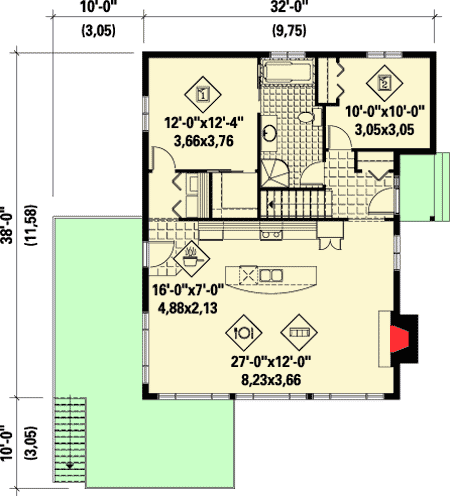

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rustic Modern 1100 Square Foot Lake House Plan - 80673PM floor plan - Main Level

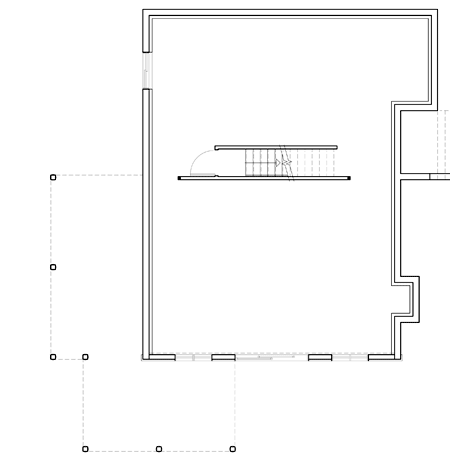

Unfinished Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Rustic Modern 1100 Square Foot Lake House Plan - 80673PM floor plan - Unfinished Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,108 sq. ft.
  • 1st Floor: 1,108 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 38' 0"
  • Max ridge height: 26' 7"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Rustic Modern 1100 Square Foot Lake House Plan

  • 1,108

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $840
  • 5 Sets $885
  • 5 Sets + PDF $965
  • CAD + PDF - Single-Build $1,860
  • View all purchase option online

About This Plan

  • This two bedroom modern lake house has a giant wall of windows giving you views of the water or mountains and fills the main living space with natural light.
  • A large island in the kitchen adds counter space and allows views into the great room with fireplace and dining area beyond.
  • The bedrooms are clustered along the back wall with the master enjoying direct access to the laundry.
  • The basement is an unfinished space and gives you expansion and storage.

Floor Plans

  • Main Level

  • Unfinished Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,108 sq. ft.
  • 1st Floor: 1,108 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 38' 0"
  • Max ridge height: 26' 7"

Roof

  • Framing Type: Truss
