Plan 680105VR
RV-Friendly Detached Garage Plan with 803 Square Foot Bonus Space Above
Heated S.F.
803
Baths
1
Stories
2
Cars
2
What's Included
Plan Details
  • This RV garage has an exterior with a blend of board and batten and clapboard siding and large windows in front bringing in light to the upstairs bonus space.
  • The RV-friendly left bay has a 12' by 14' garage door and is 50' deep. The right bay has a 10' by 7' garage door and is perfect for your car or truck.
  • Upstairs, you get a huge 803 square foot storage area.
  • Related Plans: Get a version with an 8' by 7' garage door on the right with garage plan 68781VR. Get a finished upstairs with plan 68599VR. Eliminate the front windows with plan 68423VR. Eliminate the upper level with plans 68506VR, 68564VR and 68647VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

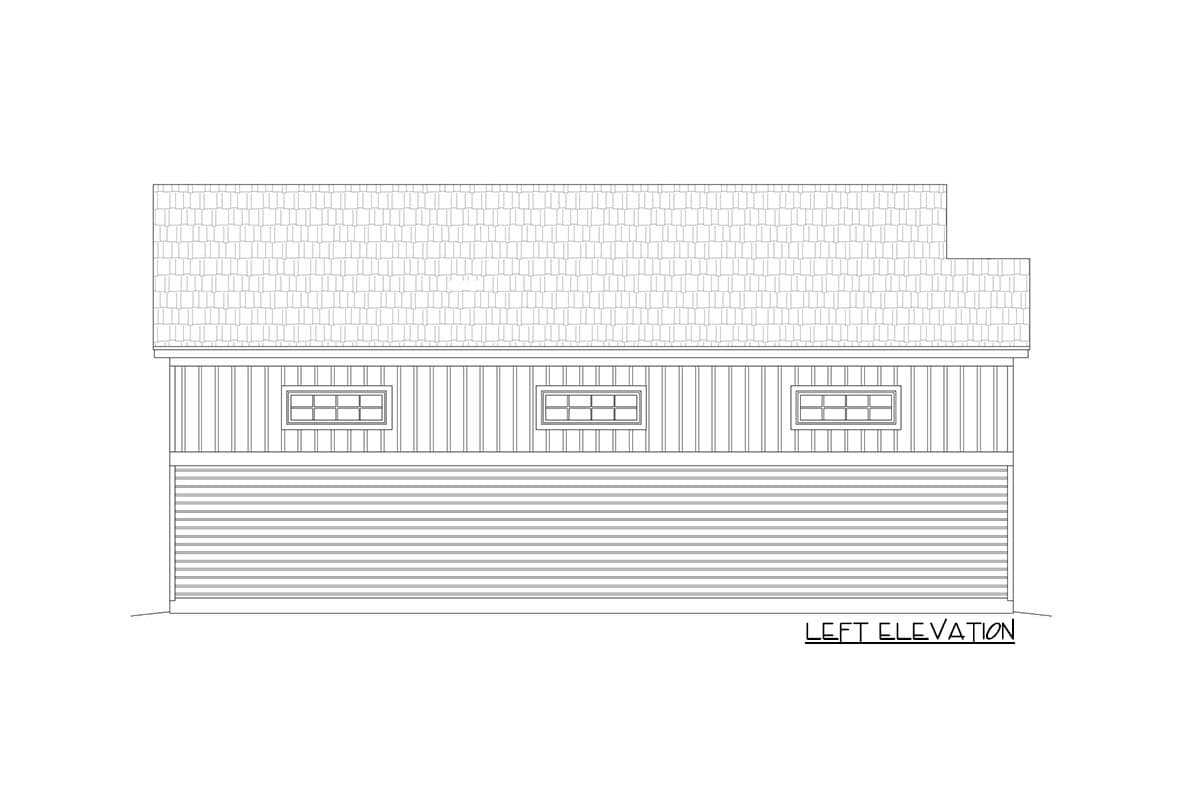

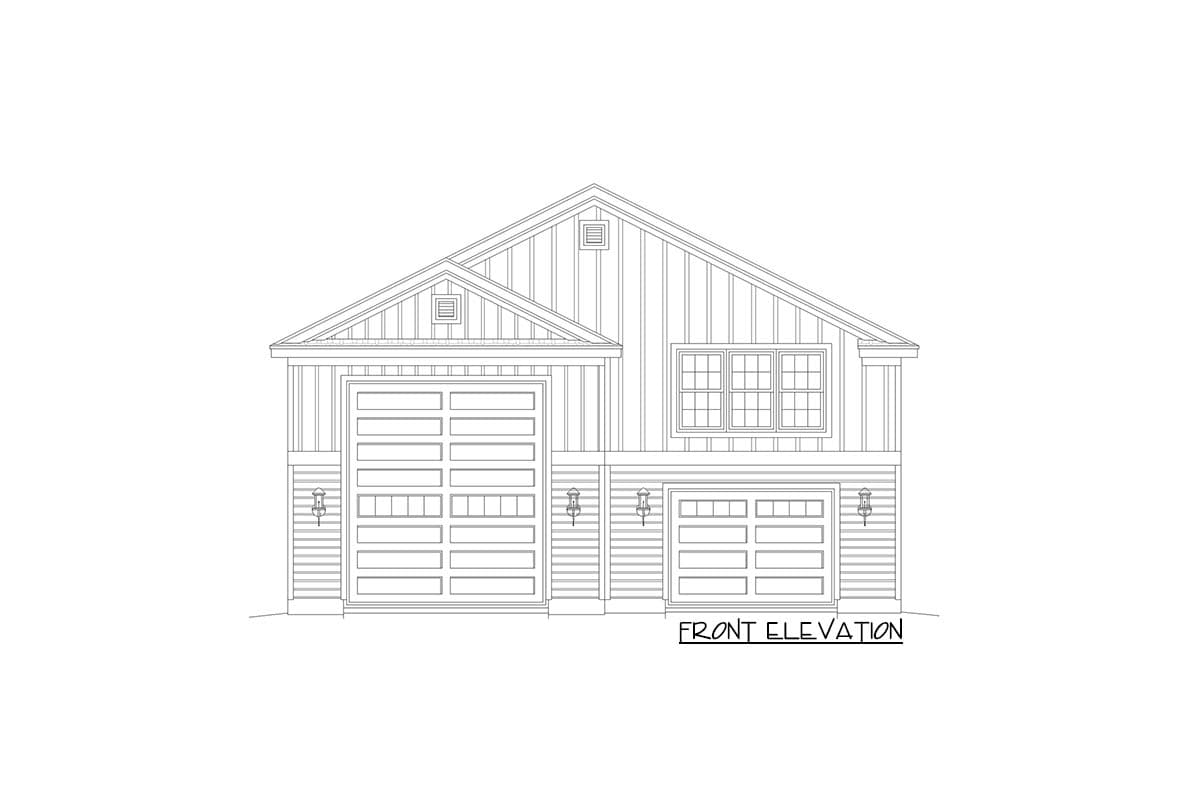

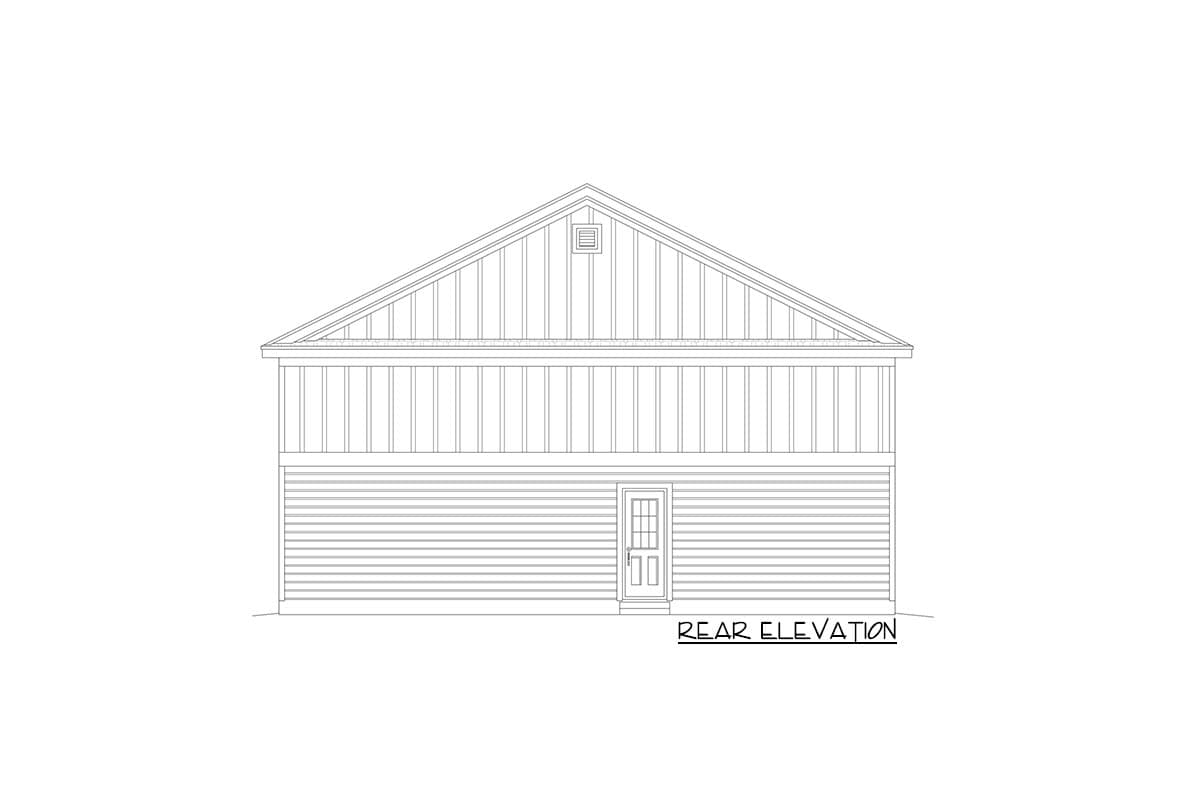

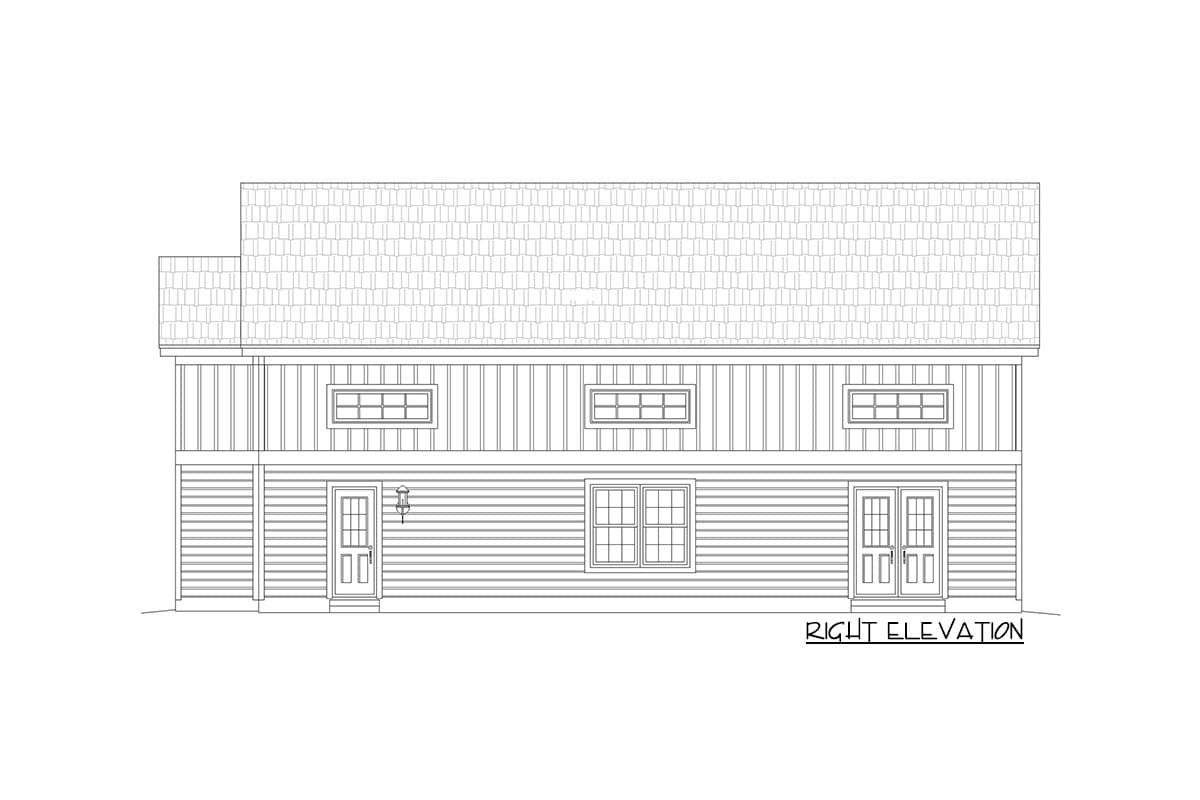

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

RV-Friendly Detached Garage Plan with 803 Square Foot Bonus Space Above

  • 803

    Heated s.f.

  • Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

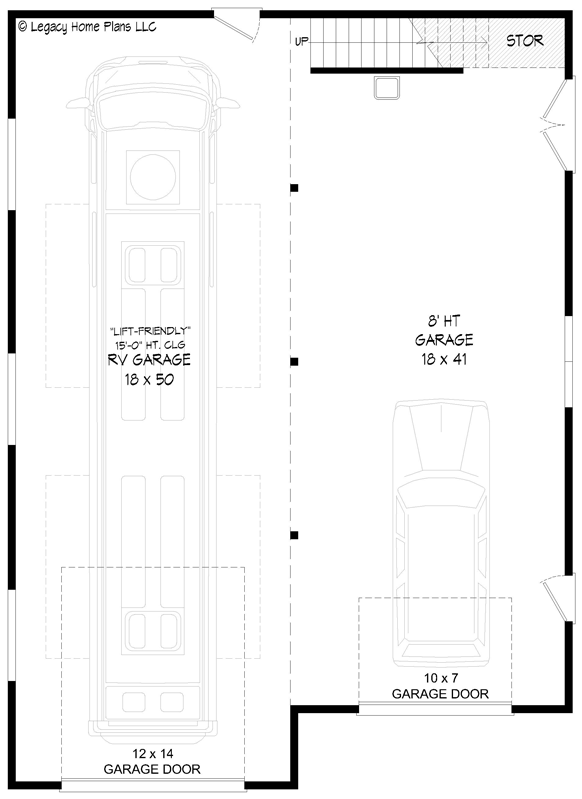

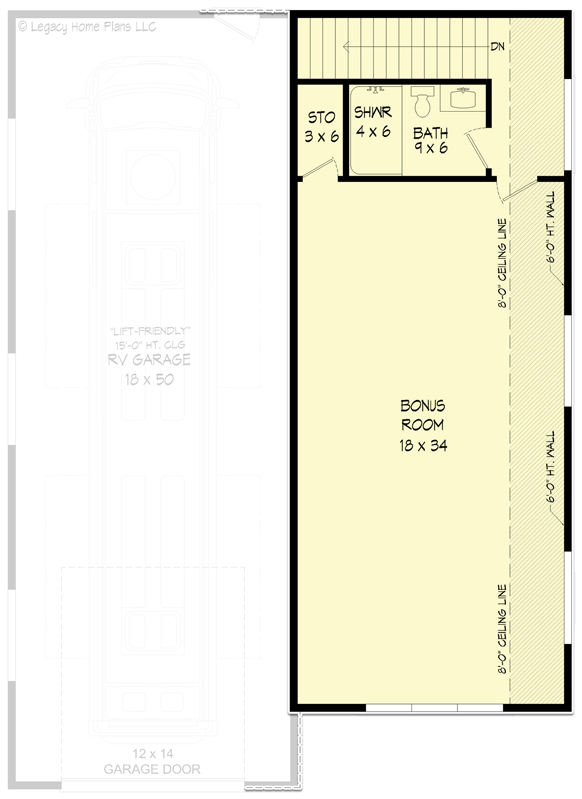

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 803 sq. ft.
  • 2nd Floor: 803 sq. ft.

Dimensions

  • Width: 37' 0"
  • Depth: 51' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Garage

  • Type: RV Garage
  • Area: 1797 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 15' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick Or Truss
