RV Garage for an Up-Sloping Lot

Plan 68491VR

  • 545

    Heated s.f.

  • 0

    Beds

  • 2

    Stories

  • 2

    Cars

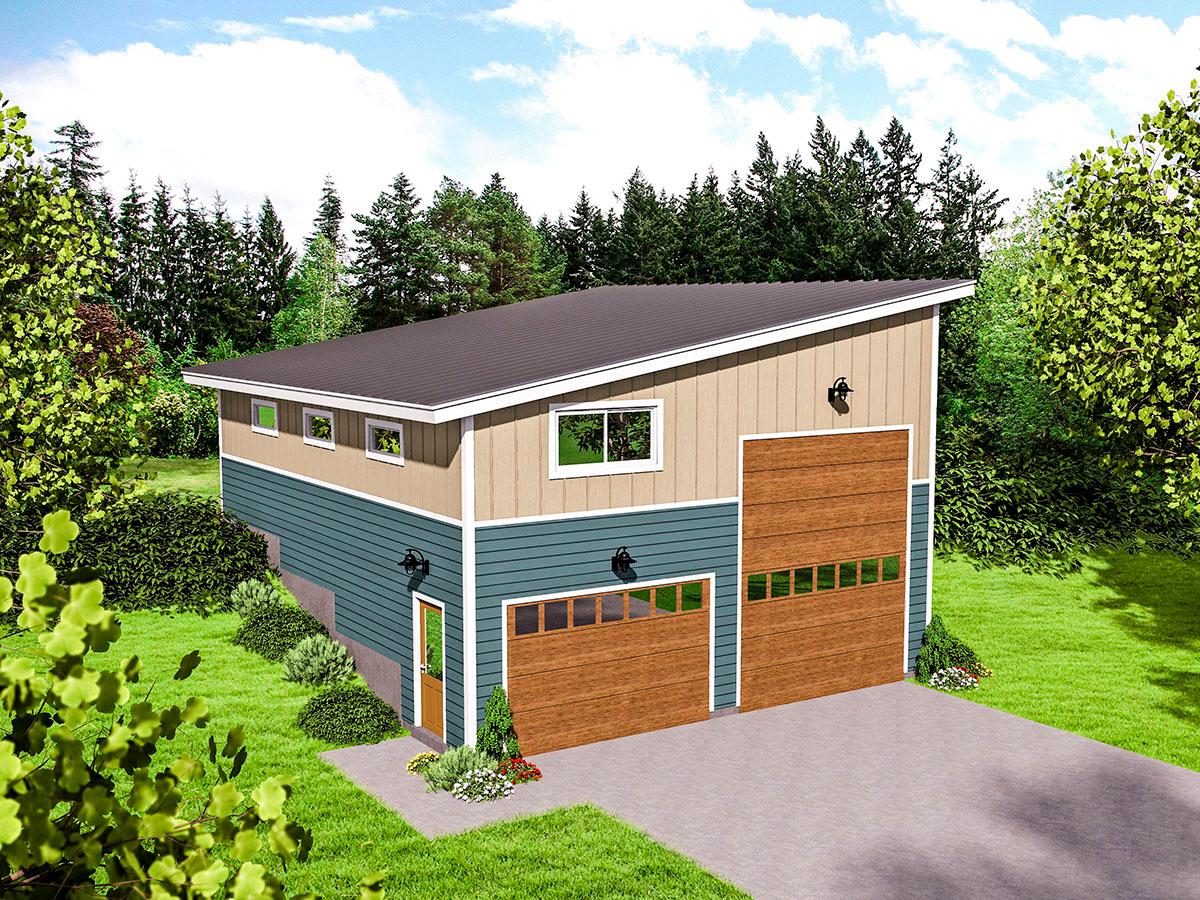

  • A slanted shed roof creates a vaulted ceiling in the large RV bay of this Contemporary garage plan. Designed for a lot that slopes up from the front, you can drive into the upper level of the left bay from the back!
  • Climb the stairs to reach an enormous loft studio that would make a great man cave.
  • There are plenty of windows to bring in light and a combination of board and battan plus siding to give the garage an interesting look.
  • Related Plans: Get more space with garage plans 68448VR, 68671VR and 68670VR (with a finished upstairs apartment). Get alternate versions with garage plans 68448VR, 68596VR, 68500VR and 68579VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

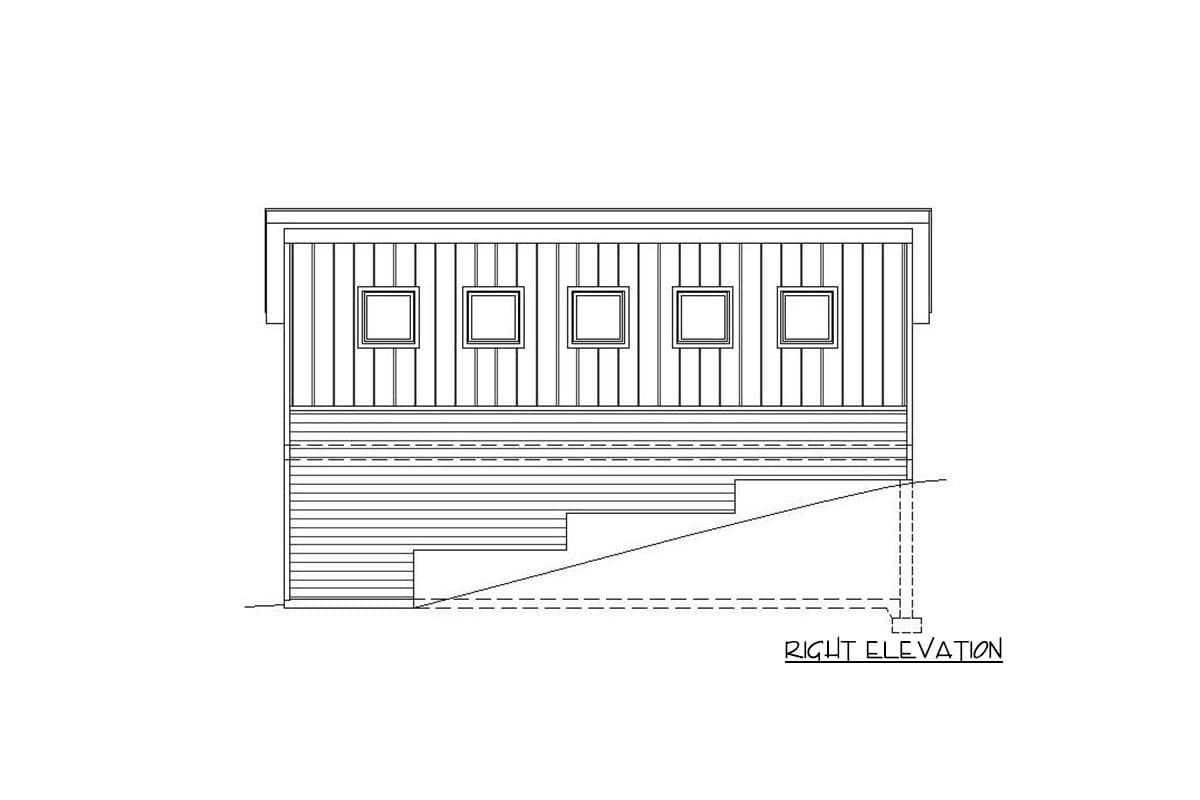

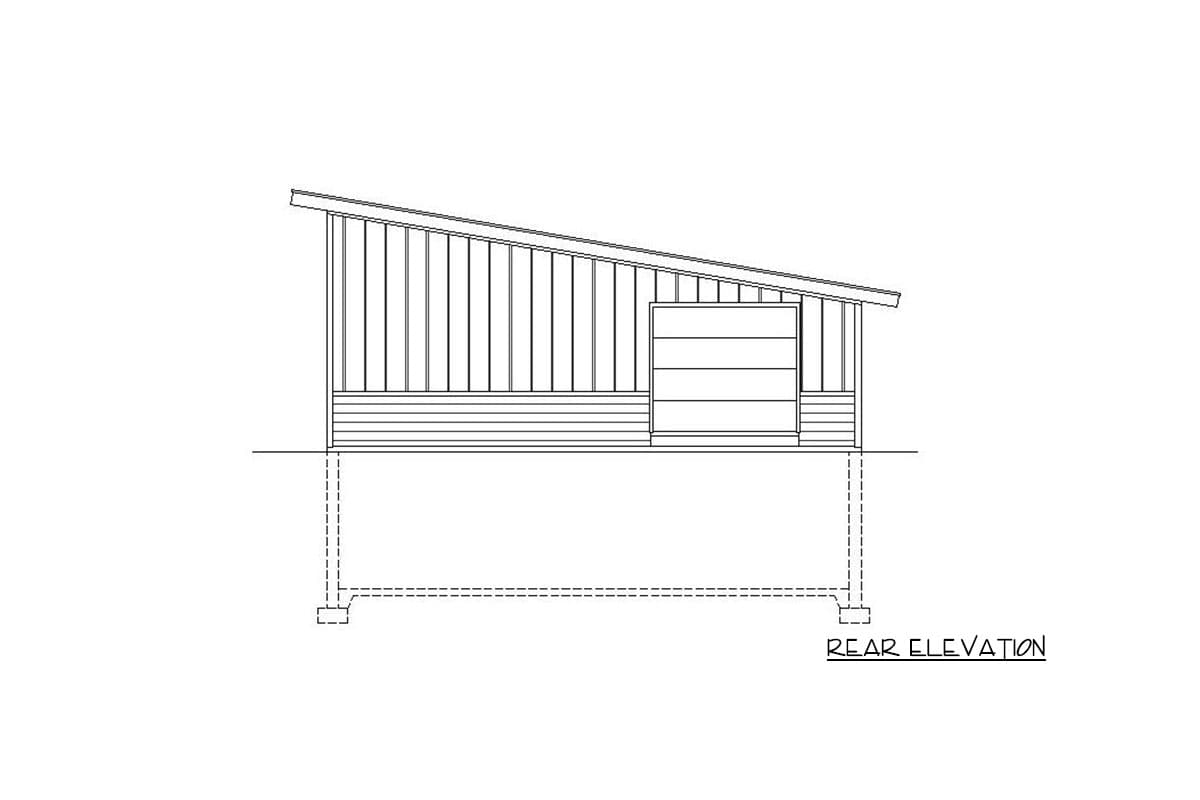

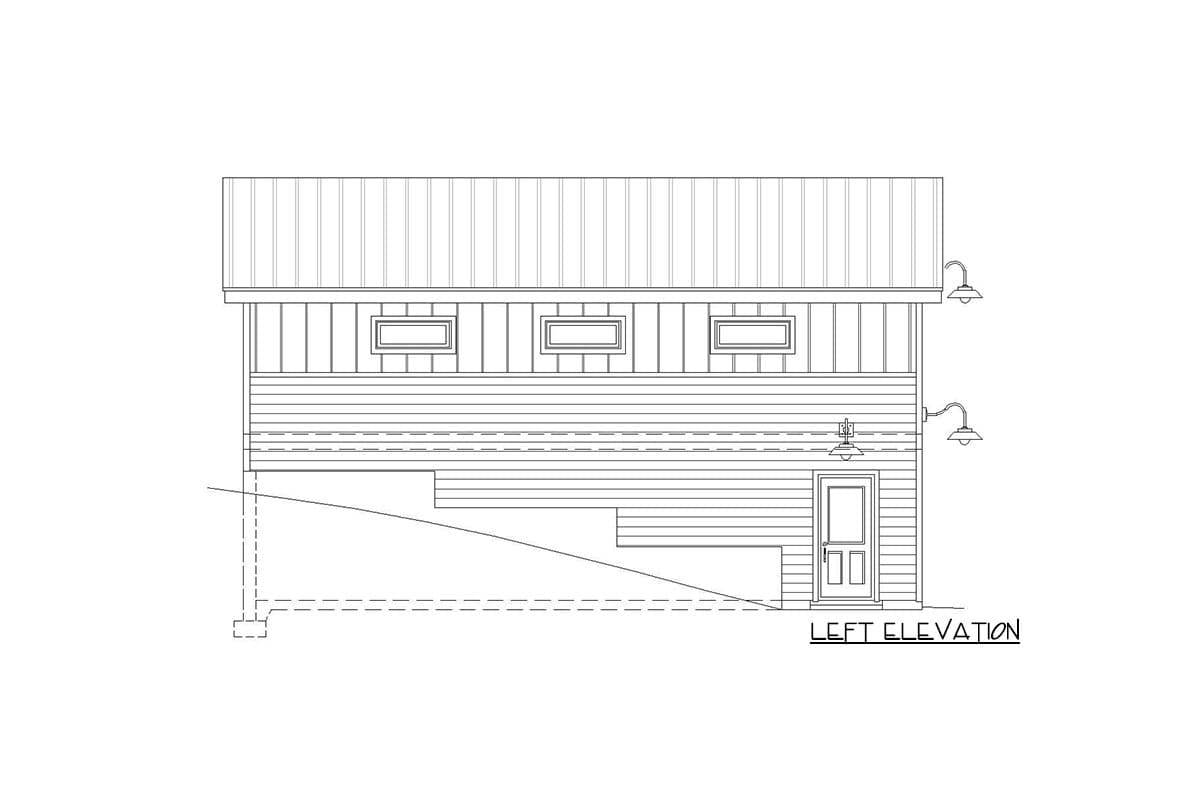

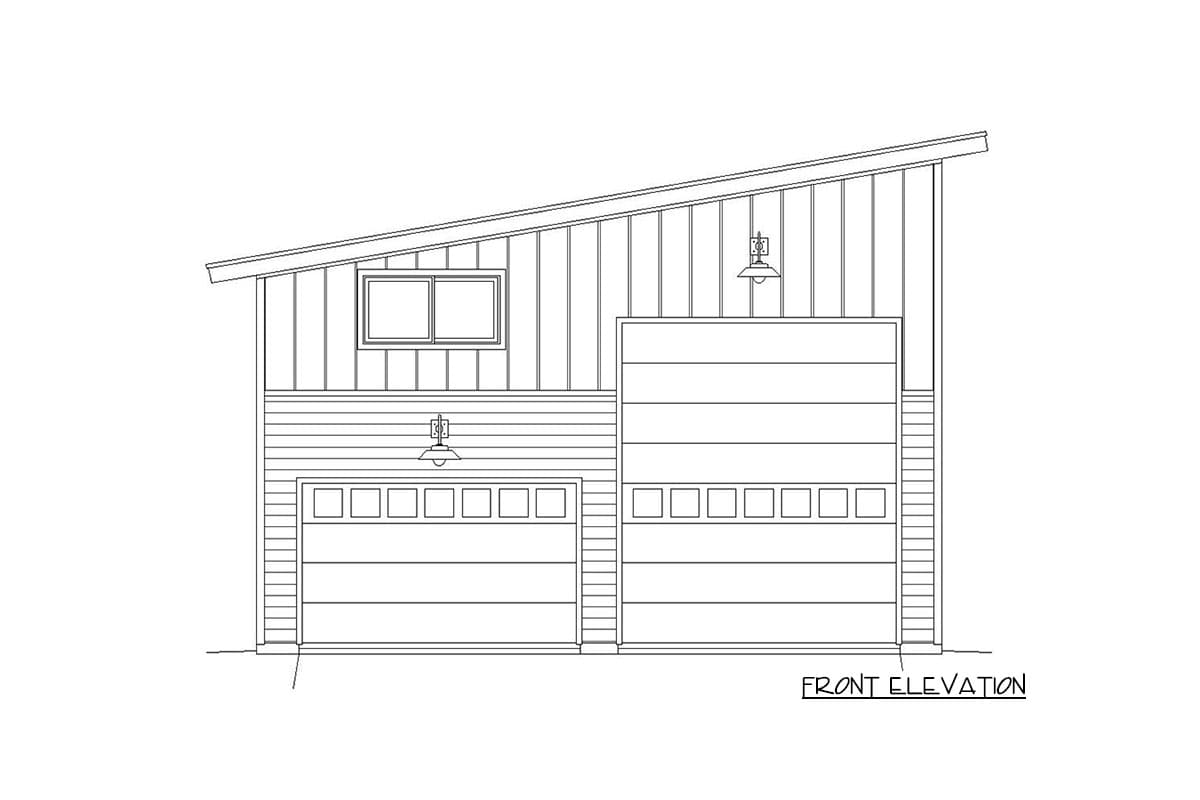

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

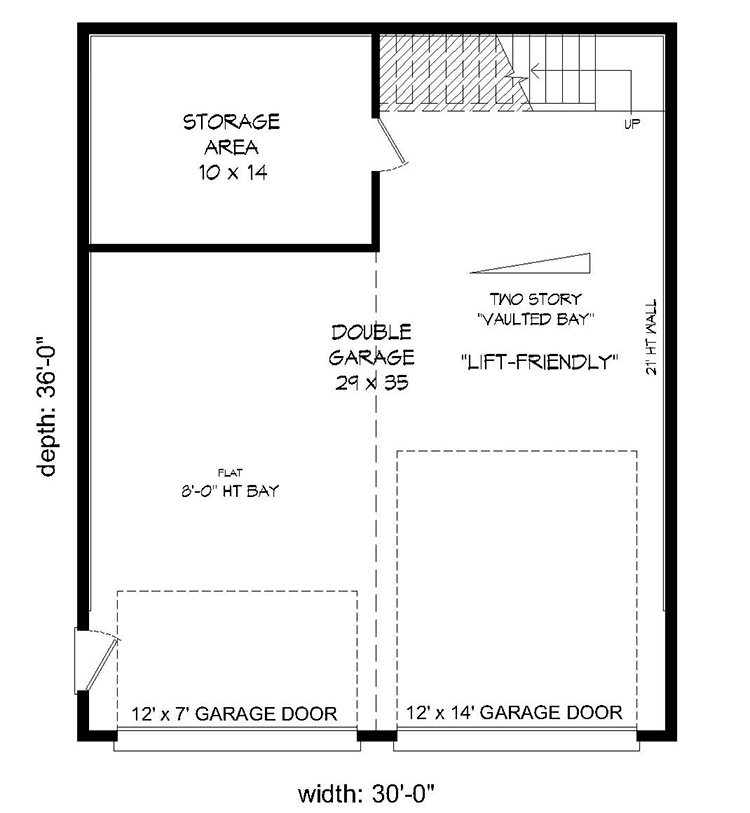

RV Garage for an Up-Sloping Lot - 68491VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

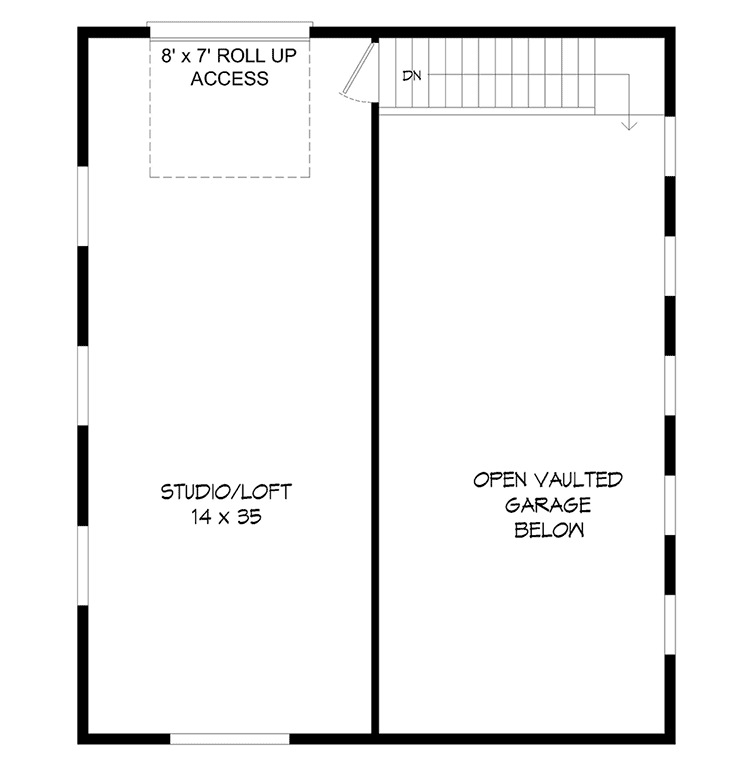

RV Garage for an Up-Sloping Lot - 68491VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 545 sq. ft.
  • 1st Floor: 545 sq. ft.
  • Storage: 140 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 36' 0"
  • Max ridge height: 22' 5"

Garage

  • Type: Detached
  • Area: 1080 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 2 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

RV Garage for an Up-Sloping Lot

  • 545

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $975
  • 5 Sets $1,050
  • 5 Sets + PDF $1,100
  • CAD + PDF - Single-Build $1,275
  • View all purchase option online

About This Plan

  • A slanted shed roof creates a vaulted ceiling in the large RV bay of this Contemporary garage plan. Designed for a lot that slopes up from the front, you can drive into the upper level of the left bay from the back!
  • Climb the stairs to reach an enormous loft studio that would make a great man cave.
  • There are plenty of windows to bring in light and a combination of board and battan plus siding to give the garage an interesting look.
  • Related Plans: Get more space with garage plans 68448VR, 68671VR and 68670VR (with a finished upstairs apartment). Get alternate versions with garage plans 68448VR, 68596VR, 68500VR and 68579VR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 545 sq. ft.
  • 1st Floor: 545 sq. ft.
  • Storage: 140 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 36' 0"
  • Max ridge height: 22' 5"

Garage

  • Type: Detached
  • Area: 1080 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
