Plan 42832MJ

Separate Guest Casita

Heated S.F.
3,527
Beds
5
Baths
4.5
Stories
2
Cars
2

Floor Plan

Plan 42832MJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 42832MJ

M-F 9am-5pm EST |

1-203-761-8500

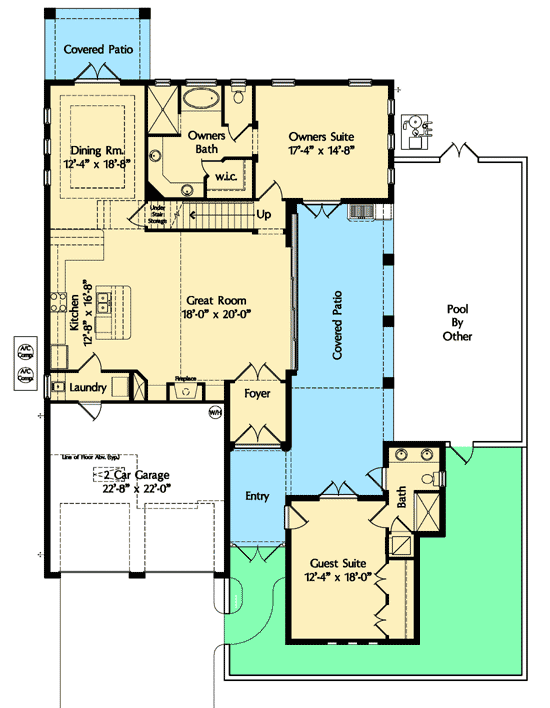

Main Level

Plan 42832MJ: Separate Guest Casita - Floor Plan - Main Level - European, Florida-Style, Mediterranean

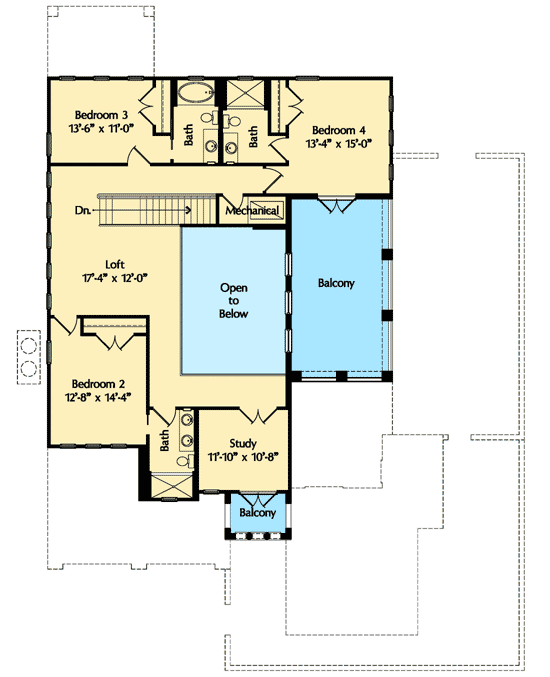

2nd Floor

Plan 42832MJ: Separate Guest Casita - Floor Plan - 2nd Floor - European, Florida-Style, Mediterranean

Plan Details

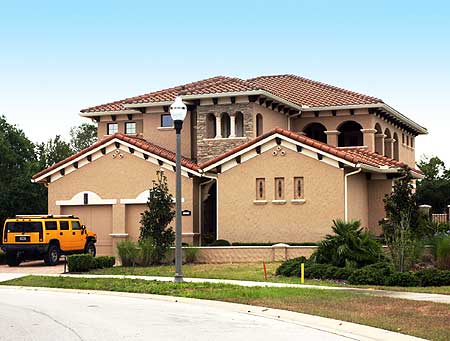

  • Beautiful courtyards and a separate guest casita are part of this heavenly Mediterranean home plan.
  • A huge bank of sliding glass doors open the great room and the gourmet kitchen to the side covered patio with its views of an optional pool provided by your local pool company.
  • The dining room has a double tray ceiling with double doors that open up to a private covered patio.
  • Guests will apreciate the privacy of their own separate guest quarters.
  • Three big bedrooms are located on the second floor where they can share a loft space that overlooks the great room below.
  • This level also has a study with double doors to a private balcony.
  • The roof is a truss design and has a 6 on 12 pitch.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,527 sq. ft.

1st Floor

2,005 sq. ft.

2nd Floor

1,522 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

62' 8"

Depth

87' 4"

Max Ridge Height

33' 5"

Garage

Type

Attached

Area

540 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

European

Florida-Style

Mediterranean

Special Features

Courtyard

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Plan Collections

Photo Gallery
