Shed Dormered Getaway

Plan 22313DR

  • 1,536

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 1

    Cars

  • This small house plan was derived from our popular carriage house plan 21550DR and gets you 3 bedrooms upstairs and great open living on the main floor.
  • Cantilevered space on the upper floor creates a tasteful covered walkway on the side of the home where you'll find the one car garage access.
  • An open concept main floor allows for hearth views from virtually every living area thanks to the three-sided fireplace. The impression of space is further enhanced by 9' ceilings and generous placement of windows and garden doors.
  • Upstairs , a master suite includes walk-in closet and master bath with separate soaker tub and generous shower. Two secondary bedrooms share a bathroom complete with convenient laundry.
  • Related Plan: Get a simpler carriage house plan with room for vehicles on the main floor with plan 21550DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

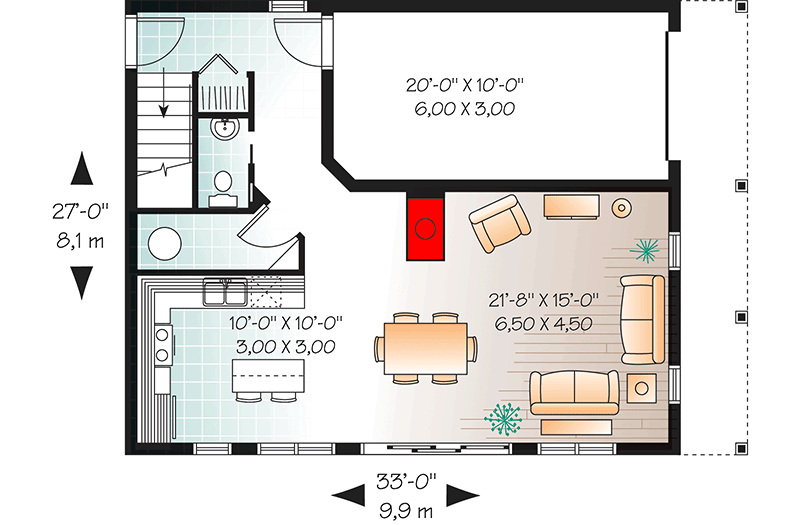

Shed Dormered Getaway - 22313DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

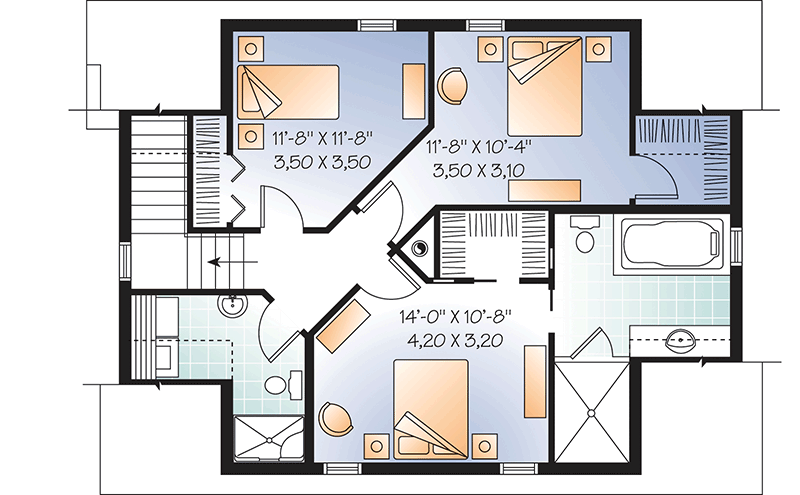

Shed Dormered Getaway - 22313DR floor plan - 2nd Floor

Plan details

Architectural Style

Special features

Plan Collections

Shed Dormered Getaway

  • 1,536

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,130
  • Reproducible Set $1,130
  • 5 Sets + PDF $1,255
  • CAD + PDF - Single-Build $1,730
  • View all purchase option online

About This Plan

  • This small house plan was derived from our popular carriage house plan 21550DR and gets you 3 bedrooms upstairs and great open living on the main floor.
  • Cantilevered space on the upper floor creates a tasteful covered walkway on the side of the home where you'll find the one car garage access.
  • An open concept main floor allows for hearth views from virtually every living area thanks to the three-sided fireplace. The impression of space is further enhanced by 9' ceilings and generous placement of windows and garden doors.
  • Upstairs , a master suite includes walk-in closet and master bath with separate soaker tub and generous shower. Two secondary bedrooms share a bathroom complete with convenient laundry.
  • Related Plan: Get a simpler carriage house plan with room for vehicles on the main floor with plan 21550DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,536 sq. ft.
  • 1st Floor: 673 sq. ft.
  • 2nd Floor: 863 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Daylight, Basement, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 33' 0"
  • Depth: 27' 0"
  • Max ridge height: 27' 3"

Garage

  • Type: Attached
  • Area: 218 sq. ft.
  • Count: 1 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
