Plan 21507DR Smart House Plan with Large Bonus Space

1,683 3 1.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Smart House Plan with Large Bonus Space

Plan 21507DR

  • 1,683

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Derived from our popular house plan 2151DR, this model is even more practical with the addition of a 2-car garage with a great bonus room above.
  • The living room features an attractive corner fireplace. Across the foyer, a private study makes for a nice retreat.
  • The kitchen features a central island lunch counter. The dining room is nearby and is set off by a recessed bay full of windows.
  • Laundry, a half bath and a closet complete this floor.
  • The second floor features a comfortable bathroom with abundant natural lighting from skylights. The master bedroom has two separate closets and two additional bedrooms complete the home.
  • Related Plans: For a version without the garage, see house plan 2151DR. For a reversed plan without the attached garage, see house plan 21951DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

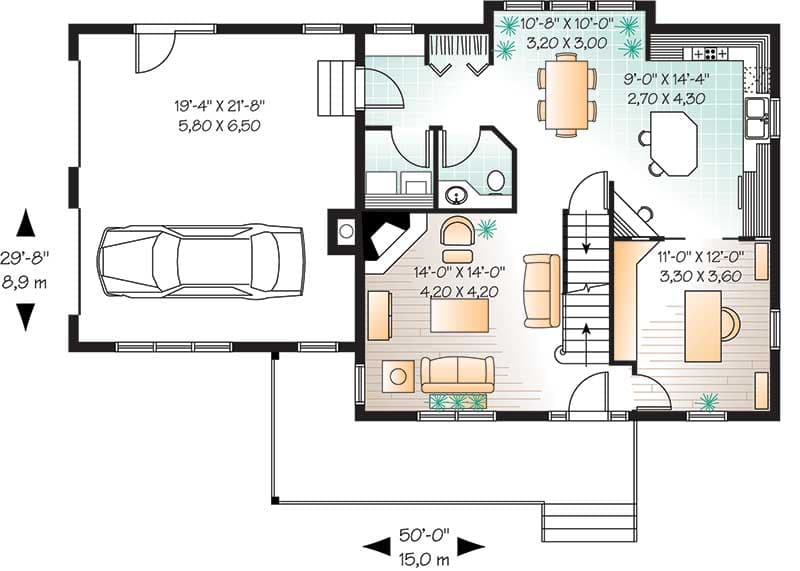

Smart House Plan with Large Bonus Space - 21507DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

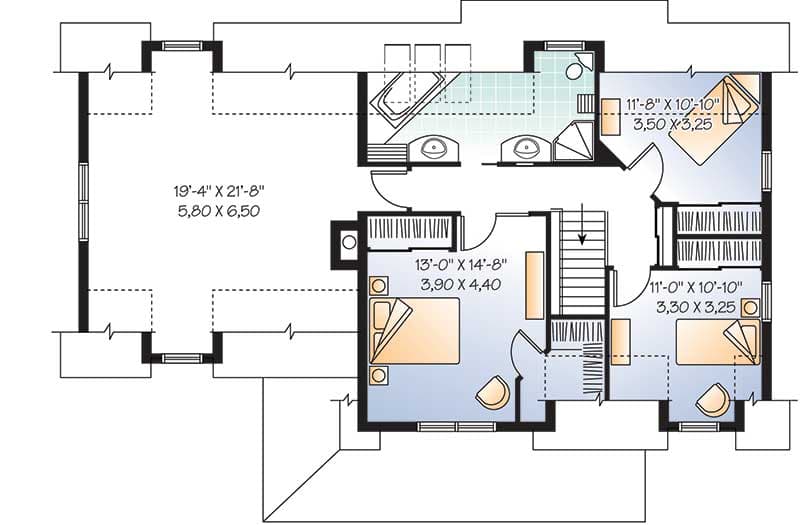

Smart House Plan with Large Bonus Space - 21507DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,683 sq. ft.
  • 1st Floor: 860 sq. ft.
  • 2nd Floor: 823 sq. ft.
  • Bonus: 472 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 29' 8"
  • Max ridge height: 29' 2"

Garage

  • Type: Attached
  • Area: 460 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Smart House Plan with Large Bonus Space

  • 1,683

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,450
  • 3 Sets + PDF $1,575
  • CAD + PDF - Single-Build $2,050
  • View all purchase option online

About This Plan

  • Derived from our popular house plan 2151DR, this model is even more practical with the addition of a 2-car garage with a great bonus room above.
  • The living room features an attractive corner fireplace. Across the foyer, a private study makes for a nice retreat.
  • The kitchen features a central island lunch counter. The dining room is nearby and is set off by a recessed bay full of windows.
  • Laundry, a half bath and a closet complete this floor.
  • The second floor features a comfortable bathroom with abundant natural lighting from skylights. The master bedroom has two separate closets and two additional bedrooms complete the home.
  • Related Plans: For a version without the garage, see house plan 2151DR. For a reversed plan without the attached garage, see house plan 21951DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,683 sq. ft.
  • 1st Floor: 860 sq. ft.
  • 2nd Floor: 823 sq. ft.
  • Bonus: 472 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 29' 8"
  • Max ridge height: 29' 2"

Garage

  • Type: Attached
  • Area: 460 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
Plan 21507DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/21507DR
|
Need Help? 800-854-7852
|
Plan 21507DR
