Sophisticated Florida Home Plan with Spacious Covered Lanai

Pageloader

Sophisticated Florida Home Plan with Spacious Covered Lanai

Plan 86085BW

  • 4,374

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 2

    Stories

  • A multitude of outdoor living spaces make this sophisticated, Florida home plan an ideal space to host gatherings for friends and family. Luxury defines the open and airy interior, with a multi-panel pocket door providing a desirable indoor / outdoor lifestyle.
  • The chef's kitchen boasts a massive island with seating for five, and the large walk-in pantry and drink station will come in handy when entertaining.
  • The best bedroom in the home is reserved for the owner, and includes a private entrance to the covered lanai, dual walk-in closets, and a spa-like en suite with an oversized shower.
  • Utilize the stairs or elevator to move between floors. Three bedroom suites reside on the second level, each including a full bath, walk-in closet, and access to a balcony.
  • A double garage protrudes from either side of the home, creating a grand formal entrance with a parking courtyard.

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)

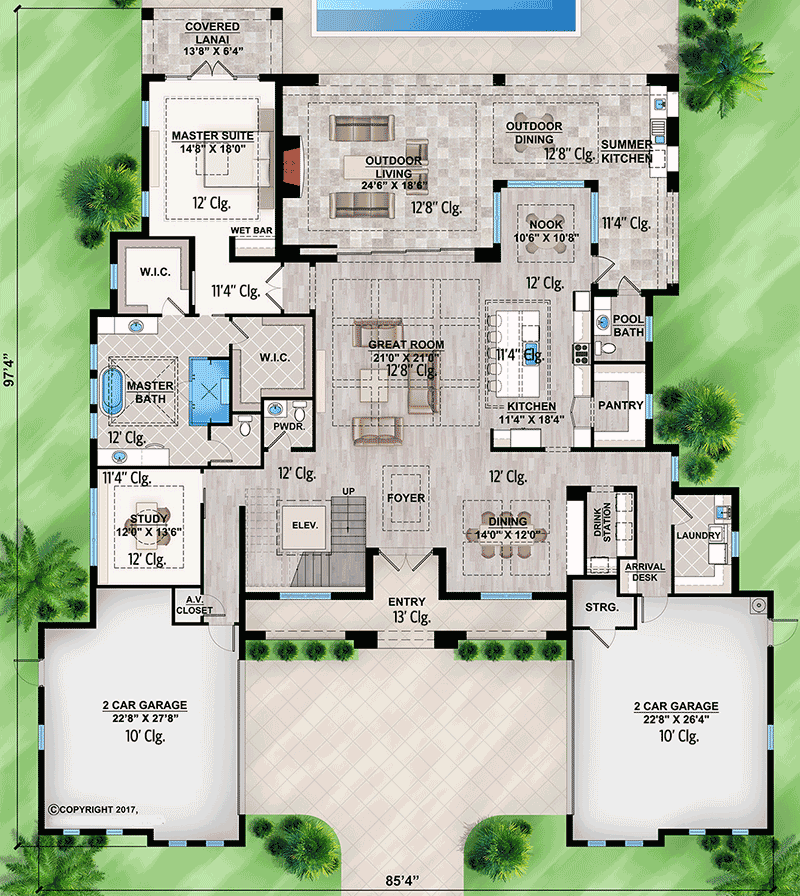

Floor Plan

Plan details



Sophisticated Florida Home Plan with Spacious Covered Lanai

  • 4,374

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Floors

Buy This Plan
  • CAD $4,375
  • PDF - single-use $4,375
  • View all purchase option online

About This Plan

  • A multitude of outdoor living spaces make this sophisticated, Florida home plan an ideal space to host gatherings for friends and family. Luxury defines the open and airy interior, with a multi-panel pocket door providing a desirable indoor / outdoor lifestyle.
  • The chef's kitchen boasts a massive island with seating for five, and the large walk-in pantry and drink station will come in handy when entertaining.
  • The best bedroom in the home is reserved for the owner, and includes a private entrance to the covered lanai, dual walk-in closets, and a spa-like en suite with an oversized shower.
  • Utilize the stairs or elevator to move between floors. Three bedroom suites reside on the second level, each including a full bath, walk-in closet, and access to a balcony.
  • A double garage protrudes from either side of the home, creating a grand formal entrance with a parking courtyard.

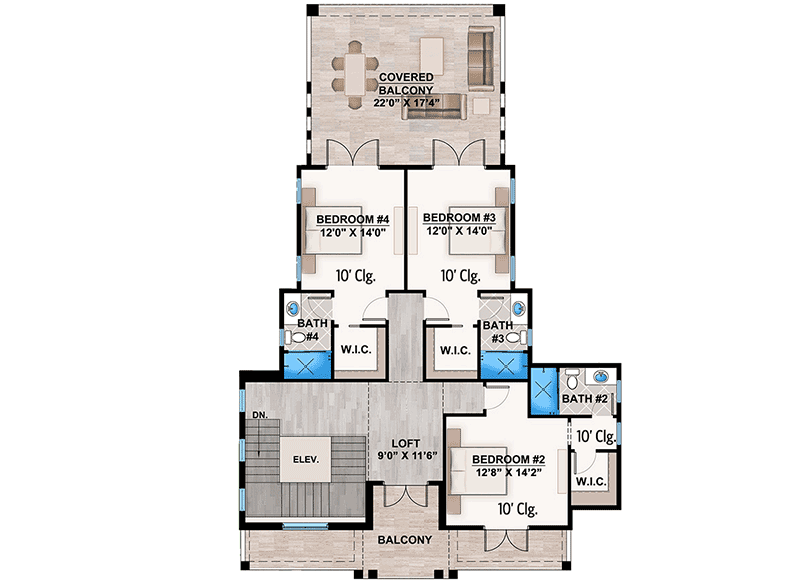

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,374 sq. ft.
  • 1st Floor: 3,133 sq. ft.
  • 2nd Floor: 1,241 sq. ft.
  • Lanai: 1,025 sq. ft.
  • Balcony / Veranda: 660 sq. ft.
  • Porch, Front: 226 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 85' 4"
  • Depth: 97' 4"
  • Max ridge height: 29' 2"

Garage

  • Type: Attached
  • Area: 1334 sq. ft.
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
