Plan 860016MCD Southern Beauty With Outdoor Kitchen And Fireplace On Covered Rear Porch

3,031 4 3.5 2 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Southern Beauty With Outdoor Kitchen And Fireplace On Covered Rear Porch

Plan 860016MCD

  • 3,031

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

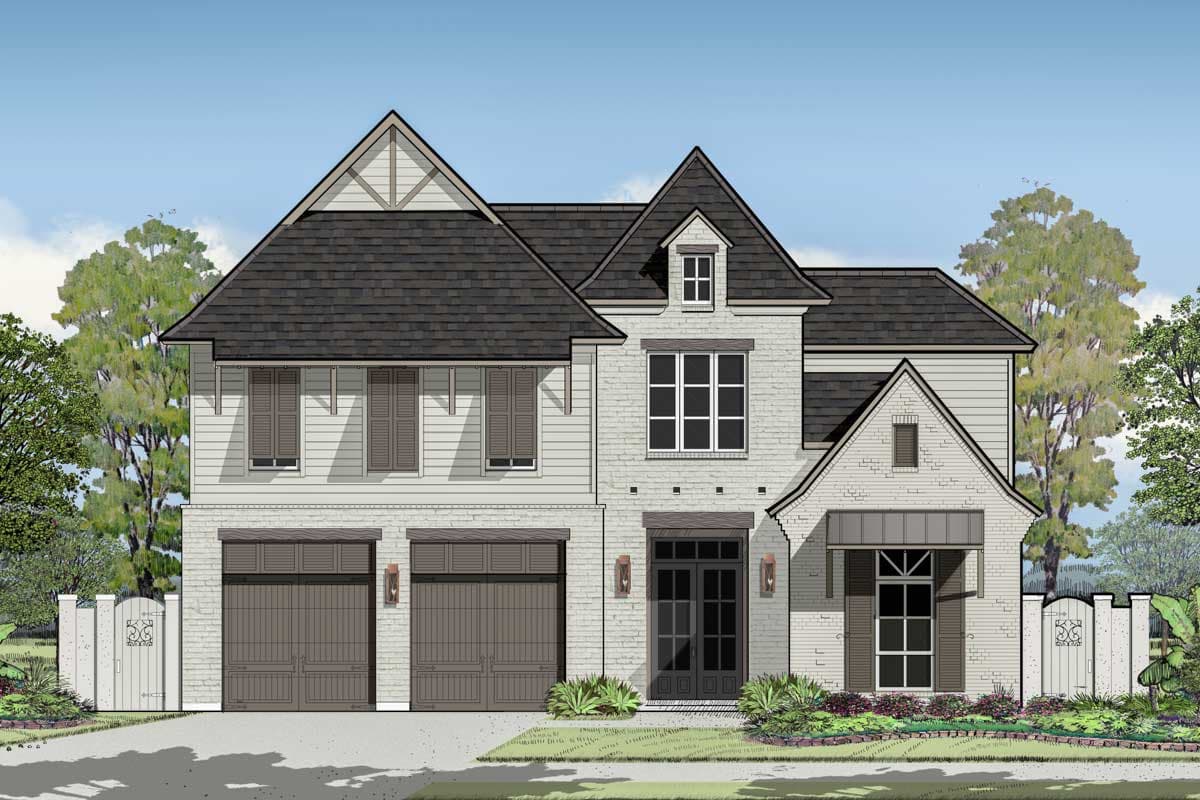

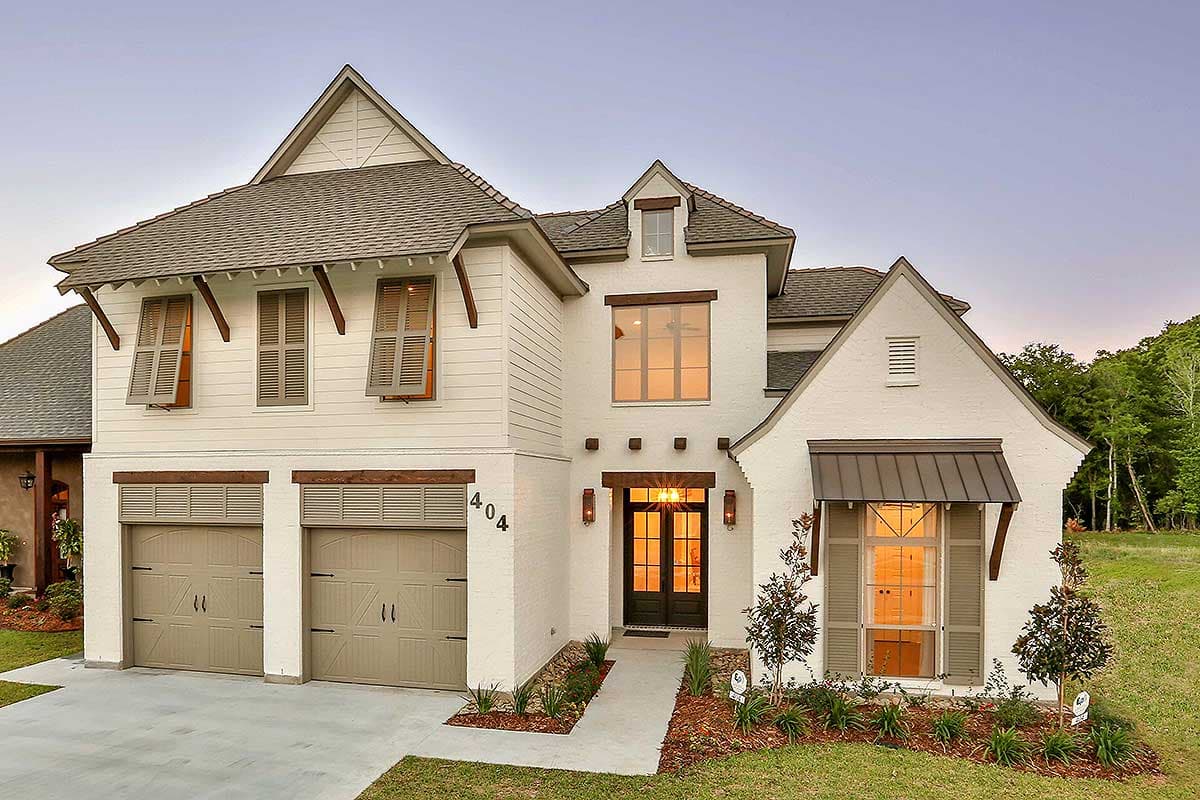

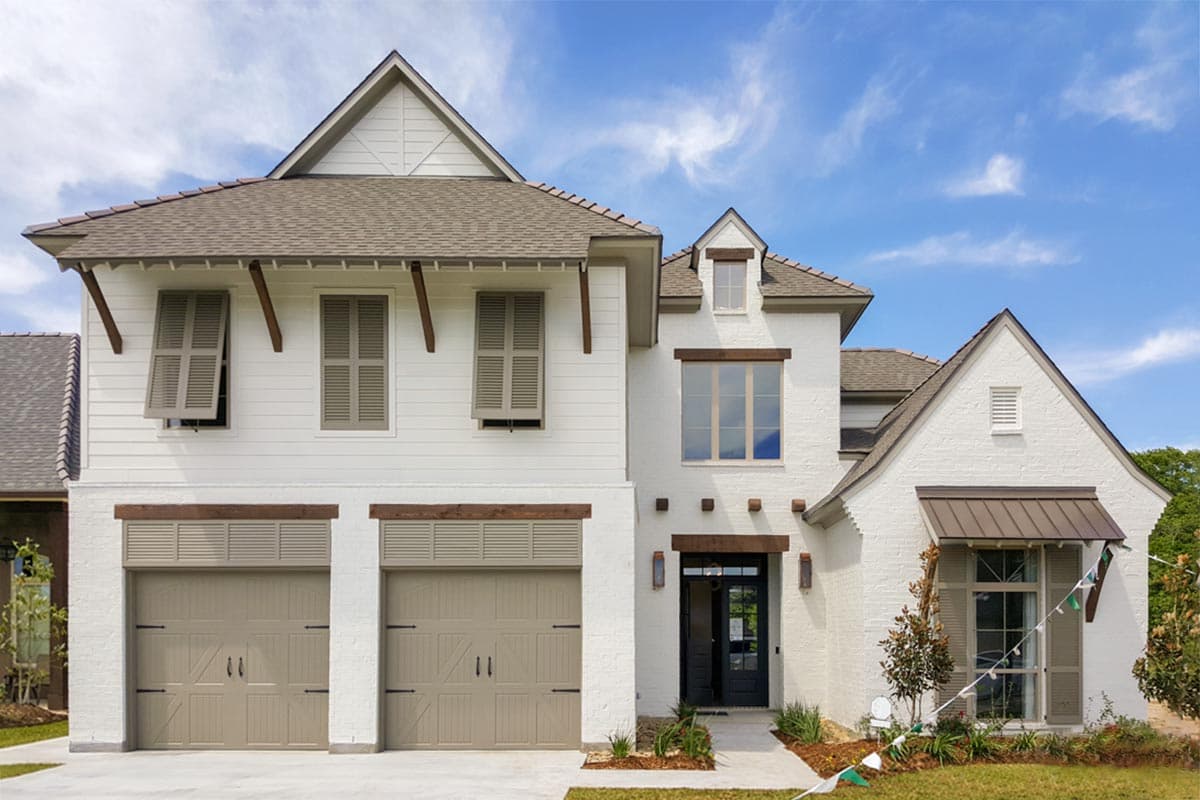

  • Blending elements of styles found in South Louisiana, the West Indies and the French countryside, this Southern house plan offers a very attractive exterior.
  • The standard ceiling height sits at 10' high but rises up to 11' in many of the main floor rooms.

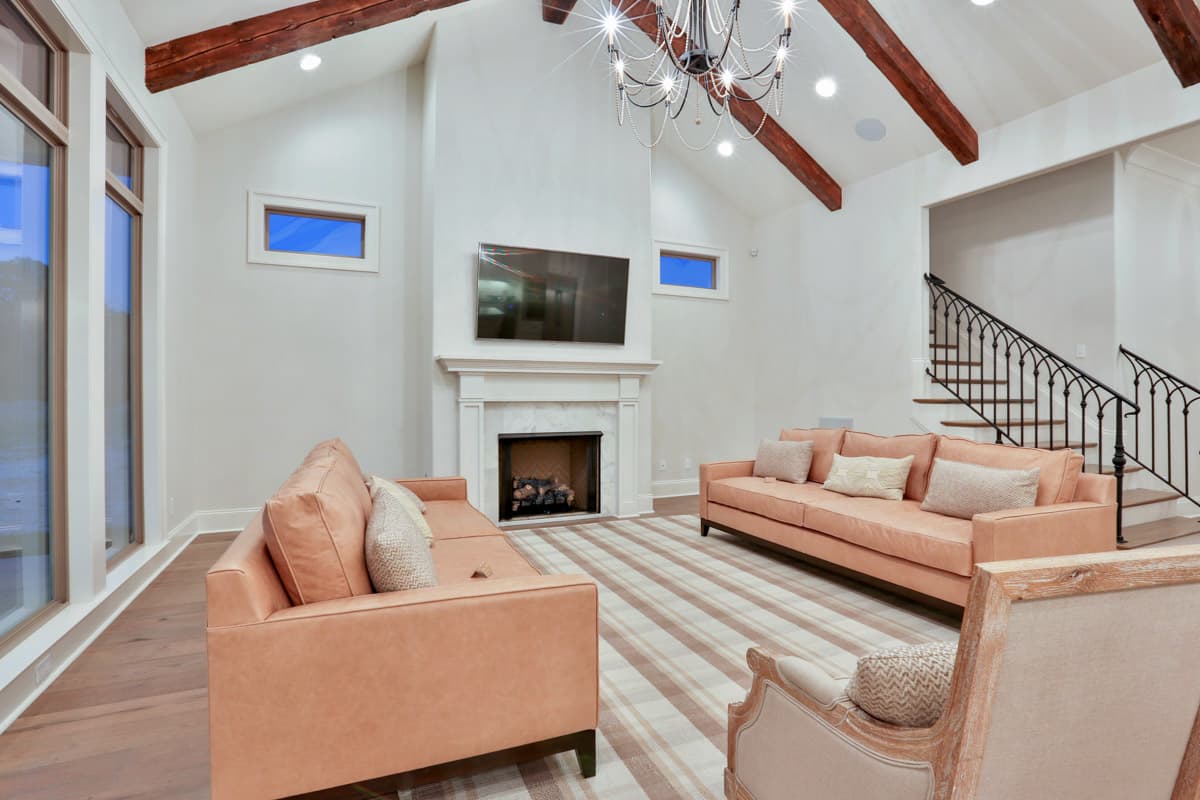

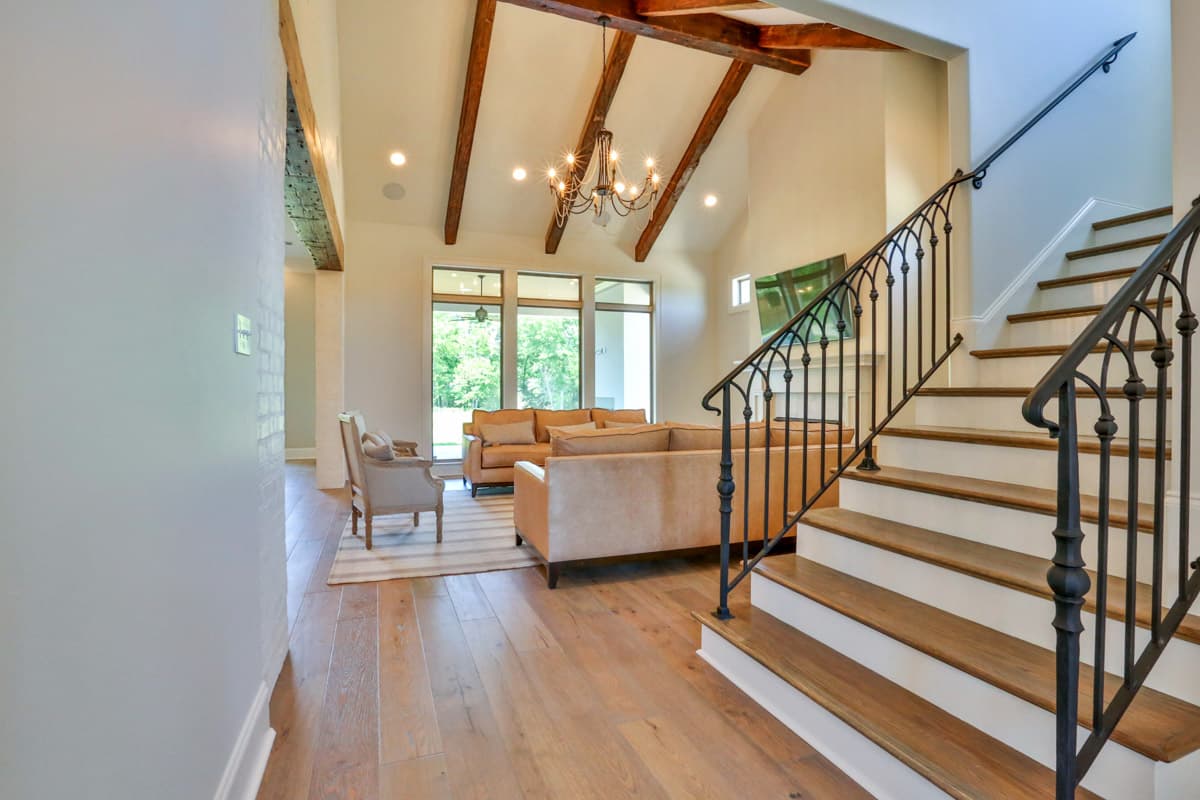

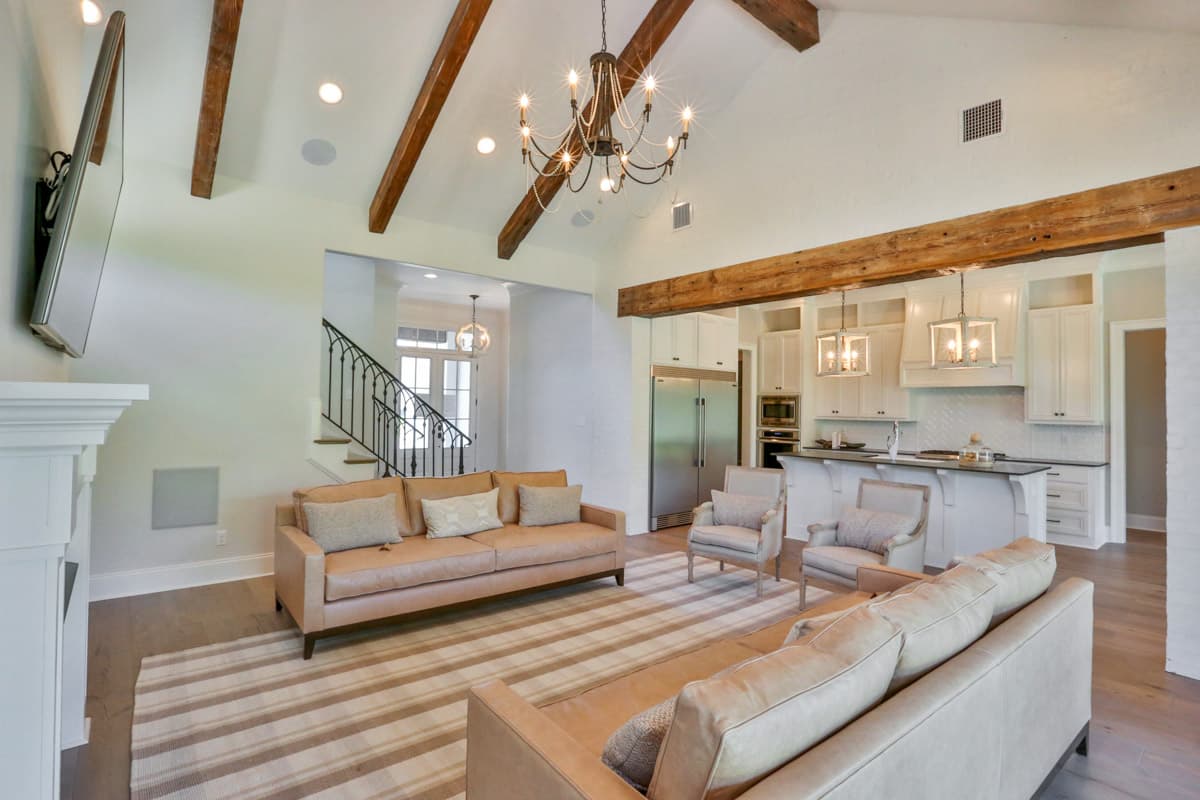

  • The vaulted and beamed living room rises even higher and it a gorgeous sight for family and friends.

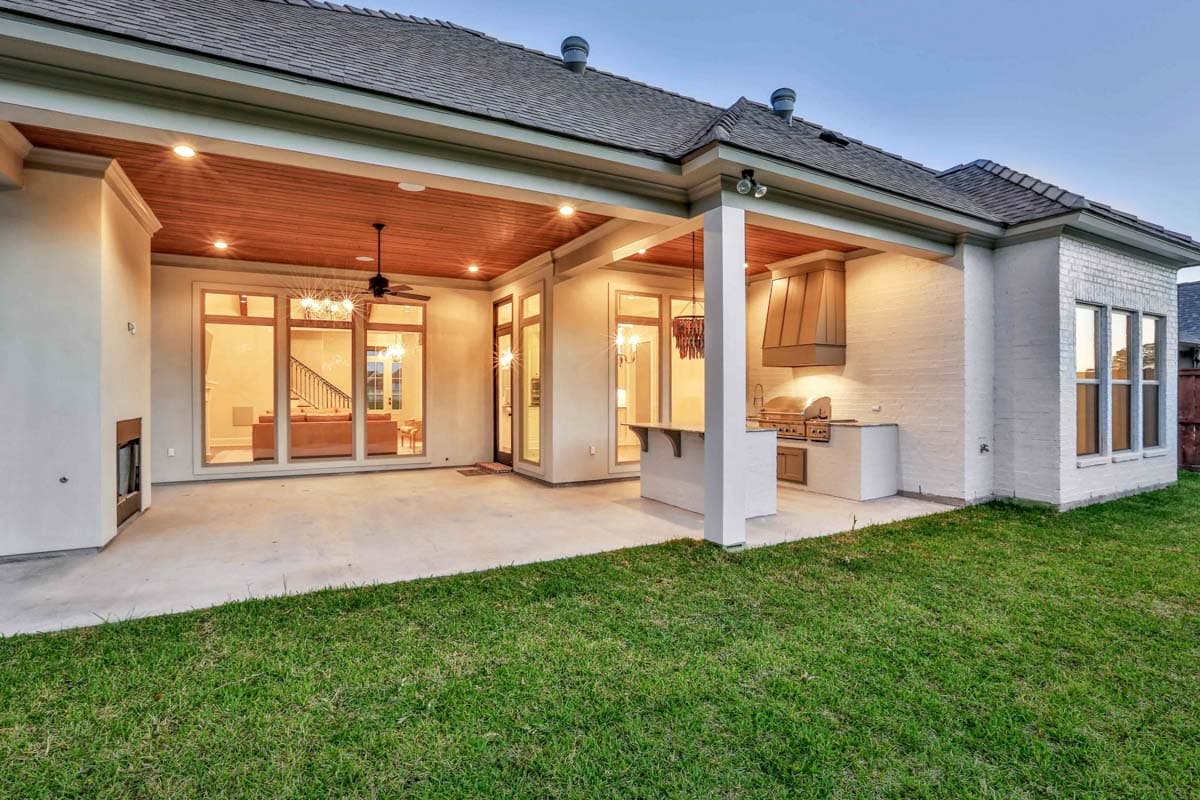

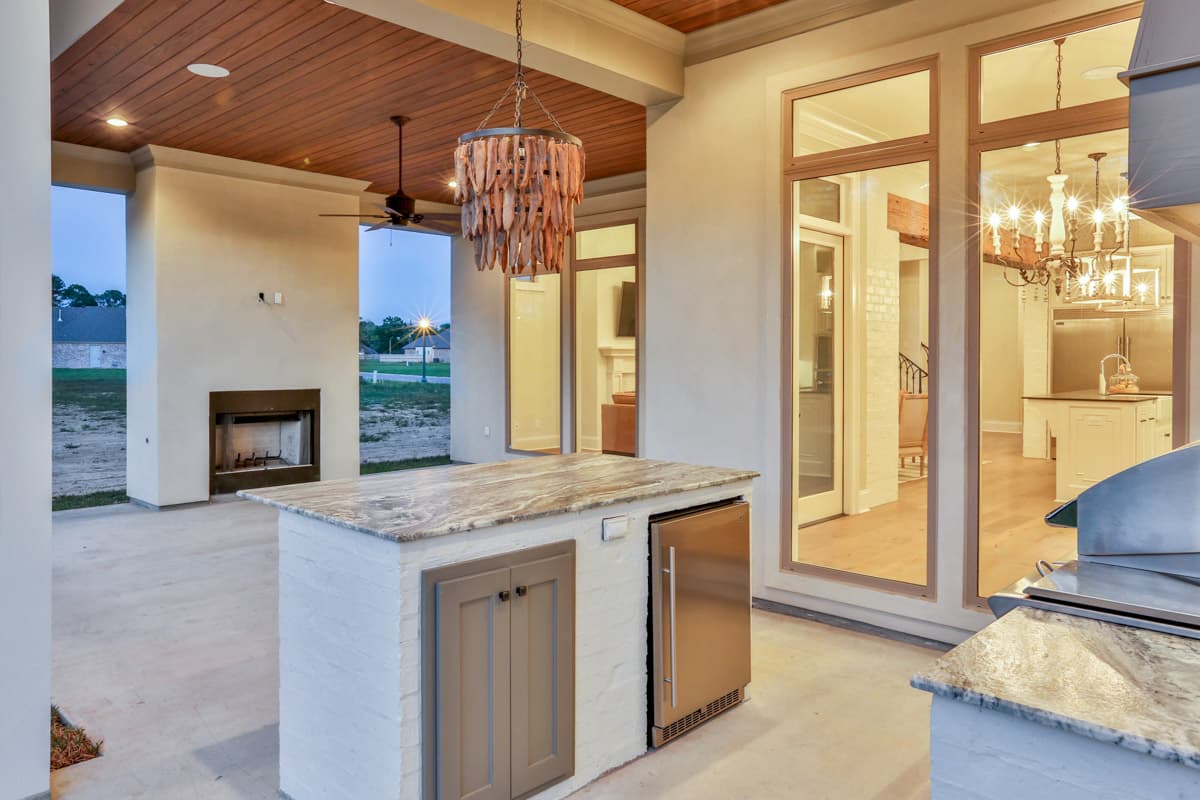

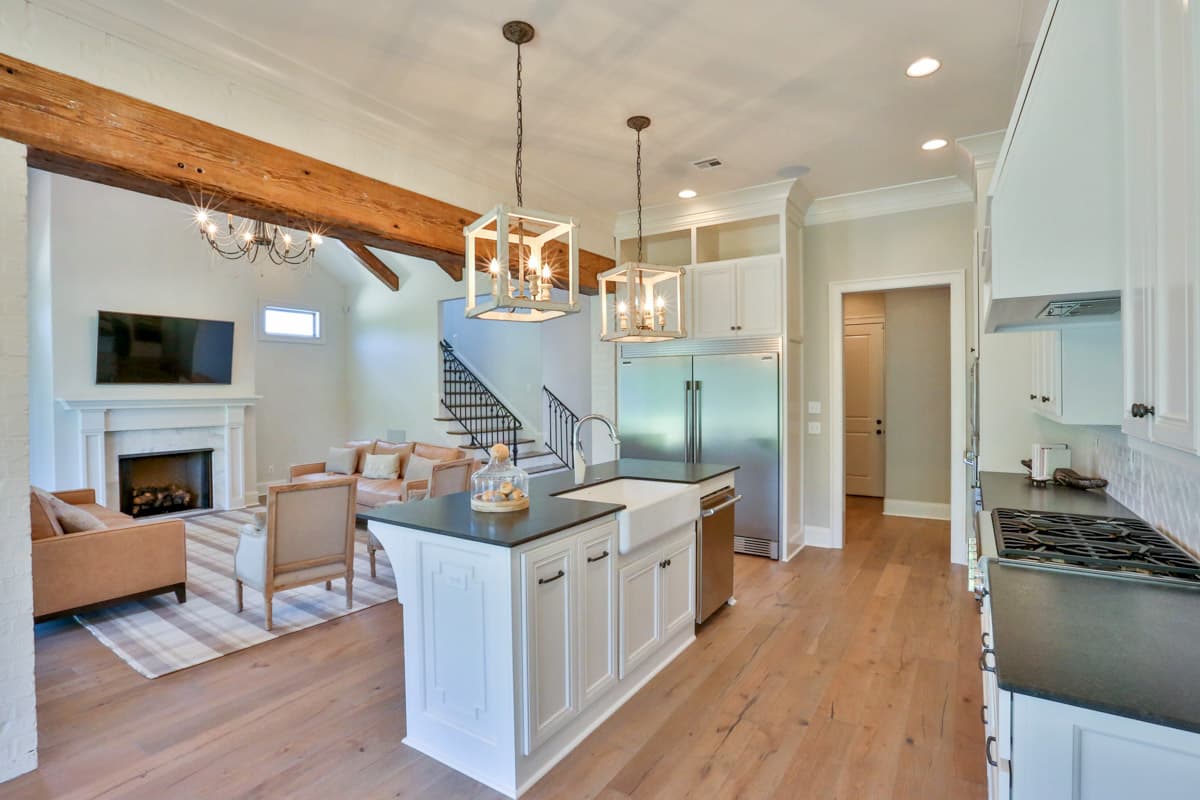

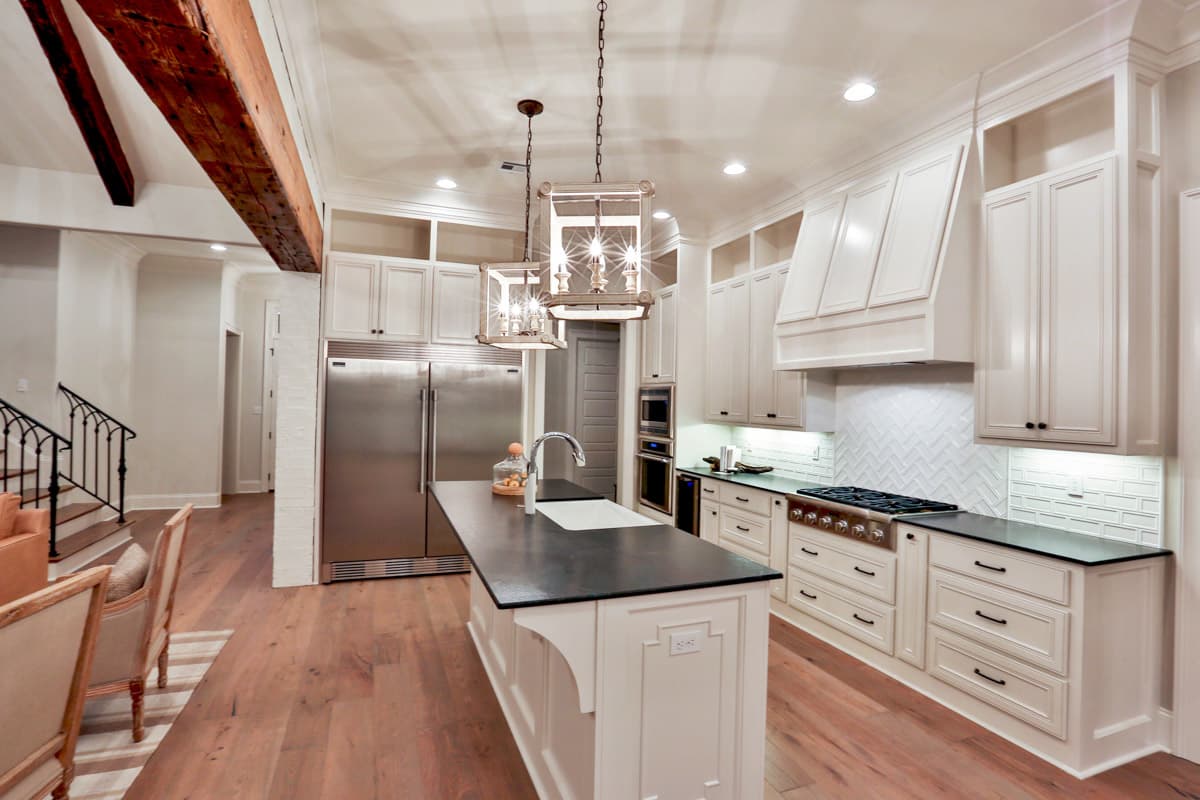

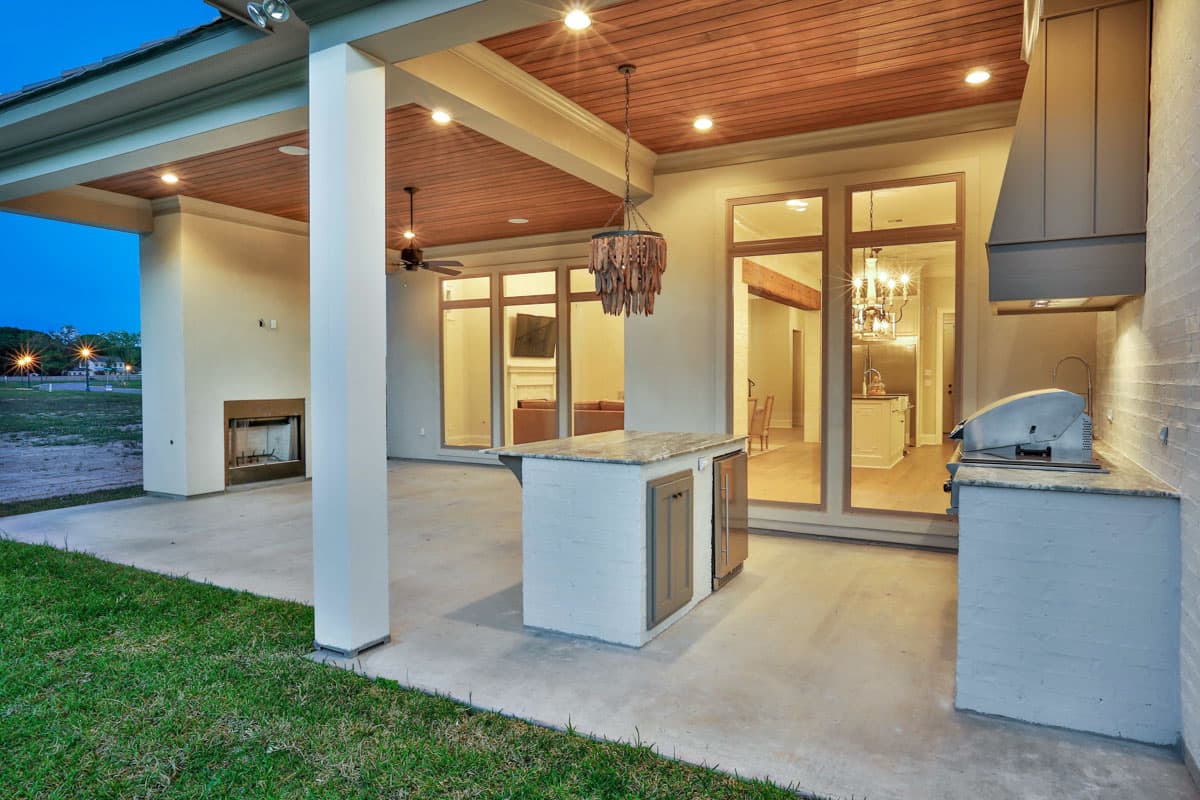

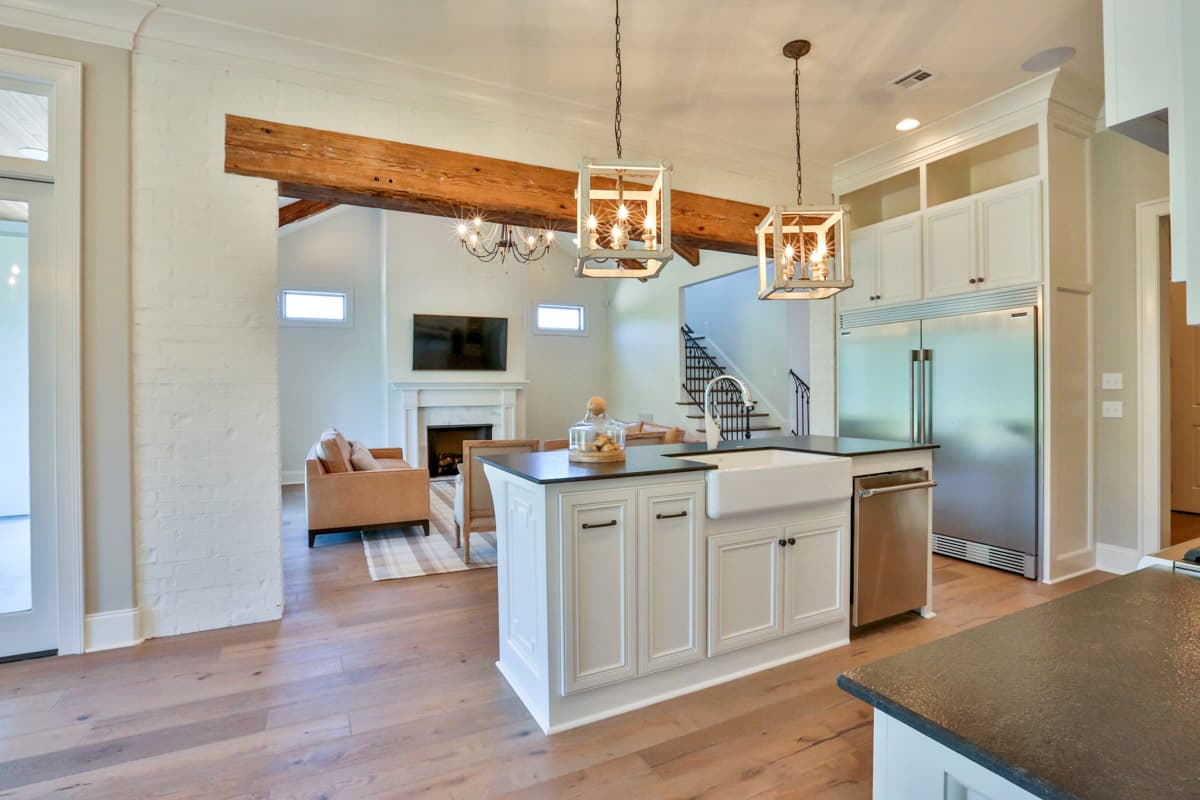

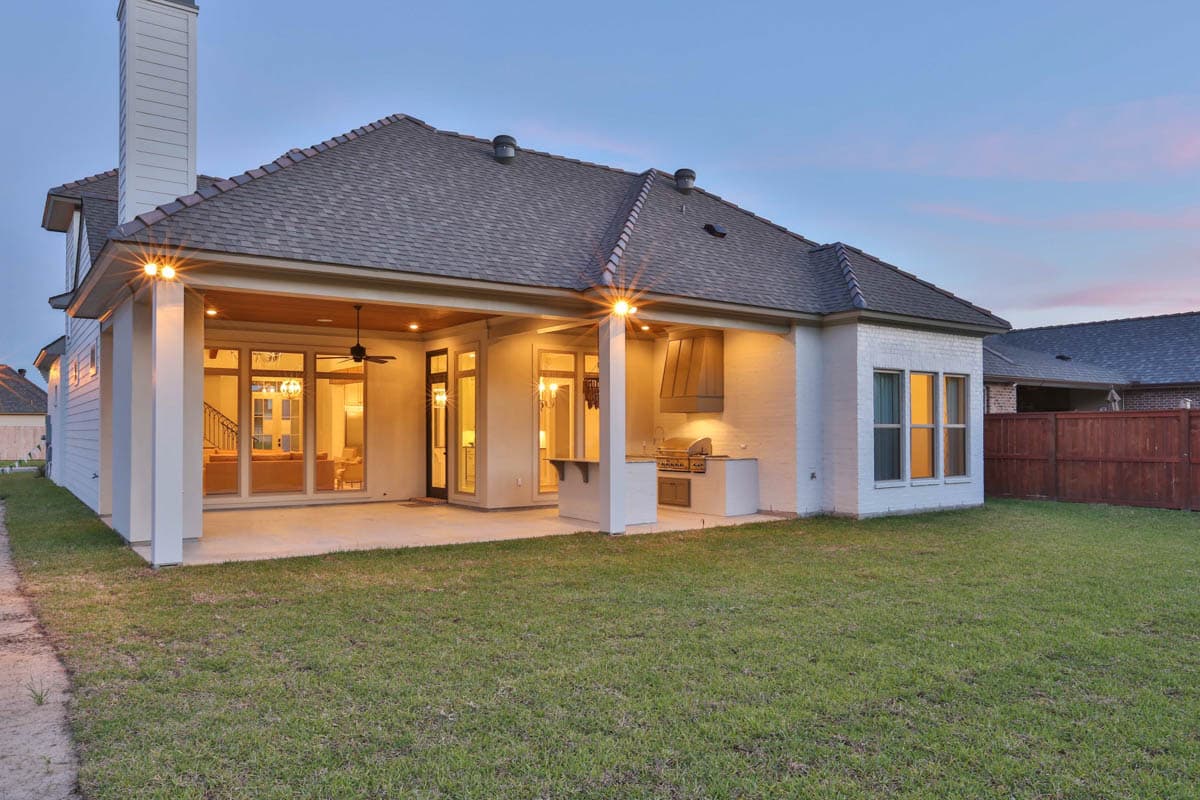

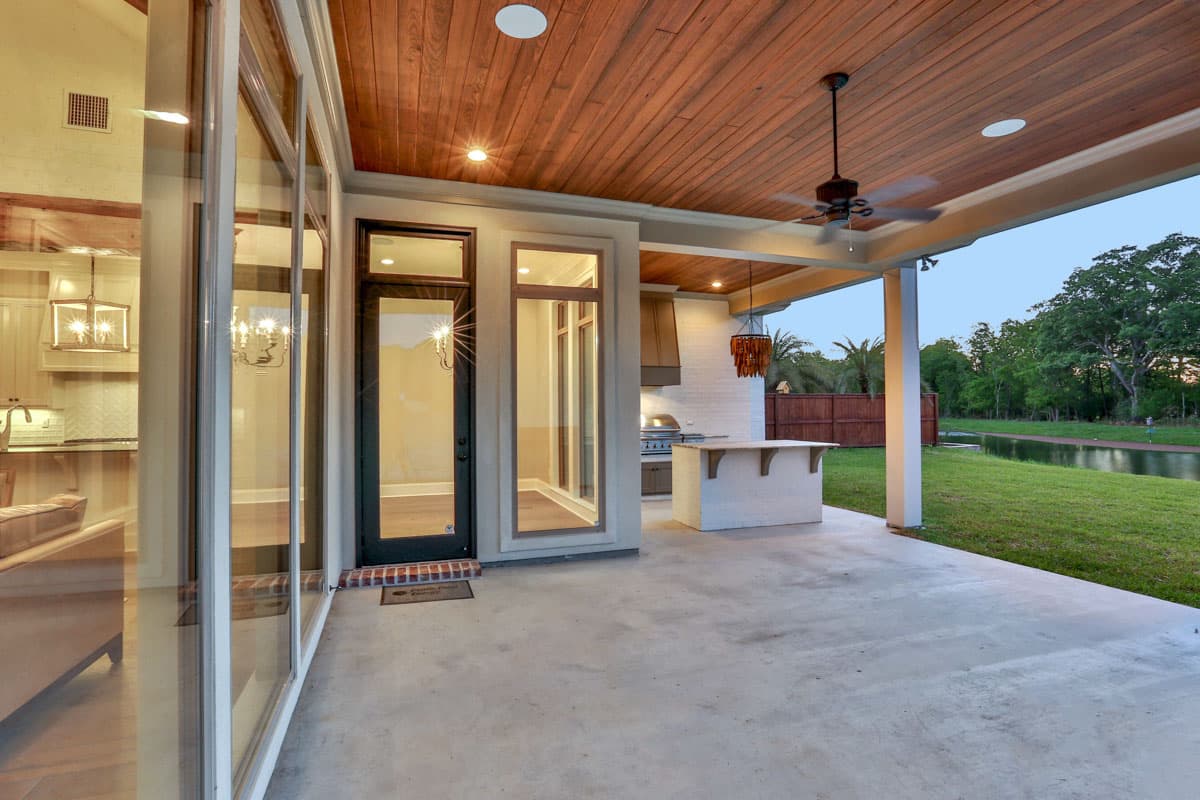

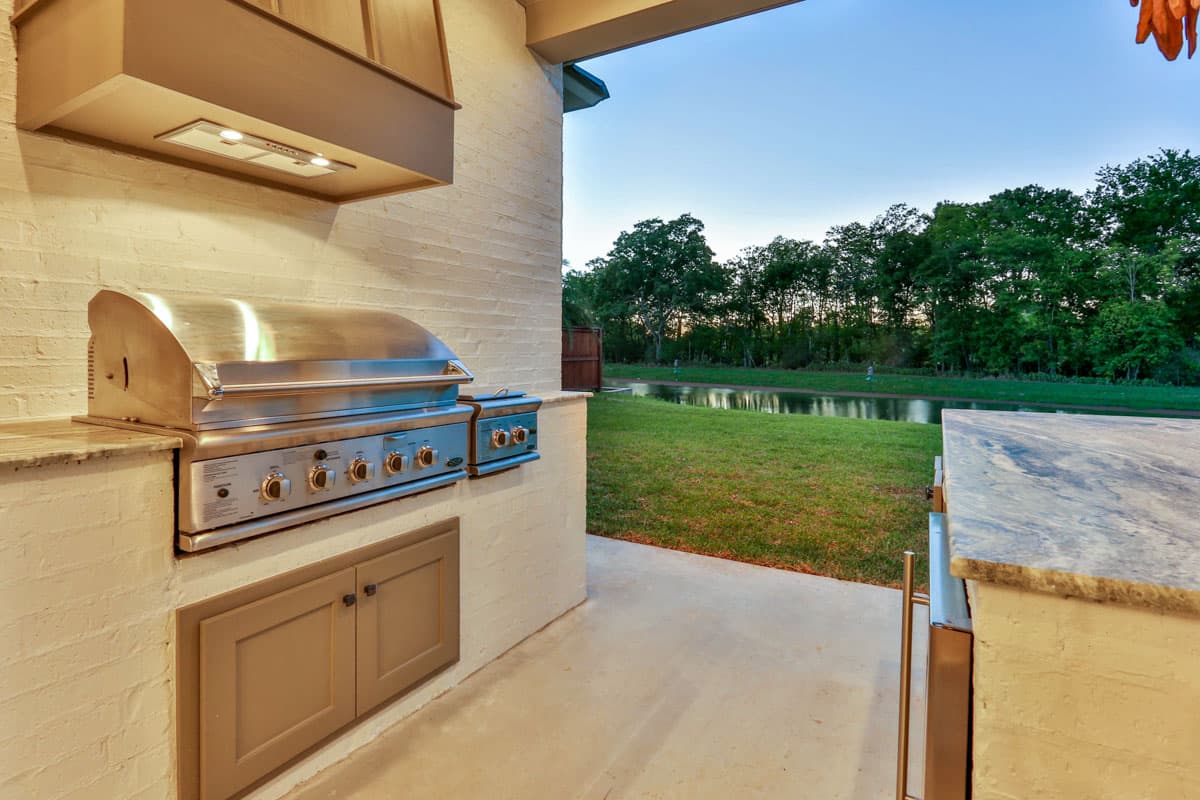

  • In the big kitchen, the island is positioned to face the living room fireplace and thanks to the open floor plan you can also see the dining room and spacious rear porch with its outdoor kitchen.

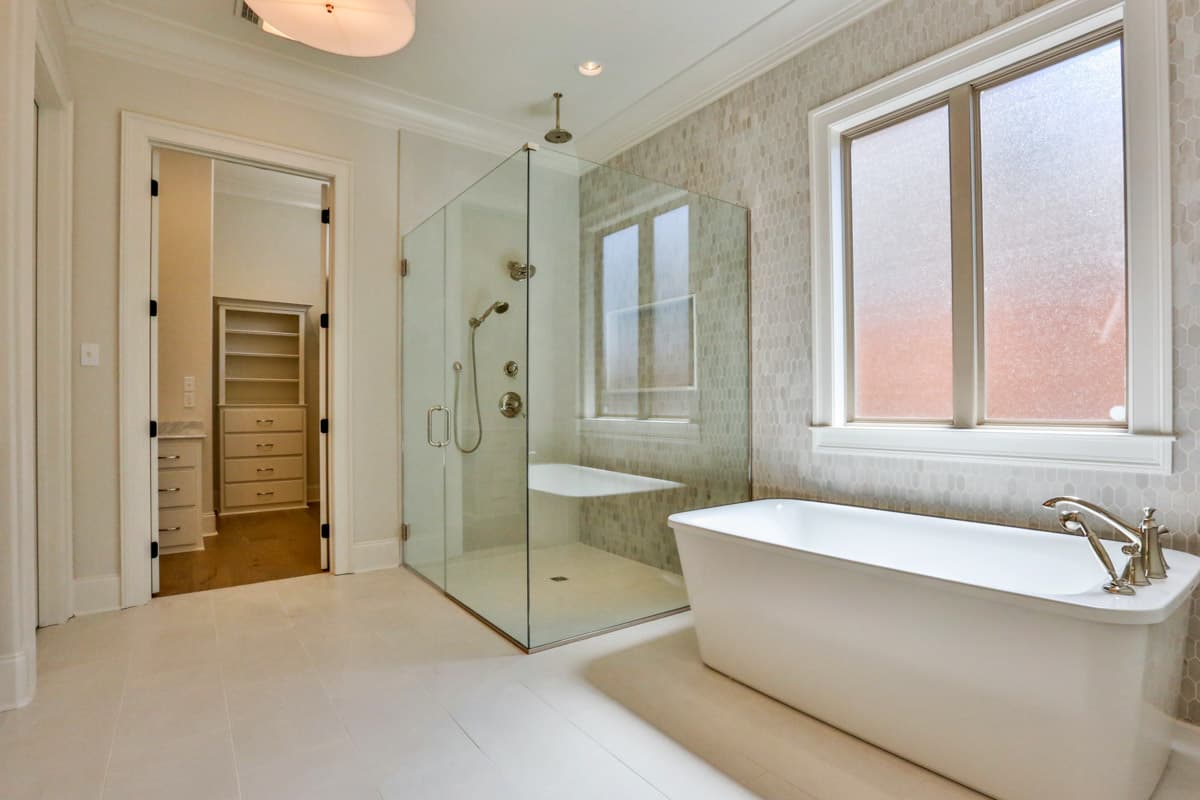

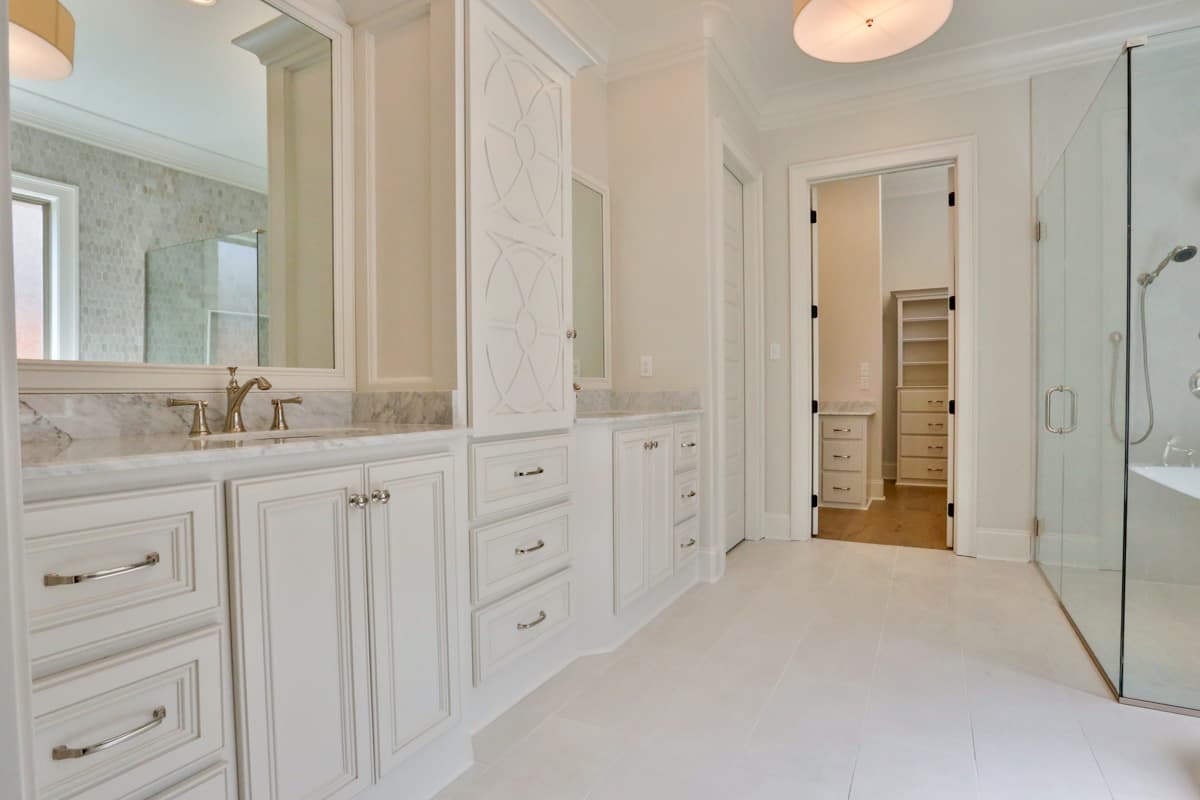

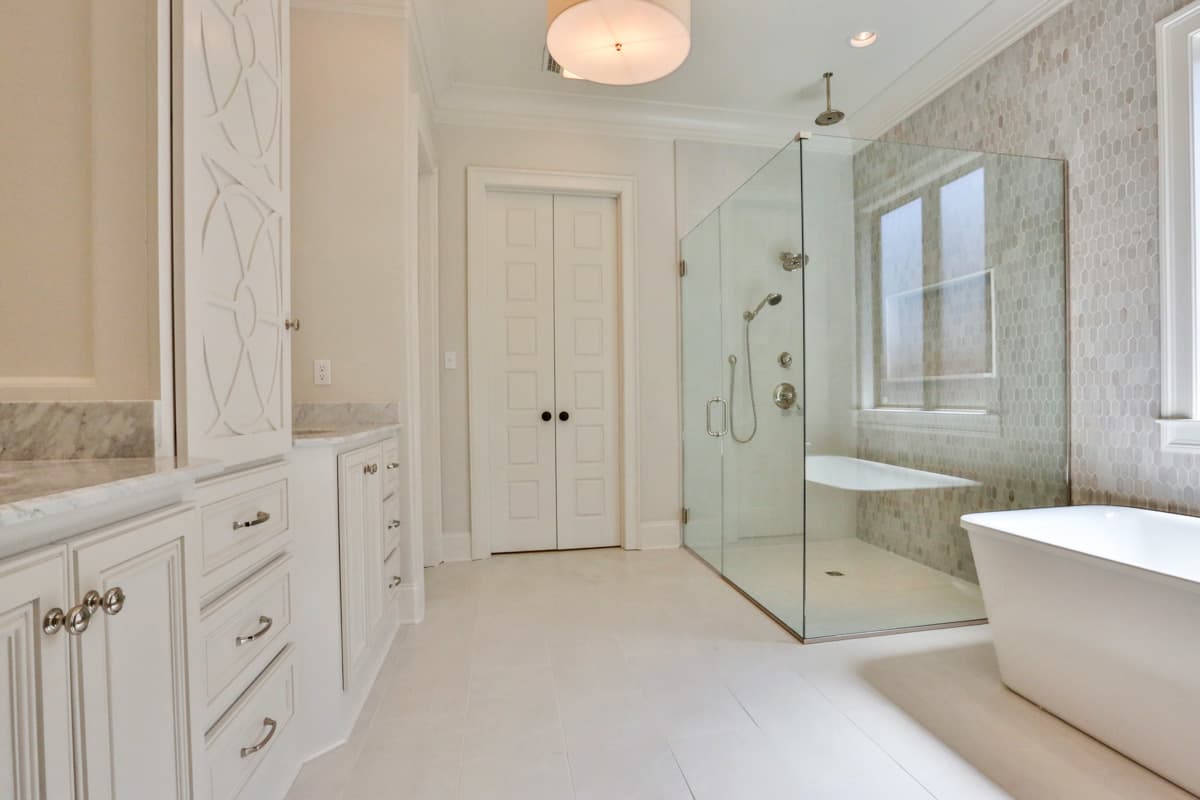

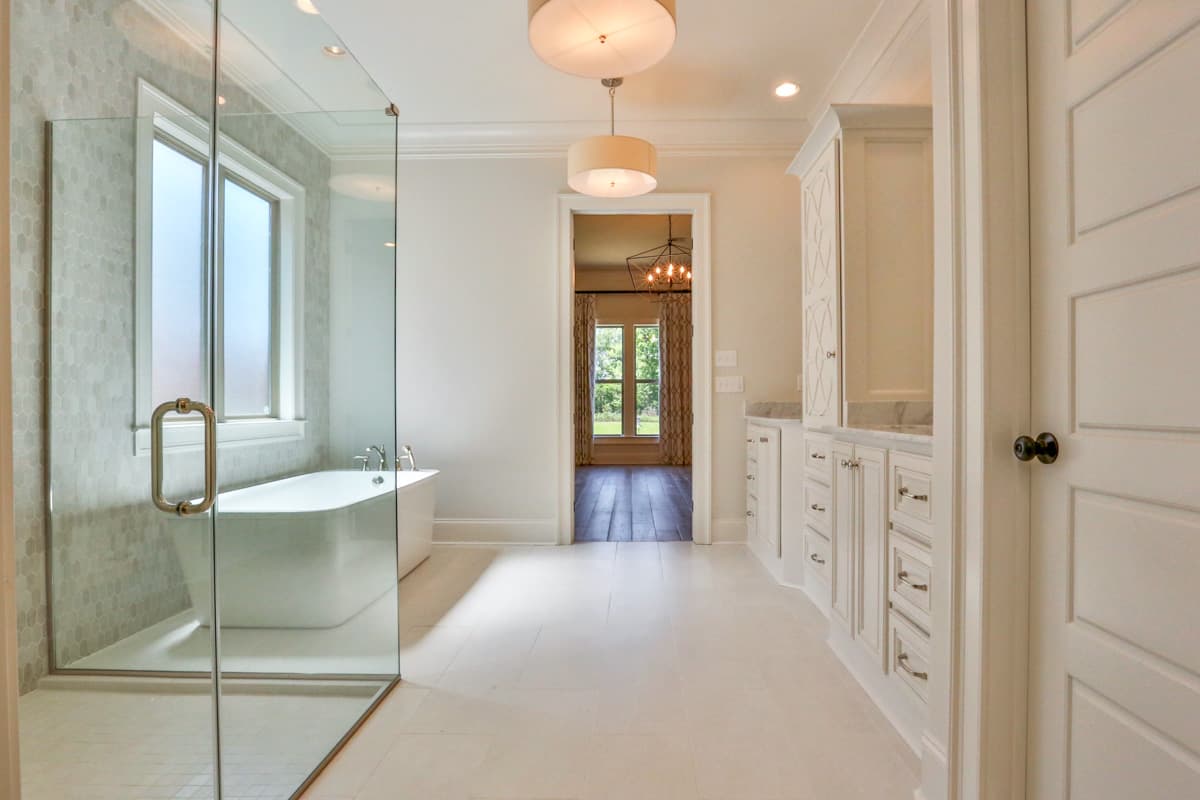

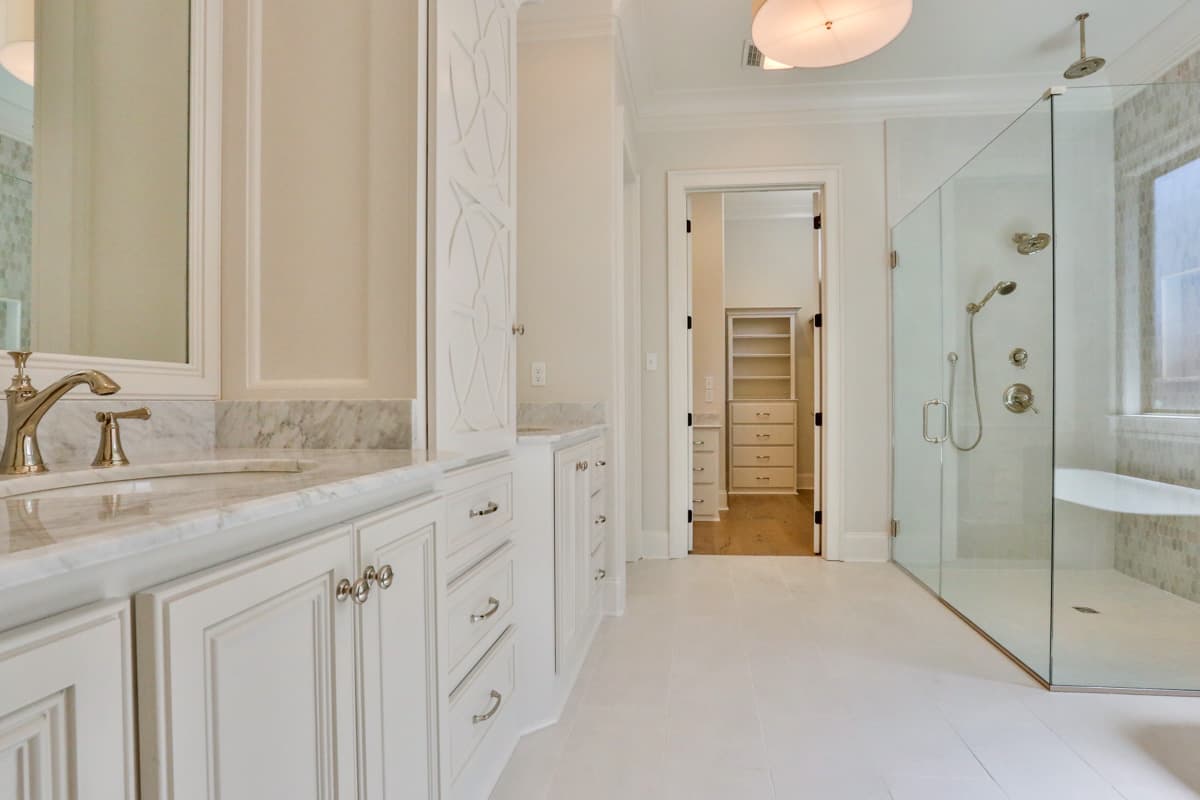

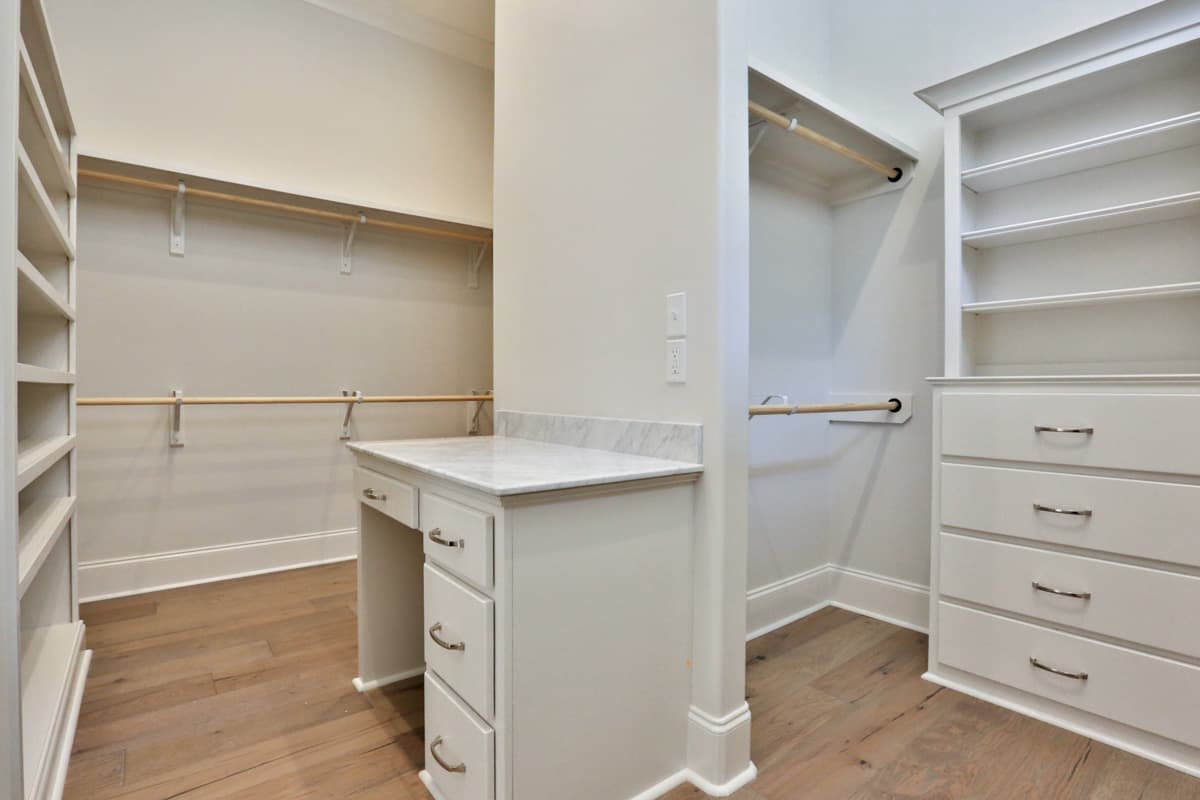

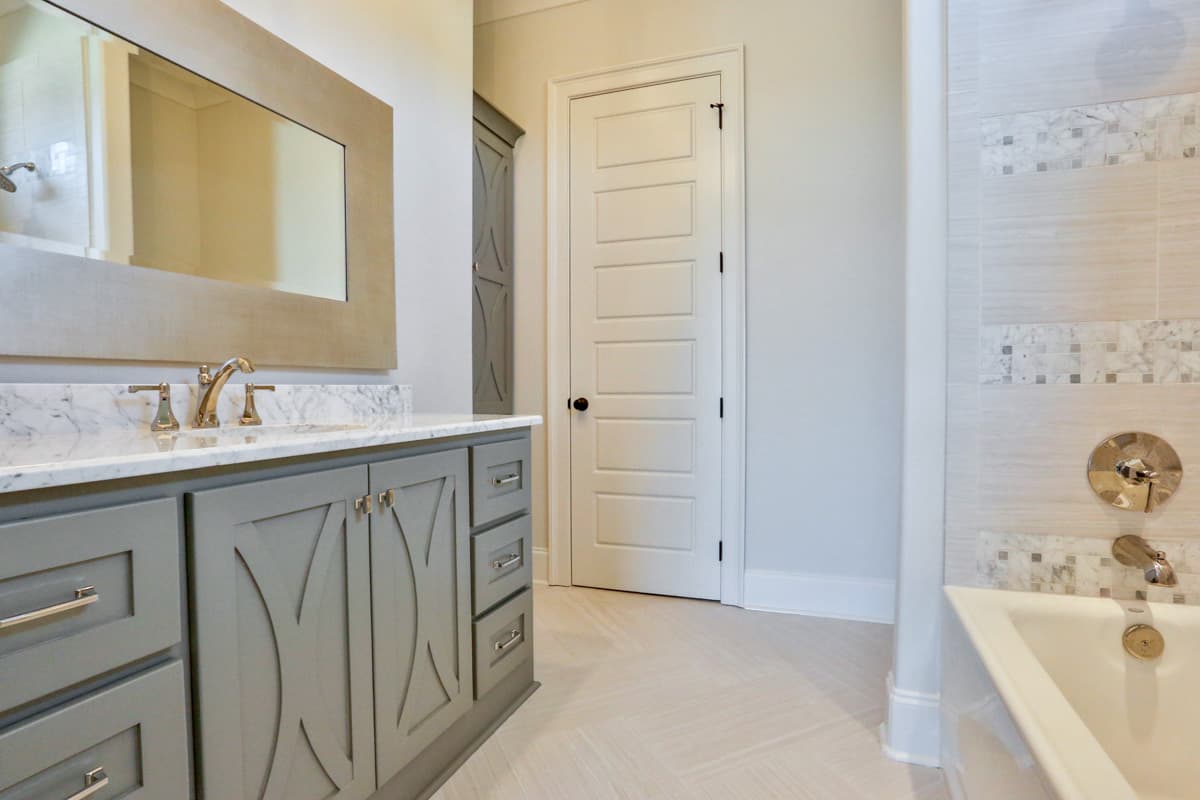

  • There's a first floor master suite with a large private bathroom and a walk-in closet divided into his and her sections.
  • Bedroom 2 is also on the first floor at the front of the house.

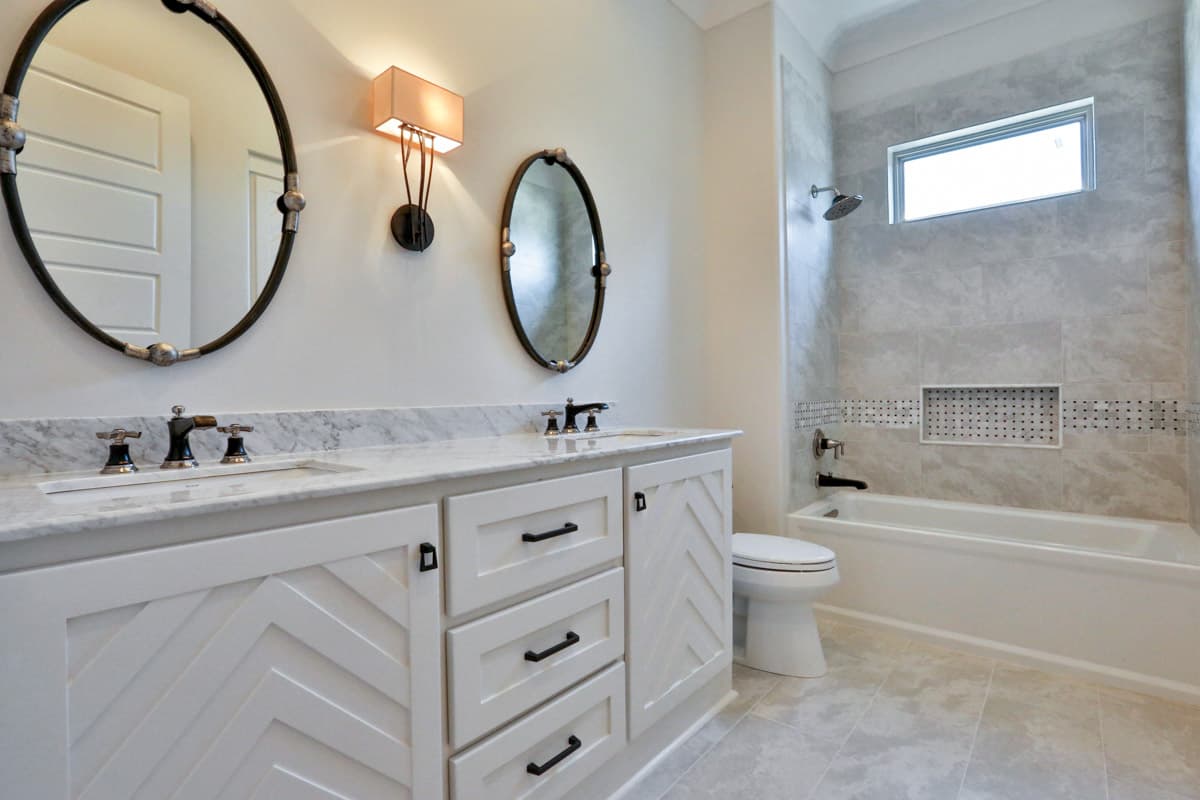

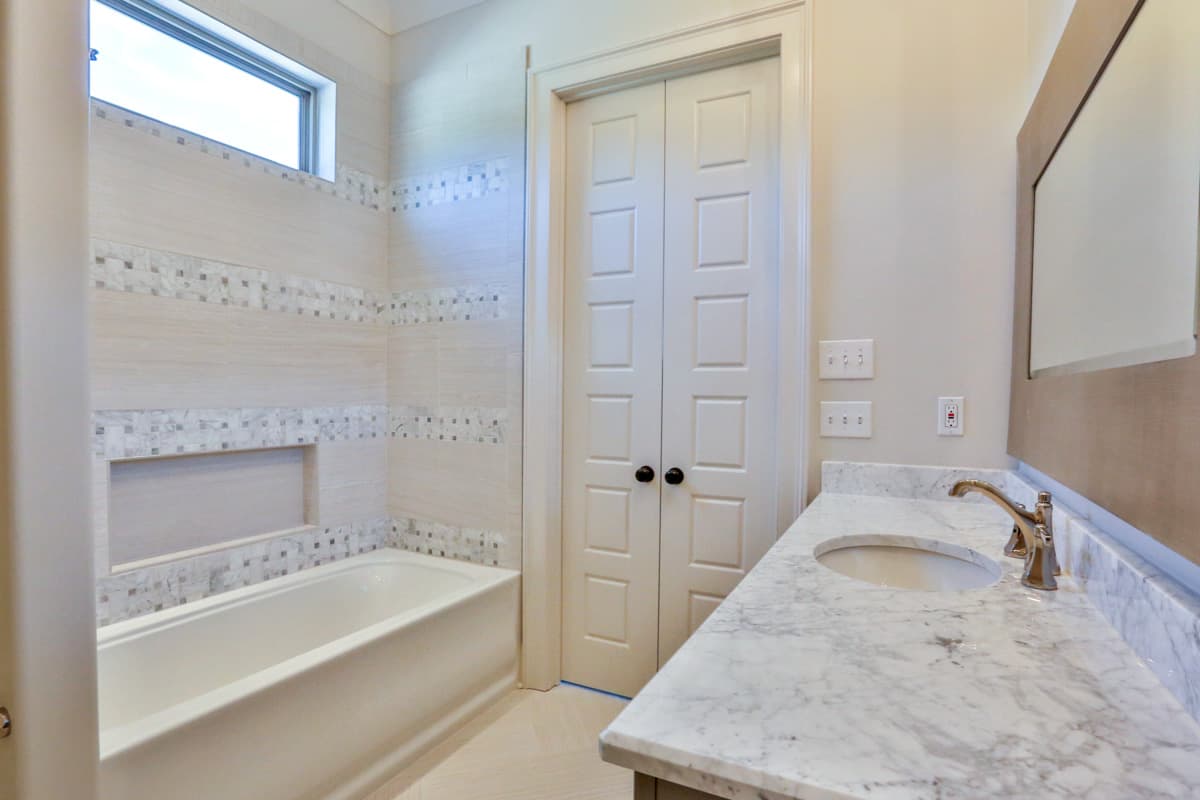

  • Upstairs, the remaining two bedrooms are of equal size with walk-in closets and a shared bathroom with two sinks.

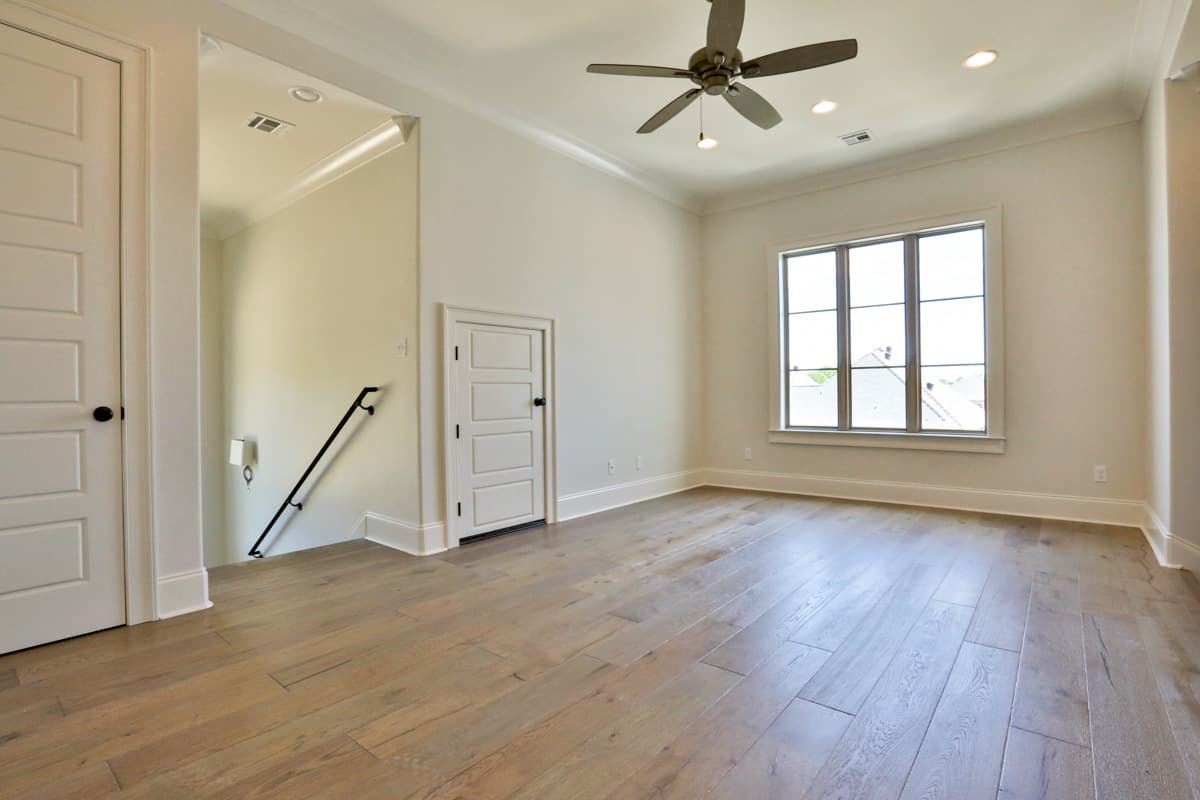

  • The den makes a great media area or a teen hangout or kids playroom.

This set of working drawings contains the following components

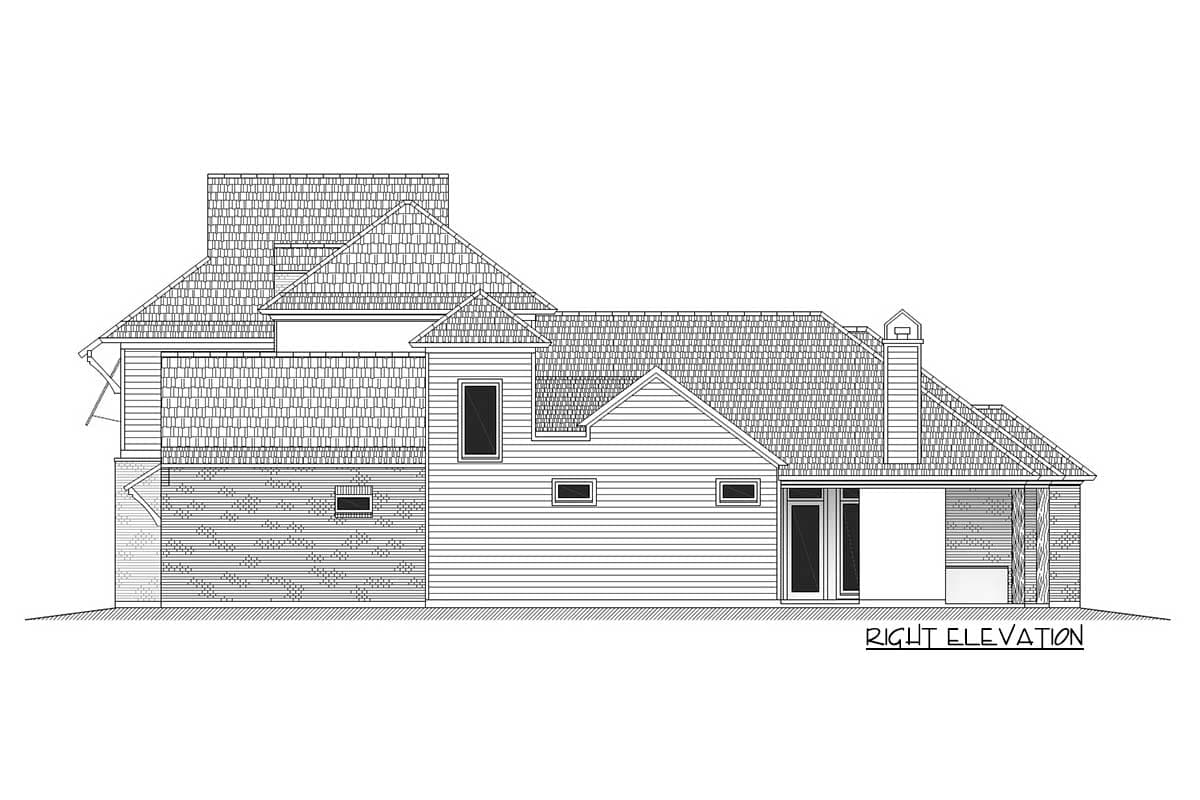

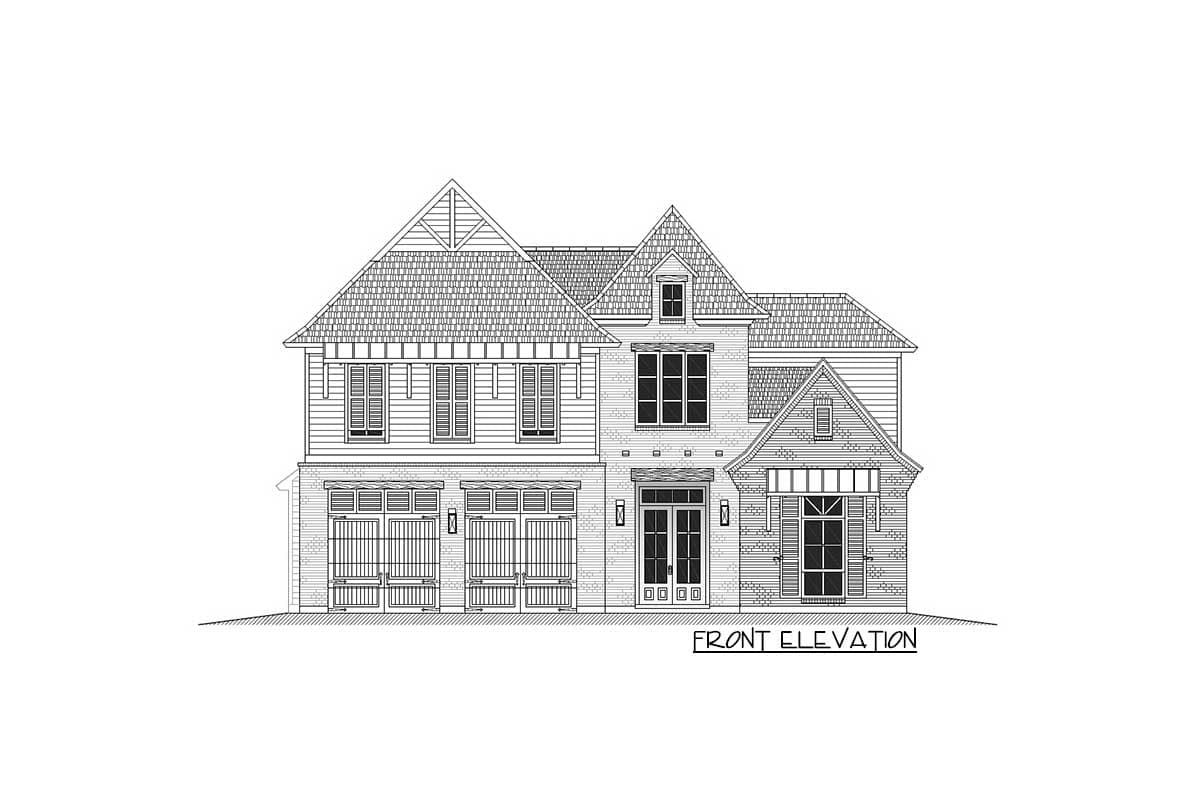

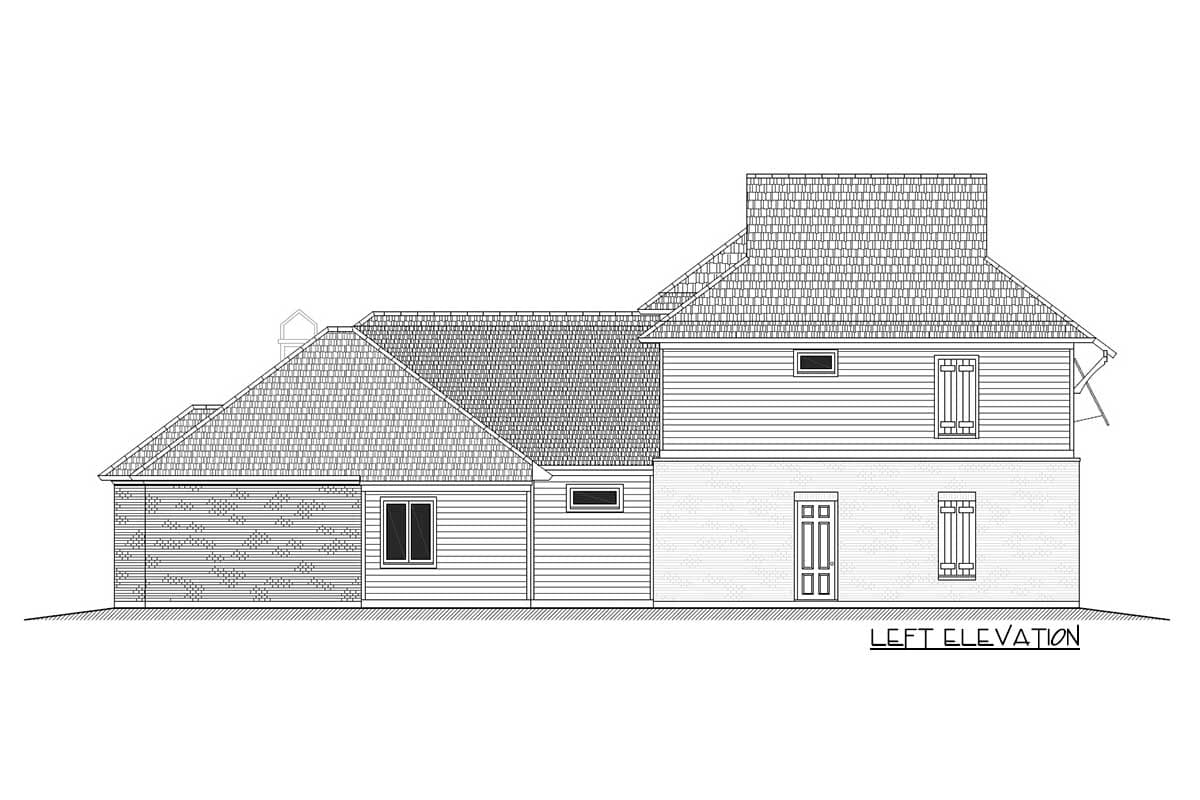

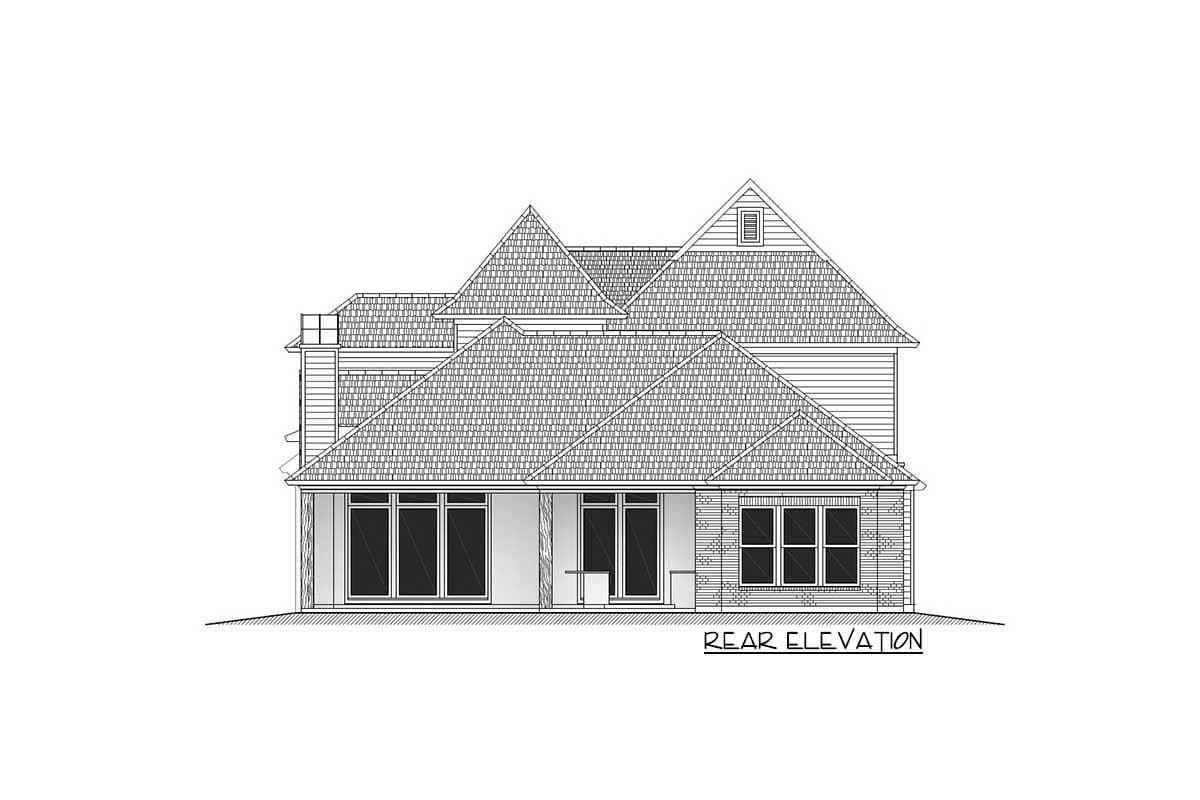

  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

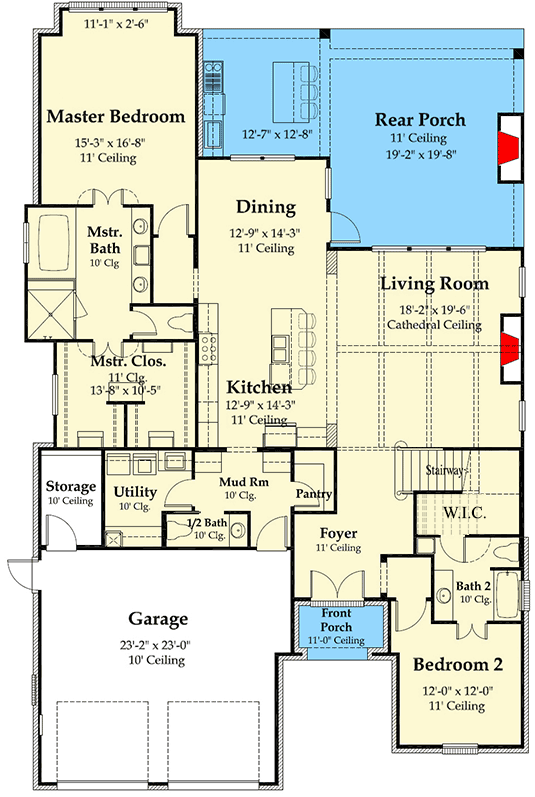

Southern Beauty With Outdoor Kitchen And Fireplace On Covered Rear Porch - 860016MCD floor plan - Main Level

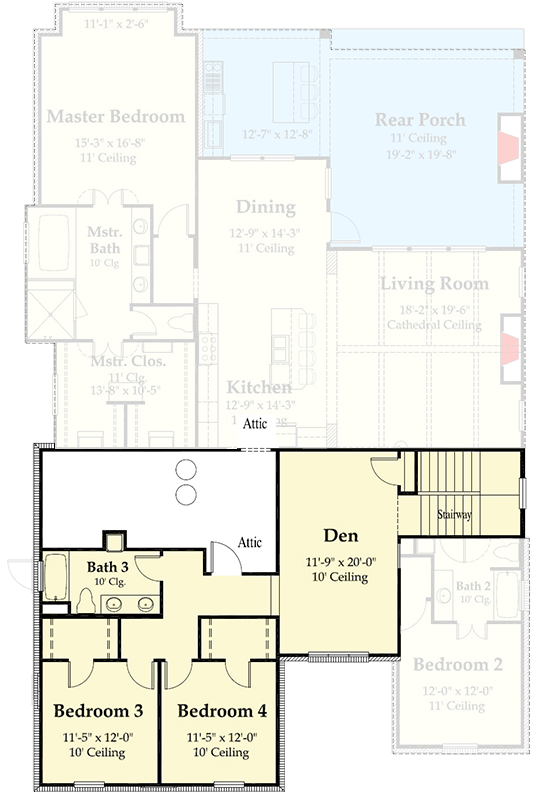

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Southern Beauty With Outdoor Kitchen And Fireplace On Covered Rear Porch - 860016MCD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,031 sq. ft.
  • 1st Floor: 2,211 sq. ft.
  • 2nd Floor: 820 sq. ft.
  • Porch, Combined: 586 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 49' 11"
  • Depth: 77' 10"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 667 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"
Room Details Ceiling Type Width Depth Height
Living Room Cathedral
Dining Room Flat 11' 0"
Kitchen Flat 11' 0"
Master Bedroom Flat 11' 0"
Bedroom 2 Flat 11' 0"

Roof Details

  • Primary Pitch: 9 on 12

Architectural Style

Special features

Plan Collections

Southern Beauty With Outdoor Kitchen And Fireplace On Covered Rear Porch

  • 3,031

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,595
  • 5 Sets + PDF $1,845
  • 8 Sets + PDF $1,945
  • CAD - Single-Build $2,545
  • PDF - Unlimited Build $3,095
  • CAD - Unlimited Build $4,045
  • View all purchase option online

About This Plan

  • Blending elements of styles found in South Louisiana, the West Indies and the French countryside, this Southern house plan offers a very attractive exterior.
  • The standard ceiling height sits at 10' high but rises up to 11' in many of the main floor rooms.
  • The vaulted and beamed living room rises even higher and it a gorgeous sight for family and friends.
  • In the big kitchen, the island is positioned to face the living room fireplace and thanks to the open floor plan you can also see the dining room and spacious rear porch with its outdoor kitchen.
  • There's a first floor master suite with a large private bathroom and a walk-in closet divided into his and her sections.
  • Bedroom 2 is also on the first floor at the front of the house.
  • Upstairs, the remaining two bedrooms are of equal size with walk-in closets and a shared bathroom with two sinks.
  • The den makes a great media area or a teen hangout or kids playroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,031 sq. ft.
  • 1st Floor: 2,211 sq. ft.
  • 2nd Floor: 820 sq. ft.
  • Porch, Combined: 586 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 49' 11"
  • Depth: 77' 10"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 667 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
Plan 860016MCD
