Plan 65658BS
Southern Mediterranean Home Plan with Optional 4th Bedroom
Heated S.F.
3,020
Beds
3-4
Baths
2.5 - 3.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

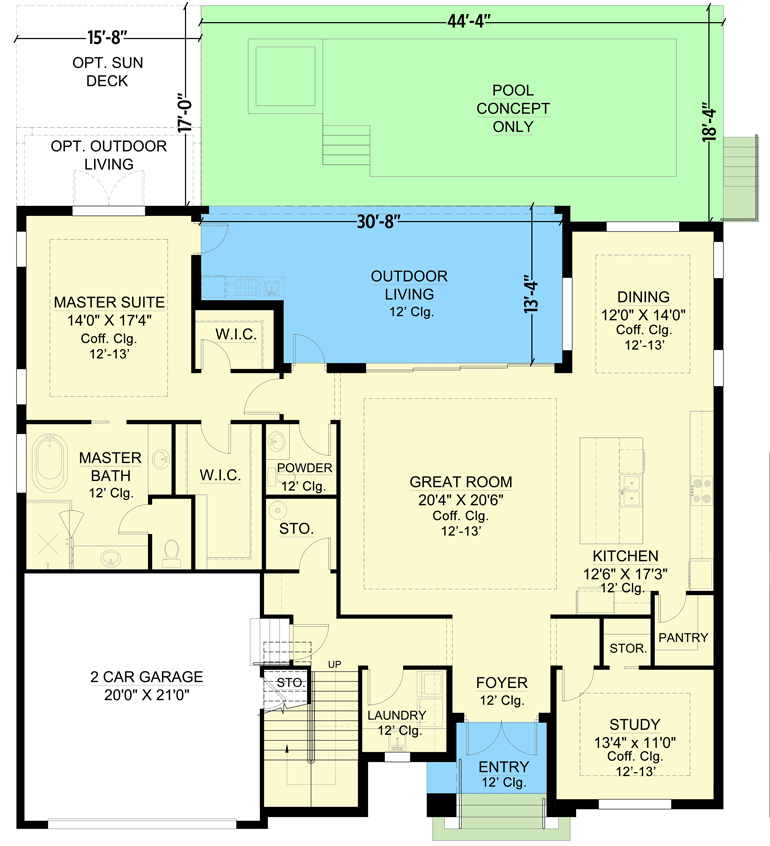

Southern Mediterranean Home Plan with Optional 4th Bedroom - 65658BS floor plan - Main Level
2nd Floor
Reverse Floor Plan

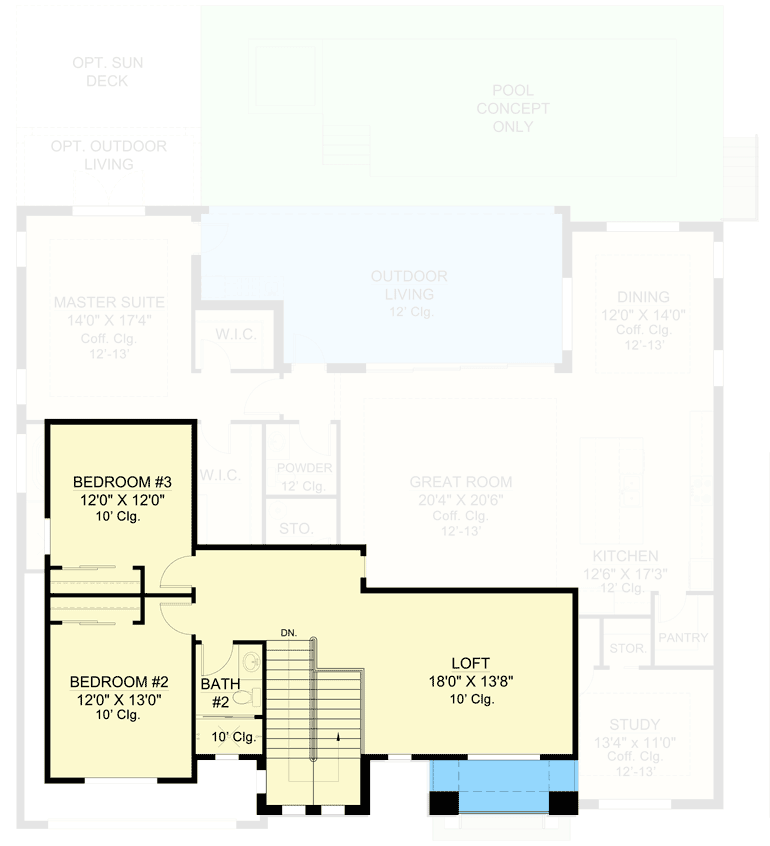

Southern Mediterranean Home Plan with Optional 4th Bedroom - 65658BS floor plan - 2nd Floor
Optional Bed 4 Layout
Reverse Floor Plan

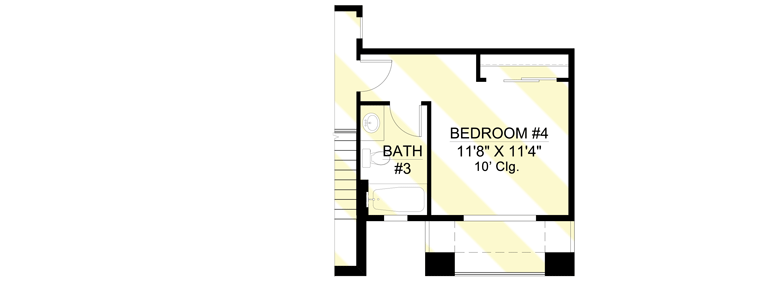

Southern Mediterranean Home Plan with Optional 4th Bedroom - 65658BS floor plan - Optional Bed 4 Layout
Plan Details

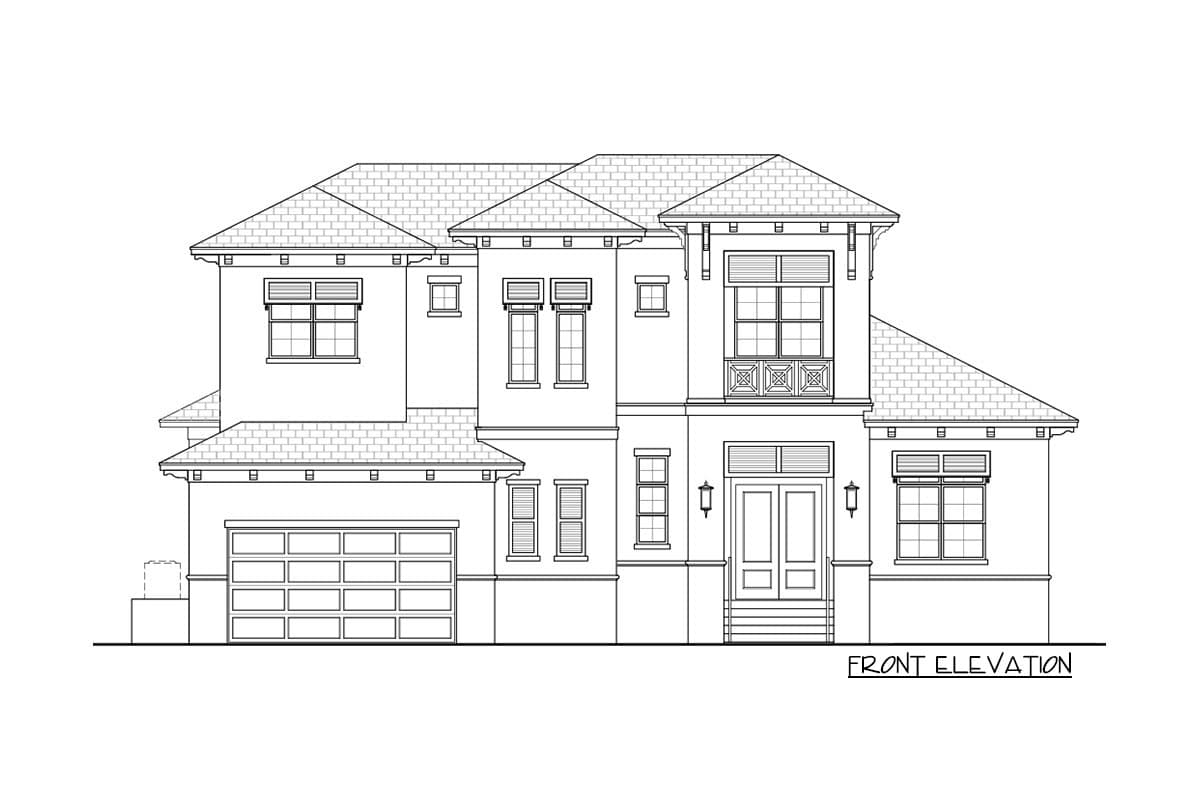

  • The impressive facade of this Southern Mediterranean home plan is wrapped in stucco with elegant exposed rafter tails and wooden supports.
  • From the foyer, look to your right to find a quiet study, or your left to discover access to the double garage.
  • The light-filled great room opens to the kitchen, which presents an oversized work island and walk-in pantry, while a multi-panel door retracts to grant access to the outdoor living area.
  • The master suite is conveniently located on the main level, and paired with a 5-fixture bathroom and two walk-in closets.
  • Bedrooms 2 and 3 can be found upstairs, along with a generous loft for the kids to enjoy. Finish the third floor to gain a fourth bedroom and full bath.
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.
What's Included
Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern Mediterranean Home Plan with Optional 4th Bedroom

  • 3,020

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Bed 4 Layout

Plan Details

Square Footage Breakdown

  • Total: 3,020 sq. ft.
  • 1st Floor: 2,161 sq. ft.
  • 2nd Floor: 859 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 52' 10"
  • Max ridge height: 31' 1"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 545 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights
