Plan 510256WDY

Southern Ranch House Plan with Wrap-Around Porch and Dog Trot - 2590 Sq Ft

Heated S.F.
2,590
Beds
2
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 510256WDY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 510256WDY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

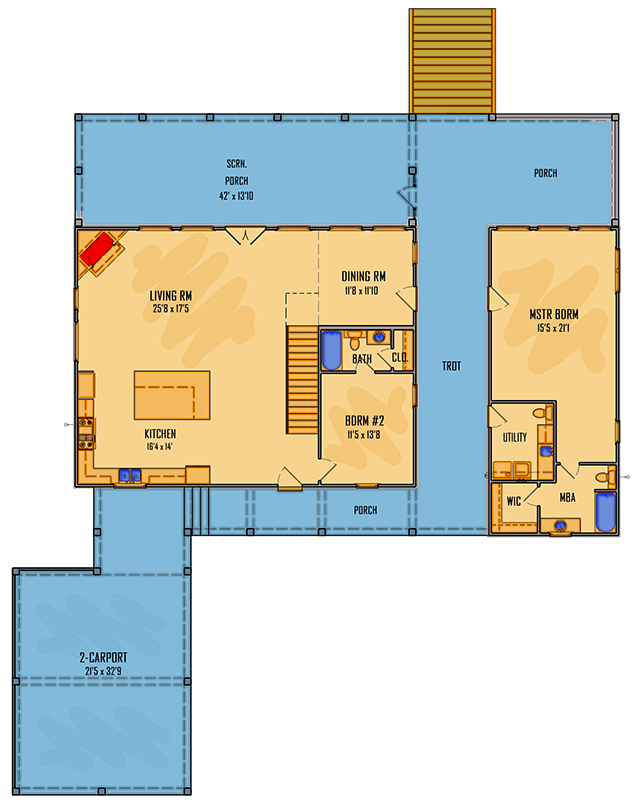

Plan 510256WDY: Southern Ranch House Plan with Wrap-Around Porch and Dog Trot - 2590 Sq Ft - Floor Plan - Main Level - Ranch, Southern

2nd Floor

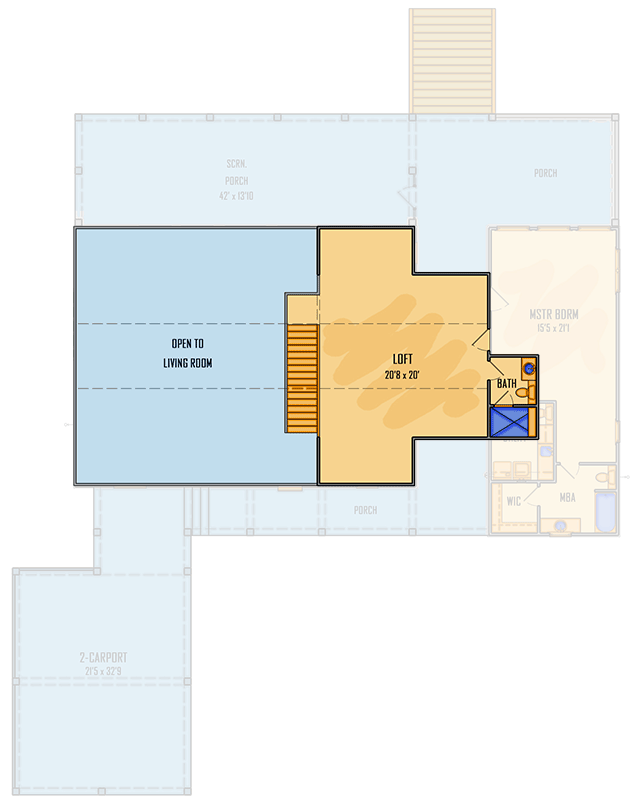

Plan 510256WDY: Southern Ranch House Plan with Wrap-Around Porch and Dog Trot - 2590 Sq Ft - Floor Plan - 2nd Floor - Ranch, Southern

Plan Details

  • This southern ranch house plan offers you 2,590 square feet of heated living space with 2 beds, 2 baths and a 731 square foot 2-car carport.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,590 sq. ft.

1st Floor

1,952 sq. ft.

2nd Floor

638 sq. ft.

Porch, Combined

1,451 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

75' 6"

Depth

84' 0"

Max Ridge Height

26' 1"

Garage

Type

Attached, Carport

Area

731 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 10

Framing Type

Stick

Architectural Style

Ranch

Southern

Special Features

Bedrooms - Split

Flex Room

Formal Dining

Laundry - Main Level

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Two Story Great Room

Wrap Around Porch

Plan Collections

Dogtrot House Plans

Sloping Lot

Square Footage Breakdown

Total Heated Area

2,590 sq. ft.

1st Floor

1,952 sq. ft.

2nd Floor

638 sq. ft.

Porch, Combined

1,451 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

75' 6"

Depth

84' 0"

Max Ridge Height

26' 1"

Garage

Type

Attached, Carport

Area

731 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 10

Framing Type

Stick

Architectural Style

Ranch

Southern

Special Features

Bedrooms - Split

Flex Room

Formal Dining

Laundry - Main Level

Loft

Master Suite - 1st Floor

Master Suite - Sitting Area

Two Story Great Room

Wrap Around Porch

Plan Collections

Dogtrot House Plans

Sloping Lot
