Southern Ranch Plan with Walk-out Basement

Plan 68694VR

2,569
Heated s.f.
4
Beds
3
Baths
2
Stories
1
Cars

This Southern ranch plan has a vaulted covered entry and a front porch spanning the entire front of the home. Centered on the porch, a pair of french doors open to reveal a dramatic vaulted interior and a floor plan open front to back.
French doors by the breakfast area take you to the covered deck in back, perfect for al fresco entertaining. A screened porch on the side gives you another space to enjoy the out-of-doors.
The master bedroom is on the right and has a walk-in closet and screened porch access. The second bedroom is across the home for your privacy.
The finished basement is where you'll find a large bonus room, two bedrooms, a full bath, and a single garage.
Related Plans: Get an additional sun deck with plan 68414VR and an alternate lower level with house plans 68777VR and 68521VR (2,000 sq. ft.).

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

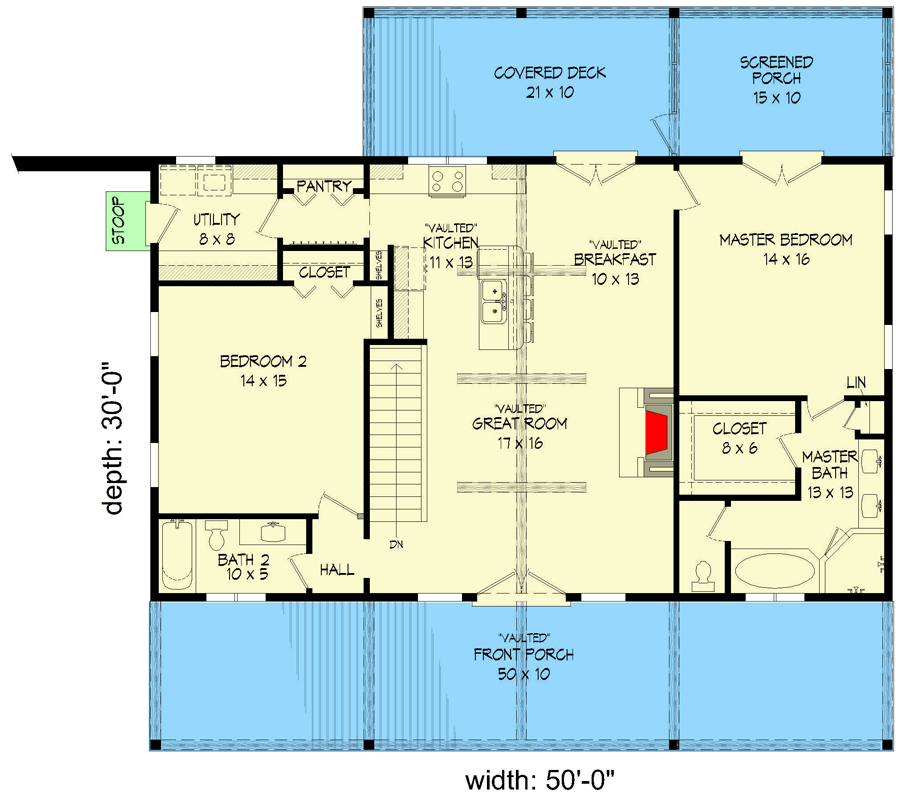

Southern Ranch Plan with Walk-out Basement - 68694VR floor plan - Main Level

Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

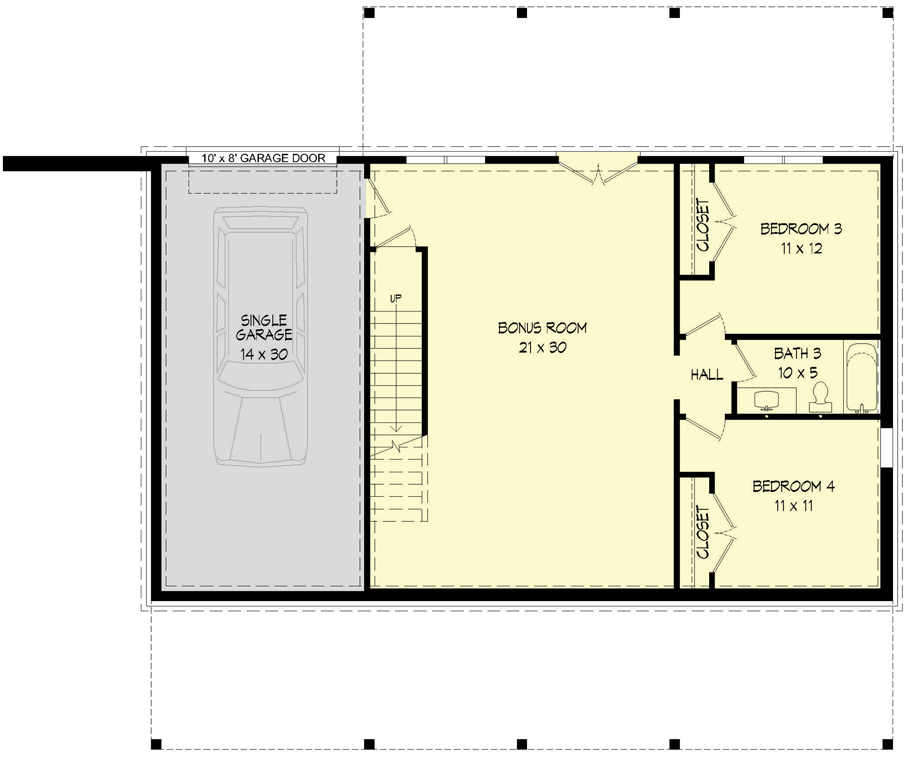

Southern Ranch Plan with Walk-out Basement - 68694VR floor plan - Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 2,569 sq. ft.
Lower Level: 1,069 sq. ft.
1st Floor: 1,500 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 3

Foundation Type

Standard Foundations: Walkout

Optional Foundations: Slab, Daylight, Crawl, Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 50' 0"
Depth: 30' 0"
Max ridge height: 20' 5"

Garage

Type: Drive Under
Area: 431 sq. ft.
Count: 1 Cars
Entry Location: Rear

Ceiling Heights

Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Room Details	Ceiling Type	Width	Depth	Height
Great Room	Vaulted
Kitchen	Vaulted
	Vaulted

Roof Details

Primary Pitch: 8.5 on 12
Secondary Pitch: 3 on 12

Architectural Style

Special features

Plan Collections

Scroll
