Plan 54054LK

Southwest Ranch House Plan with 3 Bedrooms and Wraparound Rear Porch

Name: Plan 54054LK: Southwest Ranch House Plan with 3 Bedrooms and Wraparound Rear Porch
Brand: Architectural Designs
SKU: 54054LK
Price: 2125.0 USD
Availability: InStock

Heated S.F.

2,690

Beds

Baths

Stories

Cars

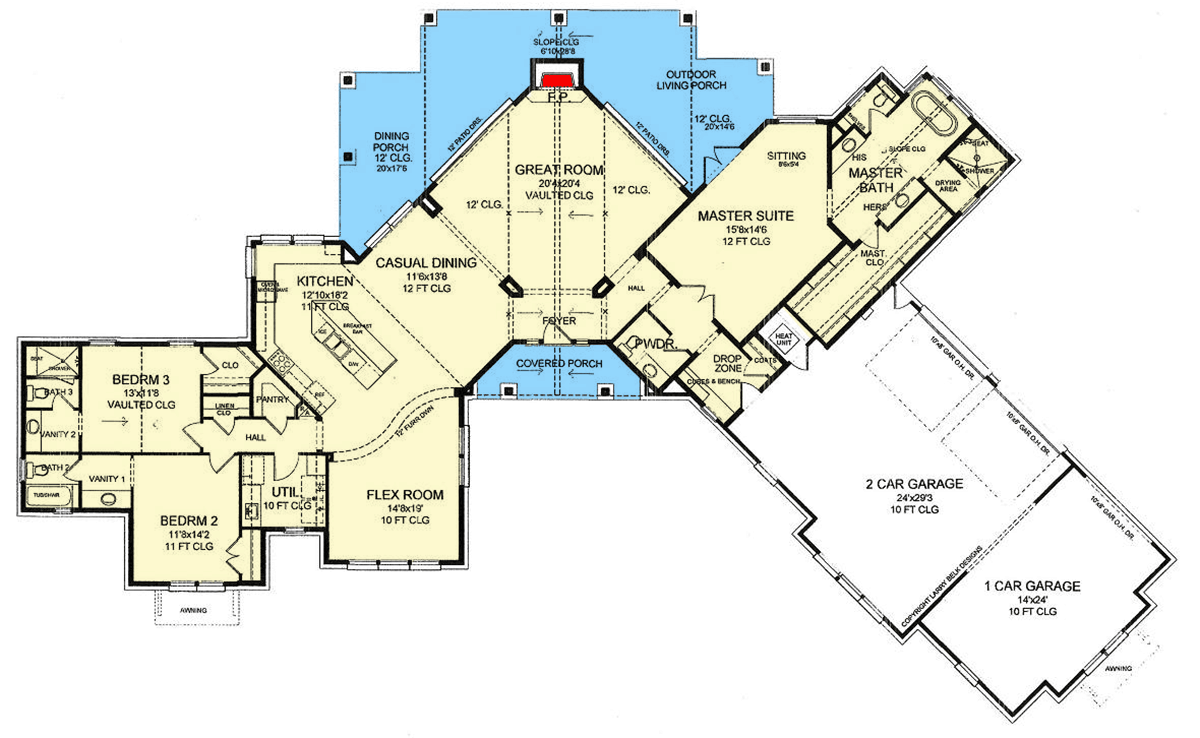

Floor Plan

Main Level

Plan Details

This Hill Country Ranch House Plan offers 2,690 finished sq ft, 3 bedrooms, 3 full baths, and an attached 1170 sq ft, 3-car garage.
A grand two-story entry, marked by striking stone accents, welcomes you into a home designed for effortless living, featuring a convenient main-level laundry and mudroom.
The expansive vaulted great room forms the heart of the home, flowing seamlessly into dining and kitchen areas, complemented by a practical walk-in pantry.
The luxurious primary suite, located on the first floor and featuring a dedicated sitting area, is thoughtfully split from the secondary bedrooms for ultimate privacy.
Enjoy expansive outdoor living with a generous 677 sq ft wraparound porch, perfect for taking in the surrounding landscape.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.

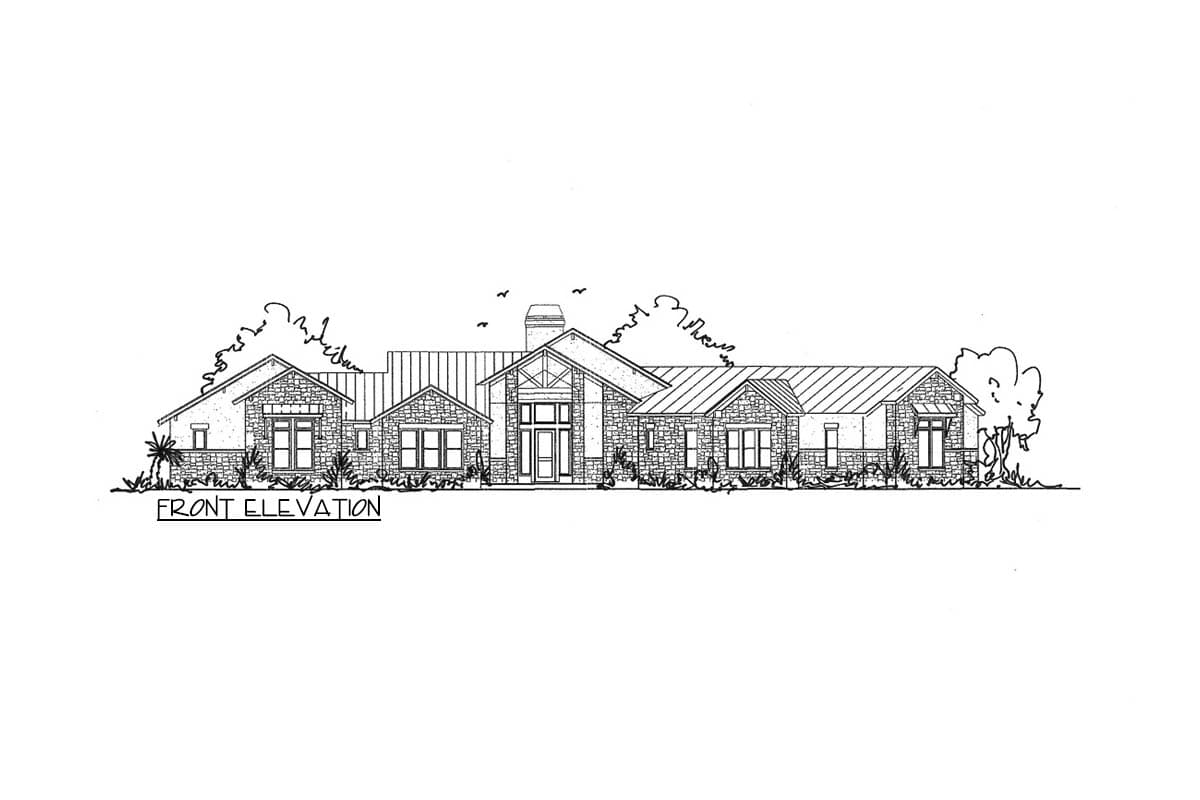

ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
