Spacious 2800 Sq Ft Ranch House Plan with Split Bedrooms and Bonus

Name: Plan 774003MWK: Spacious 2800 Sq Ft Ranch House Plan with Split Bedrooms and Bonus
Brand: Architectural Designs
SKU: 774003MWK
Price: 1305.0 USD
Availability: InStock

Heated S.F.

2,800

Beds

Baths

2.5

Stories

Cars

Floor Plan

Main Level

Plan Details

This expansive 2,800 sq. ft. Contemporary Ranch House Plan offers 3 bedrooms, 2.5 bathrooms, and a generous 596 sq. ft. two-car garage, all wrapped in a refined New American and Southern architectural style.
Step inside to discover a thoughtfully designed single-story layout, where a dedicated home office awaits near the entry, providing a quiet retreat for productivity. The open-concept living areas unfold beyond, creating an inviting atmosphere for daily life.
The heart of the home features a seamless flow between the gourmet kitchen, formal dining room, and a spacious great room, perfect for gathering. A large butler's walk-in pantry offers ample storage and convenience, enhancing the culinary experience.
The luxurious first-floor primary suite is a private sanctuary, featuring a spa-like ensuite. It is strategically separated from the secondary bedrooms, which are thoughtfully arranged in a split bedroom layout for maximum privacy and comfort for family or guests.
Beyond the main living areas, this plan includes a versatile flex room/game room, offering endless possibilities for entertainment, hobbies, or a playroom. A practical mudroom and main-level laundry room ensure everyday convenience.
Enjoy the outdoors with a combined 762 sq. ft. of inviting porch space, ideal for morning coffee, evening relaxation, or alfresco dining, extending the living space seamlessly into nature.
The Kitchen and Bath areas were designed by CKBD designers (Certified Kitchen and Bath Designer) with a focus on workflow/circulation and expert cabinet design and layout.

What's Included

Cover Sheet: Rendered exterior view with designer details, site address, and purchaser information.

Roof Plan: Bird’s-eye view showing roof geometry, slopes/pitches, roof materials, and location of roof ventilation.

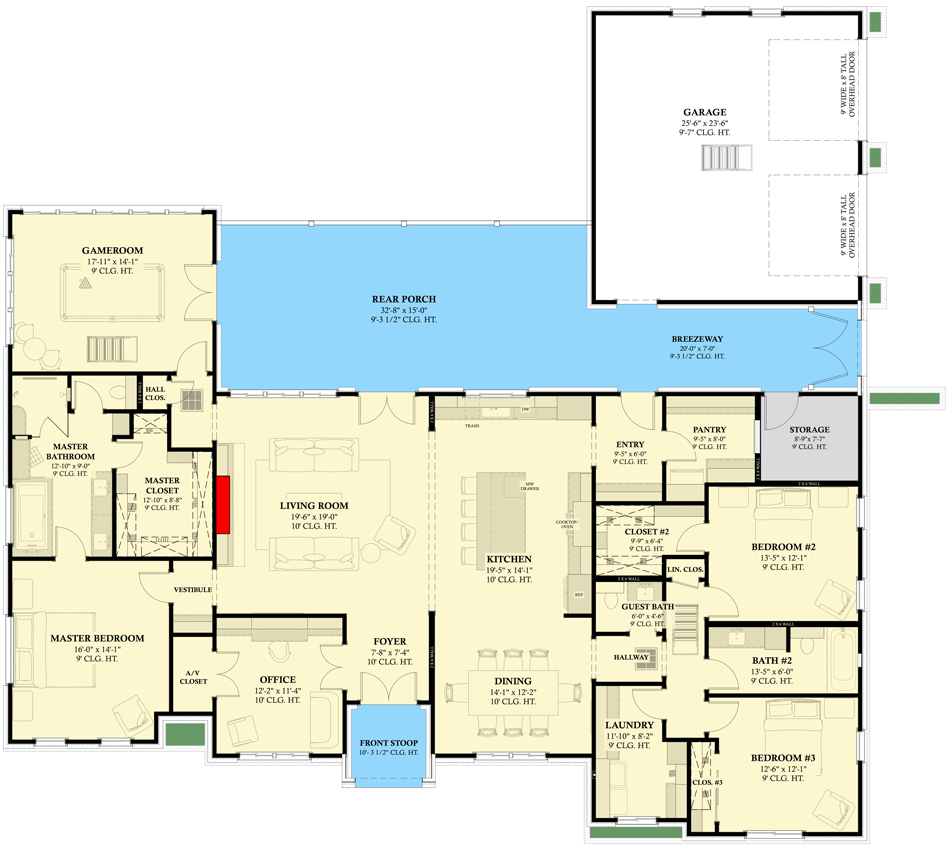

Detailed Floor Plan: Fully dimensioned layout with room names, ceiling heights, dimensions to window/door locations, appliance locations, and general construction notes.

Exterior Elevations: Detailed 2D views of all sides showing materials, roof pitches, door/window types, floor/ceiling heights, and notes highlighting key exterior features.

Framing and Foundation Plans: Joist sizing, direction, and spacing; beam locations; footing layout; and framing/foundation notes, including framing/foundation section details.

Mechanical/Electrical/Plumbing Plan (suggested): HVAC layout denoting locations of registers, ducts, thermostat, and equipment. Electrical plan denoting locations of outlets, switches, lighting, and detectors. Plumbing layout denoting locations of water, gas, and sewer elements. All with general notes.

Cabinet Plan: Cabinet layout with dimensions, appliance types/locations, and interior elevation callouts.

Interior Elevations: Dimensioned interior views showing cabinetry design, closet configurations, and other walls with key features. All elevations boast extensive notes.

Window and Door Schedules: Complete list of all doors and windows with sizes, types, glass requirements, header heights, manufacturers, and quantities.

3D Perspective Renderings: Color 3D exterior and interior renderings for added context.

What's Not Included

Architectural or Engineering Stamp
Site Plan / Survey Layout
Final framing and foundation designs including engineered details such as anchor types, bracket/hanger types, final beam sizes/types, and other structural specifications. Final structural design must be provided by a licensed professional in your area.
Energy calculations
