Plan 765005TWN Spacious 4-Bedroom House Plan with Elevator and Main-Floor Master

2,916 4 3.5 3 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Spacious 4-Bedroom House Plan with Elevator and Main-Floor Master

Plan 765005TWN

  • 2,916

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 3

    Stories

  • 2

    Cars

  • This lovely 4-bedroom home plan features a welcoming covered front porch and traditional clapboard and board-and-batten exterior. Inside, a thoughtful main-floor plan allows for maximum versatility and mobility and a centrally located elevator lends convenience.
  • Through the front entry, you’ll find a roomy den and a spacious kitchen with a center island, open to a vaulted living and dining area.
  • A large screened porch and adjacent covered porch invite you to enjoy the outdoors in comfort.
  • The tucked-away main-floor master suite boasts a generously sized walk-in closet and light-filled bath.
  • On the upper level, guests will discover a guest suite with a full bath and walk-in closet. Two additional bedrooms on the upper level share a Jack-and-Jill bathroom.
  • NOTE: The plan is available with CMU block construction at no additional cost.
  • DELIVERY NOTE: Please allow 10 to 15 days for delivery if it includes readable reverse.

This designer's plans include the following:

  • Cover sheet with general notes
  • Foundation Plan
  • Floor Plans with Dimensions
  • Exterior Elevations
  • Cross Section
  • Door & Window Schedules
  • Roof plan
  • Electrical Plans
  • Cabinetry Elevations


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

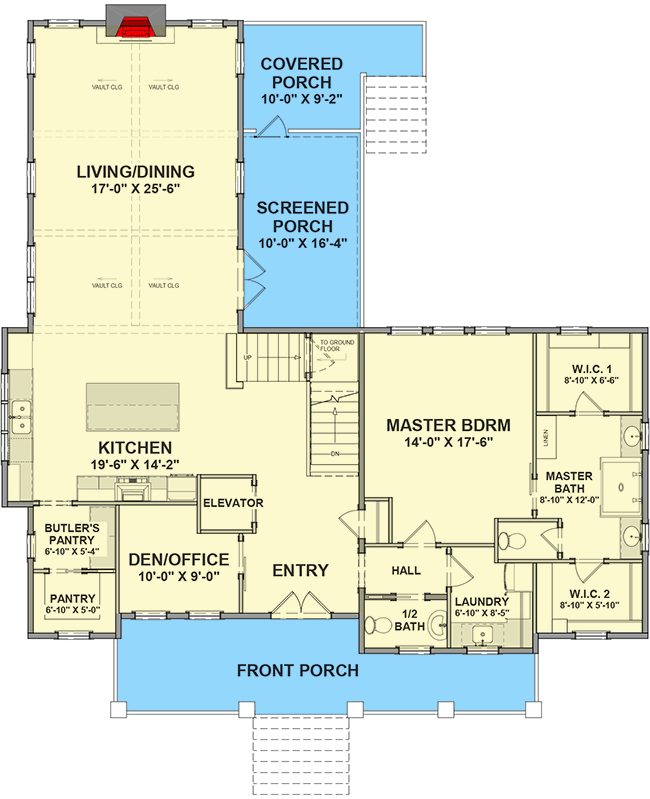

Spacious 4-Bedroom House Plan with Elevator and Main-Floor Master - 765005TWN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

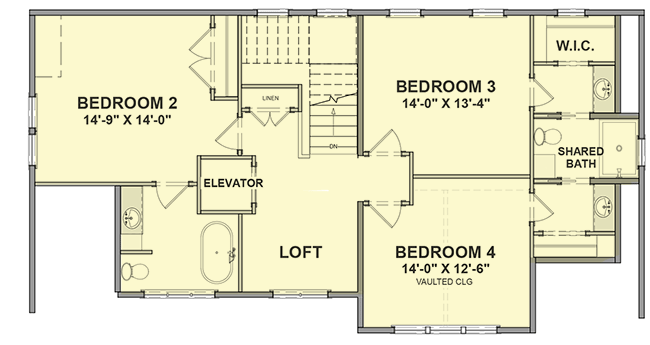

Spacious 4-Bedroom House Plan with Elevator and Main-Floor Master - 765005TWN floor plan - 2nd Floor

Ground Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

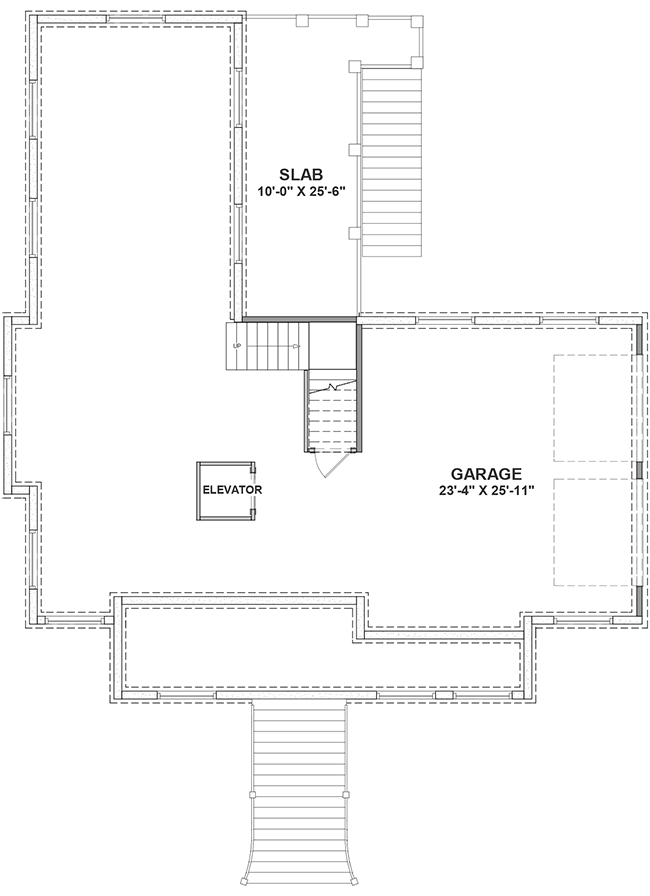

Spacious 4-Bedroom House Plan with Elevator and Main-Floor Master - 765005TWN floor plan - Ground Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,916 sq. ft.
  • 1st Floor: 1,828 sq. ft.
  • 2nd Floor: 1,088 sq. ft.
  • Screened Porch: 160 sq. ft.
  • Porch, Front: 88 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Post/Pier

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 58' 0"
  • Max ridge height: 37' 8"

Garage

  • Type: Attached, Drive Under
  • Area: 1715 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 8' 8" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Spacious 4-Bedroom House Plan with Elevator and Main-Floor Master

  • 2,916

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 3

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,495
  • Chief Architect Plan File - Single Build $2,195
  • View all purchase option online

About This Plan

  • This lovely 4-bedroom home plan features a welcoming covered front porch and traditional clapboard and board-and-batten exterior. Inside, a thoughtful main-floor plan allows for maximum versatility and mobility and a centrally located elevator lends convenience.
  • Through the front entry, you’ll find a roomy den and a spacious kitchen with a center island, open to a vaulted living and dining area.
  • A large screened porch and adjacent covered porch invite you to enjoy the outdoors in comfort.
  • The tucked-away main-floor master suite boasts a generously sized walk-in closet and light-filled bath.
  • On the upper level, guests will discover a guest suite with a full bath and walk-in closet. Two additional bedrooms on the upper level share a Jack-and-Jill bathroom.
  • NOTE: The plan is available with CMU block construction at no additional cost.
  • DELIVERY NOTE: Please allow 10 to 15 days for delivery if it includes readable reverse.

Floor Plans

  • Main Level

  • 2nd Floor

  • Ground Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,916 sq. ft.
  • 1st Floor: 1,828 sq. ft.
  • 2nd Floor: 1,088 sq. ft.
  • Screened Porch: 160 sq. ft.
  • Porch, Front: 88 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Post/Pier

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 58' 0"
  • Max ridge height: 37' 8"

Garage

  • Type: Attached, Drive Under
  • Area: 1715 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 8' 8" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Truss
Plan 765005TWN
View this and more for this plan by visiting www.architechtecturaldesigns.com/765005TWN
|
Need Help? 800-854-7852
|
