Plan 82077KA

Spacious and Luxurious Floor Plan

5,446 4-5 4.5 - 5.5 1-2 3
Print
Compare
...
Pageloader

Spacious and Luxurious Floor Plan

Plan 82077KA

  • 5,446

    Heated s.f.

  • 4-5

    Beds

  • 4.5 - 5.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

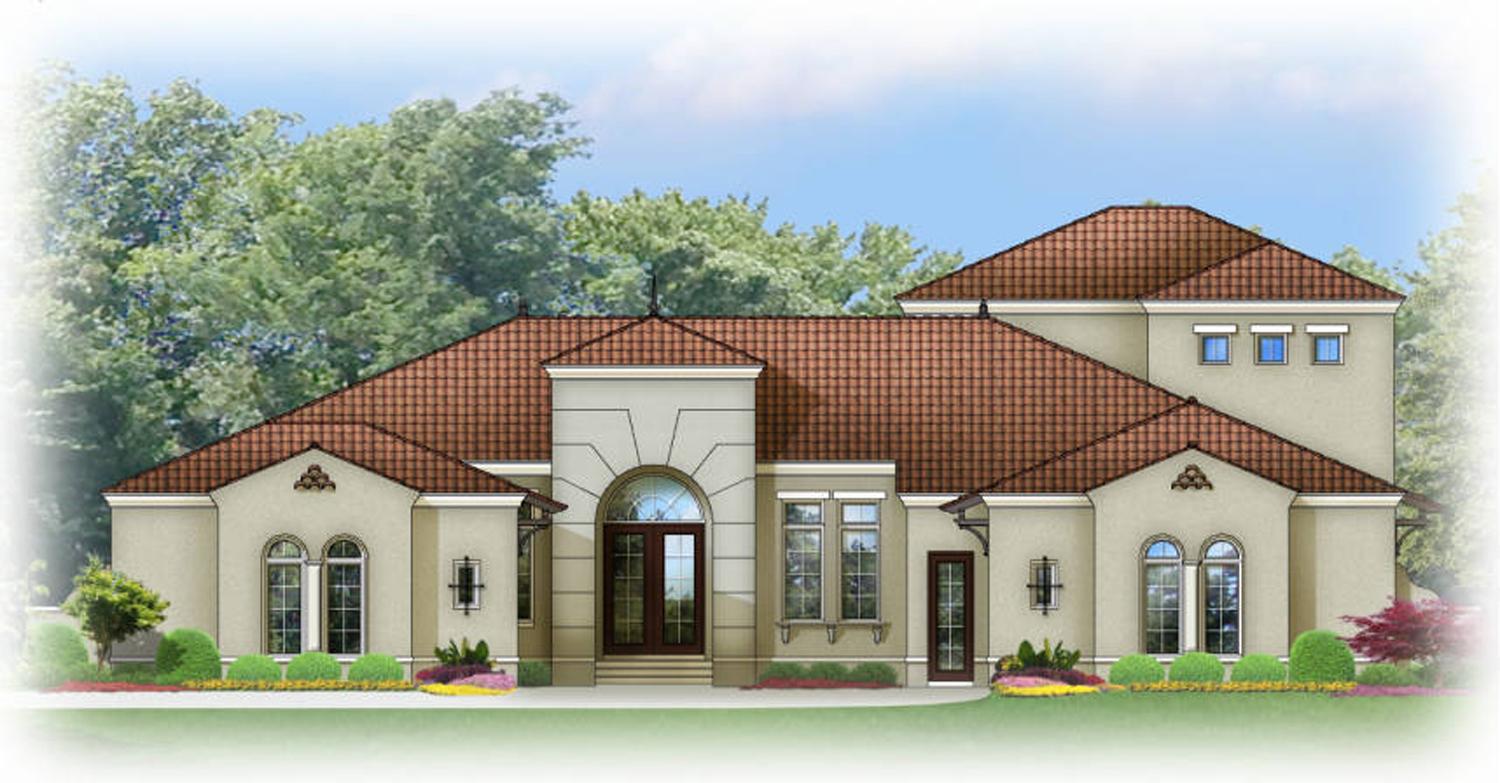

  • All the bells and whistles were designed into this upscale Mediterranean house plan that even has a wine cellar.
  • 10' high ceilings are standard but the elegant tray and coffered ceilings raise that up even more.
  • Three interior columns mark the boundaries of the formal dining room, with views that allow you to see right into the foyer and living room.
  • The informal gathering room is a key design element with two walls of sliding glass doors that take you out to the wrap-around outdoor living area with a fireplace and summer kitchen.
  • The entire left wing of the home is devoted to the opulent master suite that has a home sauna, bayed sitting area, spa-like master bathroom and a gorgeous whirlpool soaking tub.
  • All the other family bedrooms are on the opposite side of the home, giving privacy to all.
  • You can entertain in grand style in the second floor game room that has a wrap-around outdoor living area, a wet bar and an optional guest suite and bathroom.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.

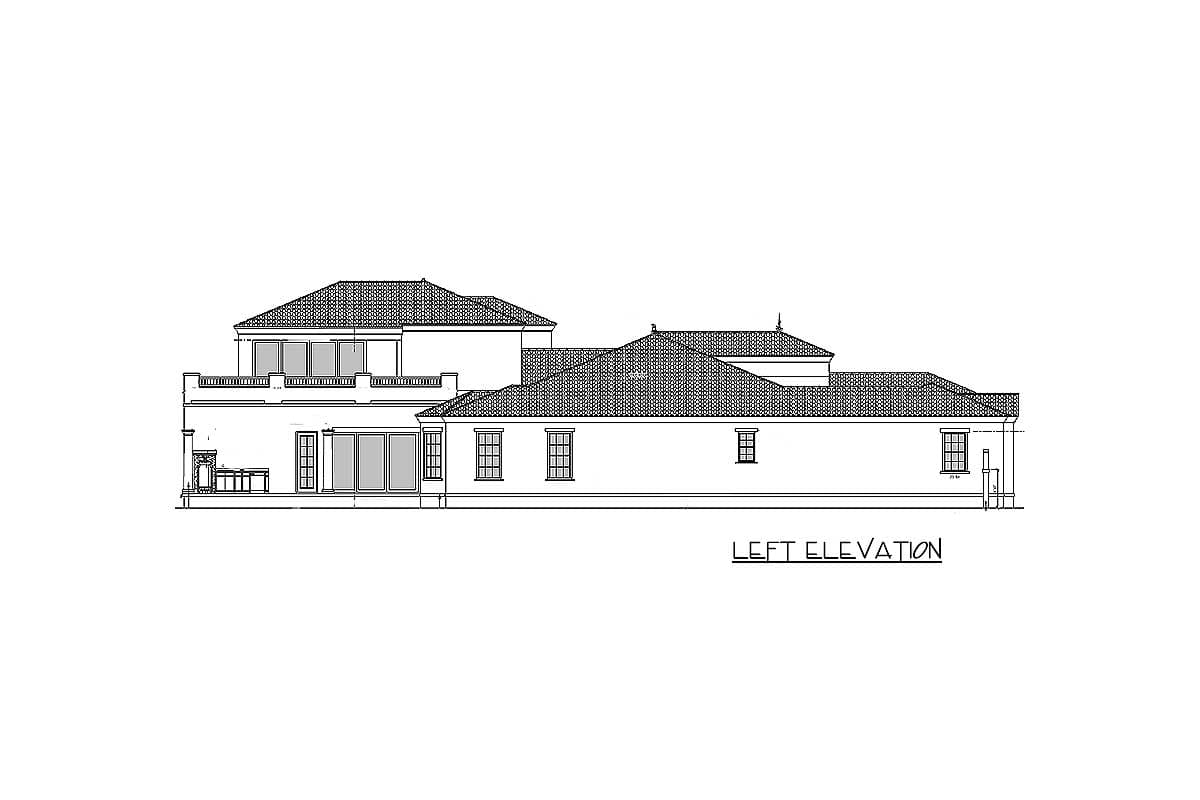

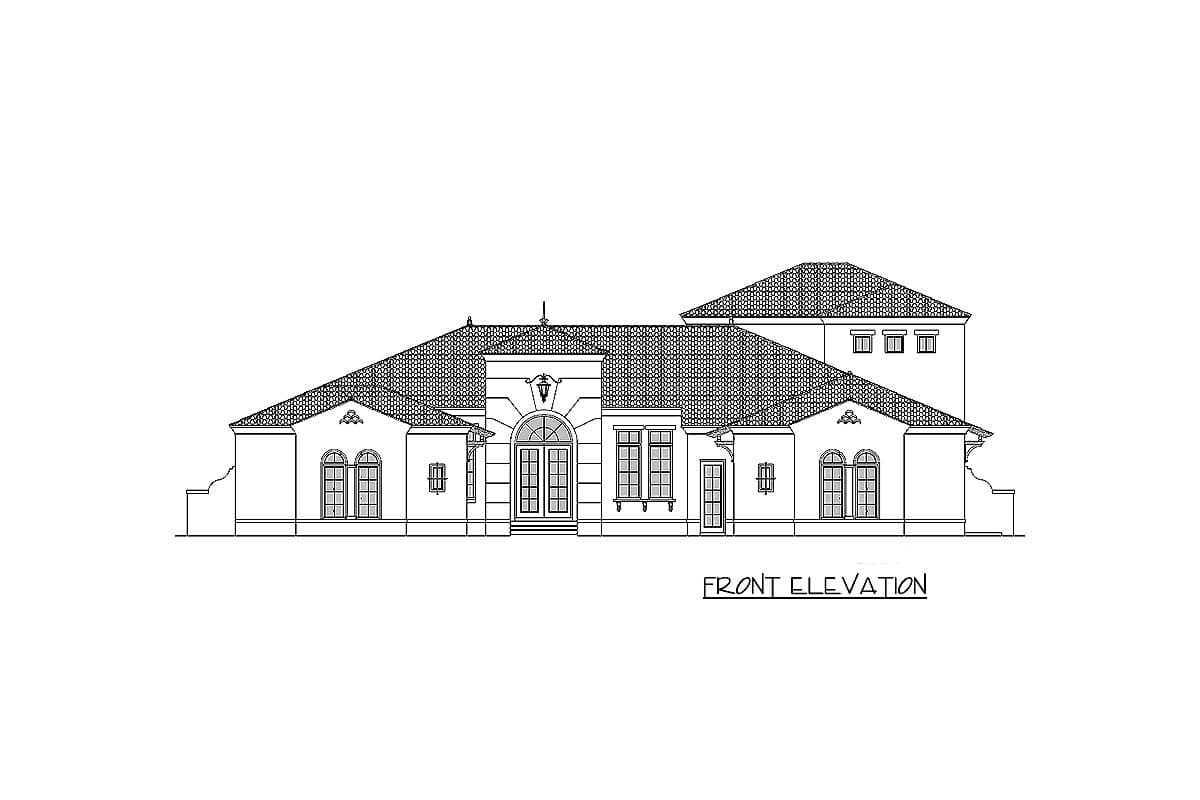

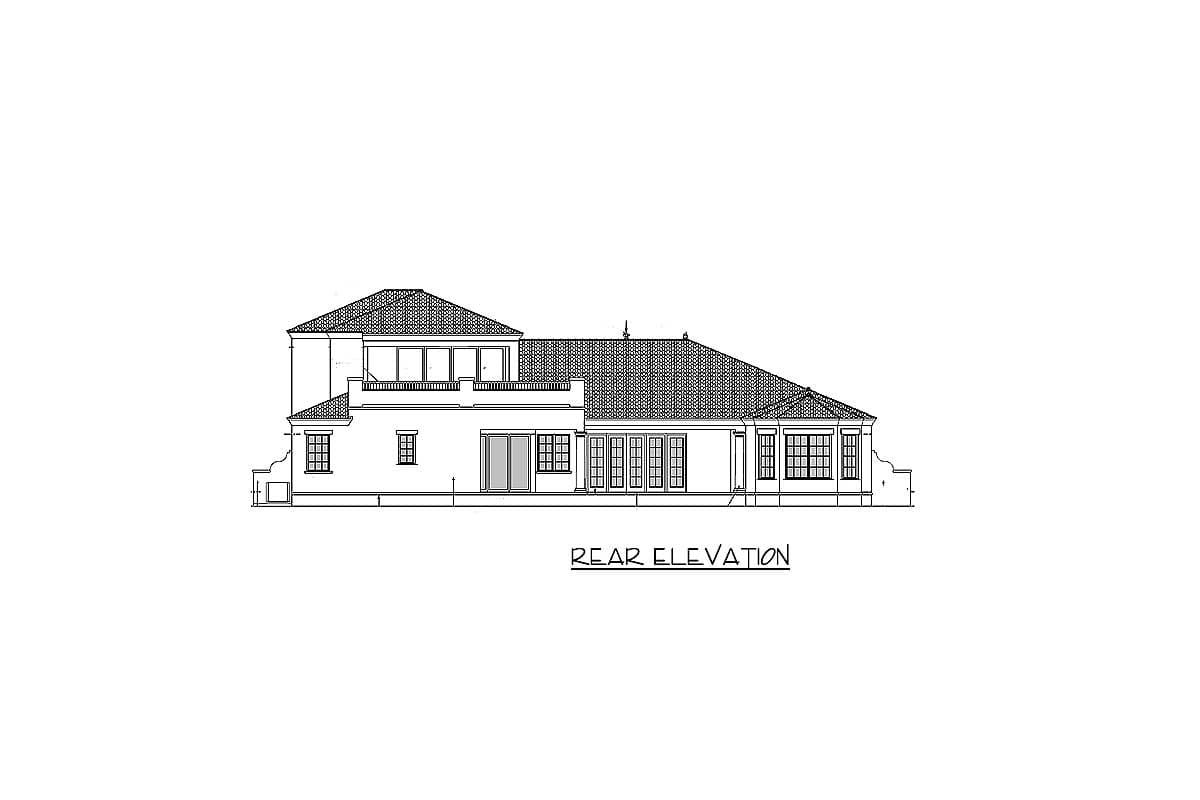

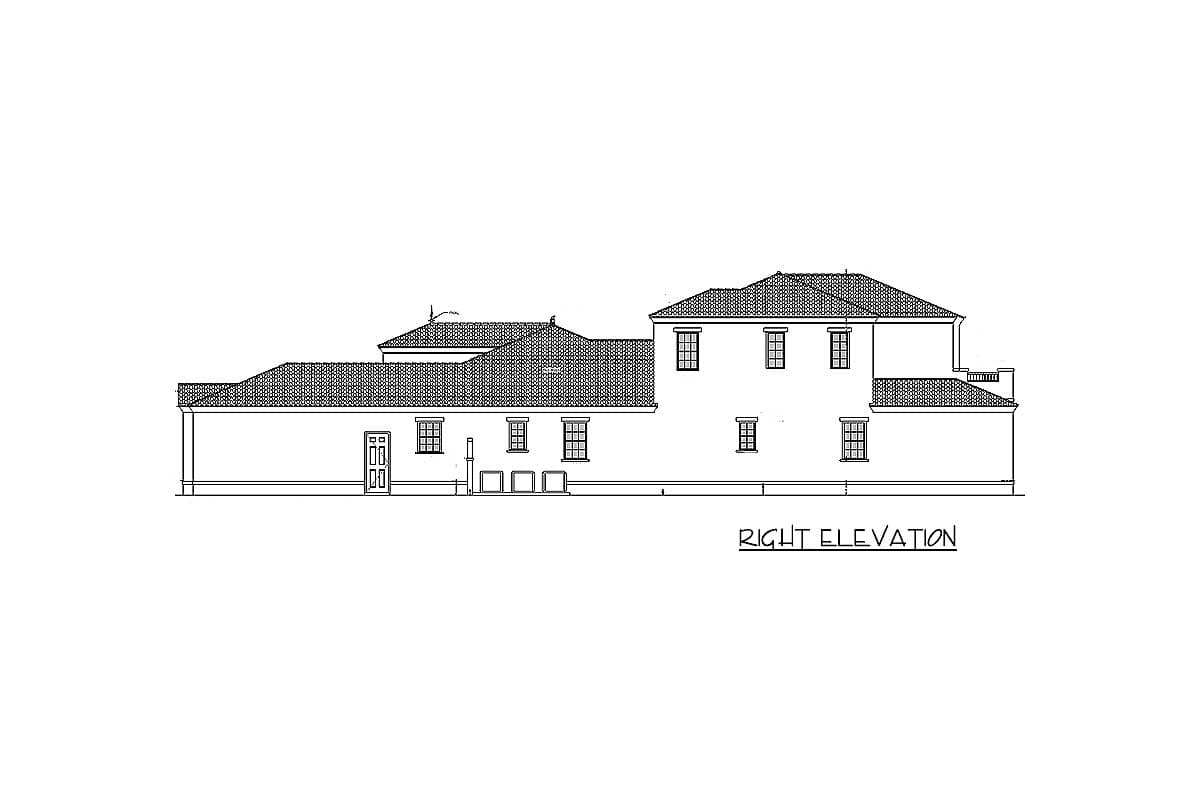

  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

Floor Plan

Main Level

Pinit white
Reverse Floor Plan

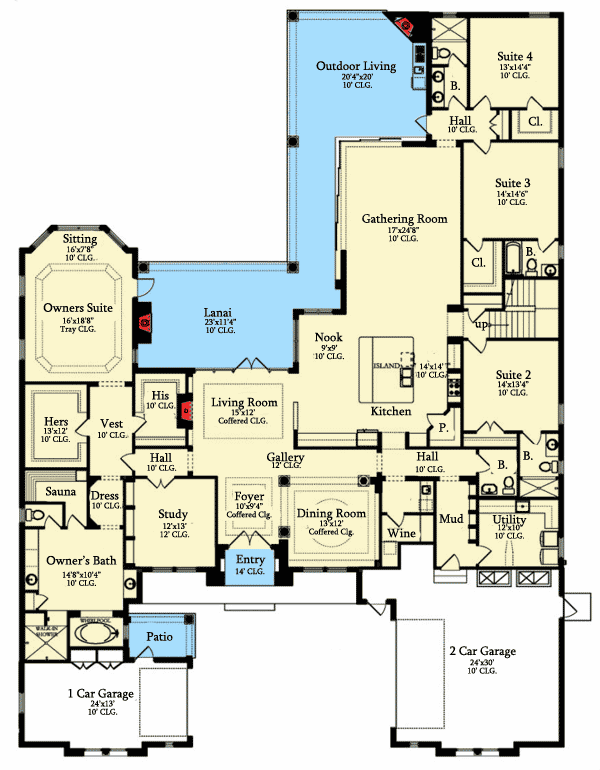

Spacious and Luxurious Floor Plan - 82077KA floor plan - Main Level

2nd Floor

Pinit white
Reverse Floor Plan

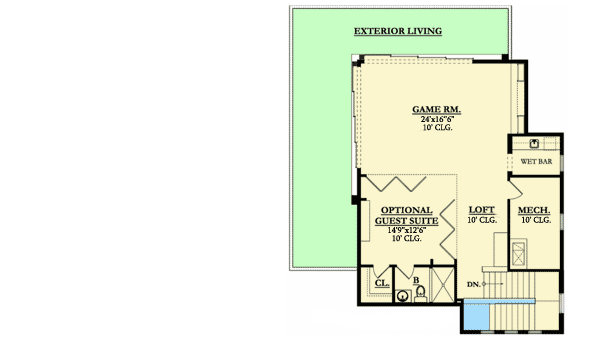

Spacious and Luxurious Floor Plan - 82077KA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,446 sq. ft.
  • 1st Floor: 4,446 sq. ft.
  • 2nd Floor: 1,000 sq. ft.
  • Porch, Rear: 943 sq. ft.
  • Porch, Front: 54 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 80' 0"
  • Depth: 109' 4"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 1173 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Spacious and Luxurious Floor Plan

  • 5,446

    Heated s.f.

  • 4 - 5

    Beds

  • 5 +

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $3,215
  • PDF - single-use $3,505
  • CAD $3,505
  • CAD - multi-use $16,075
  • PDF - multi-use $16,075
  • View all purchase option online

About This Plan

  • All the bells and whistles were designed into this upscale Mediterranean house plan that even has a wine cellar.
  • 10' high ceilings are standard but the elegant tray and coffered ceilings raise that up even more.
  • Three interior columns mark the boundaries of the formal dining room, with views that allow you to see right into the foyer and living room.
  • The informal gathering room is a key design element with two walls of sliding glass doors that take you out to the wrap-around outdoor living area with a fireplace and summer kitchen.
  • The entire left wing of the home is devoted to the opulent master suite that has a home sauna, bayed sitting area, spa-like master bathroom and a gorgeous whirlpool soaking tub.
  • All the other family bedrooms are on the opposite side of the home, giving privacy to all.
  • You can entertain in grand style in the second floor game room that has a wrap-around outdoor living area, a wet bar and an optional guest suite and bathroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,446 sq. ft.
  • 1st Floor: 4,446 sq. ft.
  • 2nd Floor: 1,000 sq. ft.
  • Porch, Rear: 943 sq. ft.
  • Porch, Front: 54 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4 or 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 80' 0"
  • Depth: 109' 4"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 1173 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
