Plan 666121RAF
Spacious Contemporary Home Plan with Home Office and Recording Studio
Heated S.F.
6,790
Beds
6
Baths
6.5
Stories
2
Cars
3
What's Included
Plan Details
  • Spanning over 6,800 square feet, this Contemporary home plan places the common spaces towards the rear of the design in order to seamlessly connect with the covered patio and backyard.

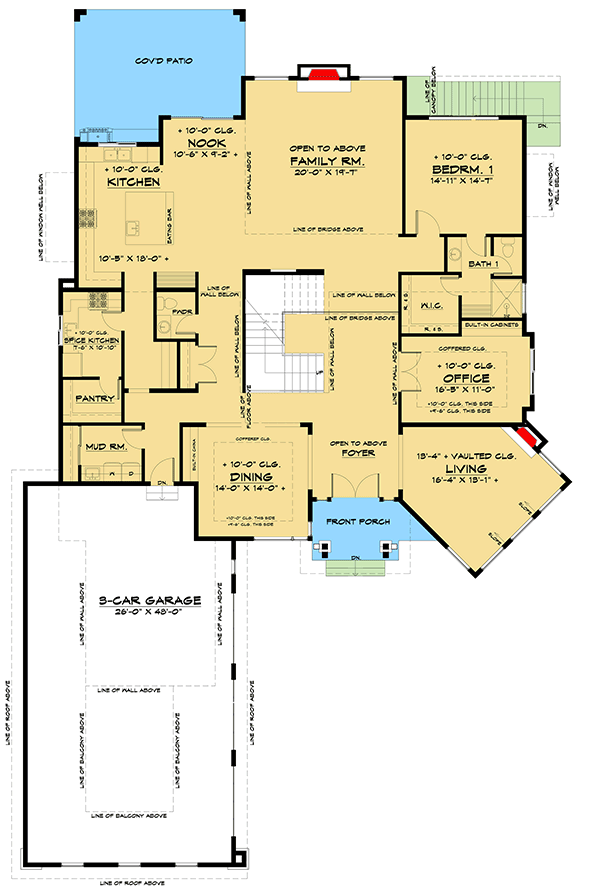

  • The formal living and dining rooms border the foyer and are filled with natural light. A nearby home office is perfect for the work-at-home resident, and a bedroom on this level provides a private space for guests.
  • Enter from the 3-car garage to find a combined mud / laundry room to the left. Straight ahead, a shortcut to the kitchen, spice kitchen, and pantry eases the chore of unloading the groceries.

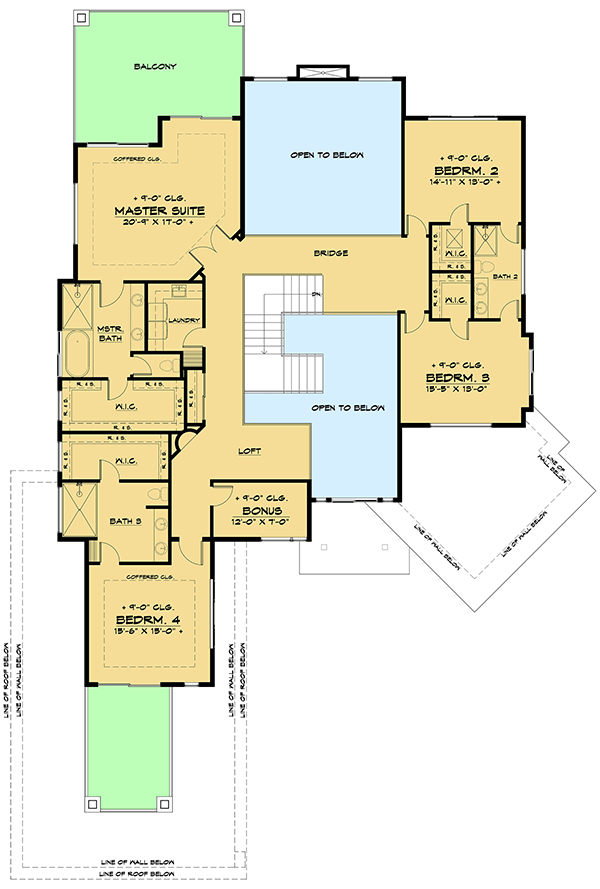

  • Upstairs, a bridge-style hallway connects the four bedrooms, including the master suite which features a private balcony, 5-fixture bath, and a walk-in closet. A bonus room (factored into the total living area) and laundry room can also be found on the second level.

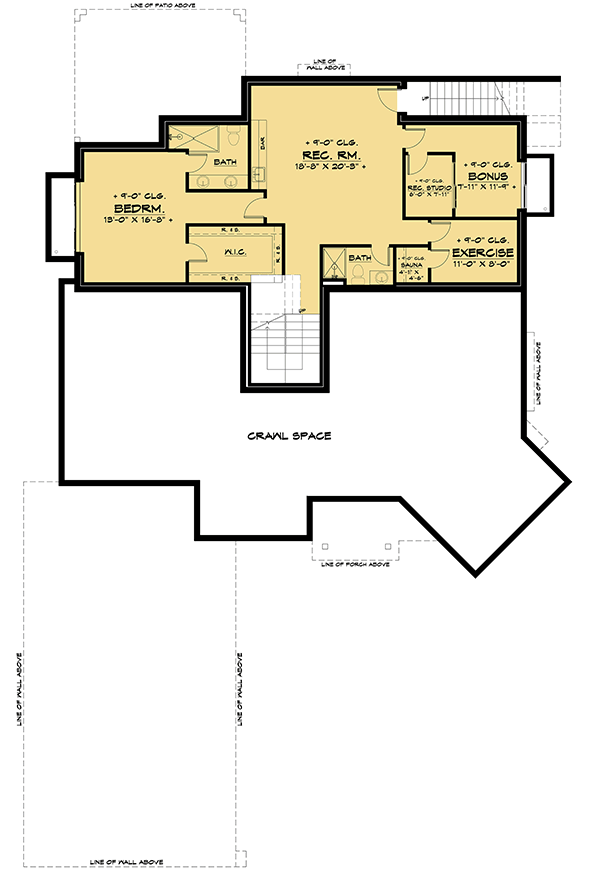

  • Bedroom 6 can be found on the lower level, along with a recreation and exercise room, full bath, and bonus room that could be used as a recording studio.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spacious Contemporary Home Plan with Home Office and Recording Studio

  • 6,790

    Heated s.f.

  • 6

    Beds

  • 6.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 6,790 sq. ft.
  • Lower Level: 1,225 sq. ft.
  • 1st Floor: 3,134 sq. ft.
  • 2nd Floor: 2,431 sq. ft.

Dimensions

  • Width: 69' 10"
  • Depth: 109' 1"
  • Max ridge height: 28' 11"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 6
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1275 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement, Daylight
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Spacious Contemporary Home Plan with Home Office and Recording Studio

  • 6,790

    Heated s.f.

  • 6

    Beds

  • 6.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Spacious Contemporary Home Plan with Home Office and Recording Studio

  • 6,790

    Heated s.f.

  • 6

    Beds

  • 6.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 6,790 sq. ft.
  • Lower Level: 1,225 sq. ft.
  • 1st Floor: 3,134 sq. ft.
  • 2nd Floor: 2,431 sq. ft.

Dimensions

  • Width: 69' 10"
  • Depth: 109' 1"
  • Max ridge height: 28' 11"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 6
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1275 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement, Daylight
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Truss
