Plan 88190SH
Spectacular View
Heated S.F.
1,659
Beds
3
Baths
2
Stories
1-2
What's Included
Plan Details
  • An expansive window wall across the great room of this house plan adds a spectacular view and accentuates the high ceiling.
  • The open kitchen shares an eating bar with the dining room and features a convenient "U" shape.
  • Sliding glass doors in the dining room lead to the deck.
  • Two family bedrooms sit to the back of the plan and share the use of a full bath.
  • The master suite provides a walk-in closet and private bath.
  • The loft on the upper level adds living or sleeping space.
  • Related Plans: Remove the loft with house plan 88119SH and 88128SH (on crawl space in reverse layout).
What's Included
  • Front perspective
  • Foundation plan
  • Fully dimensioned floor plans
  • Cross sections
  • Floor structural supports
  • Electrical plans
  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spectacular View

  • 1,659

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Floors

Floor Plan

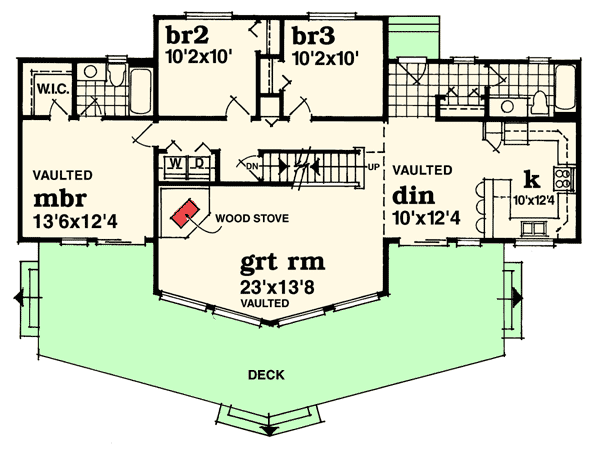

  • Main Level

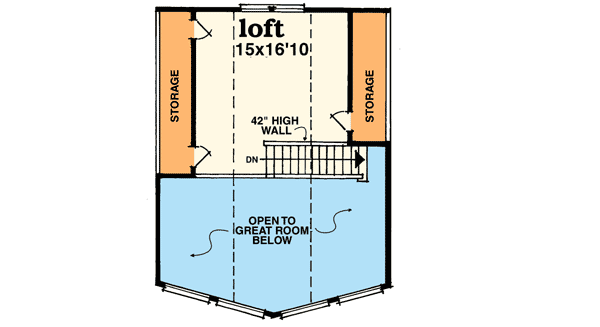

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,659 sq. ft.
  • 1st Floor: 1,375 sq. ft.
  • 2nd Floor: 284 sq. ft.

Dimensions

  • Width: 58' 0"
  • Depth: 32' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Stick and Truss
