Split-Level Contemporary

Plan 90255PD

  • 1,013

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 1

    Stories

  • 1

    Cars

  • Just the right size for empty-nesters or a couple starting out, this handsome Contemporary home has a split-level layout.
  • The big entry foyer is at ground level and a short flight of stairs brings you up to the main living area.
  • Here, the open layout combines the living room, dining room and kitchen.
  • All three rooms have views of the rear covered porch that is accessed through sliding glass doors.
  • The master bedroom is in back away from any street noise and both bedrooms share a large bathroom, making the home economical.

Each plan set includes the following:

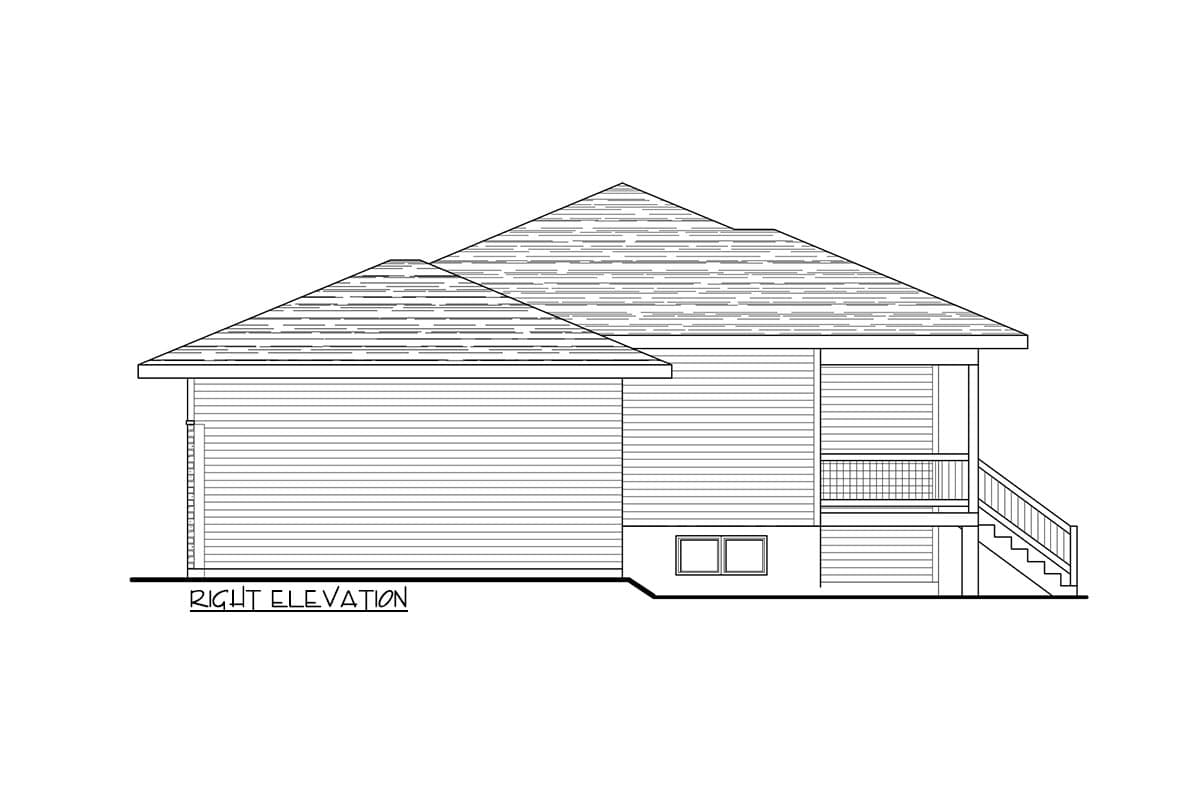

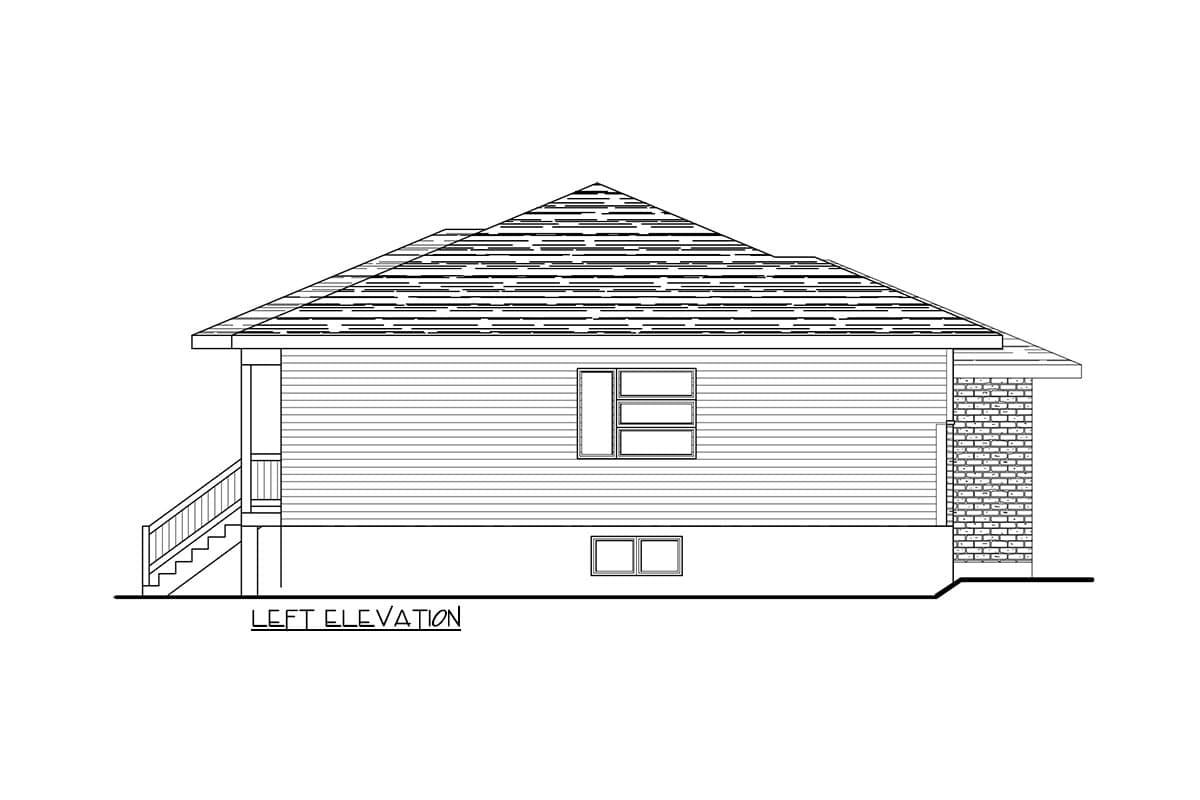

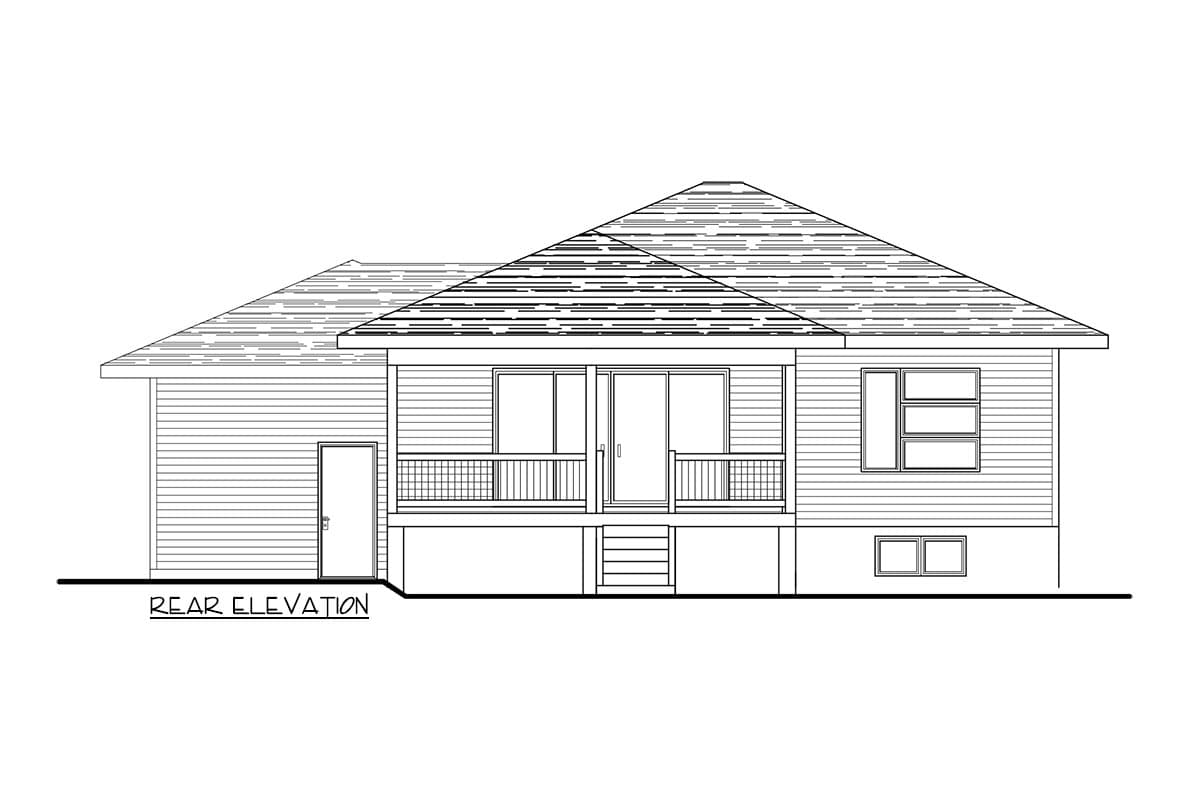

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

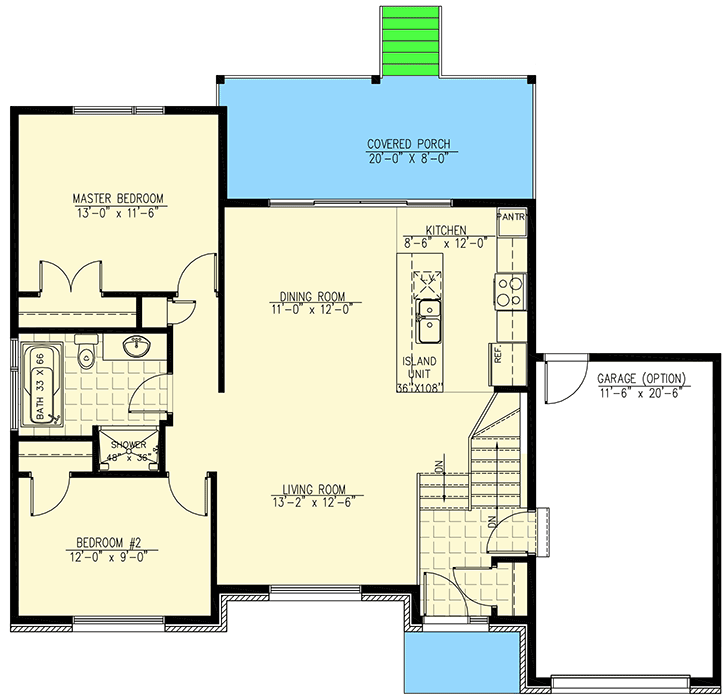

Split-Level Contemporary - 90255PD floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,013 sq. ft.
  • 1st Floor: 1,013 sq. ft.
  • Basement Unfinished: 1,013 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 0"
  • Depth: 38' 0"
  • Max ridge height: 20' 0"

Garage

  • Type: Attached
  • Area: 268 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Split-Level Contemporary

  • 1,013

    Heated s.f.

  • 2

    Beds

  • 1.5

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $892
  • 8 Sets $935
  • PDF - Single-Build $1,273
  • 4 Sets + PDF $1,423
  • CAD + PDF - Single Build $1,897
  • View all purchase option online

About This Plan

  • Just the right size for empty-nesters or a couple starting out, this handsome Contemporary home has a split-level layout.
  • The big entry foyer is at ground level and a short flight of stairs brings you up to the main living area.
  • Here, the open layout combines the living room, dining room and kitchen.
  • All three rooms have views of the rear covered porch that is accessed through sliding glass doors.
  • The master bedroom is in back away from any street noise and both bedrooms share a large bathroom, making the home economical.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,013 sq. ft.
  • 1st Floor: 1,013 sq. ft.
  • Basement Unfinished: 1,013 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 46' 0"
  • Depth: 38' 0"
  • Max ridge height: 20' 0"

Garage

  • Type: Attached
  • Area: 268 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
