Plan 21771DR

Split Level Duplex

Heated S.F.
3,000
Units
2
Width
Depth

Floor Plan

Plan 21771DR

Main Level
Main Level
Lower Level
Lower Level

Plan 21771DR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

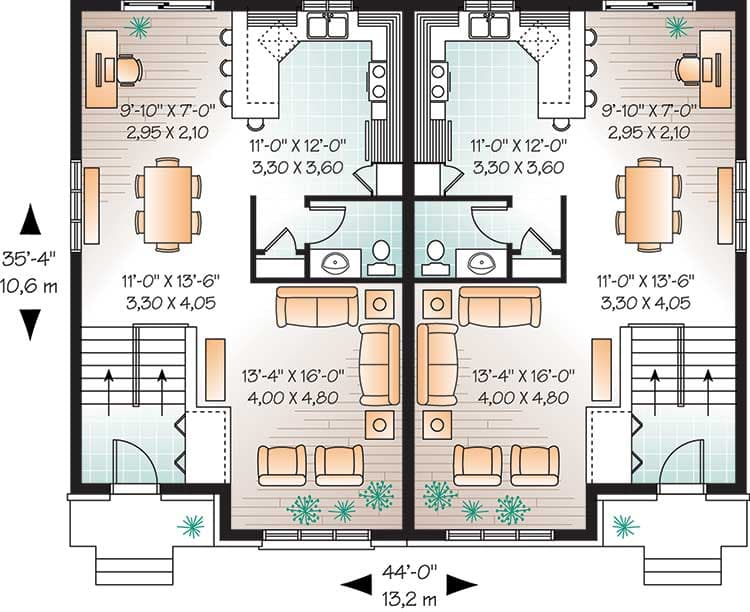

Plan 21771DR: Split Level Duplex - Floor Plan - Main Level

Lower Level

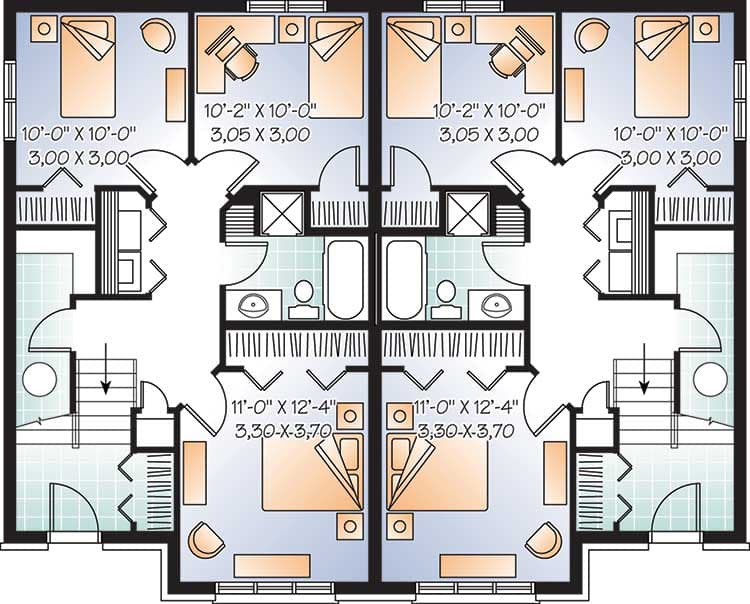

Plan 21771DR: Split Level Duplex - Floor Plan - Lower Level

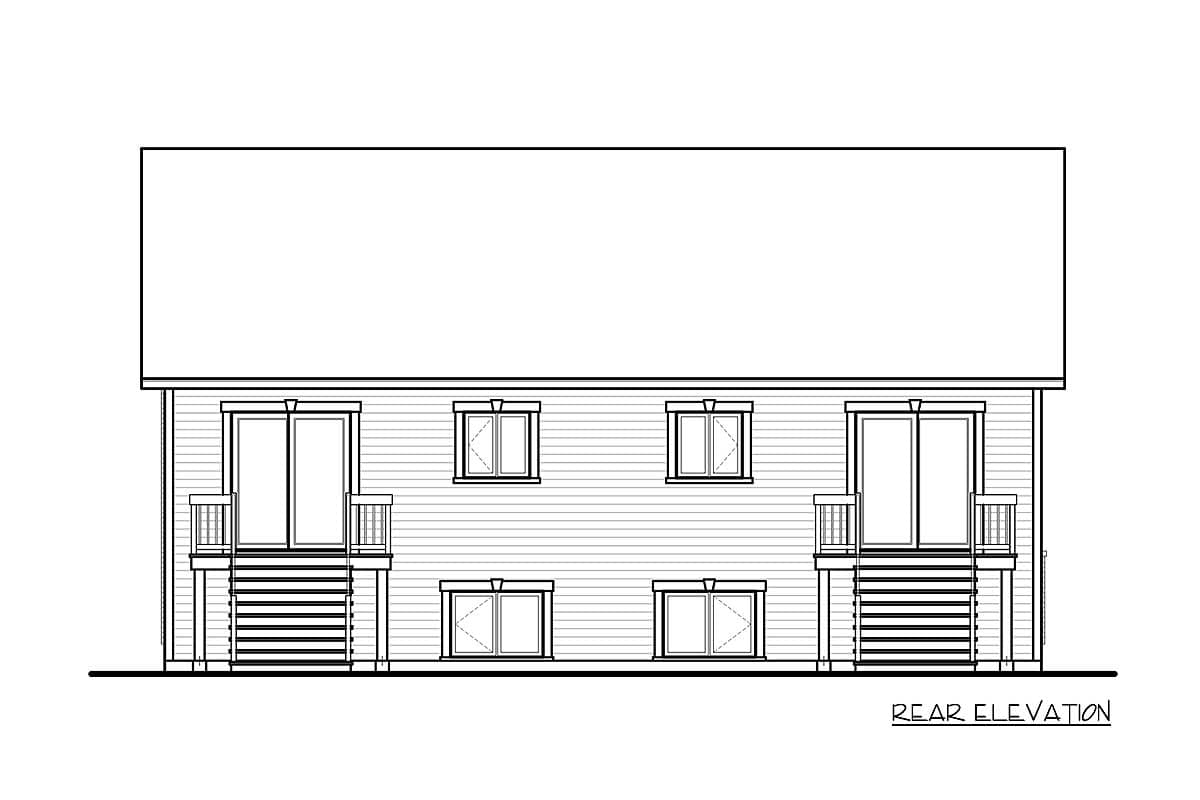

Plan Details

  • Only 44' wide, this handsome duplex house plan fits well on a narrow lot.
  • Each unit is a comfortable 1,500 square feet spread out over two stories.
  • The split level layout starts you off with a foyer that can go up to the main living area or down to the bedrooms on the lower level.
  • An open layout makes the home feel larger.
Unit A
Heated Area
1,500Sq. Ft.
750 Sq. Ft. LL
750 Sq. Ft. 1st
Beds
3Beds
Baths
1Full Bath
1Half Bath
Dimensions
22'width
35' 4"depth
25' 9"height
Unit B
Heated Area
1,500Sq. Ft.
750 Sq. Ft. LL
750 Sq. Ft. 1st
Beds
3Beds
Baths
1Full Bath
1Half Bath
Dimensions
22'width
35' 4"depth
25' 9"height

What's Included

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,000 sq. ft.

Lower Level

1,500 sq. ft.

1st Floor

1,500 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

35' 4"

Max Ridge Height

25' 9"

Ceiling Heights

First Floor

8'

Second Floor

8'

Special Features

Bedrooms - Clustered

Master Suite - Upstairs

Split Level

Plan Collections

Canadian House Plans

Metric

Split Level House Plans

Square Footage Breakdown

Total Heated Area

3,000 sq. ft.

Lower Level

1,500 sq. ft.

1st Floor

1,500 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

35' 4"

Max Ridge Height

25' 9"

Ceiling Heights

First Floor

8'

Second Floor

8'

Special Features

Bedrooms - Clustered

Master Suite - Upstairs

Split Level

Plan Collections

Canadian House Plans

Metric

Split Level House Plans
