Plan 90261PD

Split-Level Home with Open Layout

Heated S.F.
1,277
Beds
2
Baths
1
Stories
1
Cars
2

Floor Plan

Plan 90261PD

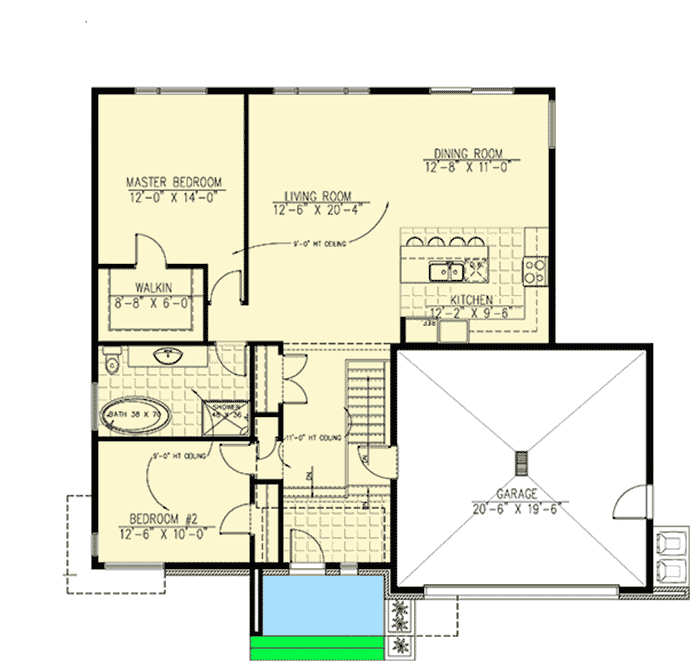

Main Level
Main Level

Plan 90261PD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 90261PD: Split-Level Home with Open Layout - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern

Plan Details

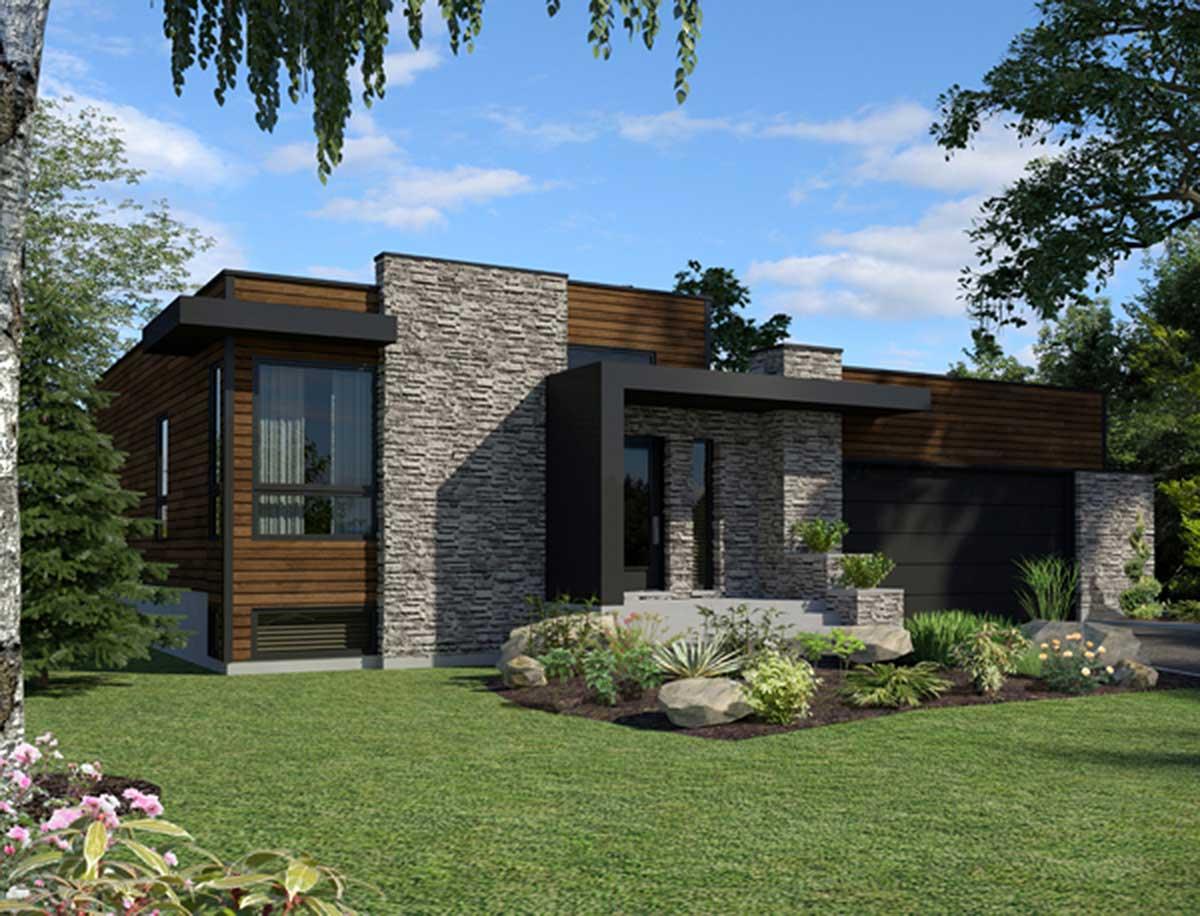

  • With clean, straight lines and a stunning exterior of stone and siding, this Contemporary split-level home is a vision of modern living.
  • The sunken entry foyer leads up to the main living area that is all open concept, giving you wonderful views.
  • Both bedrooms share a large bathroom that has both a tub and a shower.
  • An open rail staircase leads down to the basement.

What's Included

Please note this plan is designed to the National Building Code of Canada.

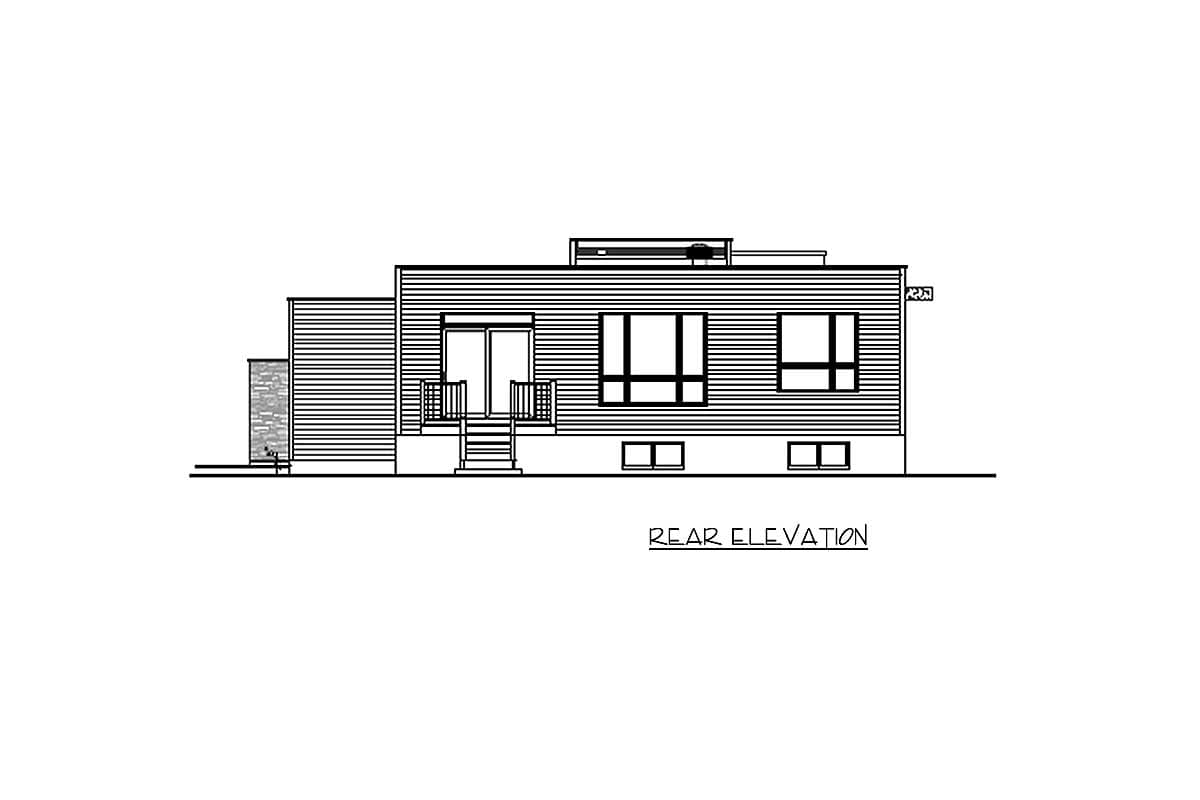

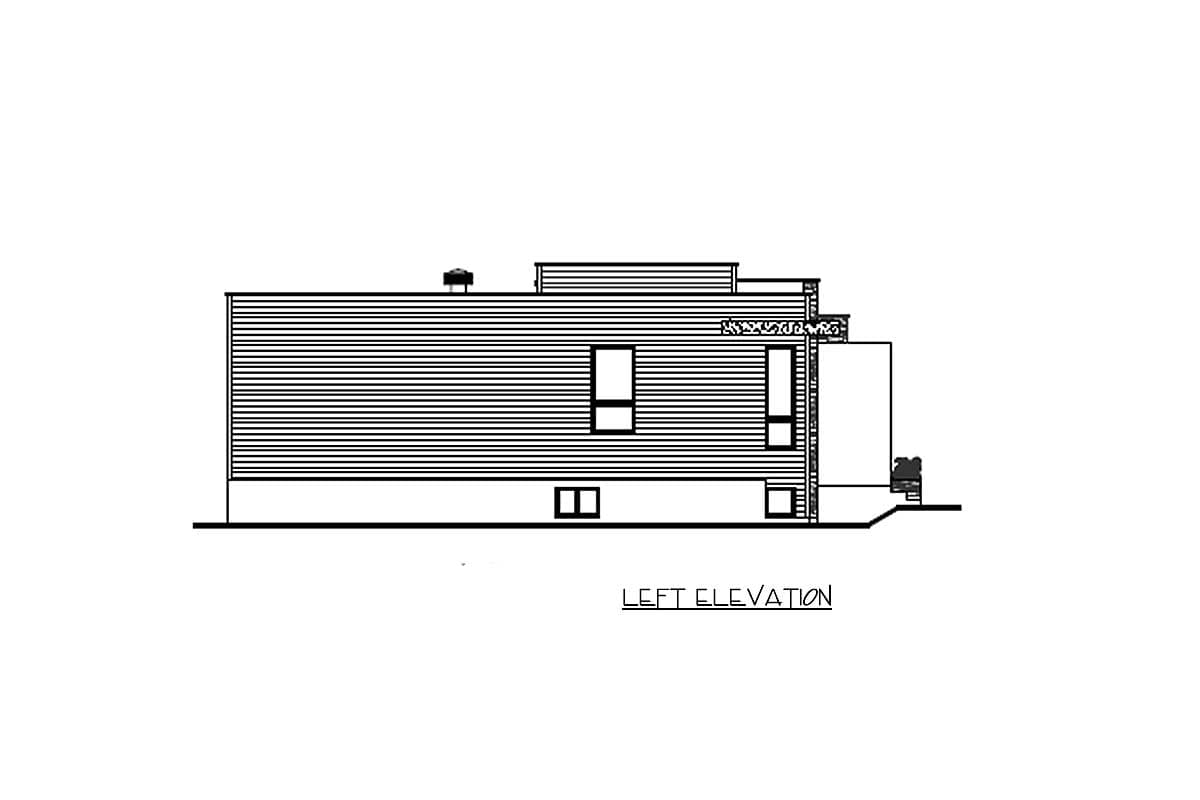

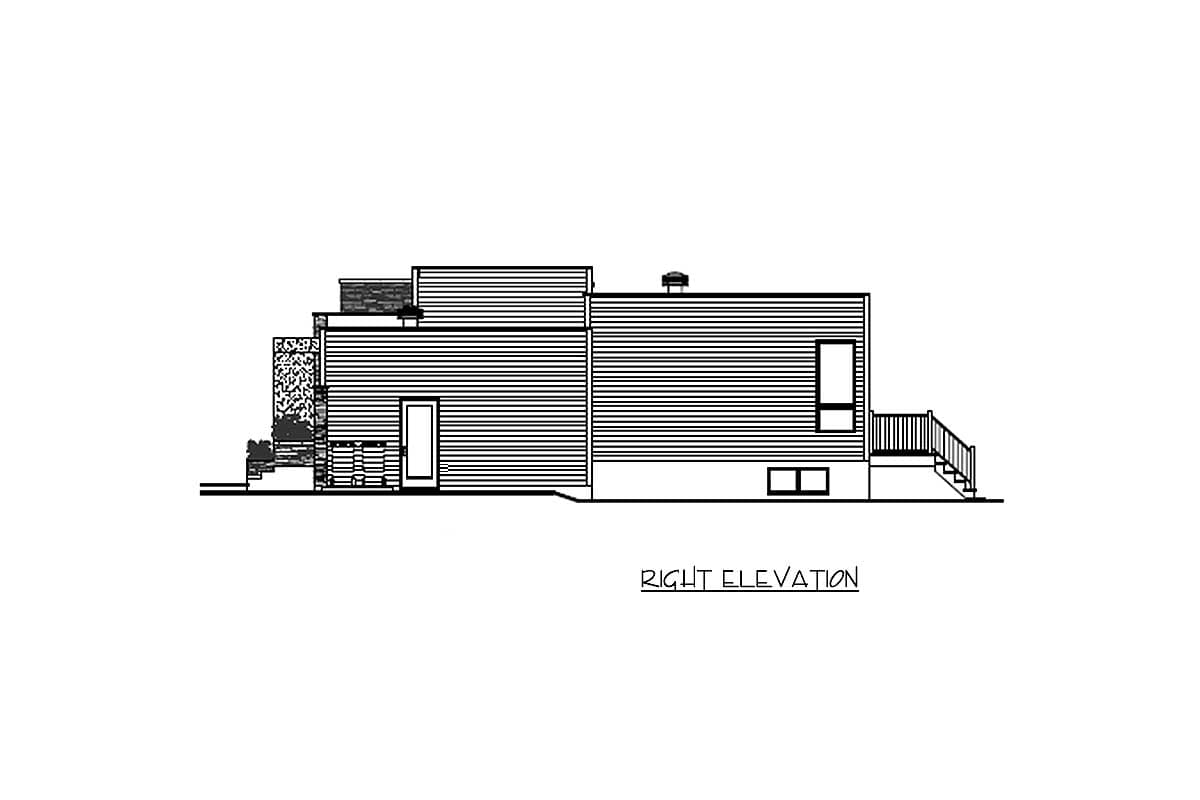

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,277 sq. ft.

1st Floor

1,277 sq. ft.

Basement Unfinished

1,277 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

42' 0"

Max Ridge Height

17' 4"

Garage

Type

Attached

Area

437 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Master Suite - 1st Floor

Split Level

Plan Collections

Canadian House Plans

Metric

Split Level House Plans
