Plan 22467DR
Split Level Modern House Plan
Heated S.F.
2,128
Beds
3
Baths
1 - 2
Stories
1
Cars
1
What's Included
Plan Details
  • A large walk-in coat closet off the foyer of this split level Modern house plan gives you lots of room for storage.
  • From the foyer, you can either walk downstairs or upstairs to the main living area.
  • Here, the open floor plan expands the space making it feel much larger.
  • Sliding glass doors in the dining area take you out to a covered deck where there's plenty of room for table and chairs.
  • Two bedrooms on this floor share a hall bathroom.
  • On the lower level, another bedroom adds more room.
  • You also get a laundry room and a huge family room plus a one car drive under garage.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split Level Modern House Plan

  • 2,128

    Heated s.f.

  • 3

    Beds

  • 1 - 2

    Baths

  • 1

    Floors

  • 1

    Car garage

Floor Plan

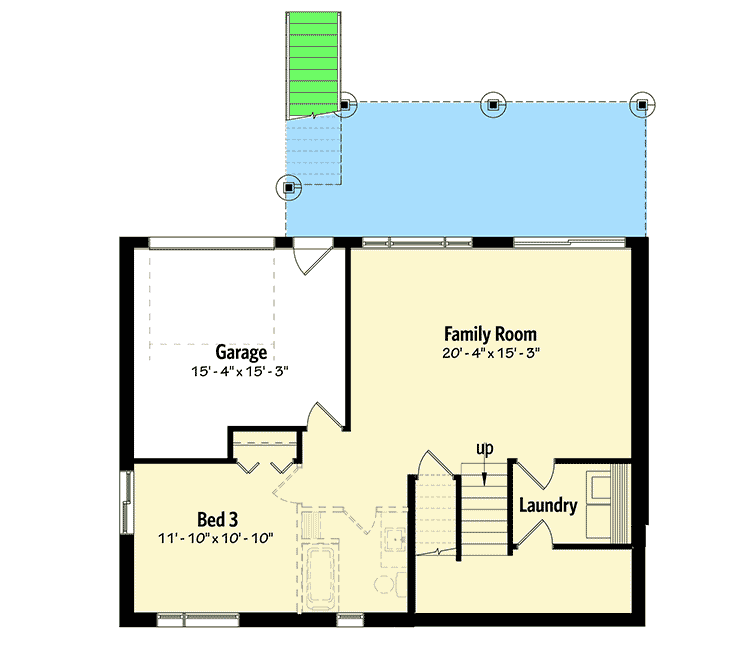

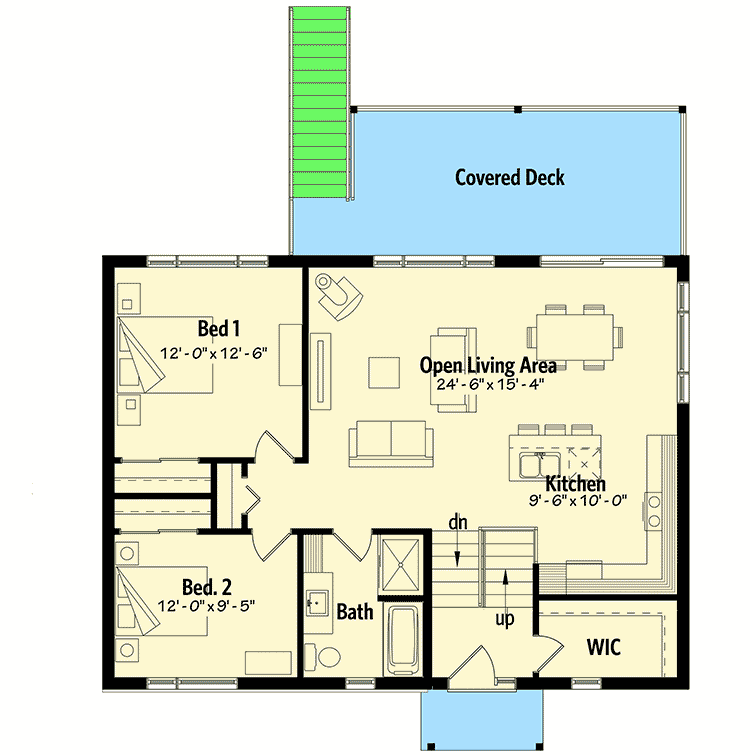

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,128 sq. ft.
  • Lower Level: 1,064 sq. ft.
  • 1st Floor: 1,064 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 28' 0"
  • Max ridge height: 19' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1 or 2

Garage

  • Type: Drive Under
  • Count: 1 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 6" First Floor / 13' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Truss
