Split-Level Prairie Style Home

Plan 90257PD

  • 1,684

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • 1

    Cars

  • Enter this beautiful Prairie home on the ground level where the foyer and bedroom 2 are.
  • A short three steps up will bring you to the main living area that is all open concept.
  • An island and walk-in pantry score high with homeowners and you have both with this plan.
  • The front-facing master bedroom has a large walk-in closet.
  • The second floor holds the big family room and the third bedroom plus a full bathroom.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

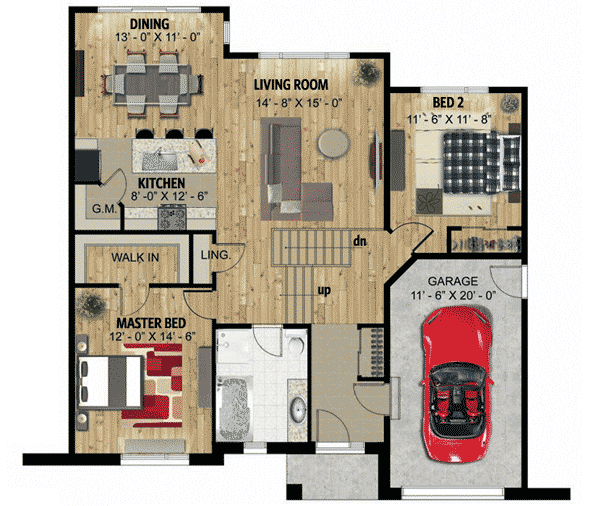

Split-Level Prairie Style Home - 90257PD floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

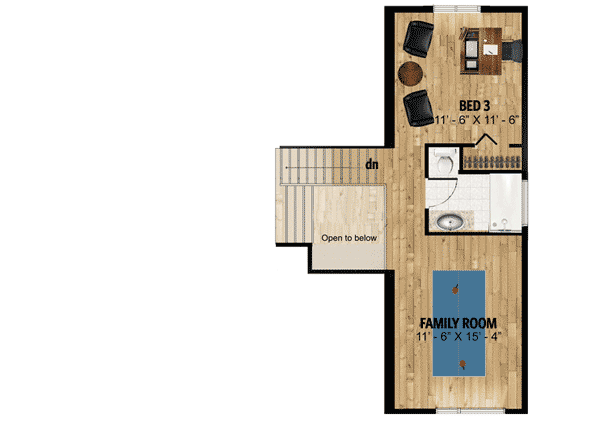

Split-Level Prairie Style Home - 90257PD floor plan - 2nd Floor

Split-Level Prairie Style Home

  • 1,684

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,684 sq. ft.
  • 1st Floor: 1,232 sq. ft.
  • 2nd Floor: 452 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 43' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 253 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
