Striking 4-Bed Craftsman House Plan With Wine Room

Plan 23728JD

  • 4,966

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 2

    Stories

  • 3

    Cars

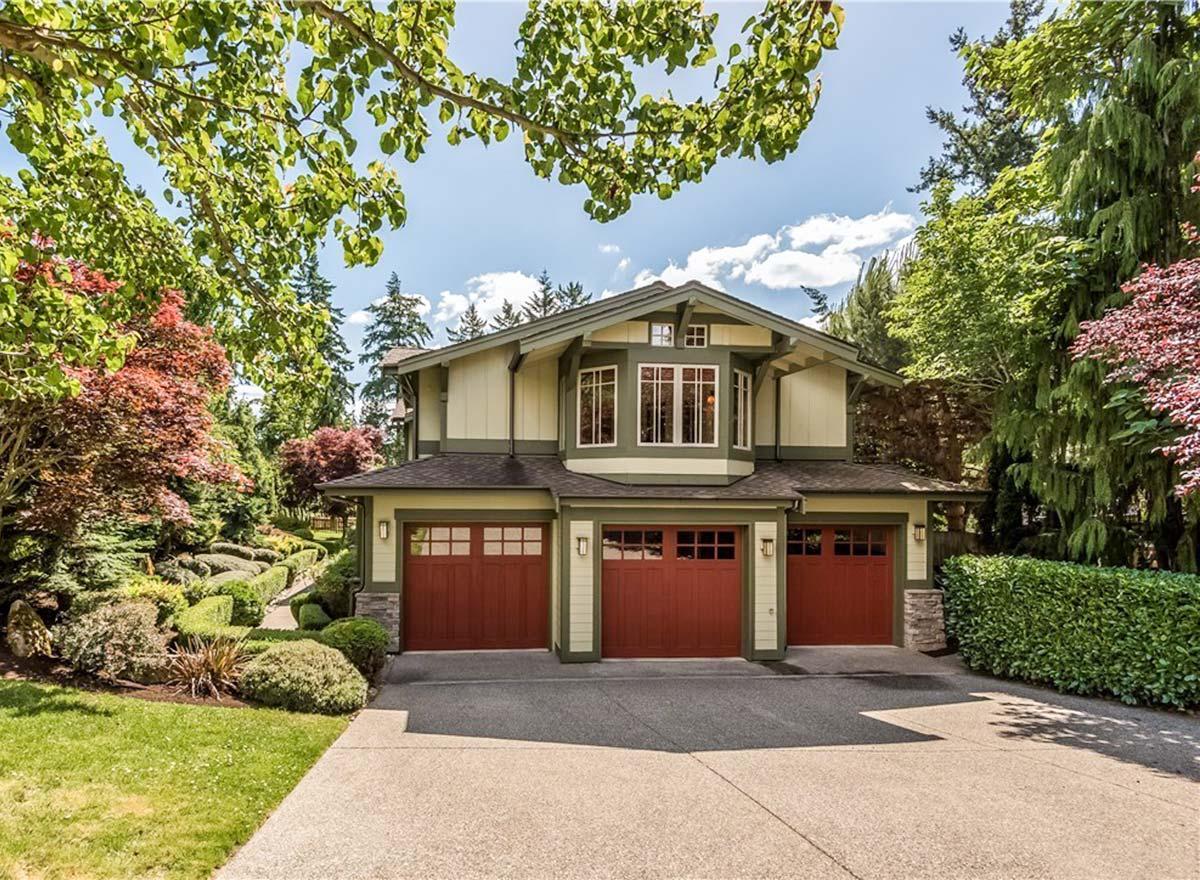

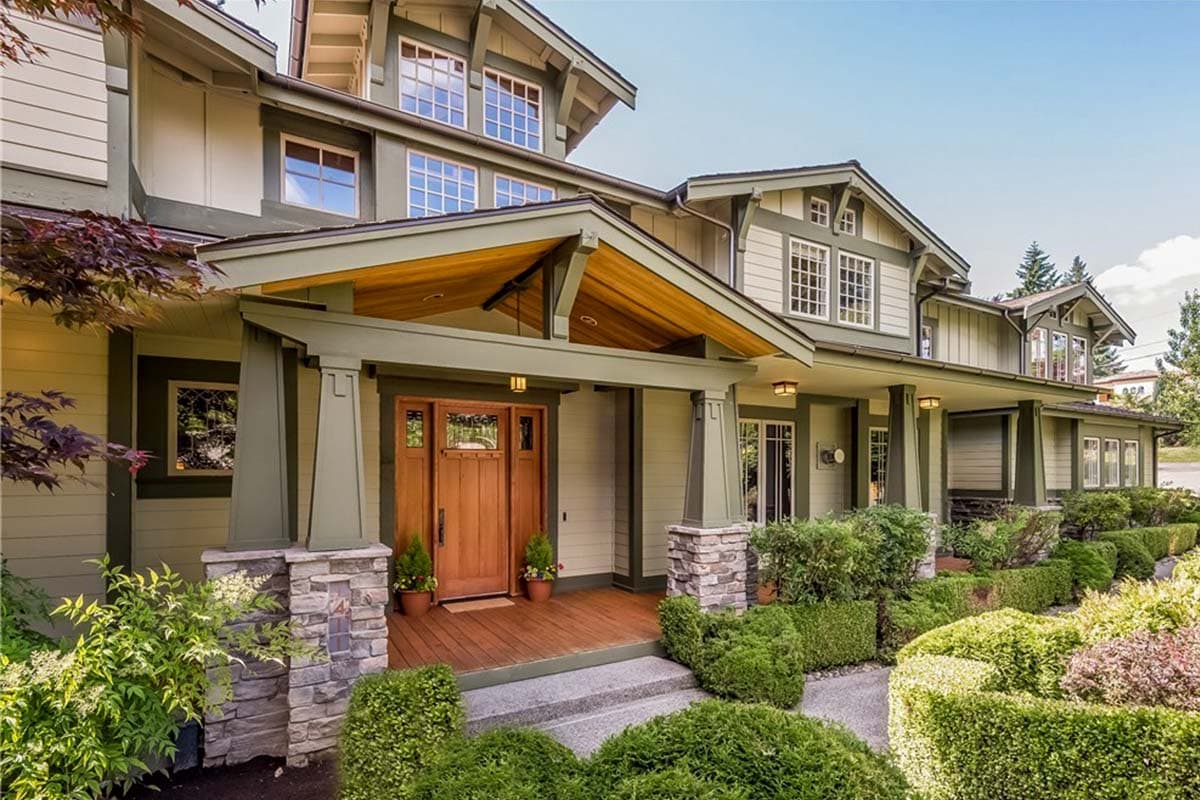

  • Deep eaves with decorative brackets and exposed rafters gives this 4-bed Craftsman house plan great curb appeal
  • A grand front porch wraps around the home and offers great outdoor living space.
  • The home has a broad footprint and is loaded with exciting features like the built-in banquette set in a bay in the kitchen, a craft room, an exercise room and both a home office and a library - both with built-ins.

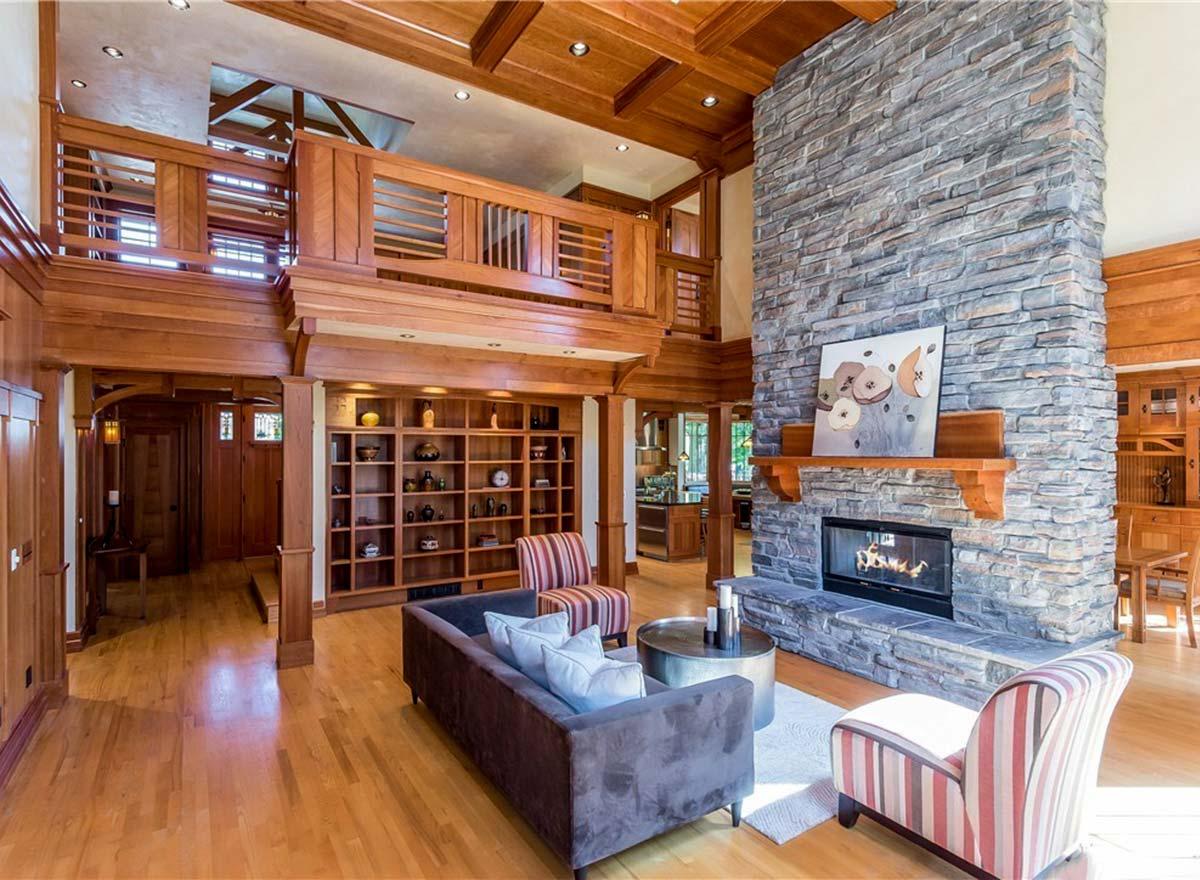

  • Interior columns are used instead of walls so you have a huge open floor plan where views sweep around from room to room.
  • Upstairs, there's a large play room where the kid's toys can be kept out of view.

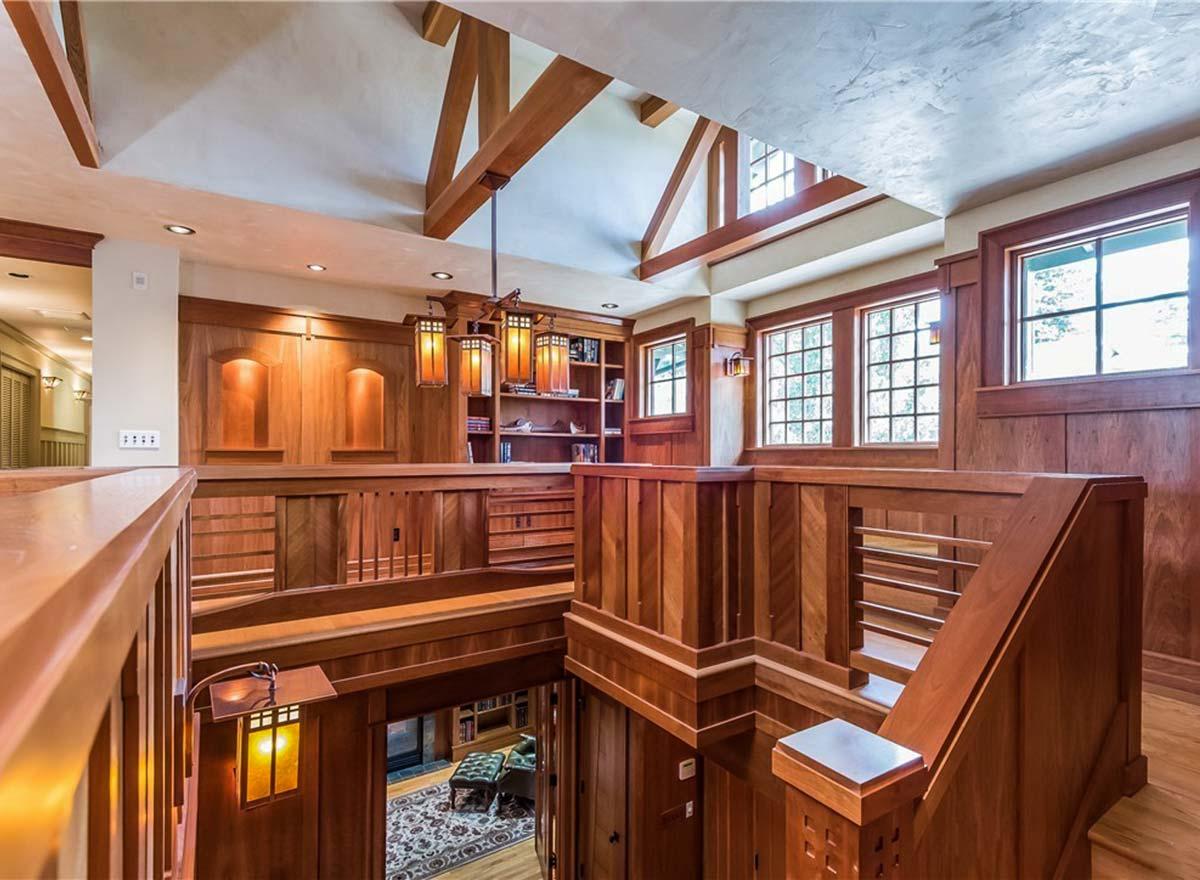

  • A cat walk balcony bridge with open railing separates the master suite from the other bedrooms on the second floor.

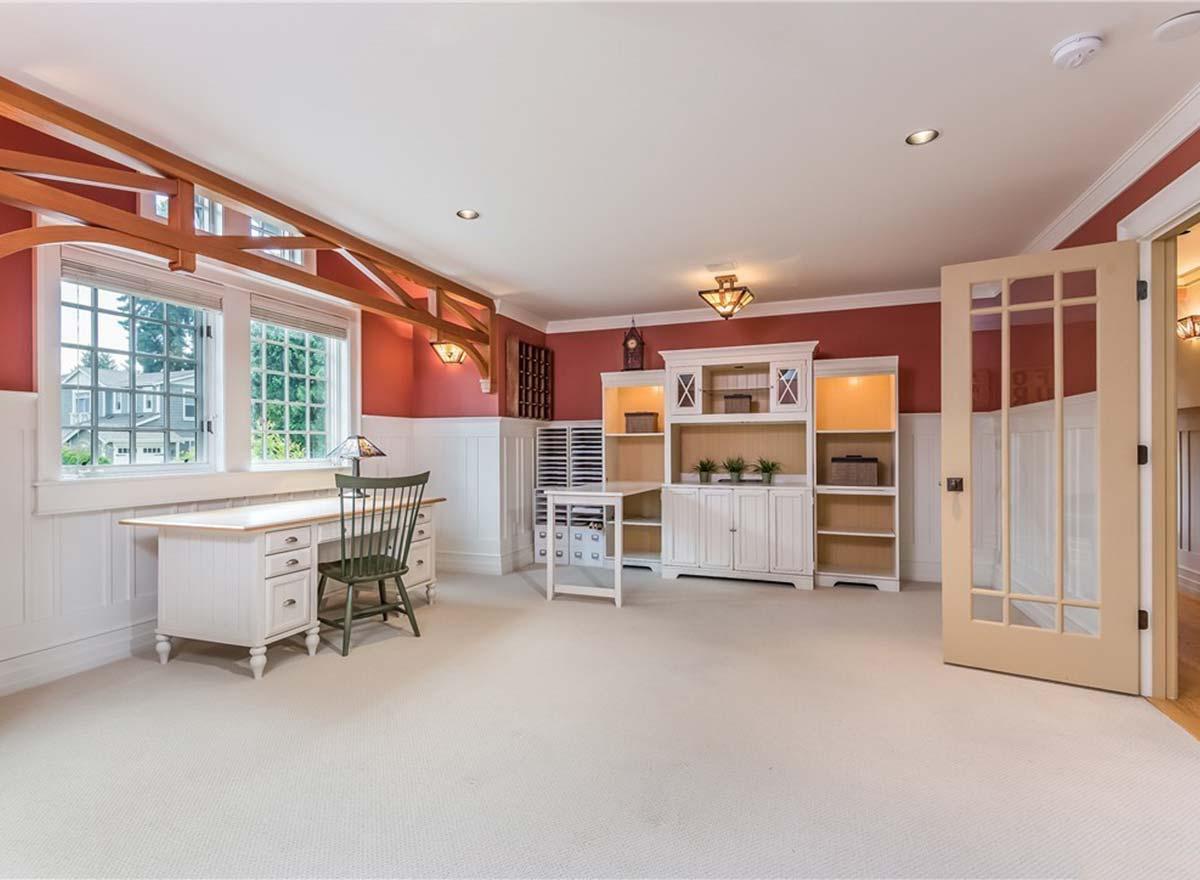

  • The huge craft room can become an extra bedroom or a media room.

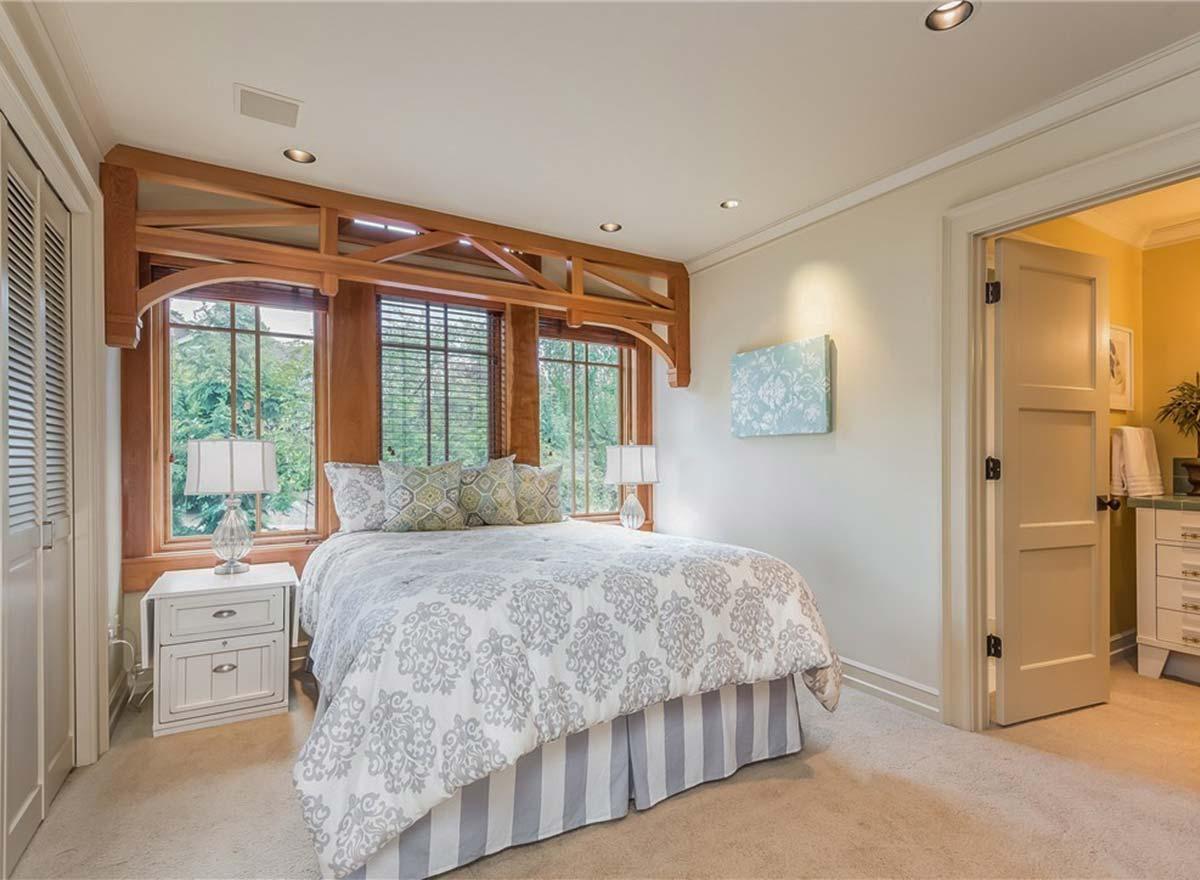

  • Guests will love the two room suite with its bayed sitting area brightened by five windows.There's even an giant exercise room so you never have to go to the gym.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

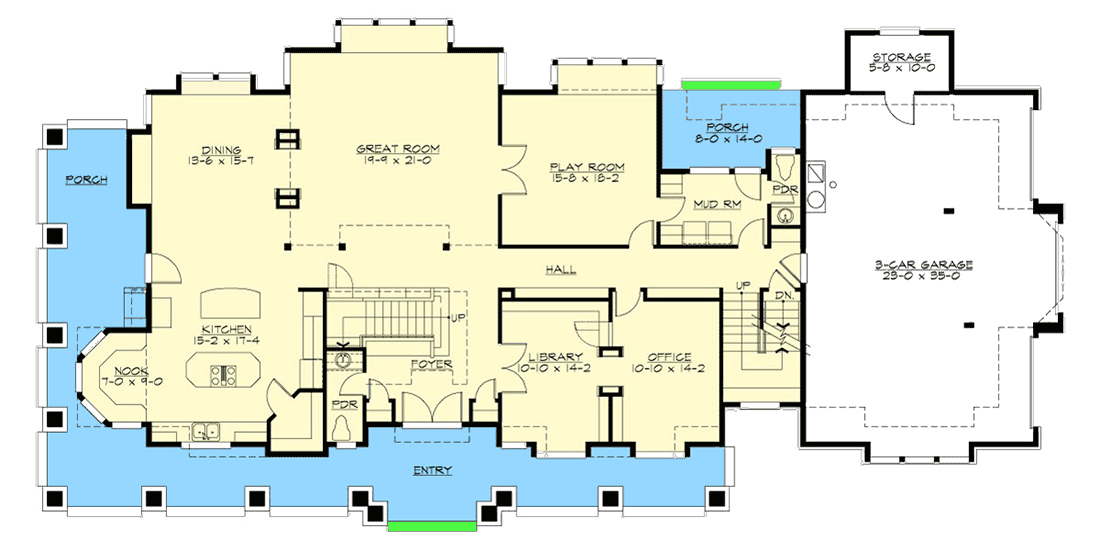

Striking 4-Bed Craftsman House Plan With Wine Room - 23728JD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

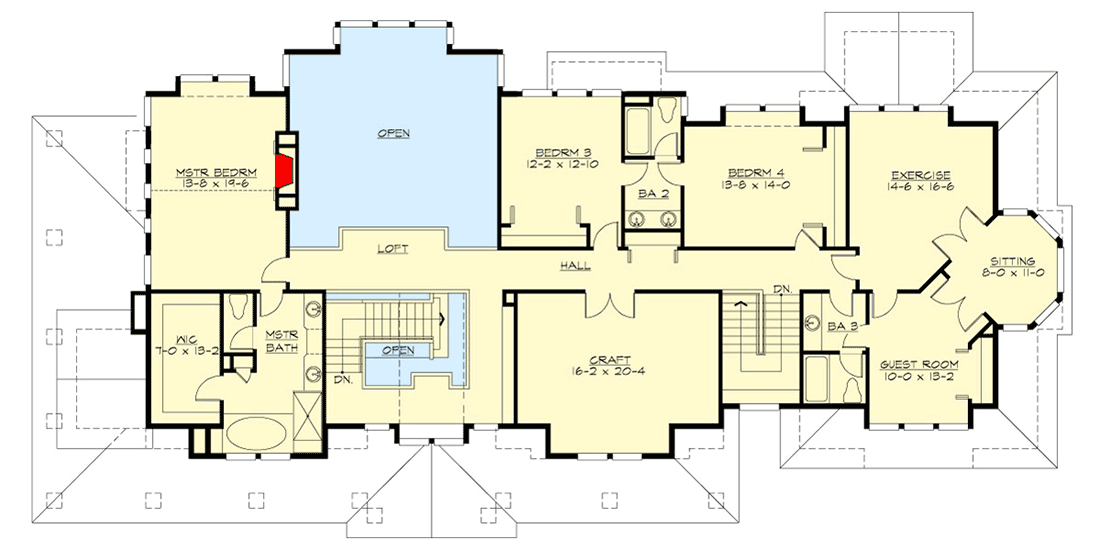

Striking 4-Bed Craftsman House Plan With Wine Room - 23728JD floor plan - 2nd Floor

Optional Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Striking 4-Bed Craftsman House Plan With Wine Room - 23728JD floor plan - Optional Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,966 sq. ft.
  • 1st Floor: 2,483 sq. ft.
  • 2nd Floor: 2,483 sq. ft.
  • Porch, Combined: 785 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Combo Basement-Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 102' 6"
  • Depth: 50' 6"
  • Max ridge height: 24' 2"

Garage

  • Type: Attached
  • Area: 965 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Master Bedroom Vaulted
Great Room Second Story

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Striking 4-Bed Craftsman House Plan With Wine Room

  • 4,966

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,700
  • CAD + PDF - Unlimited Build $4,500
  • View all purchase option online

About This Plan

  • Deep eaves with decorative brackets and exposed rafters gives this 4-bed Craftsman house plan great curb appeal
  • A grand front porch wraps around the home and offers great outdoor living space.
  • The home has a broad footprint and is loaded with exciting features like the built-in banquette set in a bay in the kitchen, a craft room, an exercise room and both a home office and a library - both with built-ins.
  • Interior columns are used instead of walls so you have a huge open floor plan where views sweep around from room to room.
  • Upstairs, there's a large play room where the kid's toys can be kept out of view.
  • A cat walk balcony bridge with open railing separates the master suite from the other bedrooms on the second floor.
  • The huge craft room can become an extra bedroom or a media room.
  • Guests will love the two room suite with its bayed sitting area brightened by five windows.There's even an giant exercise room so you never have to go to the gym.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,966 sq. ft.
  • 1st Floor: 2,483 sq. ft.
  • 2nd Floor: 2,483 sq. ft.
  • Porch, Combined: 785 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Combo Basement-Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 102' 6"
  • Depth: 50' 6"
  • Max ridge height: 24' 2"

Garage

  • Type: Attached
  • Area: 965 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Stick And Truss
