Stylish Contemporary House Plan

Plan 90302PD

This plan plants 3 trees

1,622
Heated s.f.
3
Beds
1.5
Baths
2
Stories
1
Cars

Wide pieces of wood frame the windows in the living room and master bedroom of this Contemporary house plan, giving it an edgy look.
Ony 26' wide, the home nevertheless feel large inside thanks to the open layout.
You can seat four people at the kitchen island for casual dining.
Step out onto the rear deck through sliding glass doors in the dining room.
The top floor holds the bedrooms plus a laundry closet.
Behind the drive-under garage, there is room for expansion.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

Elevations
Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
Main floor plan w/ structure for the roof above, electrical layout
Building section
Construction details

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

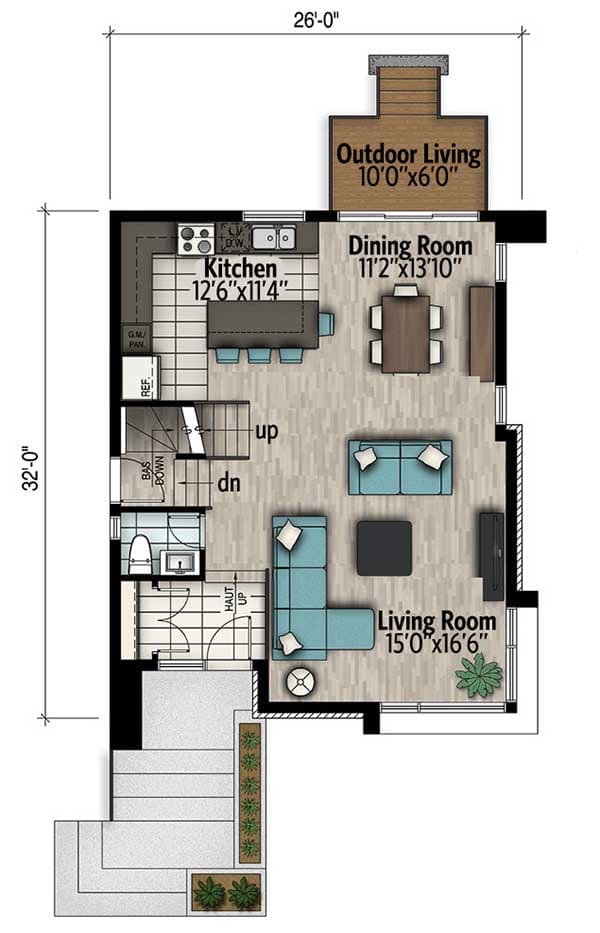

Stylish Contemporary House Plan - 90302PD floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

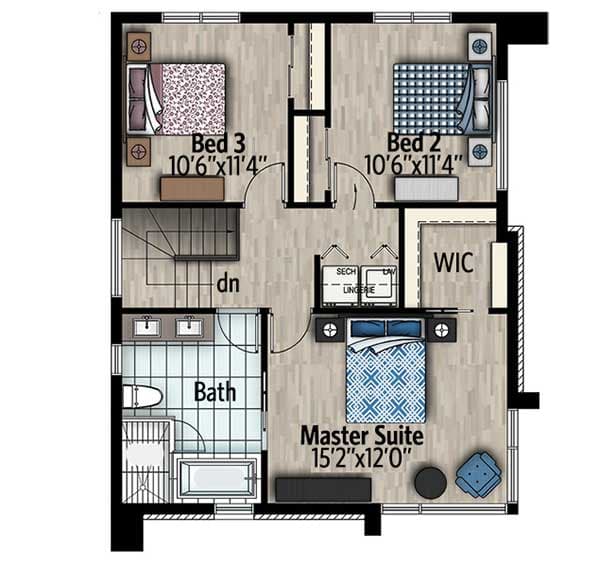

Stylish Contemporary House Plan - 90302PD floor plan - 2nd Floor

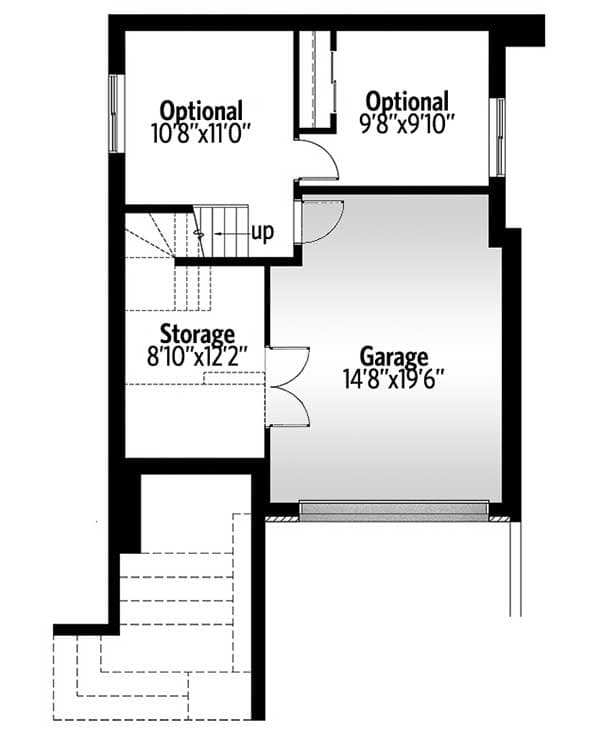

Basement

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Stylish Contemporary House Plan - 90302PD floor plan - Basement

Plan details

Square Footage Breakdown

Total Heated Area: 1,622 sq. ft.
Lower Level: 489 sq. ft.
1st Floor: 800 sq. ft.
2nd Floor: 822 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 1
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 26' 0"
Depth: 32' 0"
Max ridge height: 27' 6"

Garage

Type: Drive Under
Area: 317 sq. ft.
Count: 1 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof Details
