Plan 5912ND Thoughtful Amenities

2,810 3-4 3 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Thoughtful Amenities

Plan 5912ND

  • 2,810

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

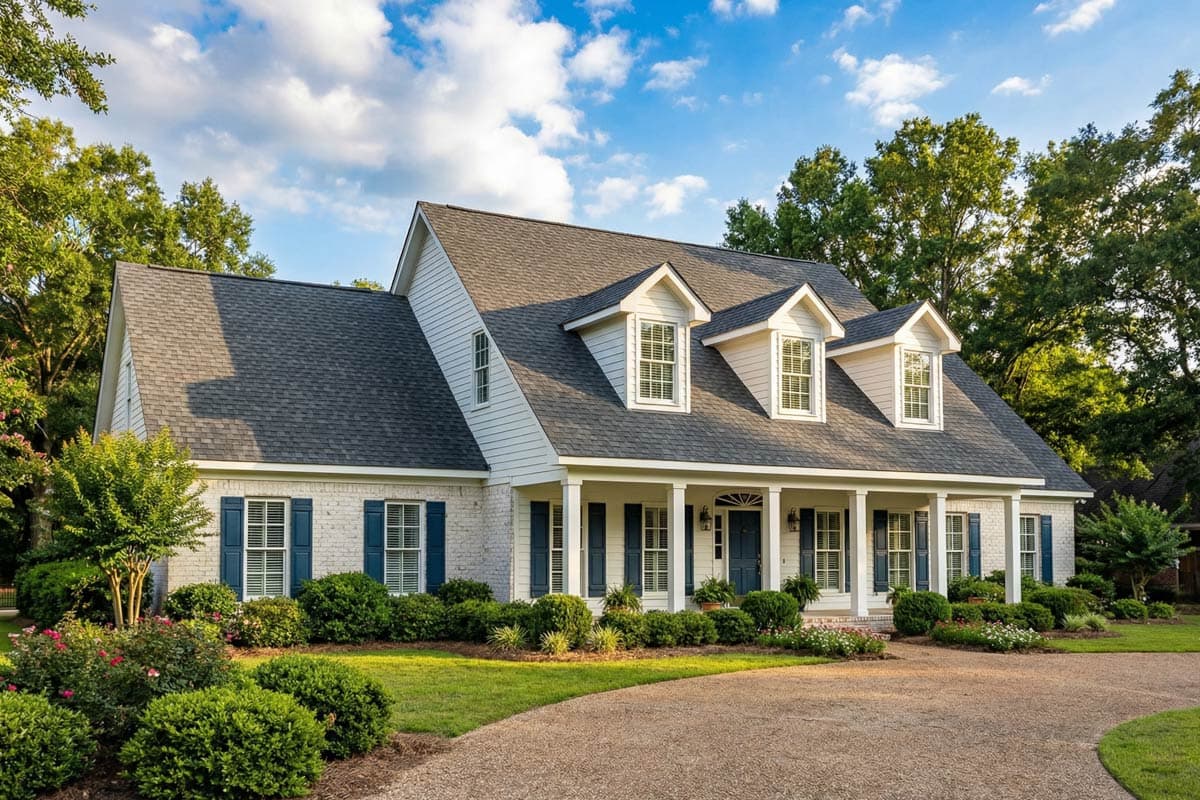

  • A long front porch with six boxed columns graces the exterior of this house plan. Inside, the foyer rises for two stories.
  • This home plan is filled with thoughtful touches such as two gas fireplaces bordered by media centers, an upstairs computer alcove and a full bath accessed from the study, guest room or fourth bedroom off the foyer.
  • The oversized kitchen, featuring a pantry, built-in desk and food preparation island, is centrally placed to serve the formal dining room, breakfast room, hearth room and great room.
  • Sited in its own wing, the master suite includes twin walk-in closets and a glassed-in shower with seat. The upstairs bedrooms contain window seats within their dormers.

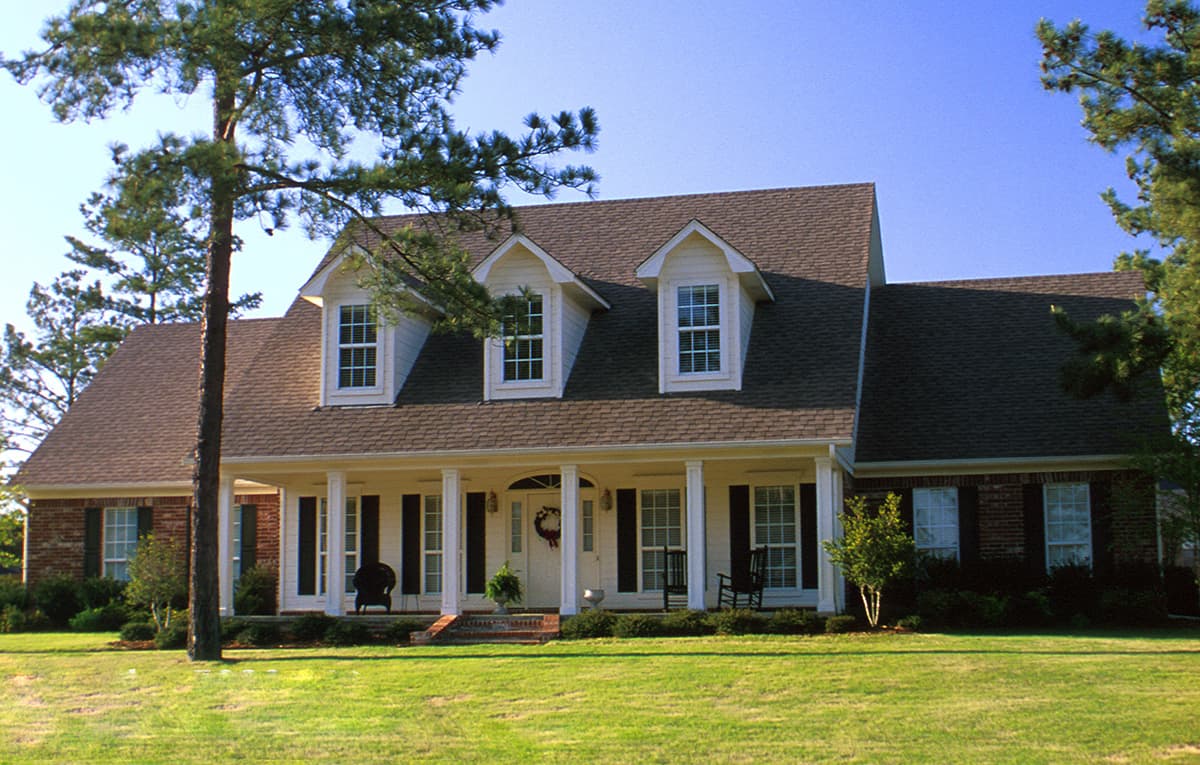

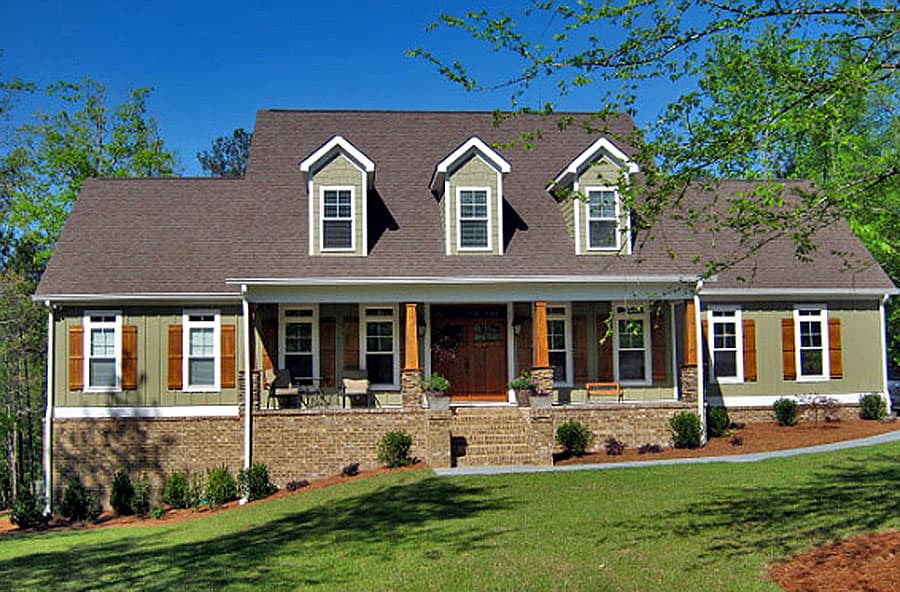

  • Related House Plans: Get alternate versions with house plans 5901ND, 59377ND, 59563ND and 5994ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

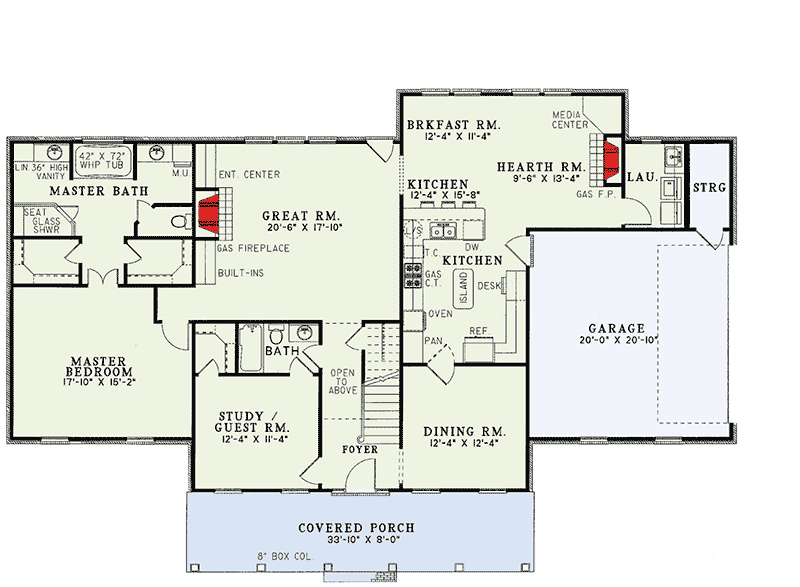

Thoughtful Amenities - 5912ND floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

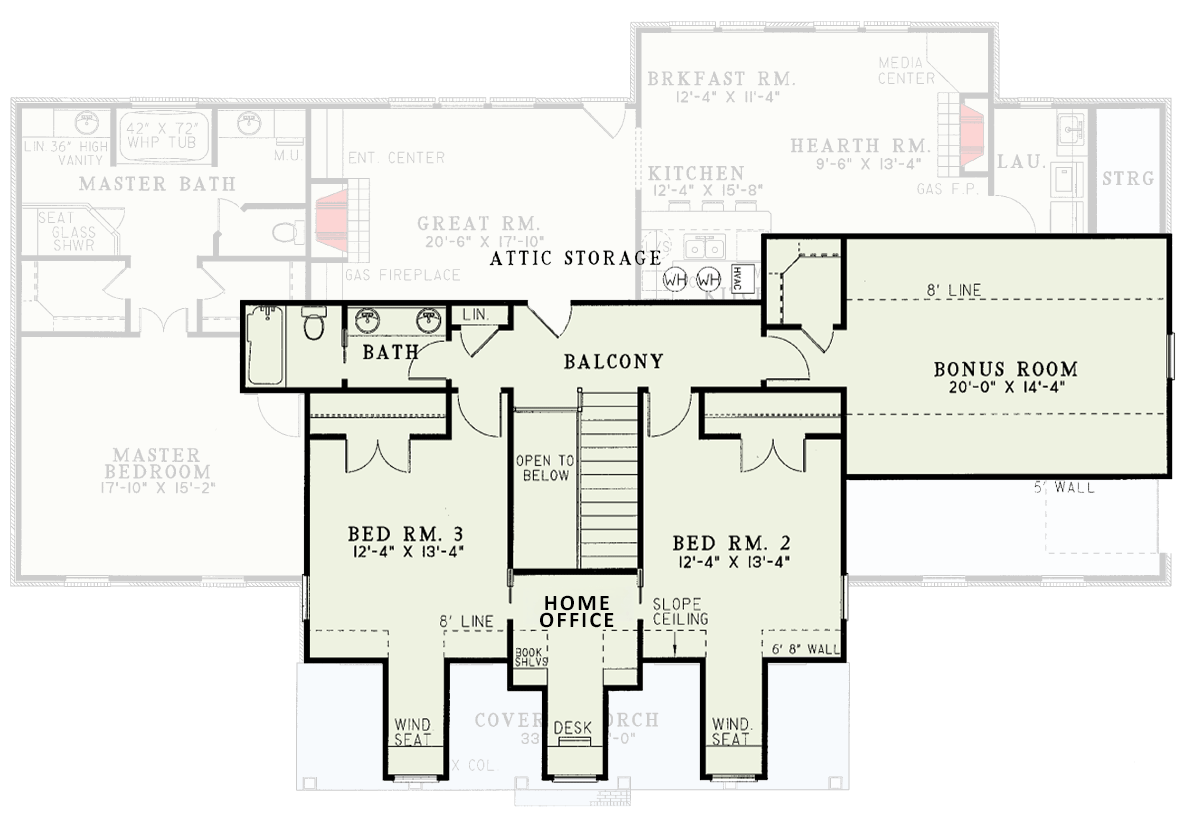

Thoughtful Amenities - 5912ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,810 sq. ft.
  • 1st Floor: 2,008 sq. ft.
  • 2nd Floor: 802 sq. ft.
  • Porch, Front: 325 sq. ft.
  • Bonus: 305 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 72' 4"
  • Depth: 48' 4"
  • Max ridge height: 27' 6"

Garage

  • Type: Attached
  • Area: 834 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Thoughtful Amenities

  • 2,810

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,100
  • 5 Sets $1,200
  • 5 Sets + PDF $1,450
  • PDF - Unlimited Build $1,800
  • CAD Unlimited + PDF $2,200
  • View all purchase option online

About This Plan

  • A long front porch with six boxed columns graces the exterior of this house plan. Inside, the foyer rises for two stories.
  • This home plan is filled with thoughtful touches such as two gas fireplaces bordered by media centers, an upstairs computer alcove and a full bath accessed from the study, guest room or fourth bedroom off the foyer.
  • The oversized kitchen, featuring a pantry, built-in desk and food preparation island, is centrally placed to serve the formal dining room, breakfast room, hearth room and great room.
  • Sited in its own wing, the master suite includes twin walk-in closets and a glassed-in shower with seat. The upstairs bedrooms contain window seats within their dormers.
  • Related House Plans: Get alternate versions with house plans 5901ND, 59377ND, 59563ND and 5994ND.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,810 sq. ft.
  • 1st Floor: 2,008 sq. ft.
  • 2nd Floor: 802 sq. ft.
  • Porch, Front: 325 sq. ft.
  • Bonus: 305 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 72' 4"
  • Depth: 48' 4"
  • Max ridge height: 27' 6"

Garage

  • Type: Attached
  • Area: 834 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
Plan 5912ND
View this and more for this plan by visiting www.architechtecturaldesigns.com/5912ND
|
