Three Bedroom Transitional Mediterranean House Plan with Elegant Entry

Plan 340090STR

  • 1,817

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This three bedroom, two bath house plan has features found usually in much bigger homes. It offers walk-in closets in all bedrooms, an ample utility room, a luxurious master bath and many, many closets for storage.
  • The clean, modern Mediterranean styling with barrel tiled roofline and subtle stucco accents gives a rich, sophisticated appearance. The raised entry is graced with an elegant archway.
  • The spacious master bedroom showcases a sliding glass door, bringing the outside in. The luxurious master bath reflects current trends by losing the seldom used tub and instead features a large walk-in shower. Two guest bedrooms reside on the right side of the home. The second bath features a pocket door into the adjacent bedroom, allowing for private use by visiting guests.
  • The two car garage leads into the home through a generous utility room. It offers a built-in counter and cabinets, as well as a linen closet for hanging clothes.
  • Related Plans: Get alternate versions with house plans 340061STR and 340065STR.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

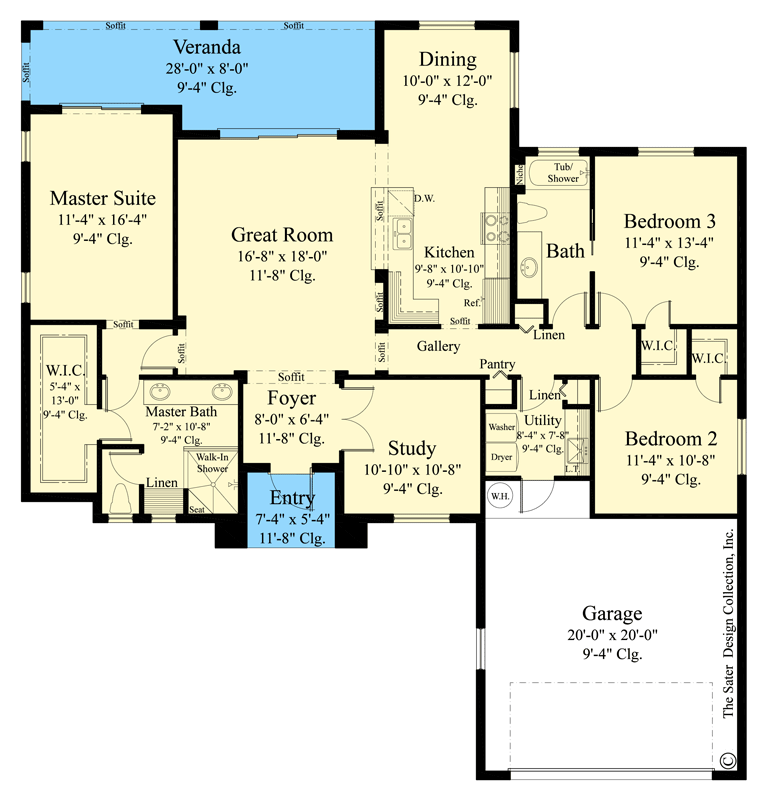

Three Bedroom Transitional Mediterranean House Plan with Elegant Entry - 340090STR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,817 sq. ft.
  • 1st Floor: 1,817 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 57' 4"
  • Depth: 60' 0"
  • Max ridge height: 20' 1"

Garage

  • Type: Attached
  • Area: 466 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Architectural Style

Special features

Three Bedroom Transitional Mediterranean House Plan with Elegant Entry

  • 1,817

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $963
  • CAD - Single-Build $1,635
  • View all purchase option online

About This Plan

  • This three bedroom, two bath house plan has features found usually in much bigger homes. It offers walk-in closets in all bedrooms, an ample utility room, a luxurious master bath and many, many closets for storage.
  • The clean, modern Mediterranean styling with barrel tiled roofline and subtle stucco accents gives a rich, sophisticated appearance. The raised entry is graced with an elegant archway.
  • The spacious master bedroom showcases a sliding glass door, bringing the outside in. The luxurious master bath reflects current trends by losing the seldom used tub and instead features a large walk-in shower. Two guest bedrooms reside on the right side of the home. The second bath features a pocket door into the adjacent bedroom, allowing for private use by visiting guests.
  • The two car garage leads into the home through a generous utility room. It offers a built-in counter and cabinets, as well as a linen closet for hanging clothes.
  • Related Plans: Get alternate versions with house plans 340061STR and 340065STR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,817 sq. ft.
  • 1st Floor: 1,817 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 57' 4"
  • Depth: 60' 0"
  • Max ridge height: 20' 1"

Garage

  • Type: Attached
  • Area: 466 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front
Plan 340090STR
View this and more for this plan by visiting www.architechtecturaldesigns.com/340090STR
|
Need Help? 800-854-7852
|
